Overview
The I31 mini pc is a fanless and compact device that can handle various industrial applications. It is powered by Intel Celeron J1900 quad core processor, which offers high performance and low power consumption. It supports up to 8GB RAM and has multiple storage options, including a mSATA SSD and a 2.5 inch HDD/SSD
The I31 mini pc has a durable and silver aluminum alloy case, which can be customized according to the user’s preference. It can be installed in various ways, such as desktop type or vesa mounting. It has a wide working temperature range from 0℃ to +50℃ (HDD) or -10℃ to +60℃ (SSD) and a high working humidity tolerance from 0% to 95% (non-condensing).
Specifications
| Material | Aluminum alloy |
| Colour | Silver (any color can be customized) |
| Size | 186 x 150 x 66 mm (L*W*H) |
| Weight | 2Kgs |
| Insallation Method | Desktop type |
| CPU | Intel Celeron J1900 quad core 2.0Ghz |
| Network Card | 2 x Intel i211-AT 10/100/1000M lan |
| Graphic | Integrated Intel HD Graphics Card |
| Memory | 1 x DDR3L 31333/1600MHz SODIMM ram slot, support max 8G |
| Storage | 1 x mSATA SSD,1 x 2.5 inch HDD/SSD |
| Display | Support 1*HDMI, 1*LVDS (Support synchronous and asynchronous dual display) |
| Expand | Support 1*Mini-PCIE (support MSATA) |
| Support 1*Mini-PCIE (support WiFi/3G/4G), Embedded SIM Slot | |
| Front Panel | 1 x DC-IN 12V |
| 1 x Audio & MIC | |
| 1 x HDMI | |
| 4 x COM (COM1,COM2 support RS232/485 optional) | |
| 2 x LAN | |
| 1 x USB3.0 | |
| Dual wifi holes | |
| 2 x USB2.0 | |
| Rear Panel | 2 x COM |
| 4 x USB2.0 | |
| 1 x Power Switch | |
| Bios | AMI UEFI BIOS |
| System Support | Windows 7/8/10, Linux OS |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |

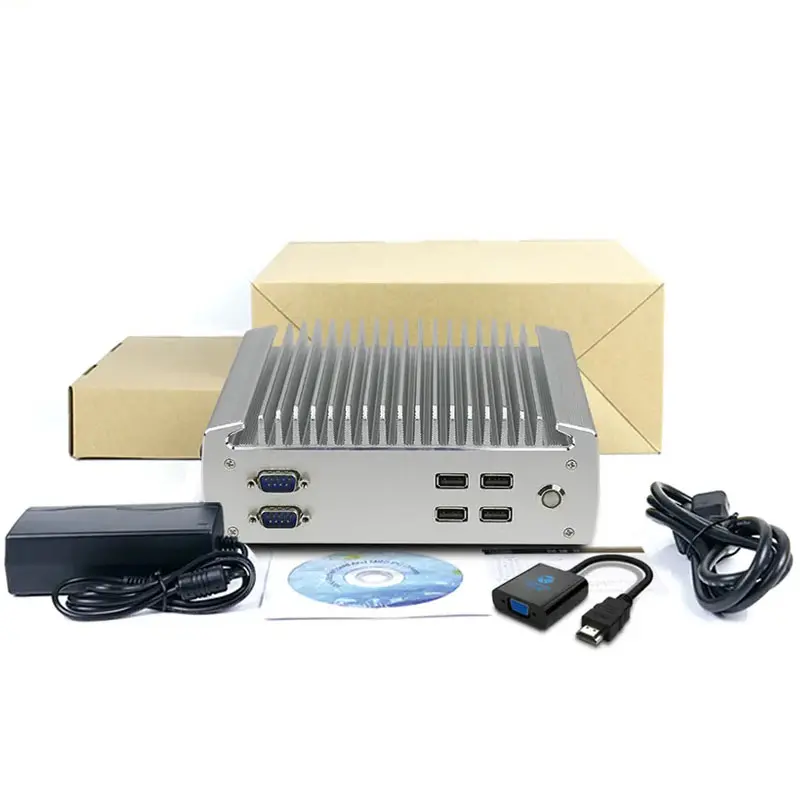

| Packing List | I31 mini pc, power supply, power cord, warranty card |
| Working Temperature | 0℃ ～ +50℃ (HDD), -10℃ ～ +60℃ (SSD) |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Watch Dog Timer | Support |
| Certification | CE FCC ROHS |
