Overview

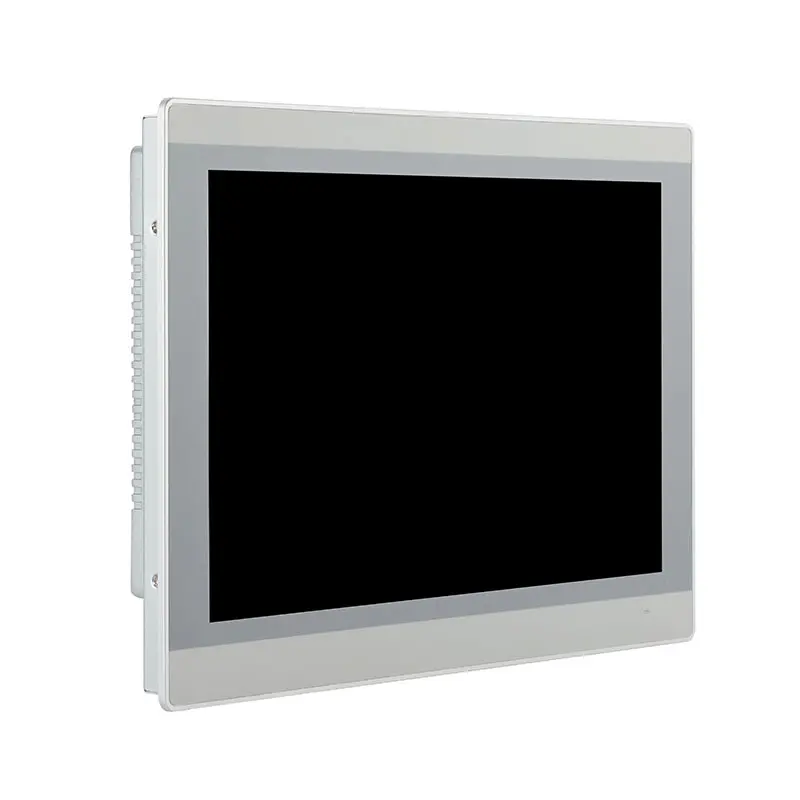

The A3 Panel PC, model A3 PA-133TPC-CE5A, combines high-performance computing with a rugged aluminum alloy design. It features a variety of CPU options, including Intel Celeron, Core i3, i5, and i7 processors, catering to diverse application needs.

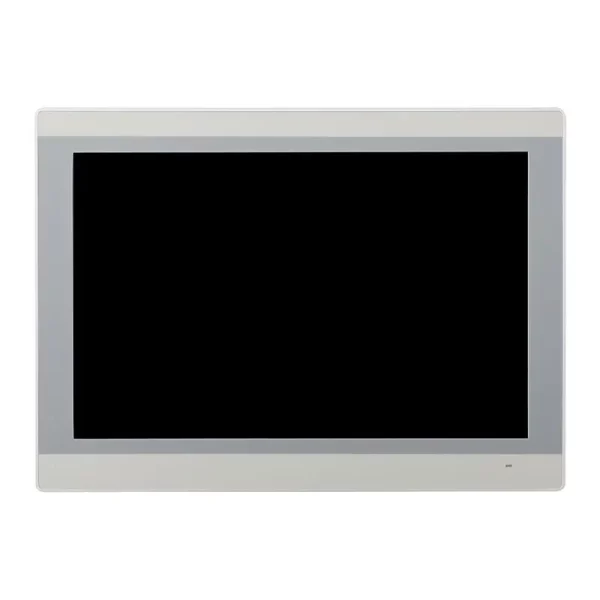

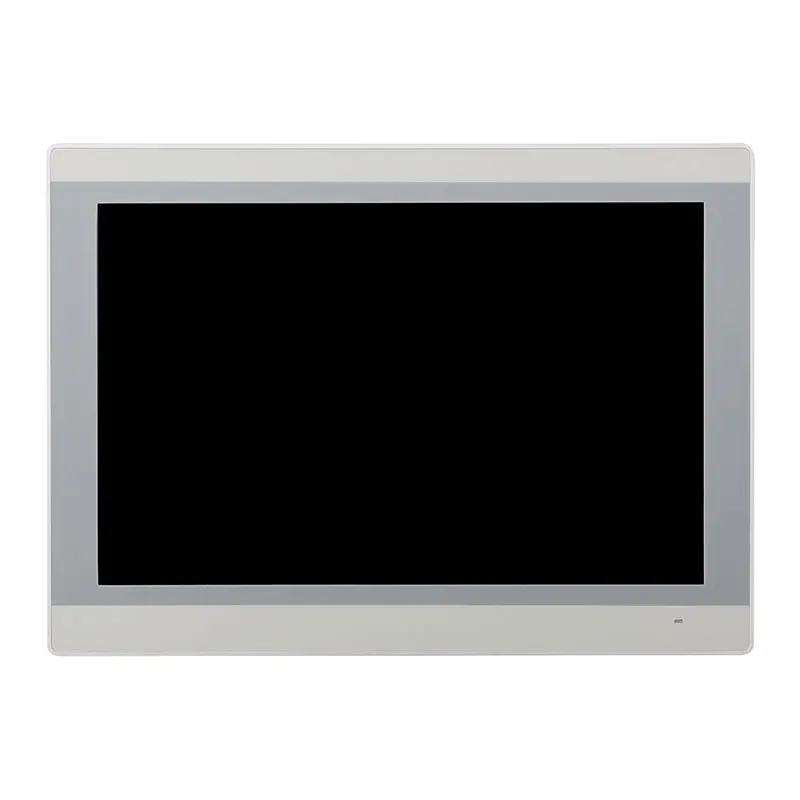

It has a 13.3″ TFT LCD display with LED backlight, with a resolution of 1280 x 800, a brightness of 300cd/m2, a contrast of 800, and a backlight life of 20,000 hours (min.). It also has an imported resistive touch screen, with a transmittance of 80±5% at 550 nm wavelength, a durability of ≥35 million times, and a USB interface controller. It supports VGA, HD OUTPUT, LVDS synchronous/asynchronous display modes, for different display scenarios and resolutions
Specifications
| Material | Aluminum alloy |
| Model | A3 PA-133TPC-CE5A |
| Opening Hole | 326 x 232mm |
| Size | 334.2 x 229.85 x 52.5 mm |
| Weight | 4Kgs |

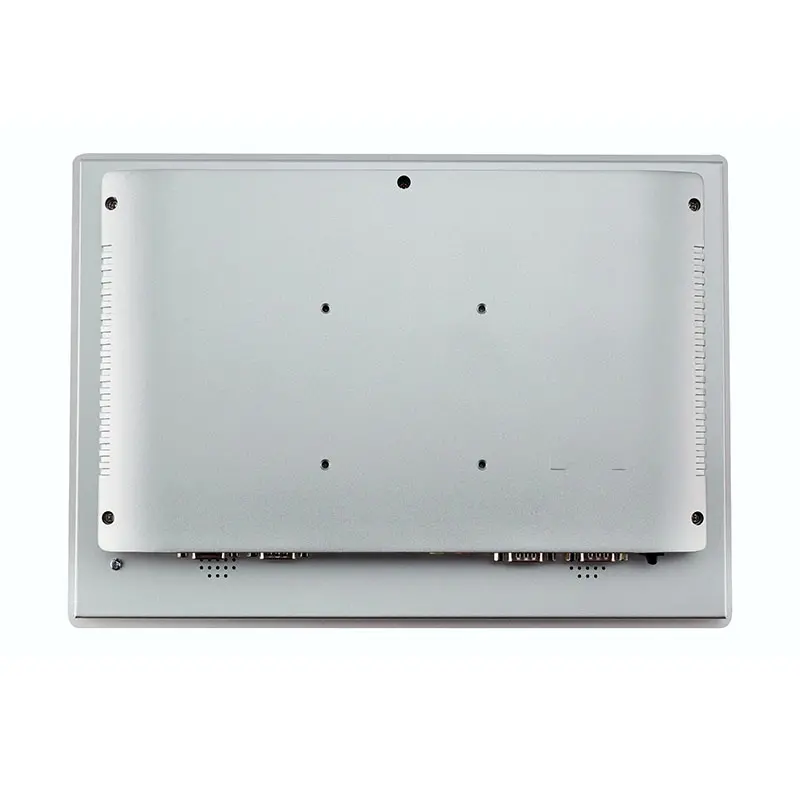

| Insallation Method | Embedded recommended/Wallmounted/Desktop/Cantilevered etc |
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
| Intel Core I5 Gen. 3th CPU, ship one of them | |
| Intel Core I3 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 4th CPU, ship one of them | |
| Intel Core I5 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 11th CPU, ship one of them | |
| Intel Core I7 Gen. 6th CPU, ship one of them | |
| Intel Core I5 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 8th CPU, ship one of them | |
| Intel Core I7 Gen. 11th CPU, ship one of them | |
| Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz) | |
| Chipset | Intel SOC |
| Watchdog Timer | 255 levels |
| Network Card | 1 x 10/100/1000 Mbps Ethernet |
| WiFi and Bluetooth | N/A, optional to add |
| Memory | 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM |
| 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM(J6412) | |
| Storage | 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD |
| 1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD(J6412) | |
| Expand | 1 x Full-size Mini PCIe slot |
| Touch Type | Imported resistive touch screen |
| Durability (Number of Touches) | ≥35 million times |
| Transmittance | 80±5% at 550 nm wavelength |
| Controller | USB interface |
| Display Type | 13.3″ TFT LCD (LED backlight) |
| Resolution | 1280 x 800 |
| Perspective | 70(Left), 70(Right), 55(Up), 55(Down) |
| Brightness | 300cd/m2 |
| Contrast | 800 |
| Backlight Life | 20,000 hours (min.) |

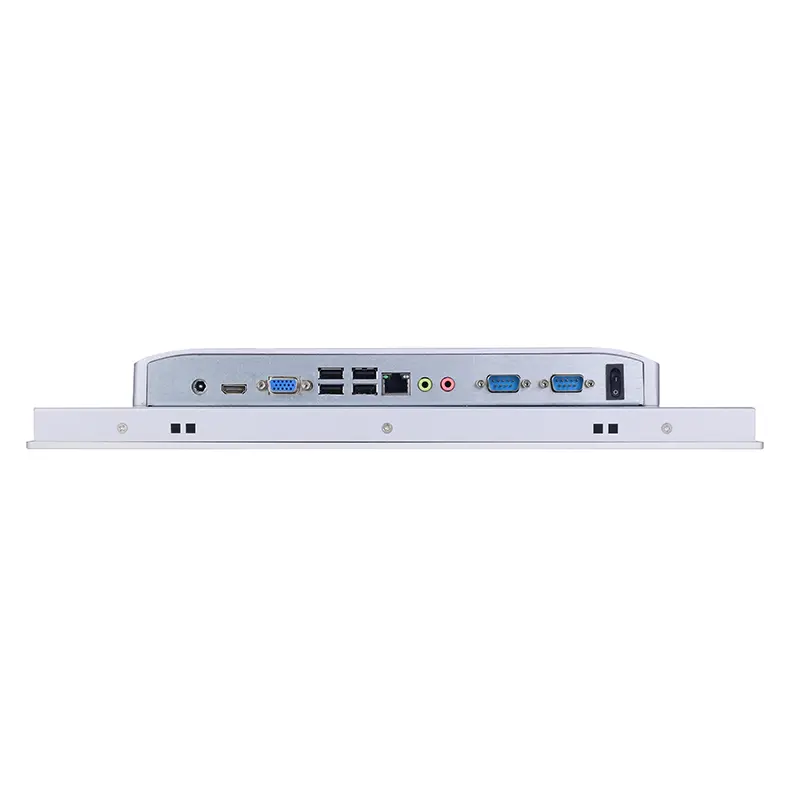

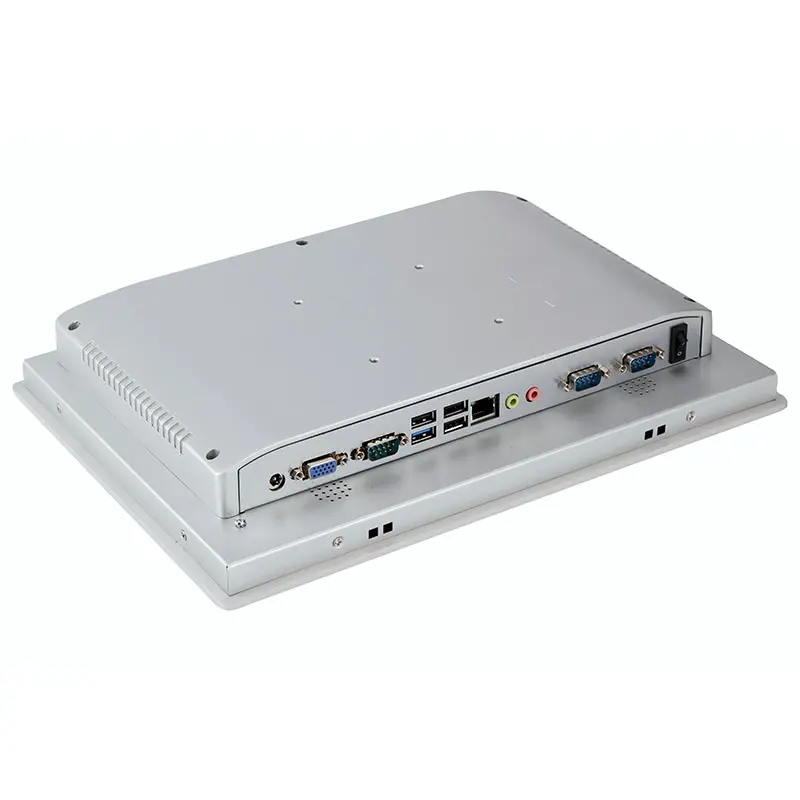

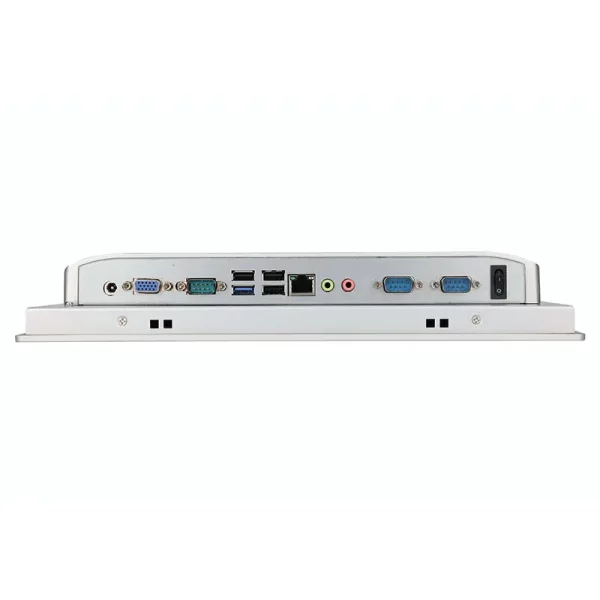

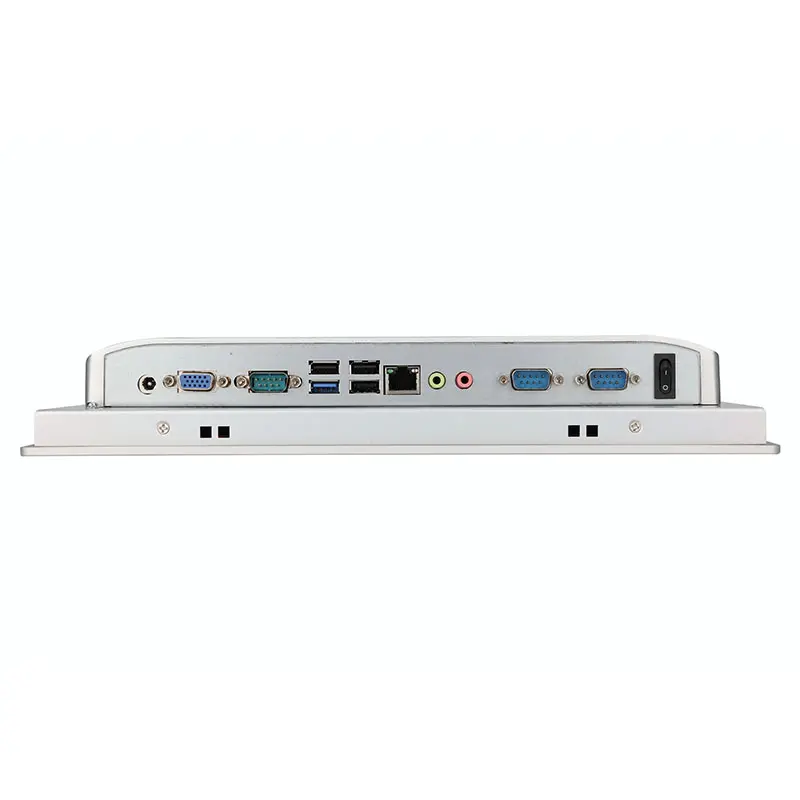

| J1900/3th I5/4th I3/4th I5/6th I5 | 1 x 12V DC |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x LAN | |
| 1 x AUDIO-IN&OUT | |
| 2 x COM | |
| 1 x POWER_SW | |
| J6412 | 1 x 12V DC |
| 3 x COM | |
| 1 x HDMI | |
| 4 x USB3.0 | |
| 2 x LAN | |
| 1 x AUDIO | |
| 1 x POWER_SW | |
| Bios | AMI BIOS |
| System Support | Windows 7 32bit&64bit / Windows 8.1 32bit&64bit |
| Windows 10 32bit&64bit/WES7/Linux | |
| Cooling Mode | Fanless/Smart fan |
| Power Supply | DC100-240V AC/50-60Hz, 12V |
| Packing List | A3 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Operating Temperature | 0 ~ 50°C with SSD, 0 ~ 40°C with HDD |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 95% @ 40 ℃ without condensation |
| Certification | CE FCC ROHS |
| Front panel protection | IP65 standard |
