Overview

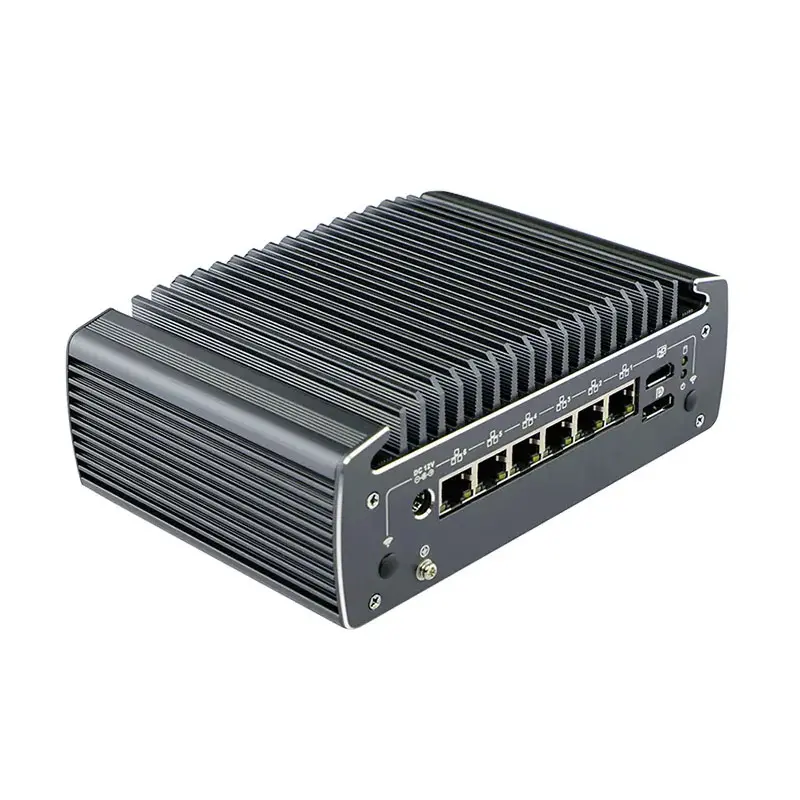

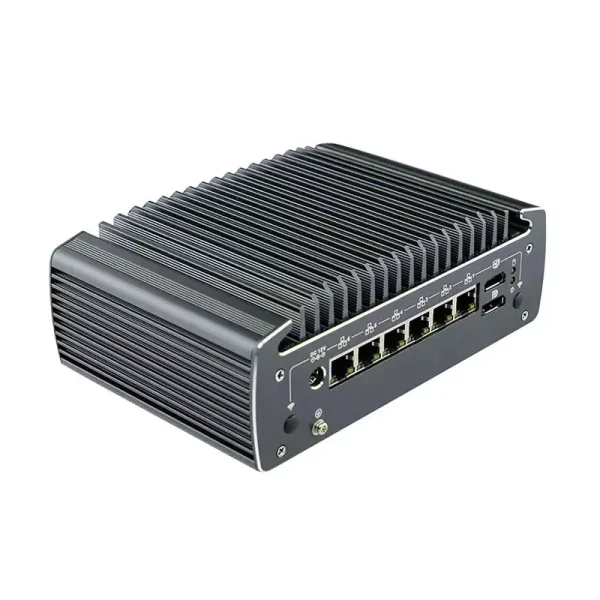

The C9 Mini PC is an exceptional network computing solution, expertly crafted with high-quality, anodized aluminum, available in customizable metal gray. Its compact dimensions, measuring 186 x 126.5 x 66mm, and weight of 2.5Kgs, offer versatility in installation with desktop or VESA mounting options.

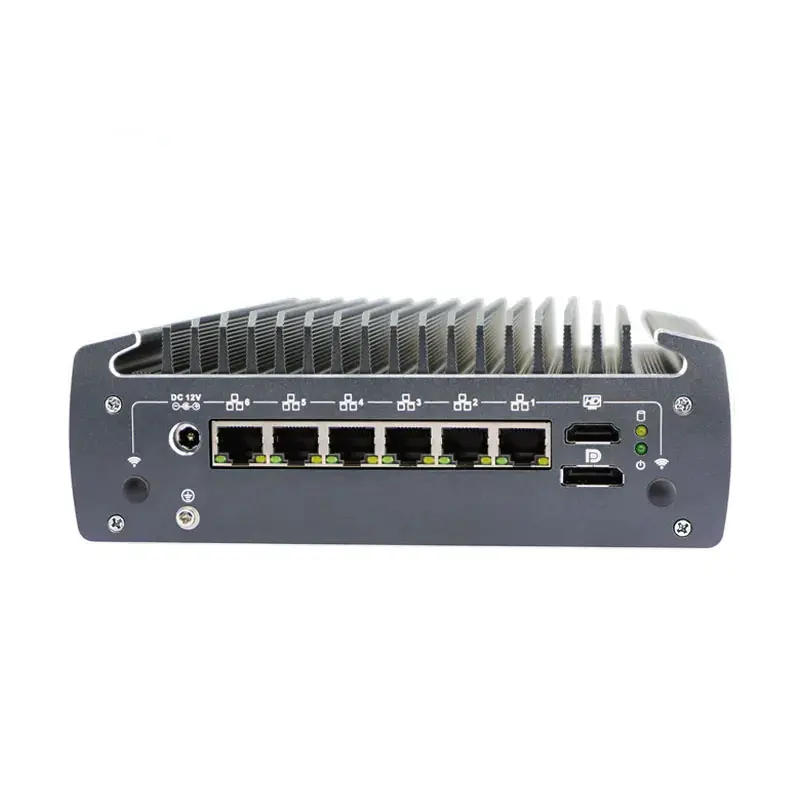

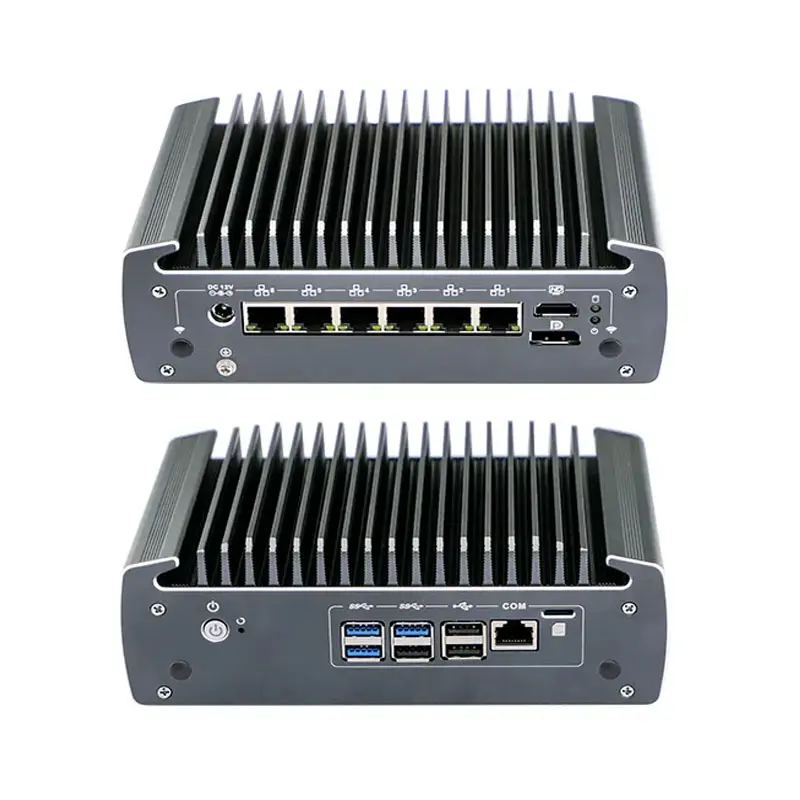

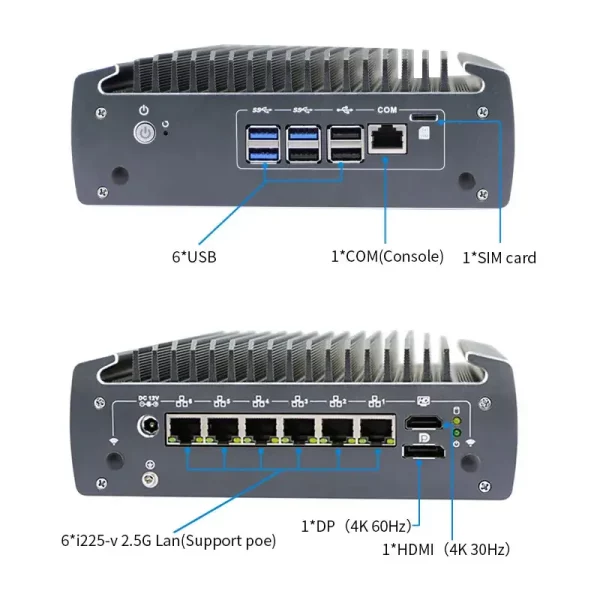

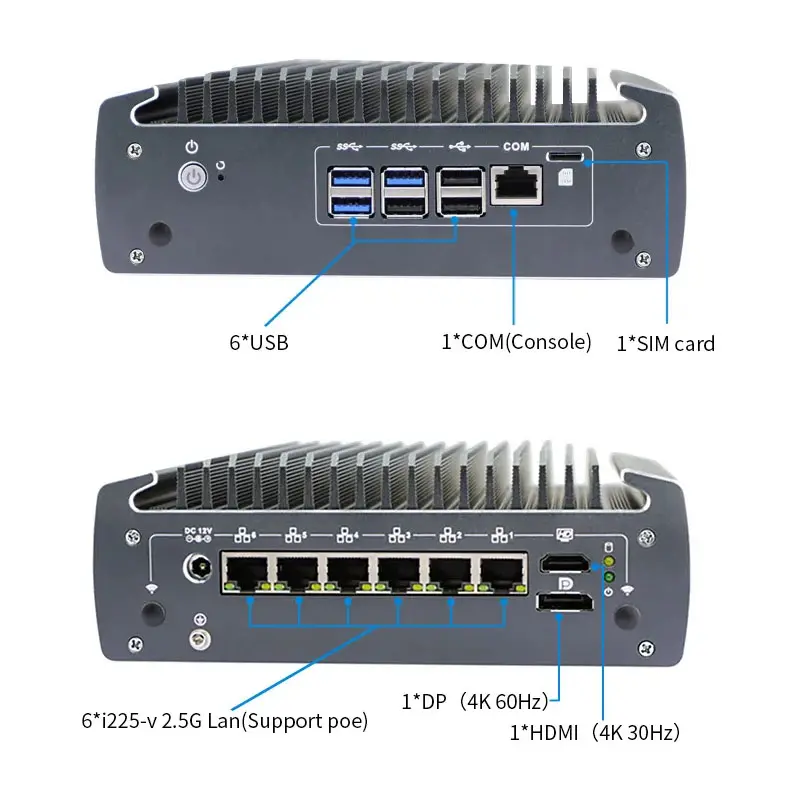

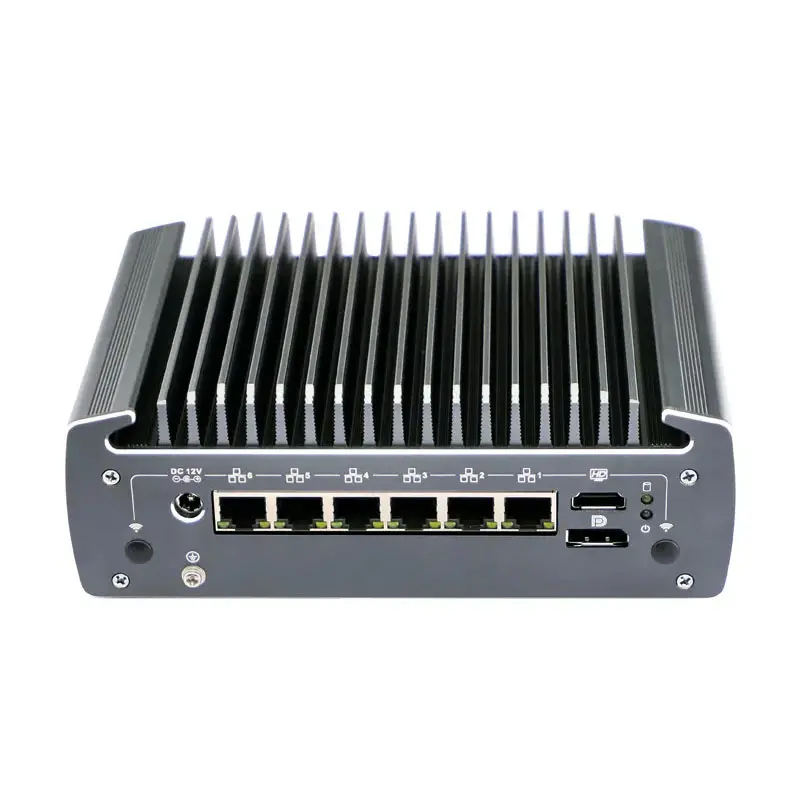

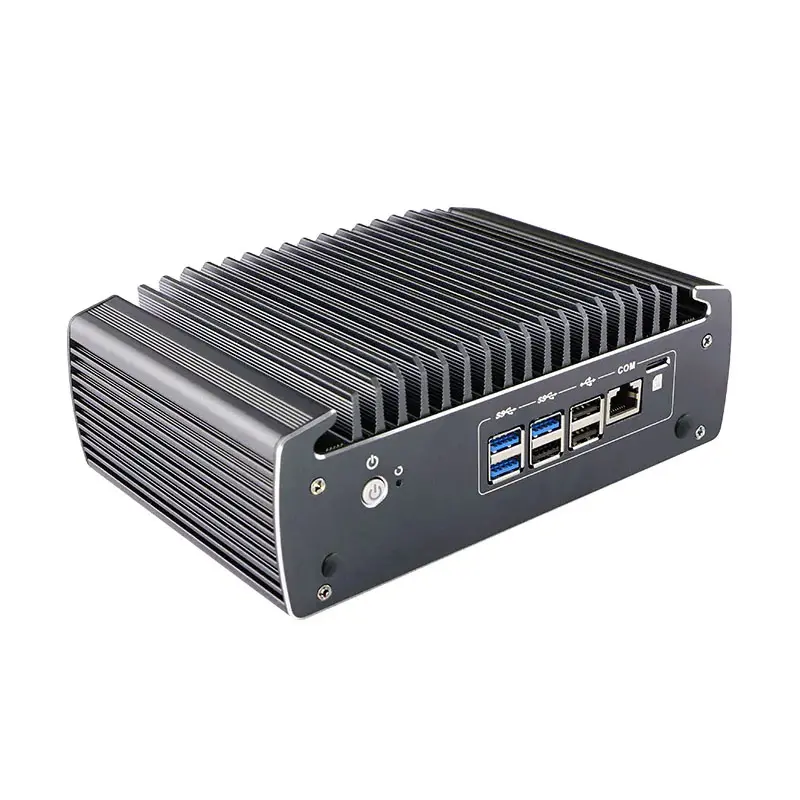

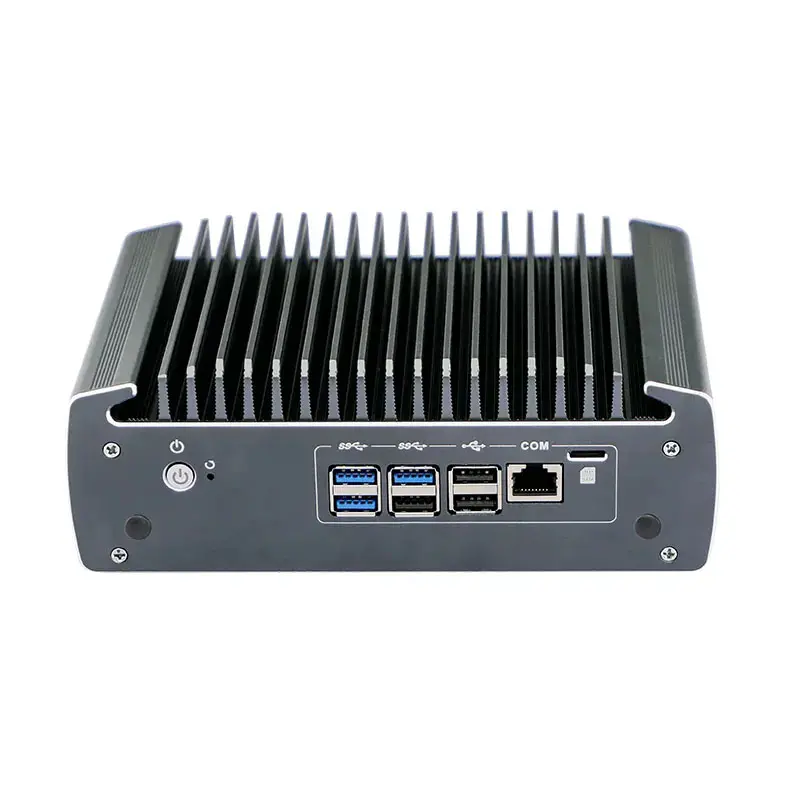

The front panel offers convenient access to multiple USB 3.0 and 2.0 ports, power switch, and RJ45 COM for console support. On the rear panel, you’ll find six LAN ports, DC input, HDMI, and DP.
The C9 Mini PC boasts an impressive array of network connectivity with six Intel i225-v 2.5G LAN ports, and LAN3-6 can be configured with 802.3af standard POE LAN as an option. Display versatility is ensured with 1 x HD and 1 x DP supporting synchronous/asynchronous dual display, and DP interface resolution up to 4096*2160@60Hz.
Memory options include 2 x DDR4 2666 MHz SODIMM RAM slots, accommodating up to 64GB. Storage is flexible, featuring an M.2 slot and a 2.5-inch SSD/HDD bay that supports RAID 0/1 for data security.
Specifications
| Material | High-quality all aluminum,Surface anodic oxidation |
| Colour | Metal gray (Color can be customized) |
| Size | 186 x 126.5 x 66 mm |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| CPU | Intel Core i3 10110U(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz) |
| Intel Core i5 10210U(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz) | |
| Intel Core i7 10810U(Six core,12 threads,1.1GHz,Max.Turbo 4.9GHz) | |
| Graphics | Intel UHD Graphics |
| Network Card | 6 x intel i225-v 2.5G Lans, LAN3-6 can be 802.3af standard POE lan(option) |
| Dispaly Port | 1 x HD,1 x DP (Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz) |
| Memory | 2 x DDR4 2666 MHz SODIMM RAM slot,Max. 64 GB |
| Storage | 1 x M.2, 1 x 2.5 Inch SSD/HDD, support RAID 0/1 |
| Expand | 1*M.1 2280 M-Key slot(Support SATA protocol and NVME protocol) |
| 1*M.2 3052 B-Key slot(Support USB3.0 protocol,support 4G/5G) ,1* Nano-SIM slot on the plate | |
| 1*M.2 2230 E-Key slot(Support WIFI/BT) | |
| Front Panel | 3 x USB3.0 |
| 3 x USB2.0 | |
| 1 x Power Switch | |
| 1 x RJ45 COM(support Console) | |
| 1 x RJ45 COM(Support Console) | |
| Rear Panel | 6 x LAN |
| 1 x DC | |
| 1 x HDMI | |
| 1 x DP | |
| Bios | AMI UEFI BIOS |
| System Support | Windows 10/11, Linux, pfSense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V-IN power supply and AC power adapter |

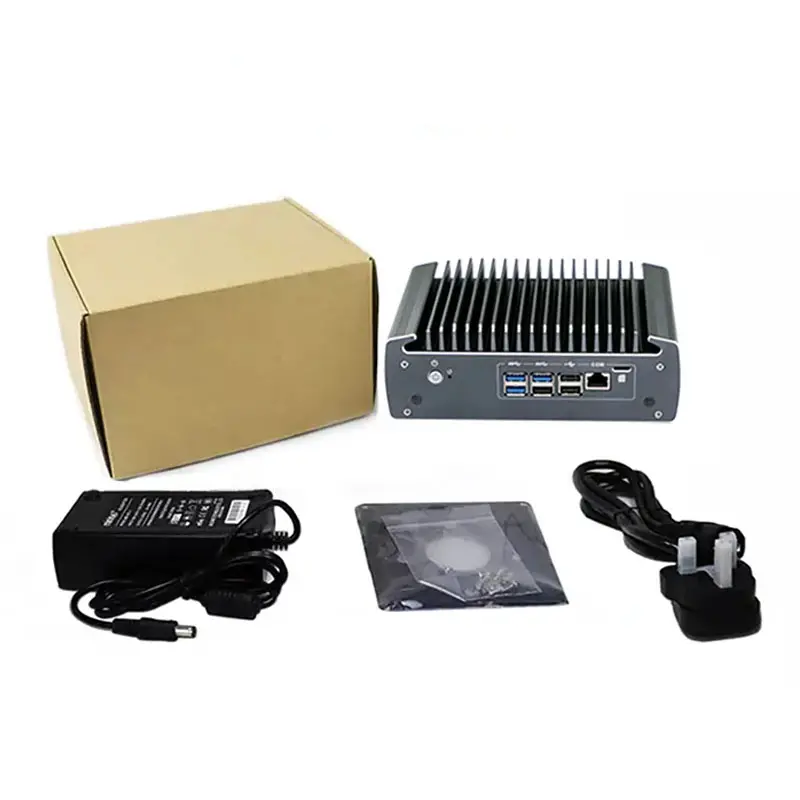

| Packing List | C9 mini pc, power supply, power cord, vesa, warranty card |
| Working Temperature | 0℃ ～ +50℃(Commercial HDD), -20℃ ～ +50℃（(Industrial SSD), Surface air flow |
| Working Humidity | 0% – 95% relative humidity, Non-condensing |
| Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0~255 level) |
| Certification | CE FCC ROHS |
| Application | Firewall, VPN, Network server, Network security, Router etc. |
