C3 J3160 PfSense Firewall with 4 LAN and VPN Support

  • Space-Saving and Easy to Fit Anywhere
  • Features a Powerful Intel Celeron J3160 Processor.
  • Equipped with 4 Intel i211AT 1000M LAN ports.
  • Supports MSATA and 2.5″ HDD/SSD.
  • Wide Operating Temperature Range: Ideal for Diverse Environments.
  • No Noisy Fans for a Quiet Workspace.
  • Wake-On-LAN Support Allows Remote Booting and Management.

Share to:

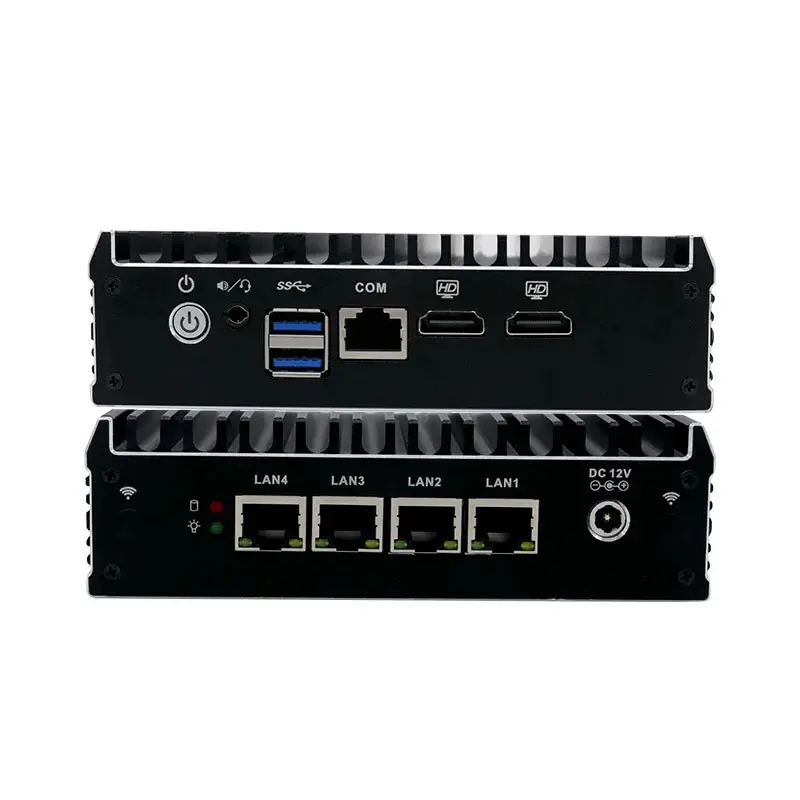

The C3 mini pc has a rich interface, with 4 x Intel i211AT 1000M lan, 2 x USB3.0, 1 x RJ45 COM(support Console), 2 x HDMI(no sound), and 1 x Audio/SPK on the front and rear panels. It also has 2 x Mini-PCIE slots, one for mSATA and one for WiFi/BT(optional)

At its core, the C3 is powered by an Intel Celeron J3160 Quad-Core CPU with a clock speed of 1.6 GHz, based on the Braswell architecture. It boasts four Intel i211AT 1000M LAN ports, all supporting wake-on LAN, and features an integrated Intel chipset.




Material Aluminum alloy
Colour Black(color can be customized)
Size 144 x 107.5 x 42 mm (W*D*H)
Weight 1.5Kgs
Insallation Method Desktop type
CPU Intel celeron J3160 Quad Core 1.6Ghz
CPU Architecture Braswell
Network Card 4 x Intel i211AT 1000M lan, support wake on lan
Chipset Intel Integrated Chipset
Memory 1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G
Storage 1 x mSATA,1 x 2.5 inch HDD/SSD

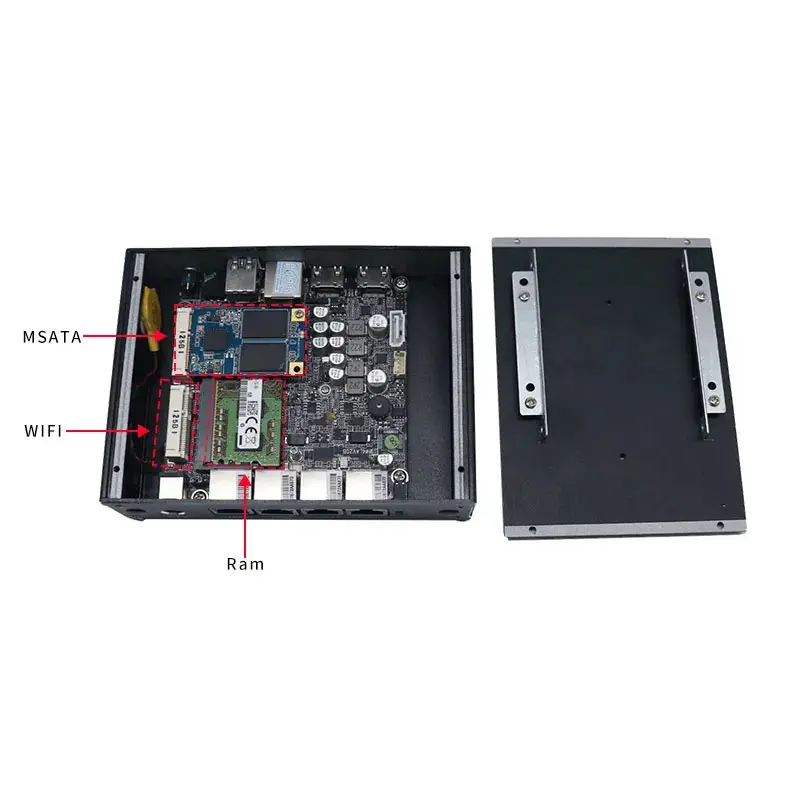

Expand 1 x Mini-PCIE(support MSATA),
1 x Mini-PCIE(support WiFi/BT optional)

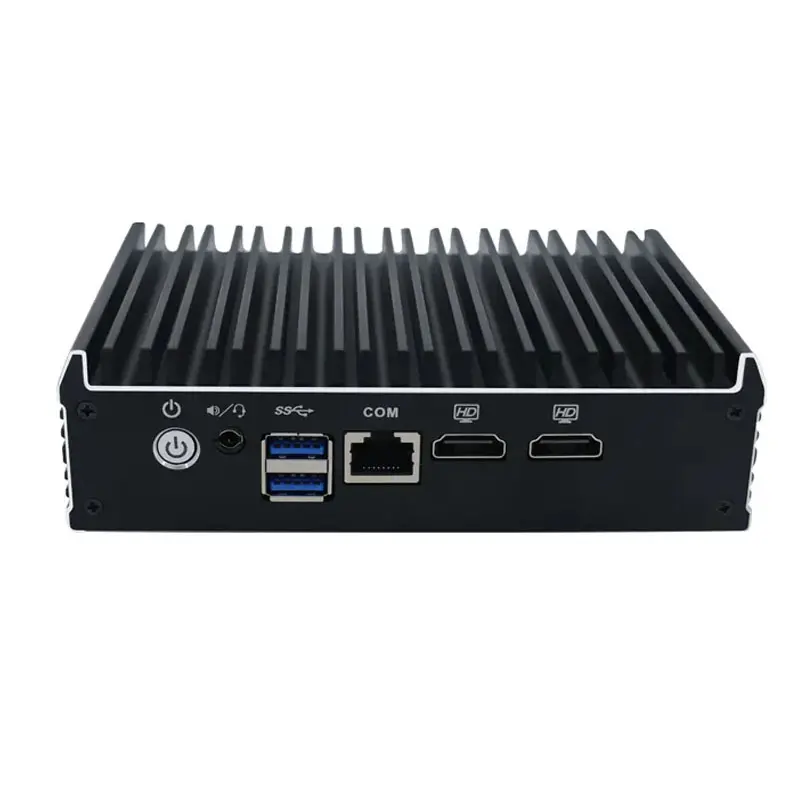

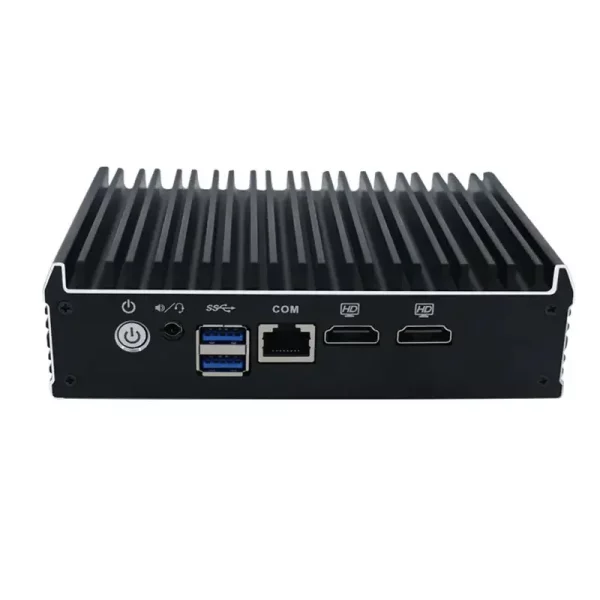

Front Panel 1 x Power Switch
1 x Audio/SPK
2 x USB3.0
1 x RJ45 COM(support Console)
2 x HDMI(no sound)

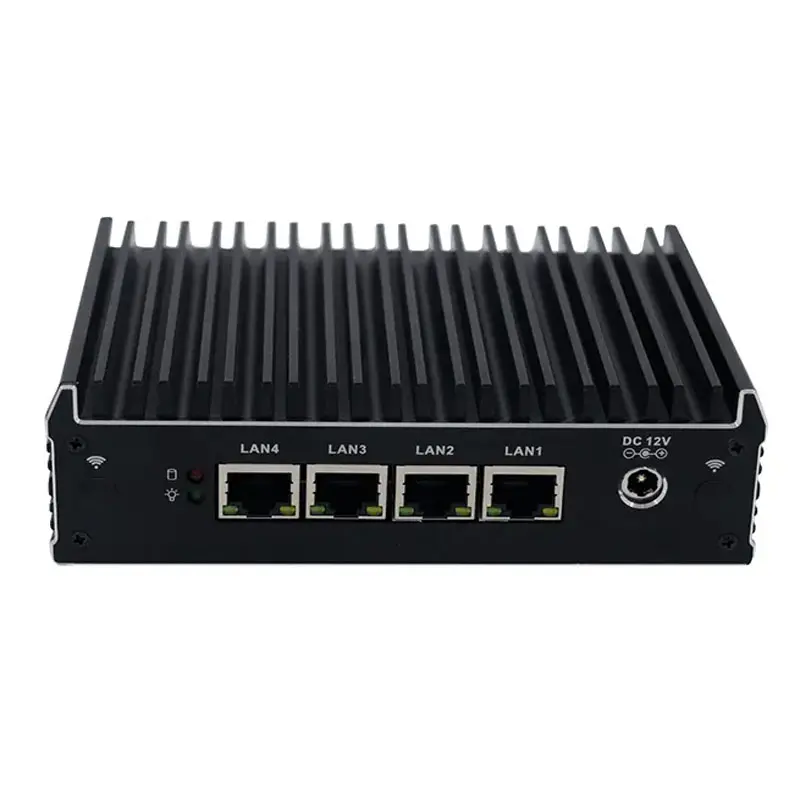

Rear Panel 4 x LAN
1 x DC-IN 12V
Bios AMI 64Mbit Flash ROM
System Support Windows 7/8/10, Linux, Pfsense
Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

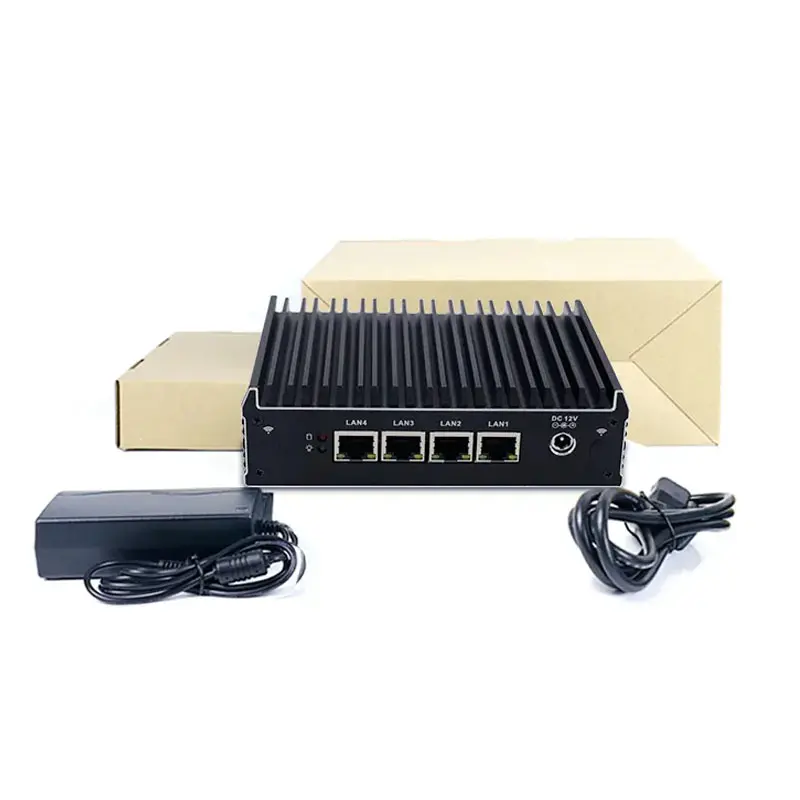

Packing List C3 mini pc, power supply, power cord, warranty card
Working Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +50°C (industrial SSD), surface air flow
Working Humidity 5% – 95% relative humidity, Non-condensing
Other Function Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog (level 0~255)
Certification CE FCC ROHS



Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C3 J3160 Intel® HD Graphics 1.6~2.24GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 4 2 12V/4A
