B5 Mini PC with TPM 2.0 and 2 COM Ports

  • Enhanced Security and Data Protection with TPM 2.0 Chip
  • High-Speed Network Connectivity with Dual 2.5G LAN ports
  • Dual Display Output with HDMI and DP ports, Supporting 4K Resolution
  • With DDR4 RAM, M.2 SSD, and 2.5″ HDD, Supporting RAID 0/1
  • Auto Power On, Timing Boot, Wake on LAN, PXE Boot, and Watchdog
  • Wireless Communication Support with Optional WIFI/3G/4G Module SIM Slot
  • Legacy Device Compatibility with Two COM ports, Supporting RS232 or RS485 mode

Share to:



The B5 is a compact and powerful mini PC that features a TPM 2.0 chip for enhanced security and data protection. It supports dual 2.5G LAN ports for high-speed network connectivity, and two COM ports for legacy devices. The B5 also offers a HDMI port and a DP port for dual display output, allowing you to enjoy stunning 4K visuals. Whether you need a reliable workstation, a versatile media center, or a smart home hub, the B5 can handle it all with ease.




Material Aluminum alloy
Colour Gray(color can be customized)
Size 166 x 127 x 55.5 mm (W*D*H)
Weight 2.5Kgs
Insallation Method Desktop type
CPU Intel Core i5 7360U(Dual core quad threads, 2.3GHz, Max turbo 3.6GHz)
Graphic Intel Iris Plus Graphics 640
Network Card 2 x Intel i225-V 2.5G 1000/2500M LAN
Memory Support 1 x DDR4 1866/2133 MHz SODIMM RAM Slot, Max. Support 16GB
Storage 1 x M.2 2280 slot,1 x 2.5” HDD,Support RAID 0/1
Expand 1 x M.2 2280 M-Key slot(Support SATA protocol and NVME protocol )
1*MINI PCIE slot(WIFI/3G/4G Optional), SIM slot on front plate
Front Panel 2 x COM(COM1, COM2 RS232 or RS485 mode Optional)
4 x USB3.0
1 x Power Switch
1 x SIM slot

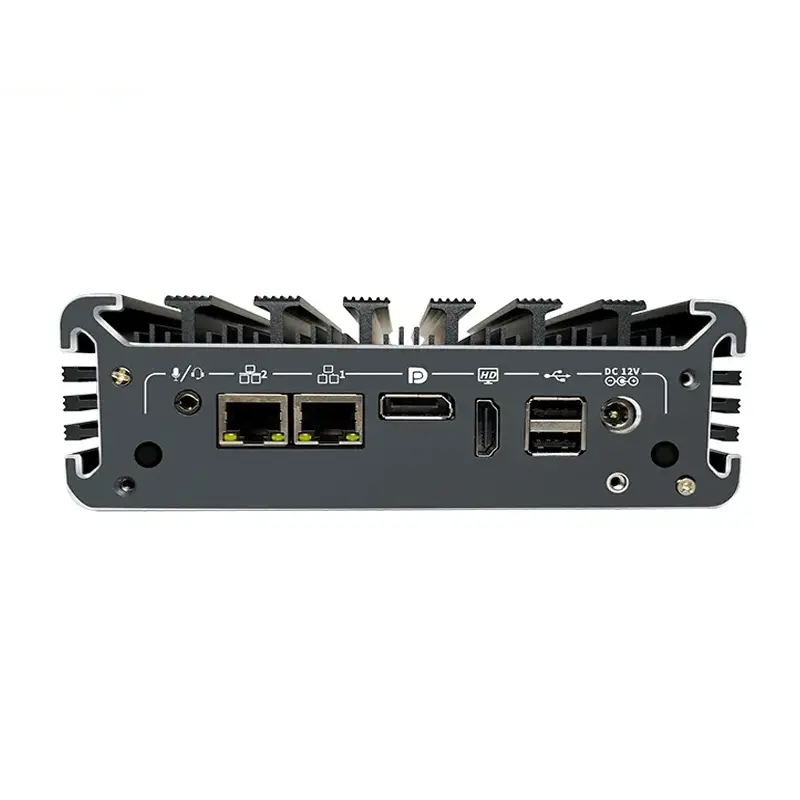

Rear Panel 1 x DC
2 x USB2.0
1 x HDMI
1 x DP
1 x Audio (Support Mic and Speaker at the same time)
2 x Intel i225-V 2.5G LAN
System Support Windows & Linux
Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

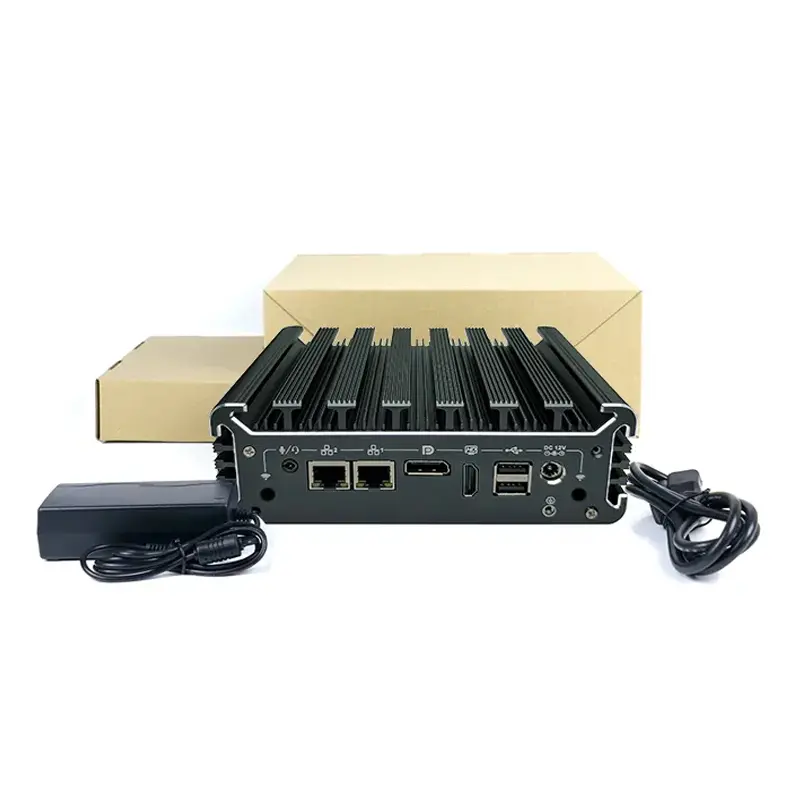

Packing List B5 mini pc, power supply, power cord, warranty card
Working Temperature 0℃ ~ +40℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow
Working Humidity 5% – 95% relative humidity, Non-condensing
Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B5 I5 7360U Intel® Iris Plus Graphics 640 2.3~3.6 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 6 12V/5A
