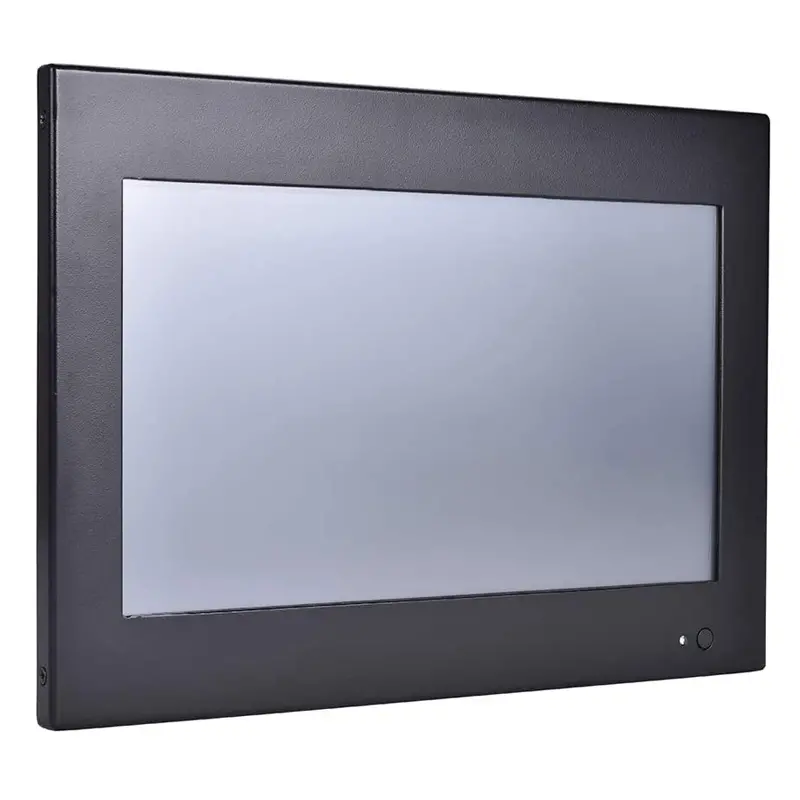

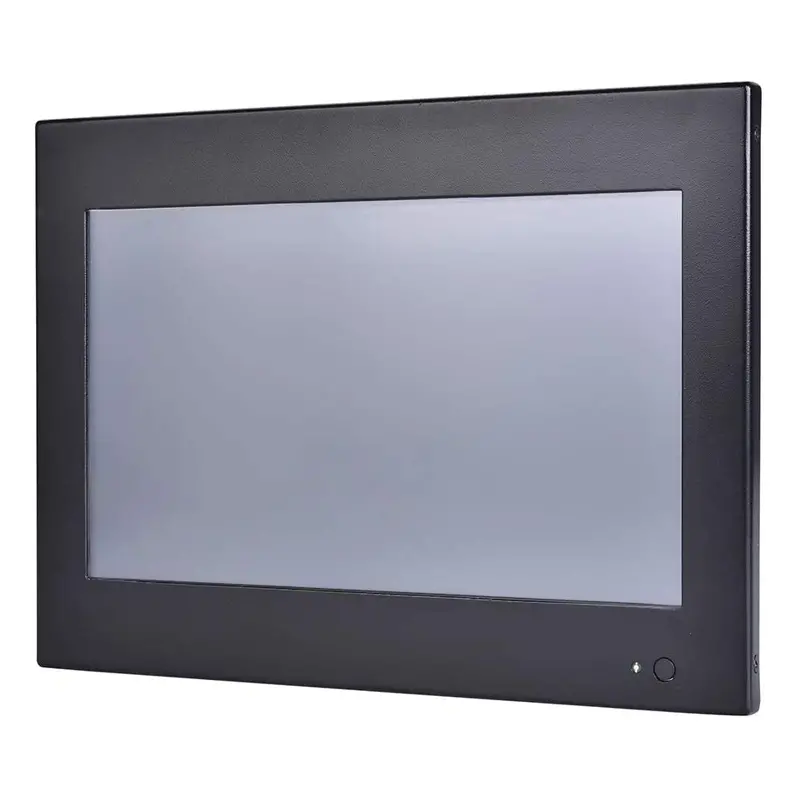

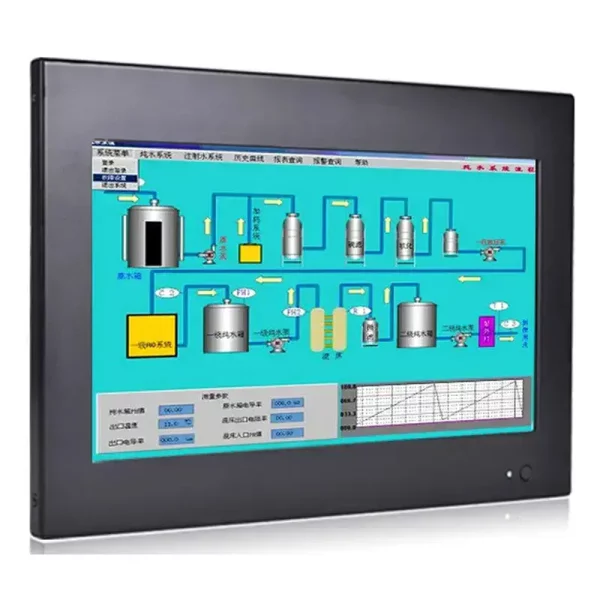

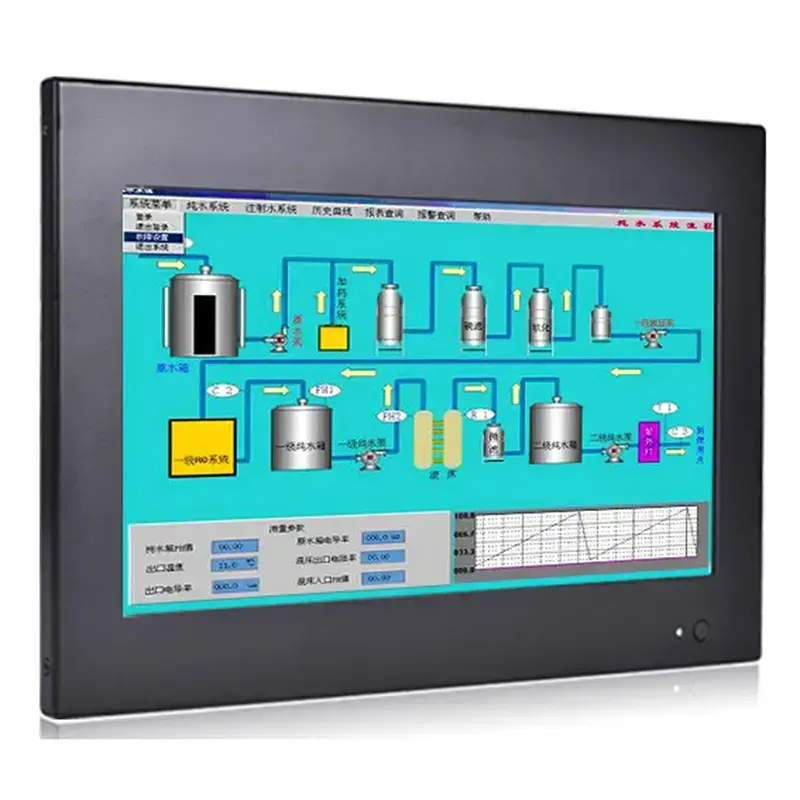

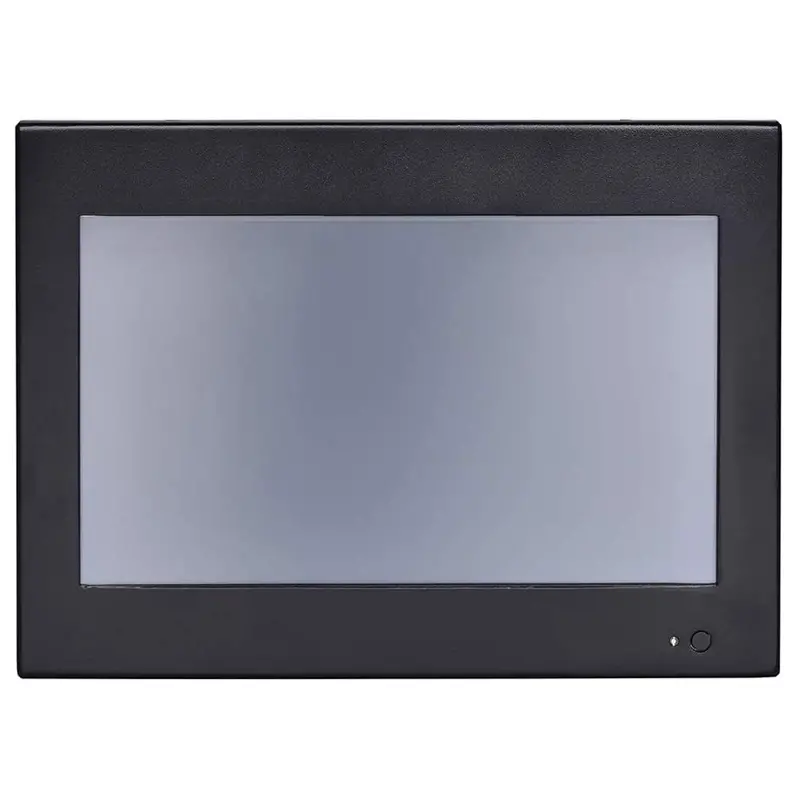

10.1 Inch All In One Touch Tndustrial Panel PC Computer

  • Compact Design, Versatile Installations
  • Effective Network Connectivity Solutions
  • Rugged, IP65 Front Panel Protection
  • 10.1″ Industrial Grade LED with 1024 x 600 Resolution and Contrast
  • 10-Point Capacitive Touch Screen for Smooth and Responsive Operation
  • Mini PCIE Slot for WiFi/4G Connectivity, With Sim Slot

Share to:



The Z6 PA-101TPC-B3, crafted with durable aluminum alloy, hosts a variety of Intel processors offering flexible performance. With a 10.1-inch LED display and robust 10-point capacitive touch technology, it delivers reliable industrial-grade use. Extensive connectivity, from multiple USB ports to expandable storage, enables versatile applications. Its fanless design and multiple installation options, including embedded and wall-mounted, make it suitable for various environments. With a standard operating temperature range of 0 to 50°C and an IP65-rated front panel, it ensures reliability and durability under challenging conditions. This panel PC, with its comprehensive features and certifications, stands as a dependable choice for industrial settings




Material Aluminum alloy
Model Z6 PA-101TPC-B3
Opening Hole 227 x 183mm (L x W)
Size 270 x 192 x 47mm
Weight 3Kgs
Insallation Method Embedded recommended/Wallmounted/Desktop/Cantilevered etc
CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
4th/6th Gen I5/I7 optional
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x 10/100/1000 Mbps Ethernet
WiFi and Bluetooth N/A, optional to add
Memory 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD
Expand 1 x Mini PCIE slot for WiFi/4G, with sim slot
Touch Type 10 Points Capacitive Touch Screen
Durability (Number of Touches) > 50 million times
Transmittance 86±5% at 550 nm wavelength
Controller USB interface
Display Type Industrial grade 10.1 inch LED
Resolution 1024 x 600
Lumens (cd/m2) 200
Contrast 400
Backlight Life 10,000 hours (Min.)
Front Panel 1 x Power switch
J1800/J1900/3855U 1 x DC_in

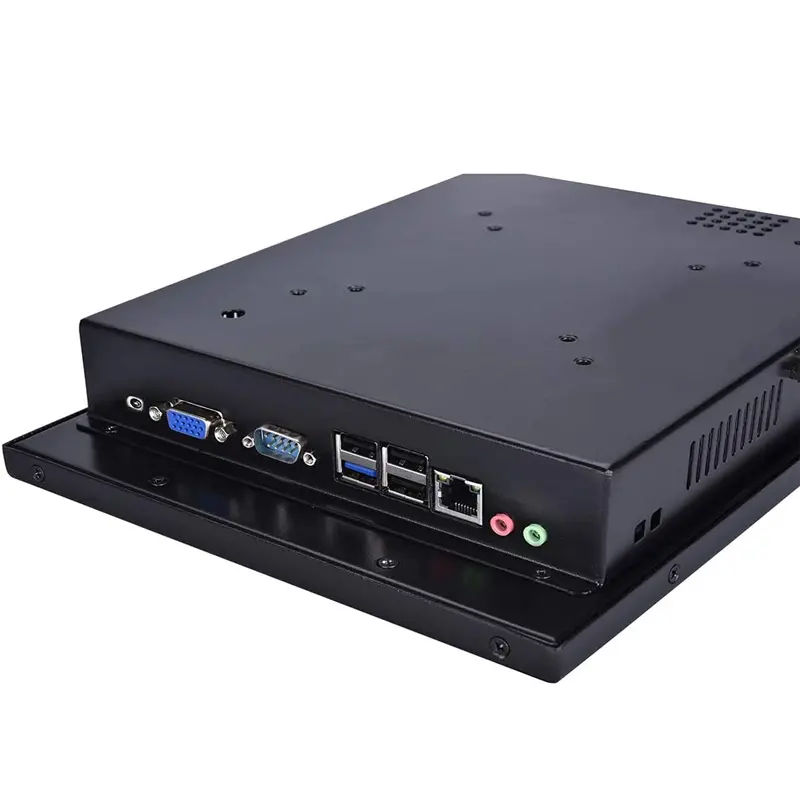

Rear Panel 1 x VGA
3 x COM
4 x USB2.0
1 x Lan
1 x Audio
I3/I5/I7 1 x DC_in
Rear Panel 1 x HDMI
1 x VGA
4 x USB2.0
1 x Lan
1 x Audio
2 x COM
System Support Windows 7 32bit&64bit / Windows 8.1 32bit&64bit
Windows 10 32bit&64bit/WES7/Linux
Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, 12V
Packing List Z6 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
Operating Temperature 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature -20 ℃ ~ 60 ℃
Operating Humidity 10% ~ 95% @ 40 ℃ without condensation
Certification CE FCC ROHS
Front panel protection IP65 standard


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Cooling System Graphics Frequency Display Memory Storage LAN COM USB Power
Z6 J1800 Fanless Intel® HD Graphics 2.58~2.41 GHz VGA 1 x SO-DIMM DDR3L 1 x M-SATA 1 3 4 12V/4A
Z6 J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz VGA 1 x SO-DIMM DDR3L 1 x M-SATA 1 3 4 12V/4A
Z6 3855U Smart fan Intel® HD Graphics 510 1.60 GHz VGA 1 x SO-DIMM DDR3L 1 x M-SATA 1 3 4 12V/4A
Z6 I5 3317U Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x M-SATA 1 2 4 12V/5A
Z6 I7 3537U Smart fan Intel® HD Graphics 4000 2.00~3.10 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x M-SATA 1 2 4 12V/5A


J1800:  3*USB2.0, 1*USB3.0, 3*COM

J1900:  3*USB2.0, 1*USB3.0, 3*COM

3855U:  2*USB2.0,2*USB3.0,3*COM

I5 3317U:  4*USB2.0/2*COM

I7 3537U:  4*USB2.0/2*COM
