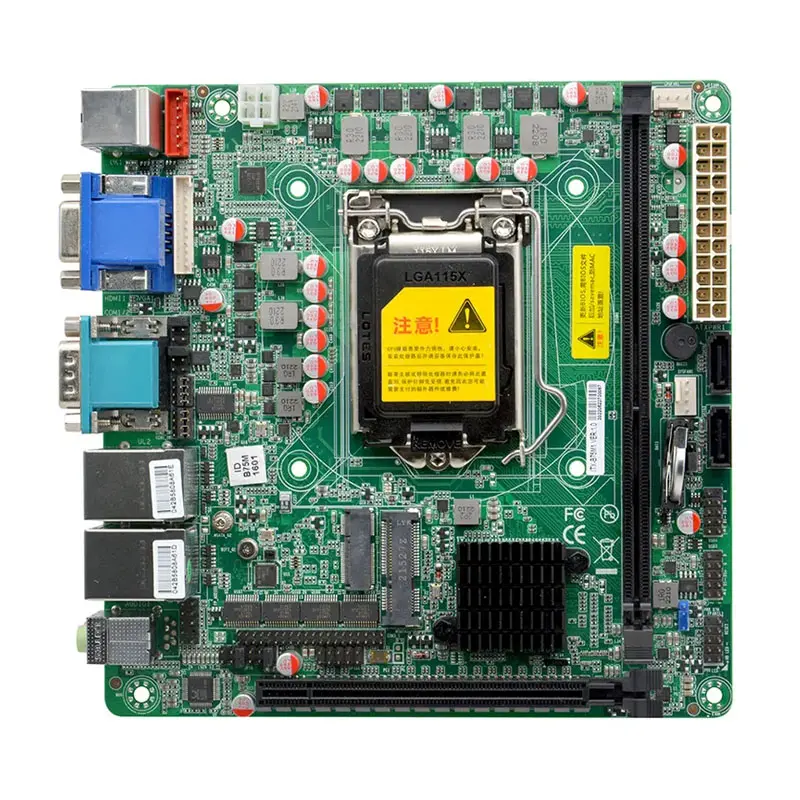

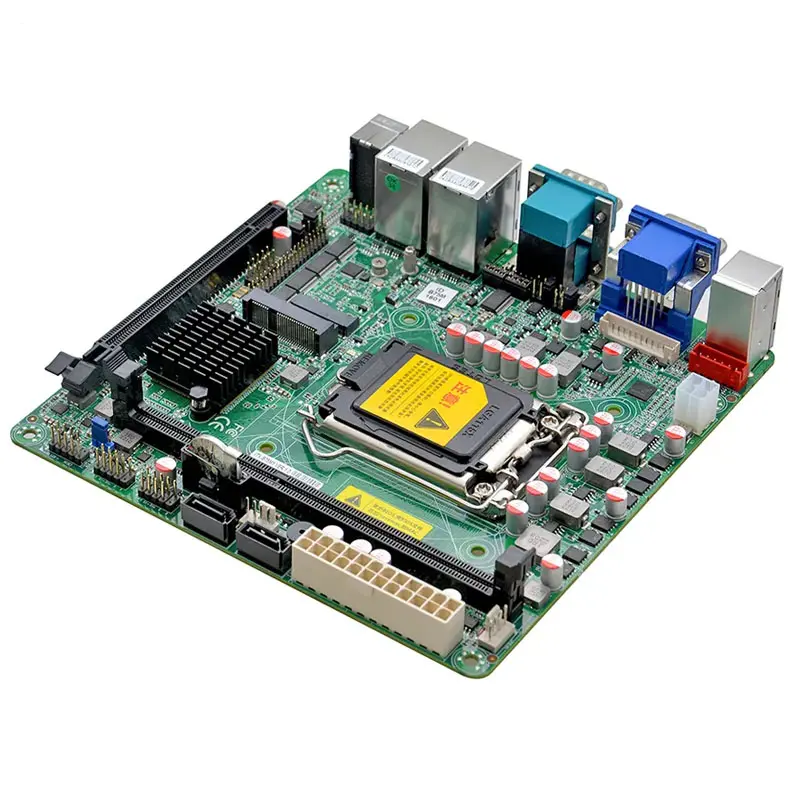

Z77 Chipset Motherboard LGA1155 DDR3 Gigabit LAN

  • 1 VGA and 1 HD OUTPUT1.4 ports
  • Supporting Network Wake up and PXE Functions
  • 2 SATA2.0 Hard Disk Interfaces and 1 MSATA SSD Interface
  • 1 PCIE2.0 x16 Slot and 1 M.2 slot for WiFi Expansion
  • 10 USB interfaces (4 USB3.0 and 6 USB2.0) and 6 serial ports
  • Supports BIOS Setting for Auto Power on and Wake on LAN Functions
  • Intel Z77/B75 high-speed chipset and 1 DDR3 DIMM Slot, UP to 8GB

Share to:



This motherboard series supports LGA1155 processors, Intel Z77/B75 chipset, DDR3 memory up to 8GB, dual Gigabit LAN, multiple I/O ports, and PCIe expansion. Featuring integrated Intel HD Graphics, HDMI, and VGA outputs, it’s suitable for versatile computing needs, supporting various display modes, storage interfaces, and efficient audio capabilities. With a compact ITX form factor and comprehensive BIOS support, it caters to diverse operating systems and temperature ranges, making it an adaptable choice for desktop setups.




Product model ITX-B75R1 VER:1.0/ITX-B75M1 VER:1.0
processor Supports LGA1155 architecture 2th/3th Intel Celeron/Pentium/Core i3/i5/i7 processors
chipset Intel Z77/B75 high-speed chipset
memory 1 x DDR3 DIMM slot, supporting 1066mhz, 1333mhz, or 1600 MHZ, and a maximum of 8GB
reveal Integrated Intel® HD Graphics Graphics controller
1* VGA port
1*HD OUTPUT1.4 port
Supports single display mode, dual display mode, and extended mode
network 1*Intel I211AT Gigabit network adapter, supporting network wake up and PXE functions
1*Intel I219V Gigabit network adapter, supporting network wake up and PXE functions
store 2*SATA2.0 hard disk interface,SATA interface transmission speed up to 3Gbps
1*MSATA SSD interface, transmission speed up to 6Gbps
Audio frequency Integrated ALC888S high fidelity audio controller, support Mic, Line out
Expansion slot 1*PCIE2.0 x16
The 1*M.2 supports WiFi

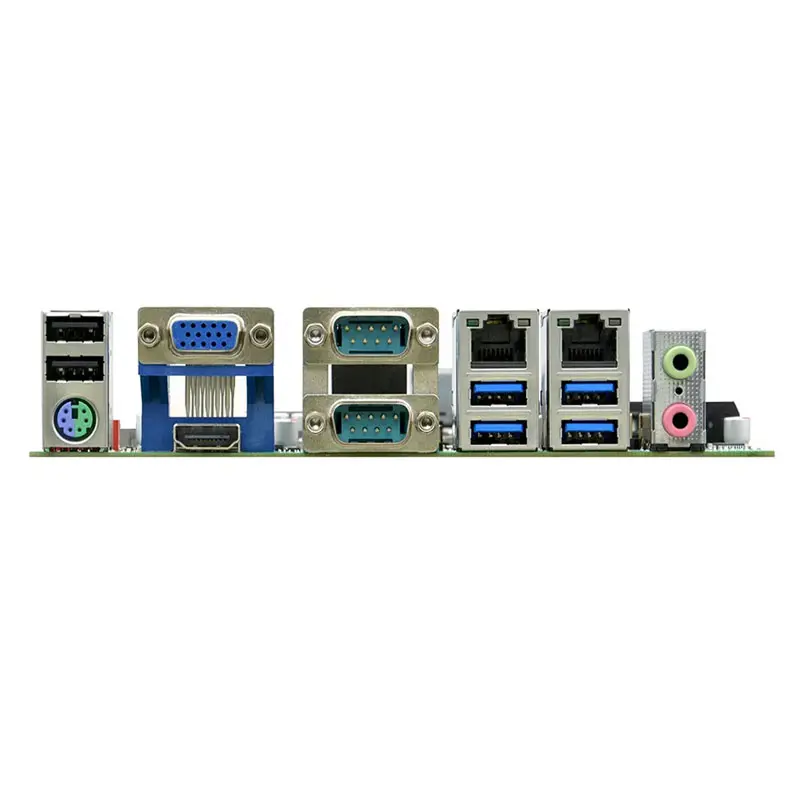

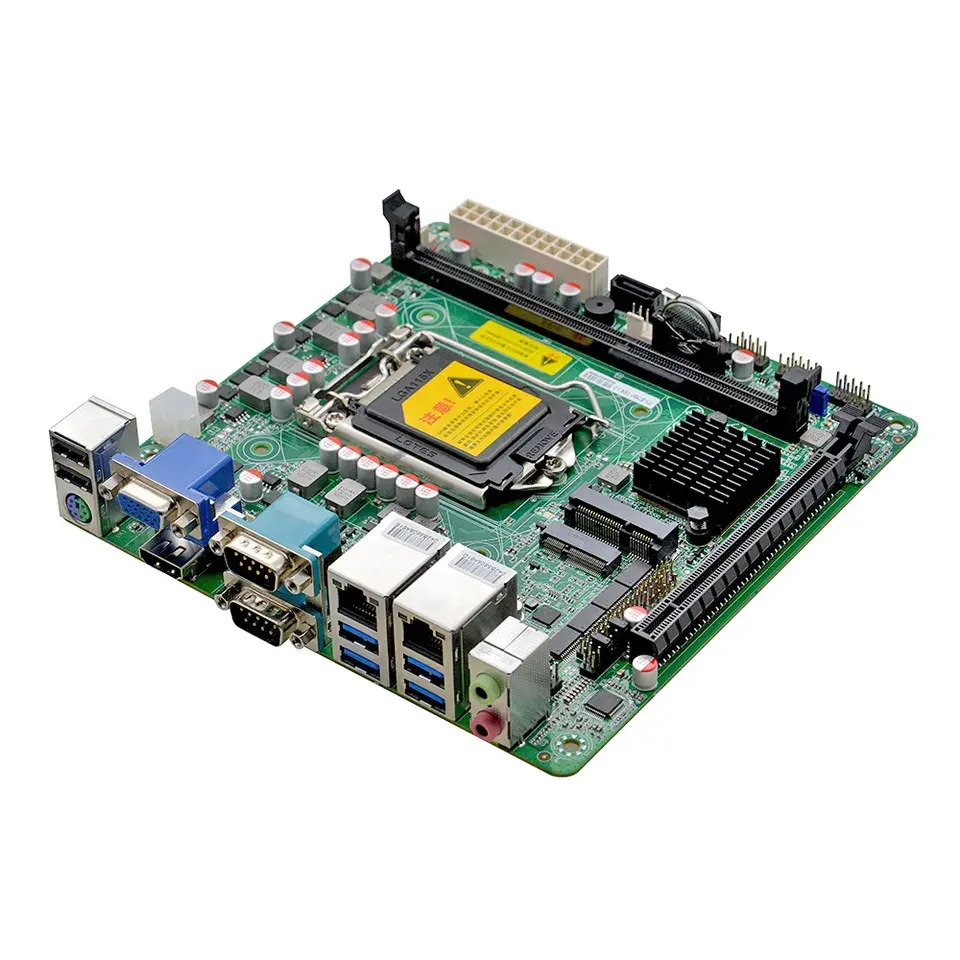

I /O ports on the backplane 1*PS/2 keyboard and mouse interface
1 x VGA display port
1*HD OUTPUT display interface
2*RS232 serial port,COM1/2 supports 5V/12V power function,COM1/2 supports RS485/422 function
2*USB 2.0 ports
4*USB 3.0 ports
2*RJ-45 Gigabit network interface
1*Line out interface (green), 1*Mic interface (red)
Built-in I/O interface 1*JVGA port, 1*12pin row pin, same signal as external VGA
1*PS/2 keyboard and mouse interface 1*6pin row pins
1* front audio interface 2*5pin row pins
4*USB 2.0 port 2*5pin row pins
4 x RS232 serial port 2 x 20pin row pins
1* Front panel function buttons and indicator ports 2*5pin row pins
1*24pin ATX power input interface
1*4pin ATX power input interface
1*AC Power-on automatic power-on function 1*3pin row
Fan interface 1*4pin CPU intelligent fan interface, 1*4pin system intelligent fan interface
GPIO Supports four input/output GPIO functions
BIOS 32Mb Flash ROM
Guard dog Support hardware reset function (256 level, 0~255 seconds)
Operating system Windows 7 / Linux
Power supply type 24Pin ATX power supply
Operating temperature -10℃ to 60℃
Storage temperature -20℃ to 70℃
Working humidity 5 ~ 90% relative humidity, no condensation
dimension 170mm x170mm(ITX)

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Southbridge Memory VGA HD OUTPUT LAN USB RS485/RS422 Power
ITX-B75R1 VER:1.0 LGA1155 B75/Z77 1*SODDR3



 2*RTL8111H 10 COM1/COM2 ATX

ITX-B75M1 VER:1.1

LGA1155 B75/Z77 1*SODDR3



1*Intel I211AT

1*Intel I219V
