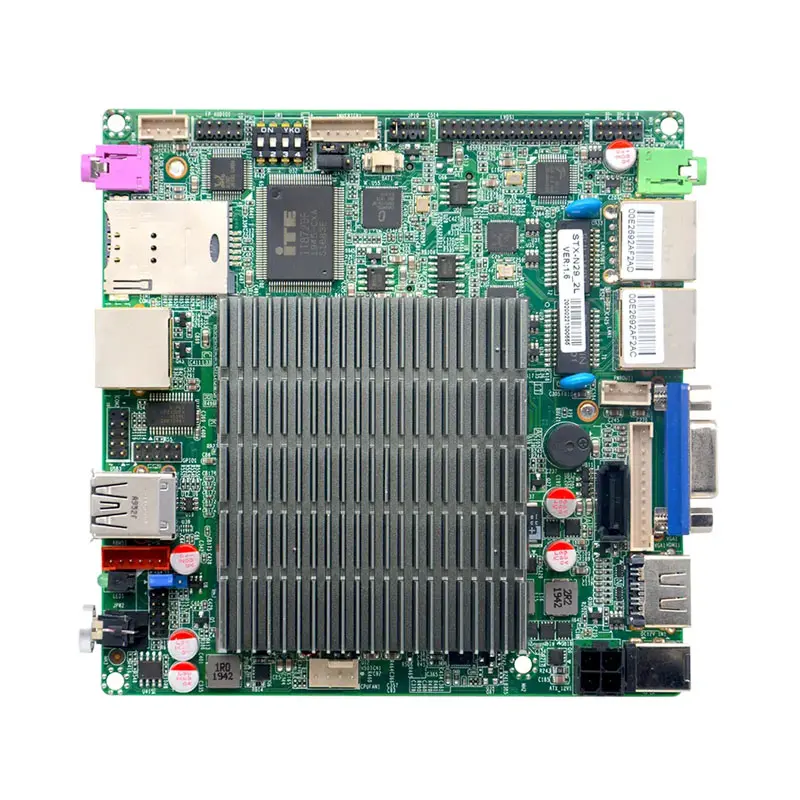

Overview
The STX-N29_2L VER:1.6 is a versatile embedded board featuring an integrated Intel J1900 quad-core processor with a low 10W TDP. It operates on the Intel Bay Trail SOC platform, supporting up to 8GB of DDR3L memory. The board boasts integrated Intel HD Graphics and offers multiple display options。
For networking, it comes with 2 RTL8111F Gigabit Ethernet chips, supporting Wake on LAN and PXE functions. Storage options include a SATA hard disk interface, while audio is supported by an ALC662 6-channel high-fidelity audio controller.
The STX-N29_2L VER:1.6 includes expansion slots for Mini-PCIE and MSATA, enabling WiFi and SSD module support. It features various I/O interfaces, including USB, HD OUTPUT, VGA, RJ-45, audio, and more
Specifications
| Model | STX-N29_2L VER:1.6 |
| Processor | Integrated Intel®J1900/2.00GHz quad-core processor, TDP power consumption 10W |
| Chipset | Based on Intel® Bay trail SOC platform |
| Memory | 1*SO DDRIII slot, only supports 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB |
| Graphic | Integrated Intel®HD Graphics core graphics |
| Display | 1*VGA, 1*HD OUTPUT, 1*LVDS interface (support dual channel 24BIT)
Support VGA; HD OUTPUT; LVDS synchronous/asynchronous display |
| Network | 2* RTL8111F Gigabit Ethernet chip, support Wake on LAN/PXE function |
| Storage | 1* SATA hard disk interface |
| Audio | Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
The power amplifier recommends using 2Ω5W speakers |
| Expansion slot | 1* Mini-PCIE slot supports WIFI/3G module
1* MSATA slot supports SSD/WIFI, SSD transmission speed up to 3Gbps |

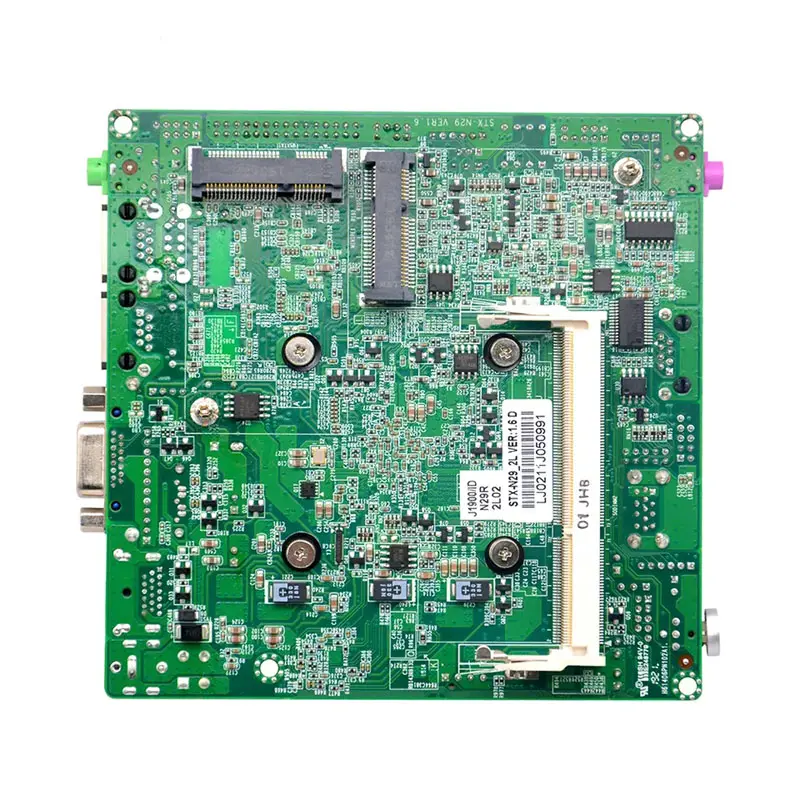

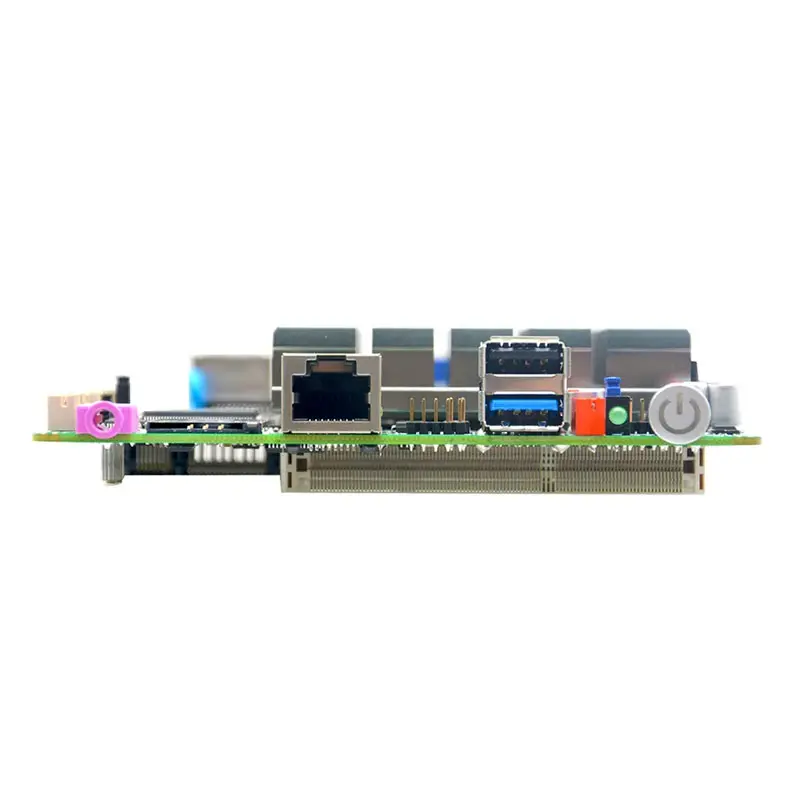

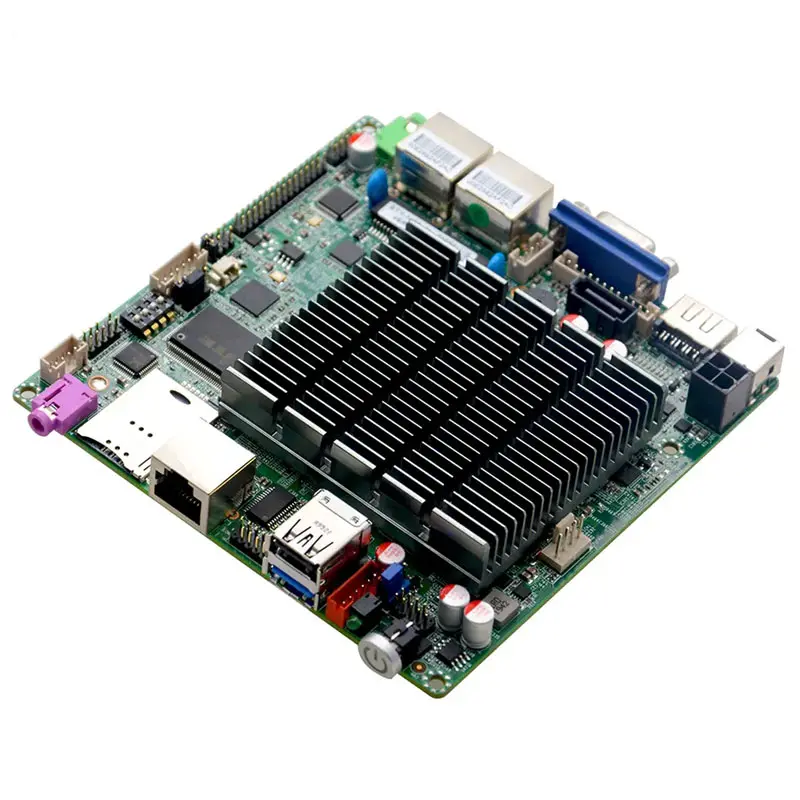

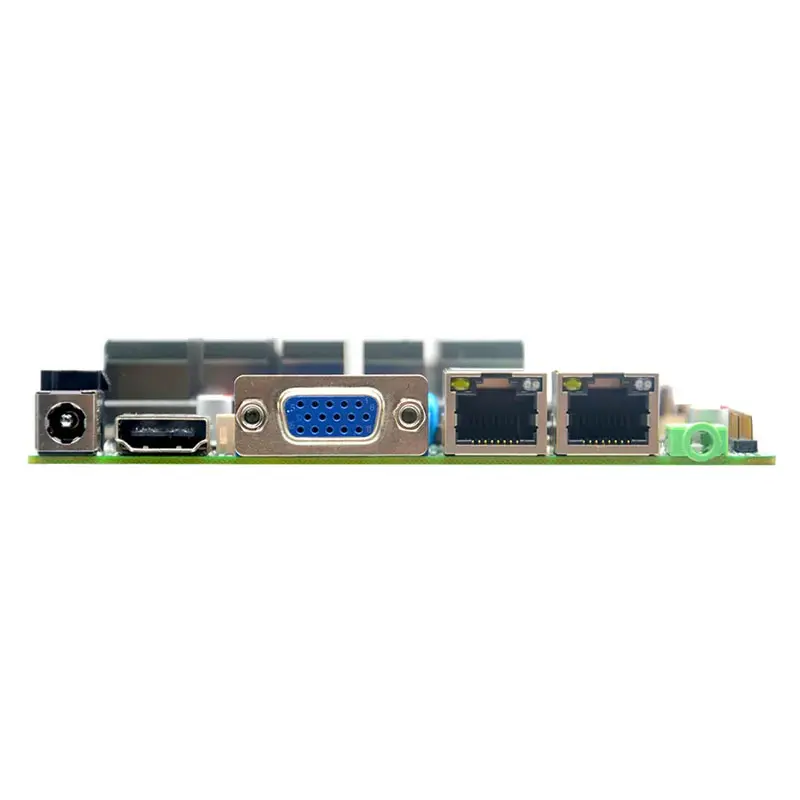

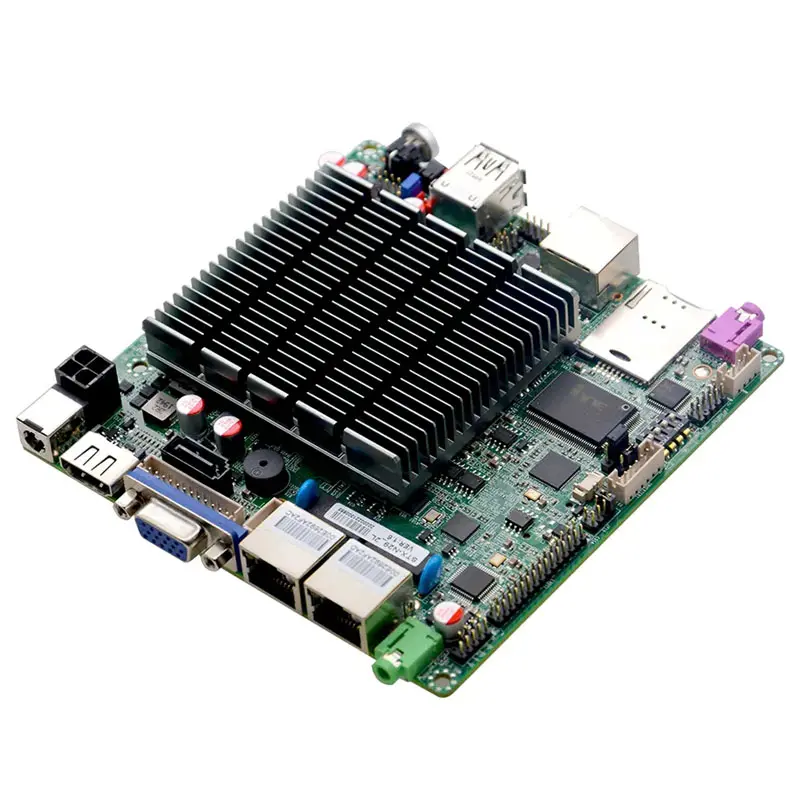

| Backplane I/O interface | 1*USB2.0, 1*USB3.0 |
| 1* HD OUTPUT port | |
| 1* VGA port | |
| 2* RJ-45 network interface | |
| 1* Line out (green), 1* MIC (purple) | |
| 1* RJ-45 serial port | |
| 1* Power button | |
| 1* 12V DC_JACK input | |
| Built-in I/O interface | 1* LVDS interface (2*15pin), support dual channel 24BIT LCD display |
| 1* LVDS backlight interface 1*6pin) | |
| 1* JVGA1 interface (1*12pin) same signal as DB15 | |
| 1* RS232 serial port | |
| 2* USB2.0 interface (2*5pin) | |
| 1* PS/2 mouse keyboard interface (1*6Pin) | |
| 1* Front panel audio interface (2*5pin) | |
| 1* SIM card holder | |
| 1* Hard disk power supply interface | |
| 1* Front panel function button and indicator light interface (2*5pin) | |
| 1* 4pin ATX 12V input and output power interface | |
| 1*Amplifier interface (1*4pin) | |
| Fan interface | 1* CPU fan interface 4pin |
| GPIO | Support 4 input and output GPIO |
| BIOS | AMI 64Mb Flash ROM |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power type | DC_12V single power input |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| Size | 120mm x 120mm |
