Overview

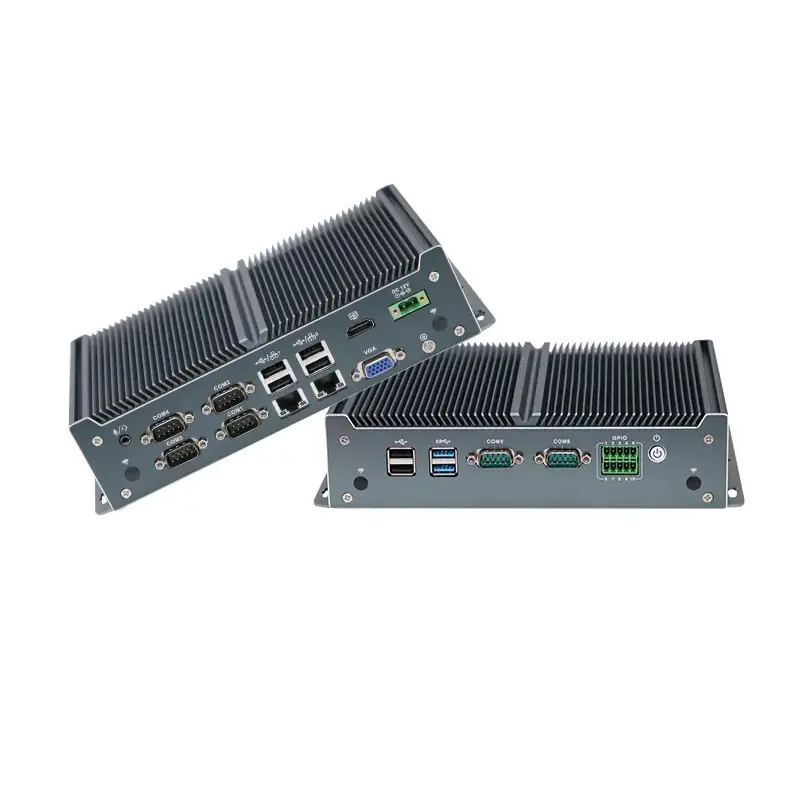

“This Mini PC, made of high-quality aluminum, offers a compact design (234 x 155 x 53.5mm) with a lightweight build (2.5Kgs). Featuring an Intel Celeron J1900 quad-core processor and Intel HD Graphics, it supports multiple installation methods and connectivity options including VGA, HDMI, dual LAN, USB ports, and COM ports.
With expandable memory up to 8GB and storage options (mSATA and 2.5-inch HDD/SSD), this system also supports auto power-on, timing boot, and watchdog functionality. It operates fanlessly, supporting Windows and Linux OS, and comes with essential accessories for easy setup.
Ideal for industrial automation, medical, logistics, and education sectors, it boasts reliable performance, robust build, and essential certifications like CE, FCC, and ROHS.”
Specifications
| Material | High-quality pure aluminum |
| Colour | Titanium gray（Any color can be） |
| Size | 234 x 155 x 53.5mm |
| Weight | 2.5Kgs |
| Insallation Method | With mounting ears, Wall-mounted, embedded, desktop |
| CPU | Intel Celeron J1900（Quad core,1.99Ghz) |
| Display Ports | 1 x VGA, 1 x HDMI, (Support synchronous and asynchronous dual display) |
| Graphic | Intel HD Graphics |
| Network Card | 2 x Intel i211-AT 10/100/1000M lan |
| Memory | Support 1 x DDR3 1333/1600MHz SODIMM ram slot, support max 8 G |
| Storage | 1 x mSATA，1 x 2.5 Inch HDD or SSD |
| Expansion | 1 x MINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0～255 level） |

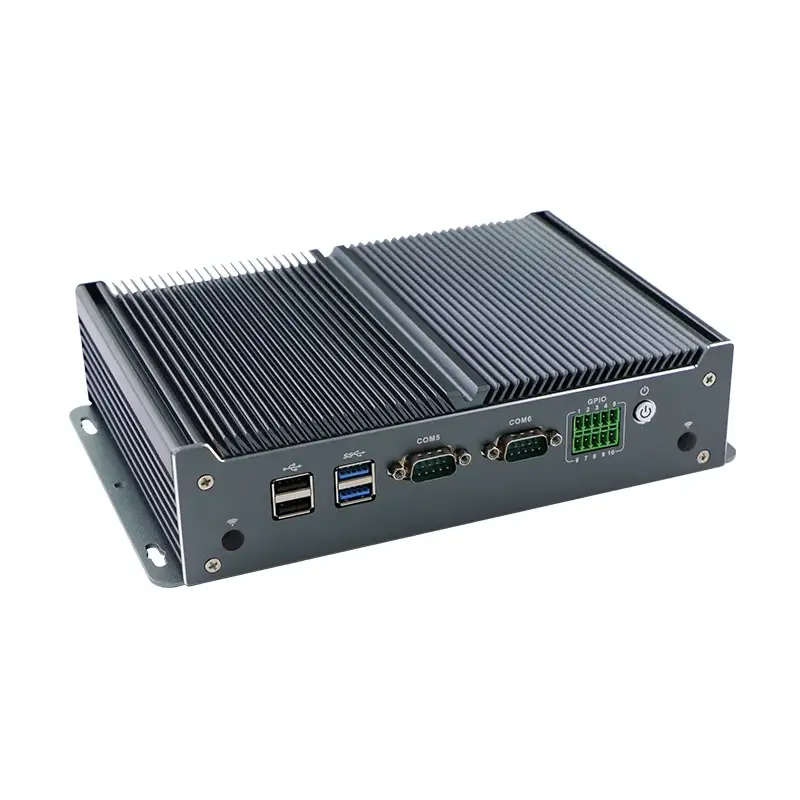

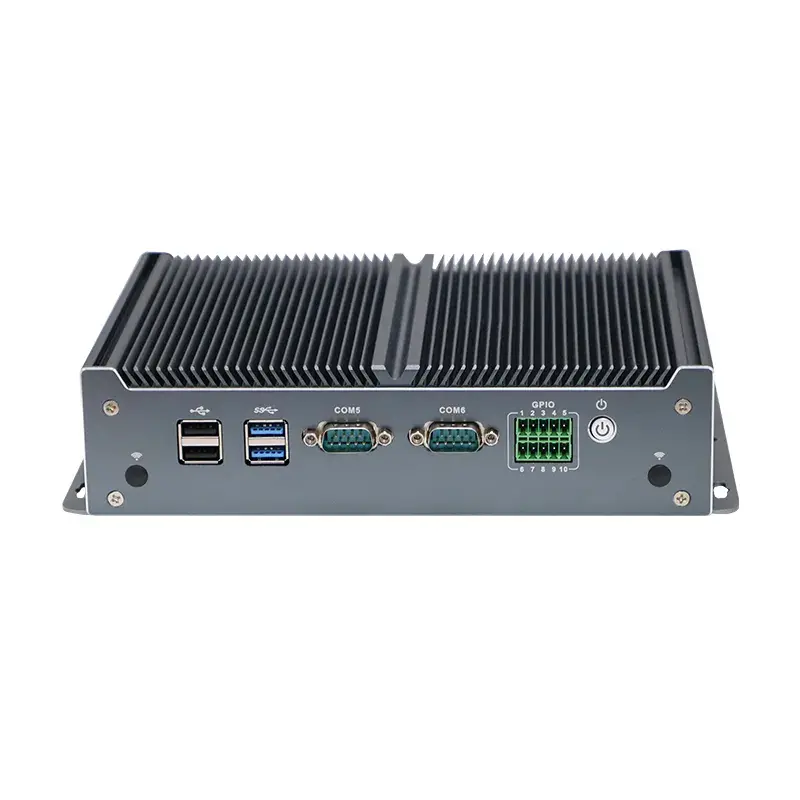

| Front Panel | 1 x Power Switch |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x GPIO | |
| 2 x RS232 COM | |

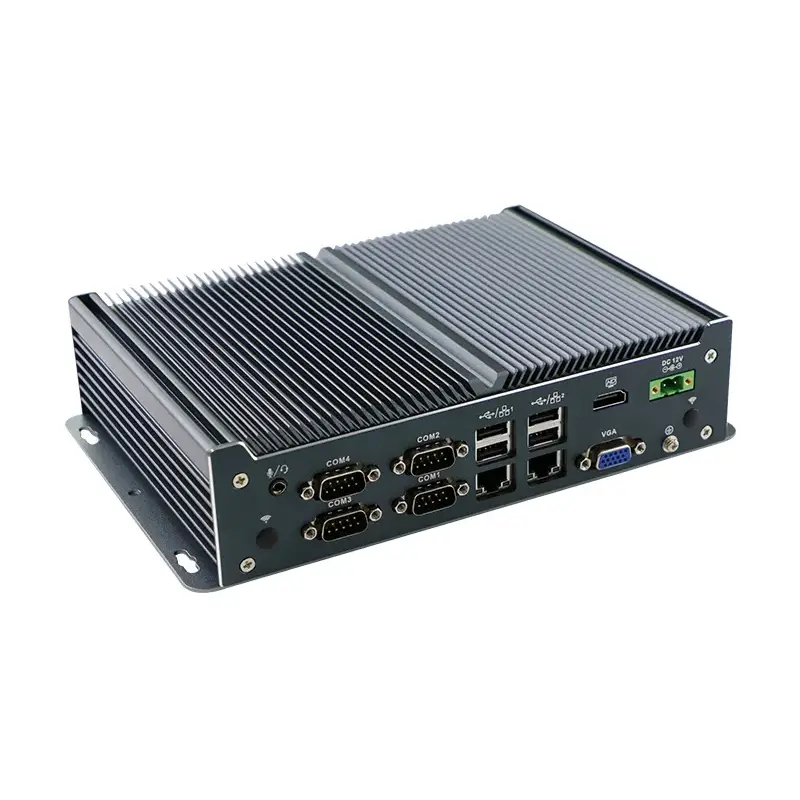

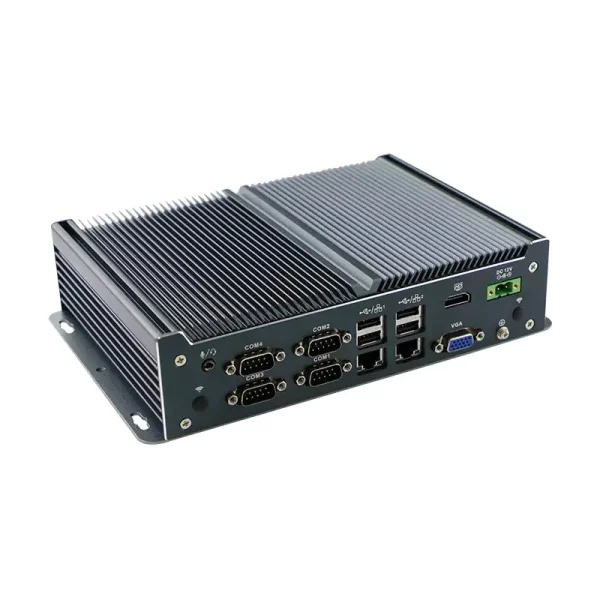

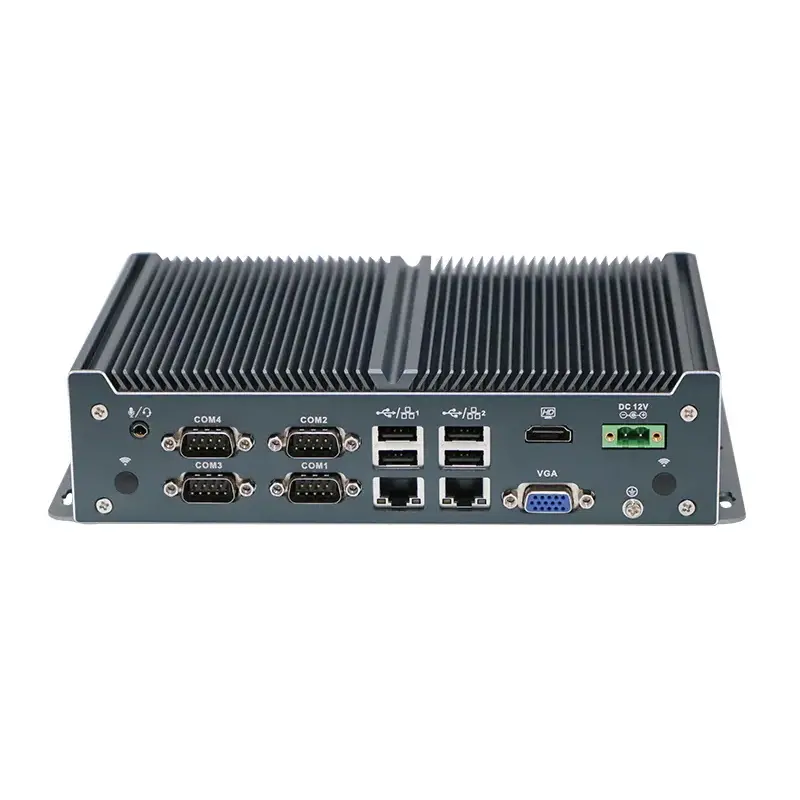

| Rear Panel | 1 x 2PINS phoenix power connector |
| 2 x LAN | |
| 1 x HDMI | |
| 1 x VGA | |
| 4 x USB2.0 | |
| 1 x MIC/SPK | |
| 4 x COM(COM1,2 RS232/485 Optional) | |
| Bios | AMI EFI BIOS |
| System Support | Windows 7/8/10, Linux |
| Cooling Mode | Fanless |
| Power Supply | Support DC 12v Input |

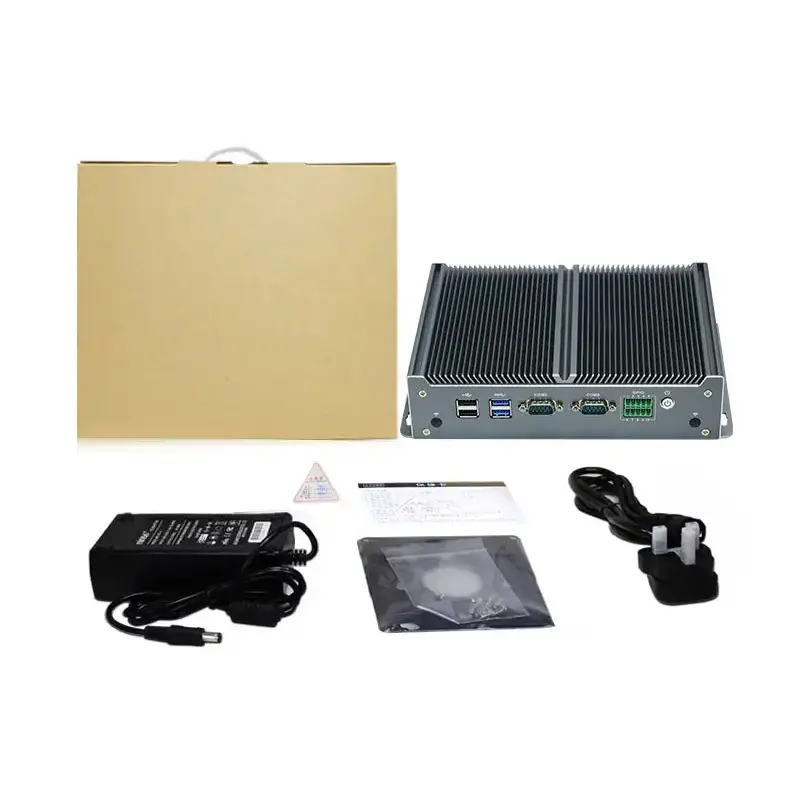

| Packing List | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable, 1 x VESA & Screws |
| Work Temperature | 0℃ ～ +50℃ ( HDD)，-20℃ ～ +60℃ ( SSD)，Surface air flow |
| Relative Humidity | 5% ～ 95% non-condensing |
| Certification | CE FCC ROHS |
| Application | Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields |
