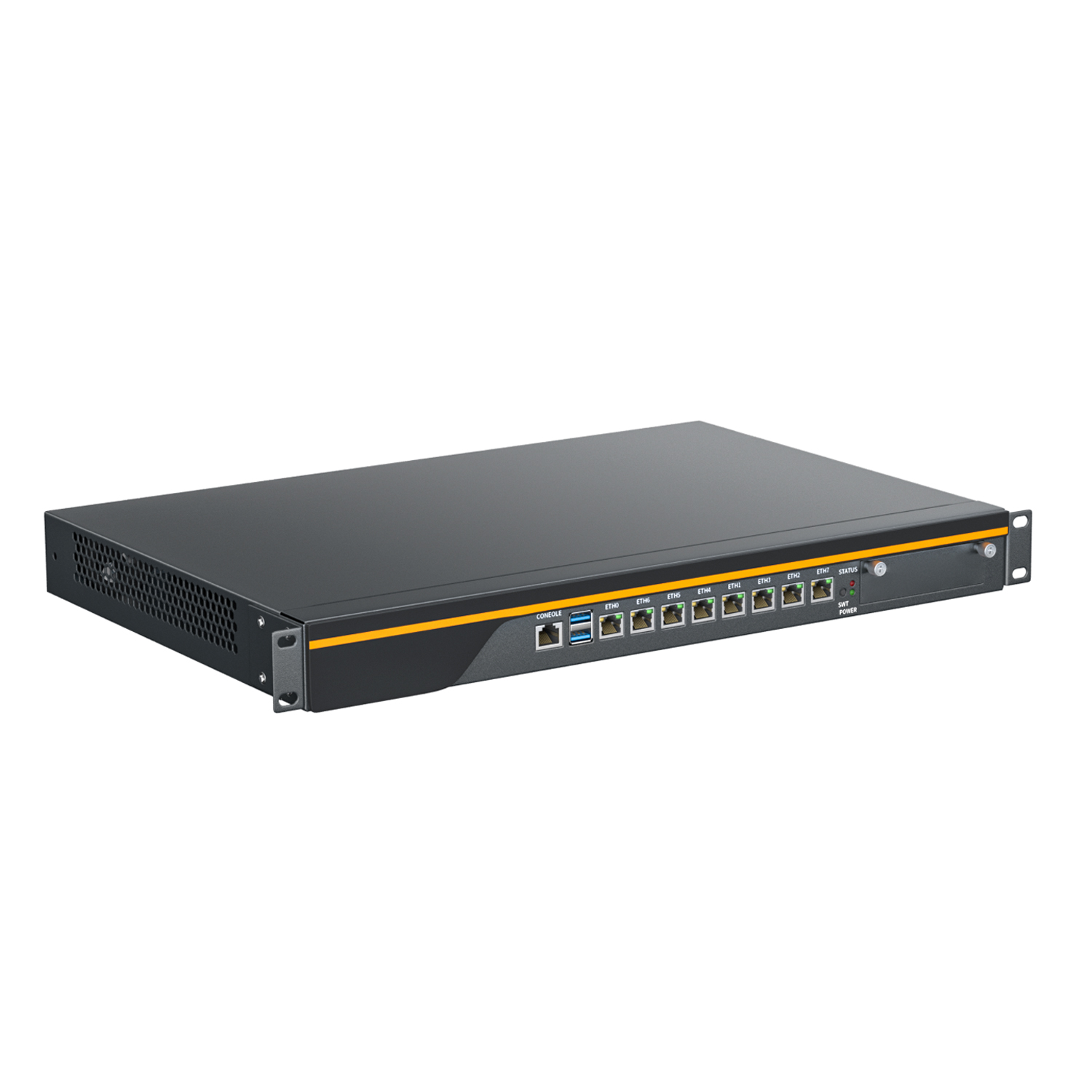

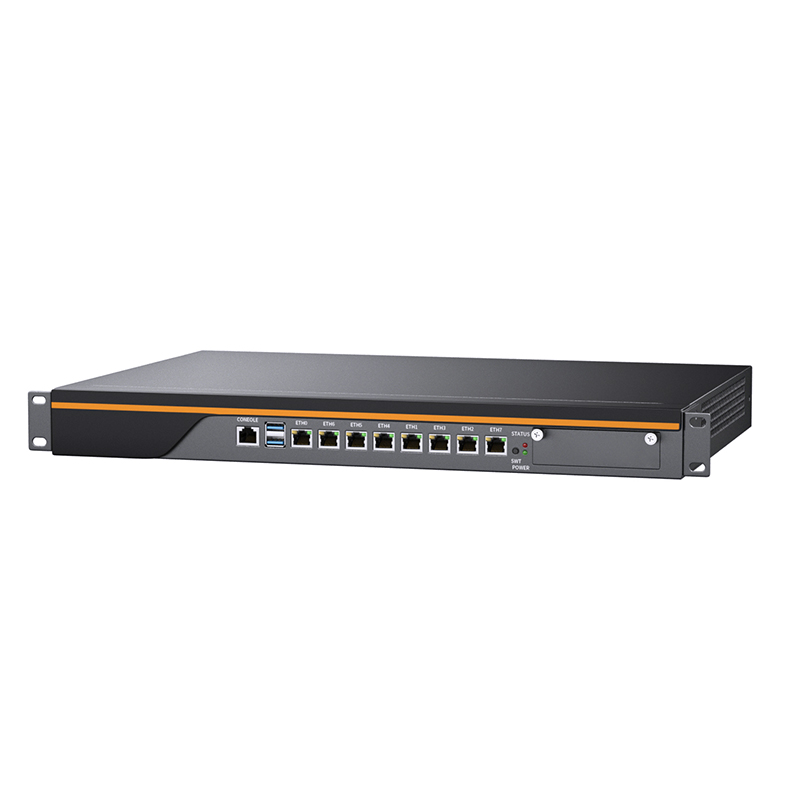

S19 Firewall Appliance with LGA1151 CPU 8 Ethernet Ports

  • Rack, Wall, or Desktop Installation For Flexible Setup
  • Options from Intel Core i3 to Xeon E3-1225 V5 for Varying Needs
  • Support for UP to 10 Gigabit or 4 Gigabit Optical Ports.
  • Dual DDR4 Slots for up to 32GB RAM (2133/2400MHz SO-DIMM)
  • 1 M-SATA and 4 SATA Slots for 2.5″ or 3.5″ HDD/SSD
  • Mini PCIe Slots for WiFi, 4G, and PCIe x8 Channel Expansion
  • Industrial-Grade Supply with Reliable Output (Taiwan Mean Well)

Share to:



The S19 Firewall Appliance boasts robust security with various Intel processors and expandable networking options. Featuring rack, wall, or desktop mounting, it offers versatile installation methods. With up to 8 Intel i211AT ports (expandable to 2/4 10G or 4 Gigabit optical), this unit ensures adaptable and secure networking. Its memory supports up to 32GB, and storage includes SATA and M-SATA slots. It supports various systems like Windows, Linux, and Mikrotik and comes with BIOS and an industrial-grade power supply for reliability. Operating between -0°C to +50°C, it’s certified by CE, FCC, CCC, and ROHS.




Material Iron, Aluminum panel
Colour Gray
Size 440 x 257 x 45(mm) (Excluding hanging ears)
Weight 7.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting
CPU Intel Core i3-9100 4 Cores 4 Threads
Intel Core i5-9400 6 Cores 6 Threads
Intel Core i7-9700 8 Cores 8 Threads
Intel Xeon E3-1225 V5 4 Cores 4Threads
Network Card 8*i211AT (Default)
8*i226V (Optional)
can be expanded to 2/4 10 Gigabit or 4 Gigabit optical ports
Graphic Integrated UHD Graphics (Depends on the processor)
Memory 2 x DDR4 2133/2400MHz SO-DIMM (Up to 32GB)
Storage 1 x M-SATA; 4 x SATA (1*2.5″/ 3.5″HDD/SSD Bracket)
Display 1 x VGA, 1 x HDMI (Optional)
Expand 1 x Mini PCIe for WiFi/Bluetooth module
1 x Mini PCIe for 4G module
1 x PCIe x8 Channel Expansion slot
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog

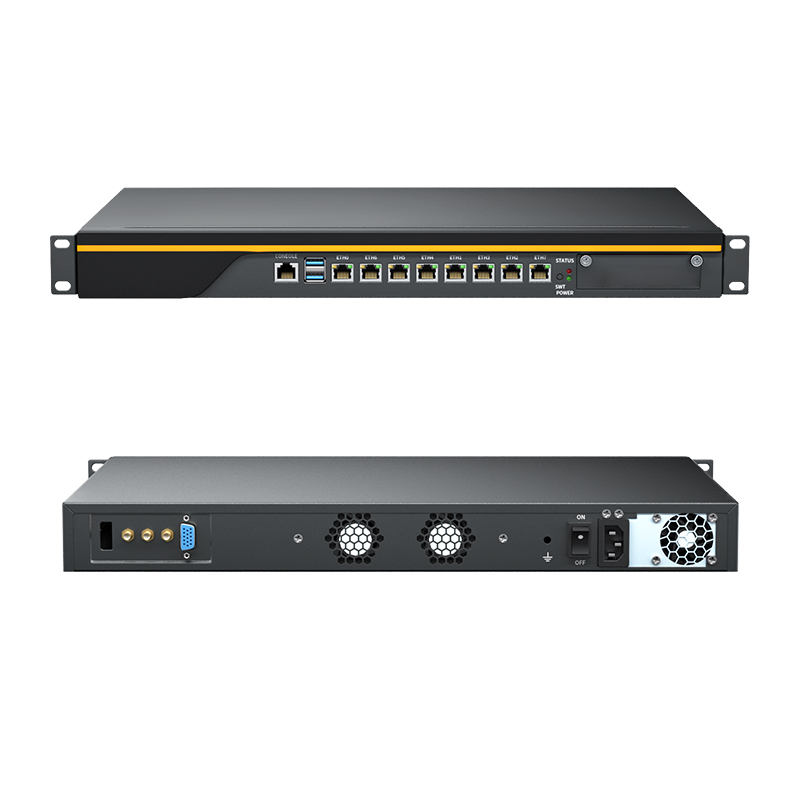

Front Panel 1 x VGA
3 x WiFi Holes
1 x HDMI(Optional)
2 x Cooling fan
1 x Switch
1 x AC socket

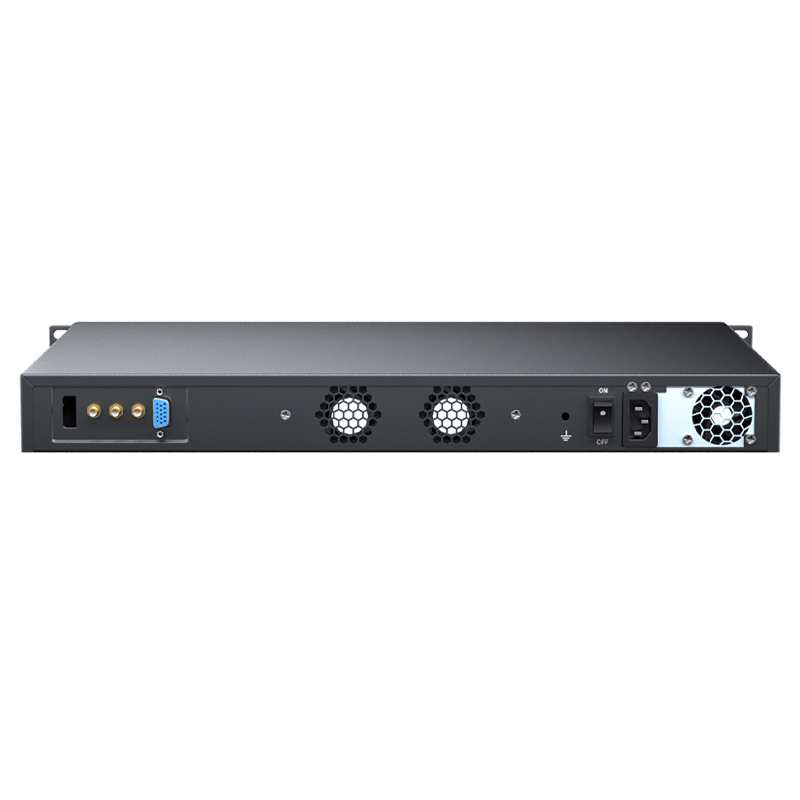

Rear Panel 1 x Console
2 x 3.0
2 x optical ports (expandable to 4/2 Gigabit or 10 Gigabit optical ports)
8 x LAN
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan Mean Well LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S19 firewall, power cord, warranty card
Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB SFP Power
S19 I3 9100 Intel® UHD Graphics 630 3.60~4.20GHz 1 x VGA 2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch SATA 8 2 2/4 DC_IN 12V
S19 I5 9400 Intel® UHD Graphics 630 2.90~4.10GHz 1 x VGA 2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch SATA 8 2 2/4 DC_IN 12V
S19 I7 9700 Intel® UHD Graphics 630 3.00~4.70GHz 1 x VGA 2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch SATA 8 2 2/4 DC_IN 12V
S19 E3-1225 V5 Intel® HD Graphics P530 3.30~3.70GHz 1 x VGA 2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch SATA 8 2 2/4 DC_IN 12V
