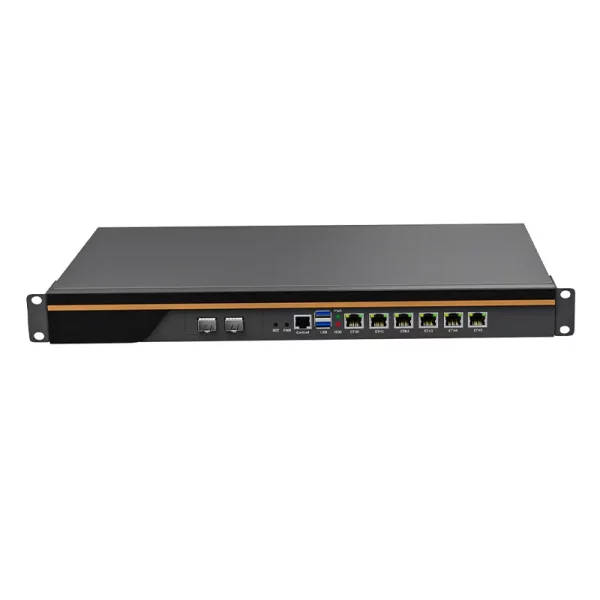

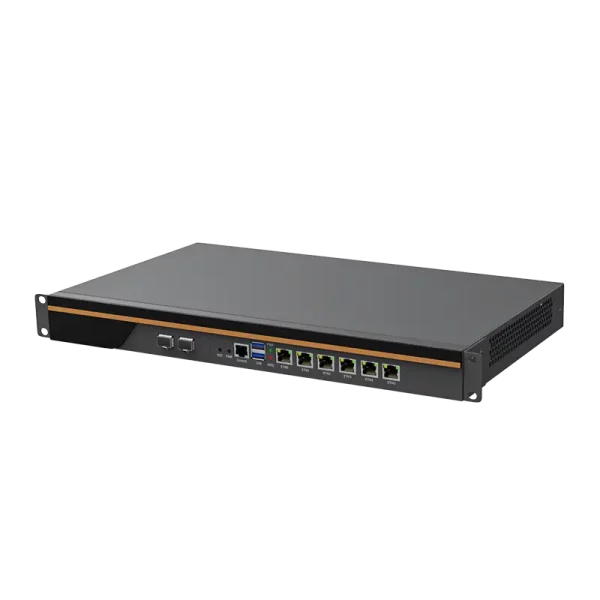

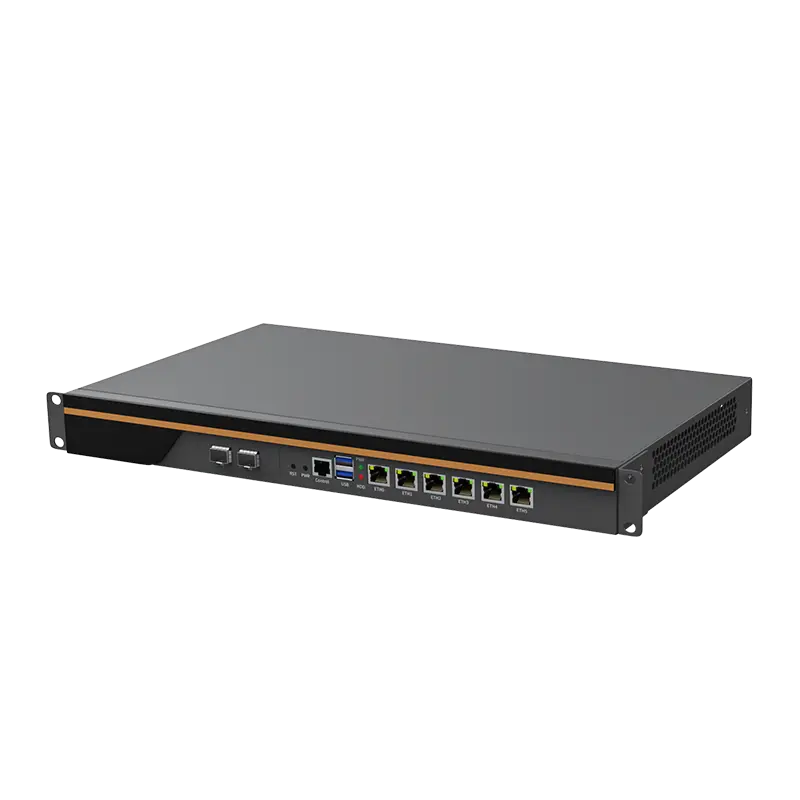

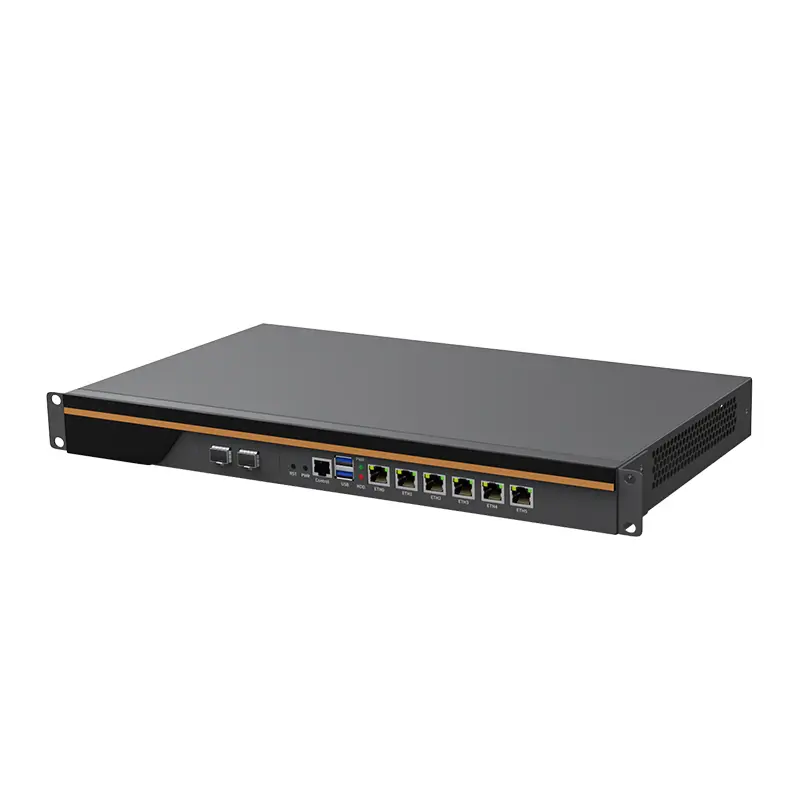

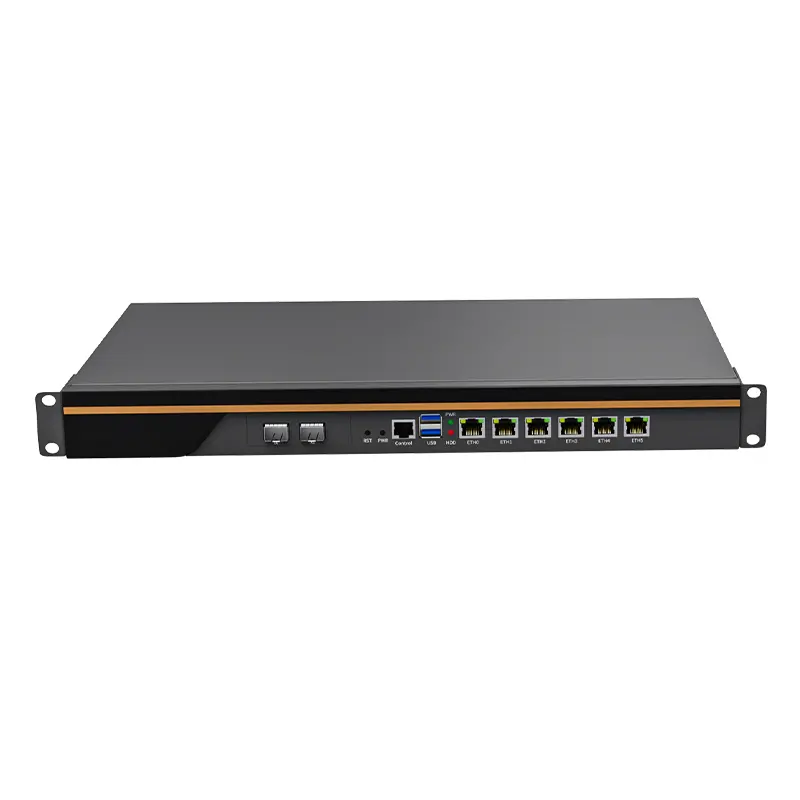

S12 1U Network Firewall Appliance with 12th/13th Gen CPU

  • Versatile Mounting Options Rack, Wall, or Desktop.
  • Powerful Intel CPUs I3/I5/I7/I9 LGA1700
  • Adaptable Network Interfaces I226 2.5G, Gigabit/10G Ports
  • Expandable Memory 2x DDR4 SODIMM Slots, up to 64GB
  • Storage Diversity M.2 NVME, SSD/HDD Support
  • Flexible Display Options VGA, Optional HDMI
  • Extensive Expansion Support PCIe slots, Multiple M.2
  • Efficient Cooling With Fan Systems

Share to:



Designed for versatility, our S12 firewall boasts robust capabilities. Featuring a range of 12th/13th Gen Intel CPU options, adaptable network interfaces, and expandable memory, it ensures reliable performance. With comprehensive connectivity, multiple mounting options, and industrial-grade components, it stands as a reliable, certified solution, catering to various operating environments.




Material Iron, Aluminum panel
Colour Gray
Size 440 x275 x 45(mm)(without mounting ear)
Weight 7.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting
CPU 12th/13th I3/I5/I7/I9 Intel庐 LGA1700 CPU
Intel Core I3 12100 Processor, 12M Cache, up to 4.30 GHz
Intel Core I5 12400 Processor, 18M Cache, up to 4.40 GHz
Intel Core I7 12700 Processor, 25M Cache, up to 4.90 GHz
Intel Core I9 12900 Processor, 30M Cache, up to 5.10 GHz
Network Card Intel 6 x I226 2.5G adaptive network card interface (optional with POE) , 2 x Gigabit/10G optical port
Graphic Depend on CPUs
Memory 2 x DDR4 SODIMM, up to 64G
Storage 1 x M.2 NVME, 4×2280, 4xSATA(For motherboard support)
1 x M.2 NVME, 1 x 2.5 inch SSD/HDD (For Chassis support)
Display 1 x VGA, 1 x HDMI (Optional)
Expand Support 1 PCIE16X+ 1 PCIE4X (FPC) channel expansion card slot, 1xM.2 for 5G, 1xMini Pcie for 4G, 1xM.2 for WIFI module
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog
Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

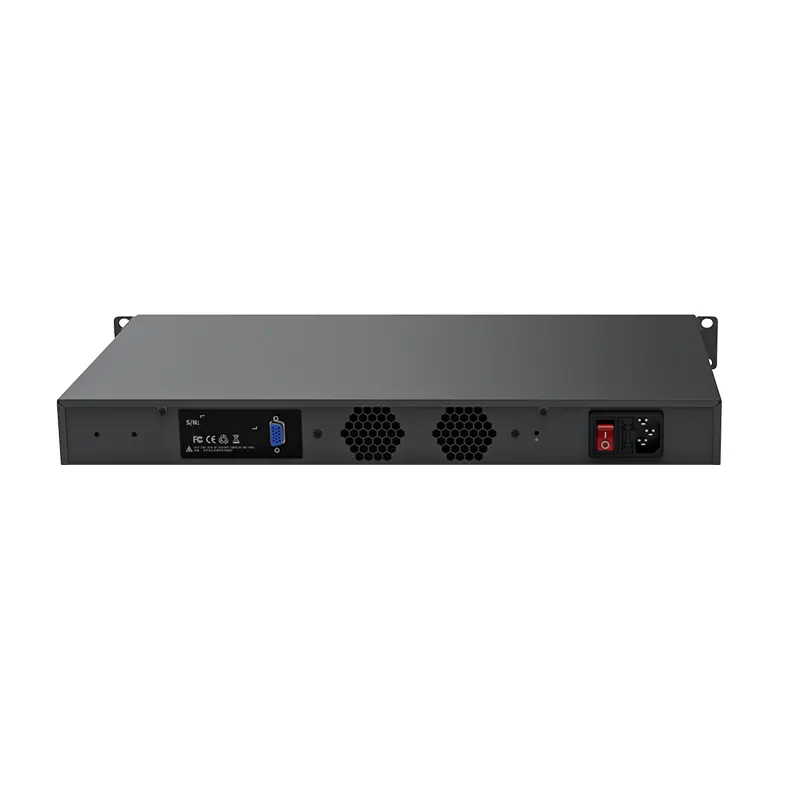

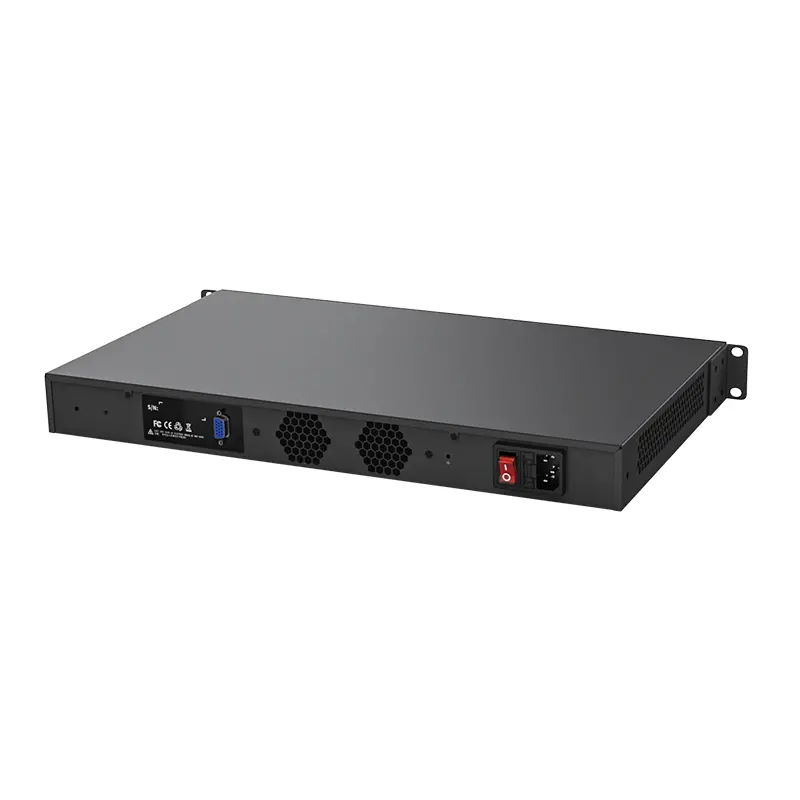

Rear Panel 1 x Console
2 x 3.0
2 x optical ports (expandable to 4/2 Gigabit or 10 Gigabit optical ports)
6 x LAN
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI 128M BIOS, ACPI supported
Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-150-24 Input: 100-240V~1.0A Output: 24V6.25A
Packing List S12 firewall, power cord, warranty card
Operating temperature -0~+50C (commercial HDD), -20C~+50C (industrial SSD), surface air flow
ambient temperature 5~90C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN SFP USB Power
S12 I3 12100 Intel® UHD Graphics 730 3.3~4.30GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S12 I5 12400 Intel® UHD Graphics 730 2.5~4.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S12 I7 12700 Intel® UHD Graphics 770 1.6~4.90GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S12 I9 12900 Intel® UHD Graphics 770 1.8~5.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
