Overview

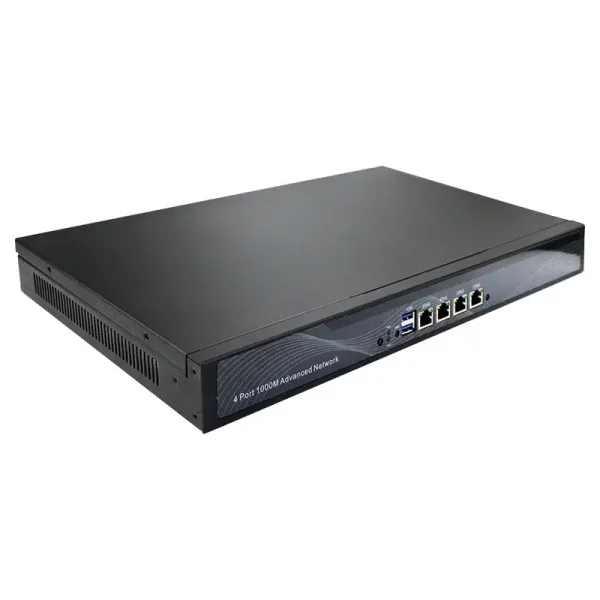

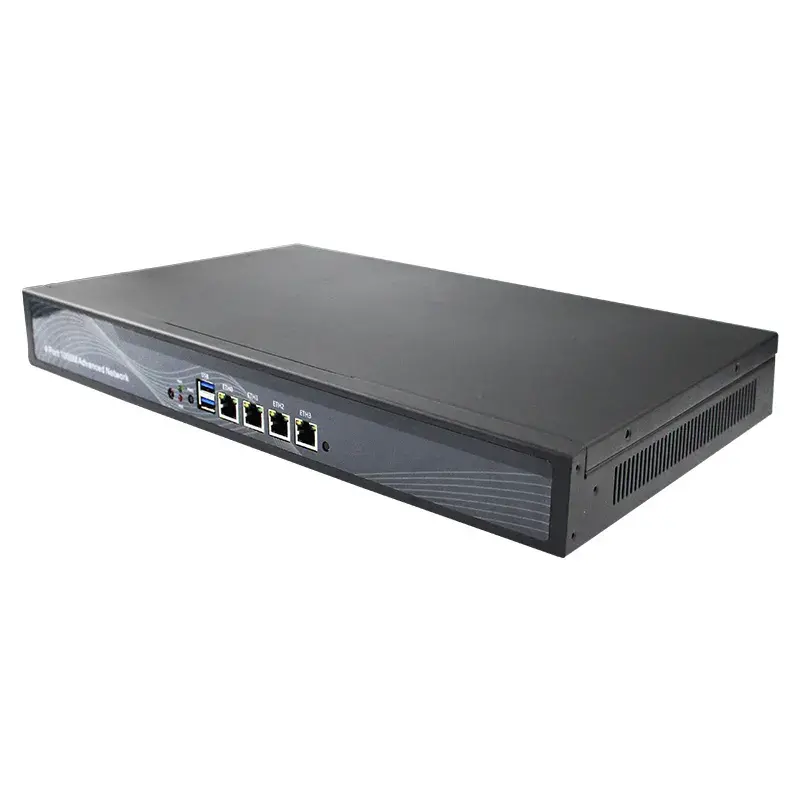

Compact 1U rackable chassis in black (430x250x45mm, 6.5Kg) offering versatile installation options. Featuring Intel Celeron processors, Intel HD Graphics, DDR3L memory slot (up to 8GB), and multiple storage interfaces. Equipped with essential ports, MINIPCIE channel for expandability, supporting various OS with AMI EFI BIOS. Efficient cooling with an industrial-grade power supply. Certified for reliability (CE, FCC, CCC, ROHS), suitable for varied temperature ranges. Packing includes S07 firewall with rack ears, cord, and warranty card.
Specifications
| Chassis | Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad |
| Colour | Black |
| Size | 430 x250 x 45(mm) |
| Weight | 6.5Kgs |
| Insallation Method | Desktop type/rack mounting |
| CPU | Intel Celeron N2840, 2 cores 2 threads, 1M Cache, up to 2.58 Ghz |
| Intel Celeron J1900, 4 cores 4 threads, 2M Cache, up to 2.42 Ghz | |
| Intel Celeron J1800, 4 cores 4 threads, 1M Cache, up to 2.58 Ghz | |
| Network Card | 4 x Intel 82583V/82574L |
| Graphic | Intel HD Graphics |
| Memory | 1 x DDR3L 1600 MHz SODIMM memory slot, up to 8GB |
| Storage | 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD |
| Display | 1 x VGA |
| Expand | Support 1 MINIPCIE channel (WIFI/Bluetooth available) |
| Others | Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog |

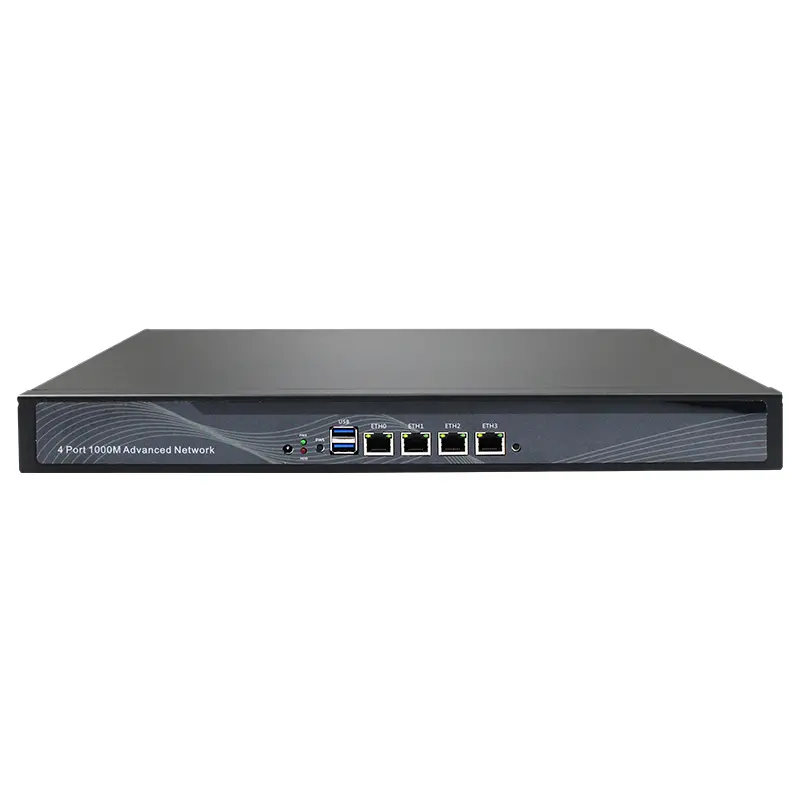

| Front Panel | 1 x VGA |
| 1 x Power interface | |
| 1 x Switch | |

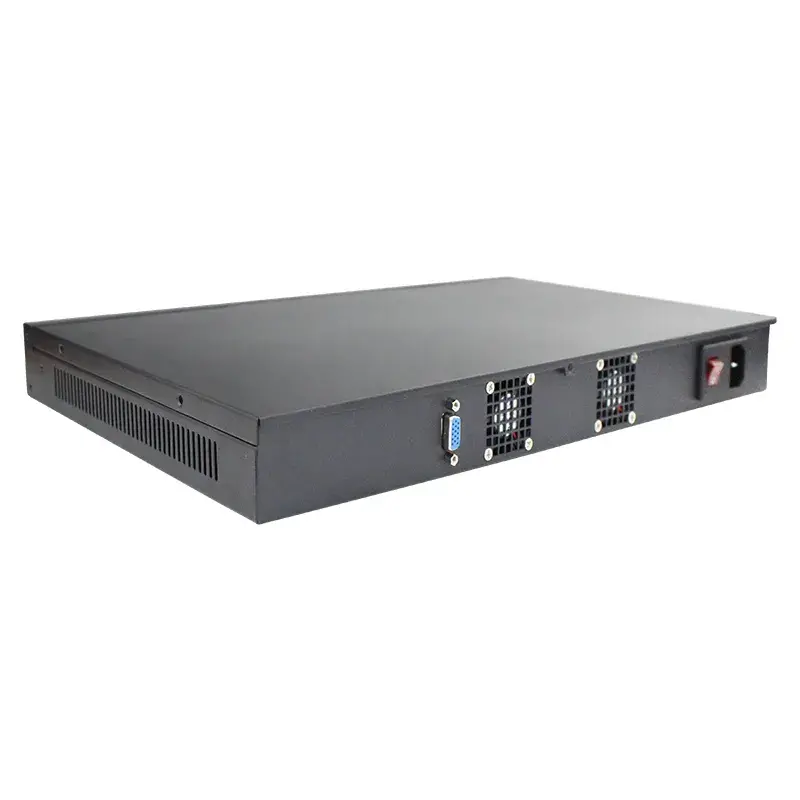

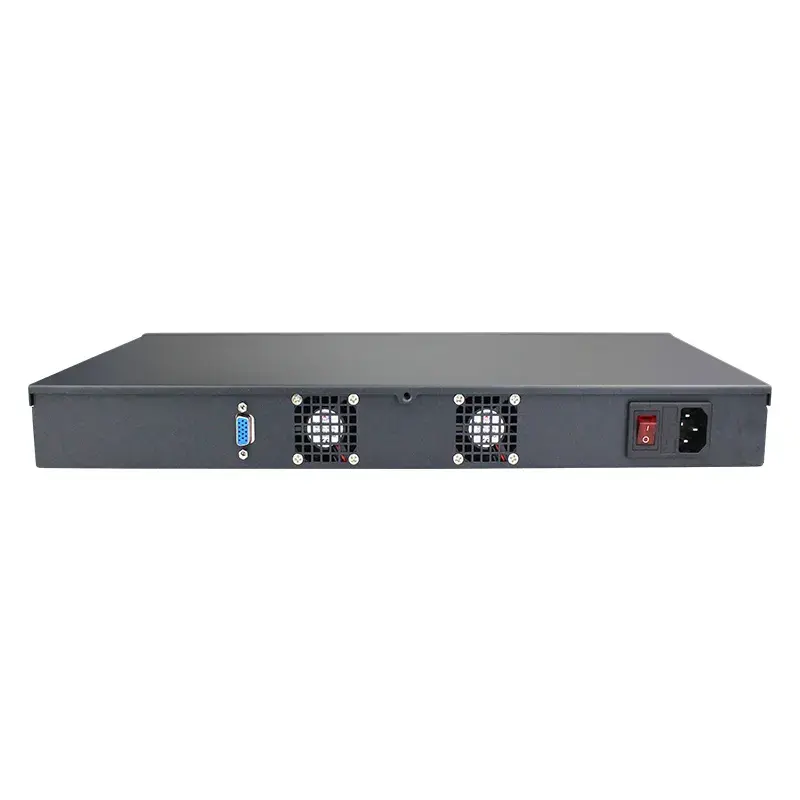

| Rear Panel | 2 x USB3.0 |
| 4 x LAN | |
| System Support | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux |
| BIOS | AMI EFI BIOS |
| Cooling Mode | With Fan |

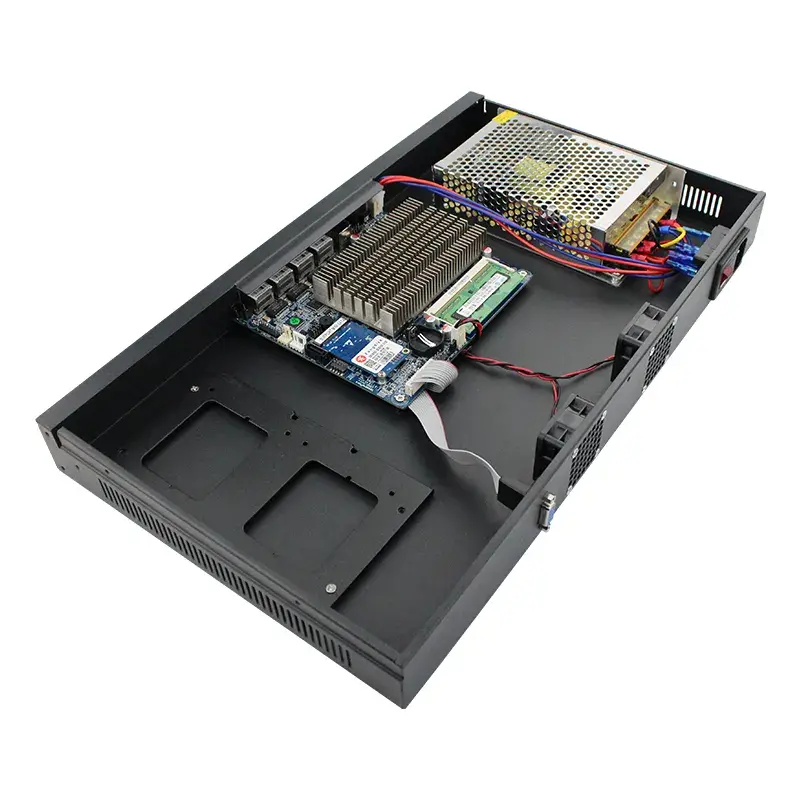

| Power Supply | Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A |
| Packing List | S07 firewall, rack ears, power cord, warranty card |
| Operating temperature | -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow |
| ambient temperature | 5~90°C relative humidity, non-condensing |
| Certification | CE, FCC, CCC, ROHS |
