S02 Fanless Pfsense Firewall 4*2.5G Nework Cards

  • Intel Celeron J4125 Processor, up to 2.70 GHz
  • 4 Intel I225/I226 2.5G Network Cards
  • Intel UHD Graphics 600 for Visuals
  • Compact, Desktop Installation
  • Support for DDR4 SO-DIMM up to 8GB
  • MSATA SSD Storage Support
  • Expandable via MINI PCIE
  • Efficient Cooling with Fan

Share to:



The S02 mini PC, crafted from iron, boasts a sleek silver design customizable to your preference. Compact at 195 x 190 x 45mm and weighing 2kg, it’s perfect for desktop setups. Powered by an Intel Celeron J4125 Processor with 4 cores, 4 threads, and Intel UHD Graphics 600, it ensures smooth performance. Equipped with 4 Intel I225/I226 2.5G network cards, 1 DDR4 SO-DIMM slot (max 8GB), and an mSATA SSD for storage. Featuring VGA display, USB3.0 ports, LAN connections, and a versatile rear panel with DC IN, Reset, Console, and LED indicators. Supports various operating systems like Windows 10, Server 2012, Linux, and more. With a fan for cooling and an optional 12V 5A DC power supply, it’s a comprehensive package including power adapter and warranty card.




Material Iron
Colour Silver (any color can be customized)
Size 195 x190 x 45(mm)
Weight 2Kgs
Insallation Method Desktop type
CPU Intel Celeron J4125 Processor, 4 Cores 4 Threads, 4M Cache, up to 2.70 GHz
Network Card 4 x Intel I225/I226 2.5G Nework Cards
Graphic Intel UHD Graphics 600
Memory 1 x DDR4 SO-DIMM Slot, Max 8GB
Storage 1 x mSATA SSD, not support 2.5 inch, chassis has no place
Display 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)

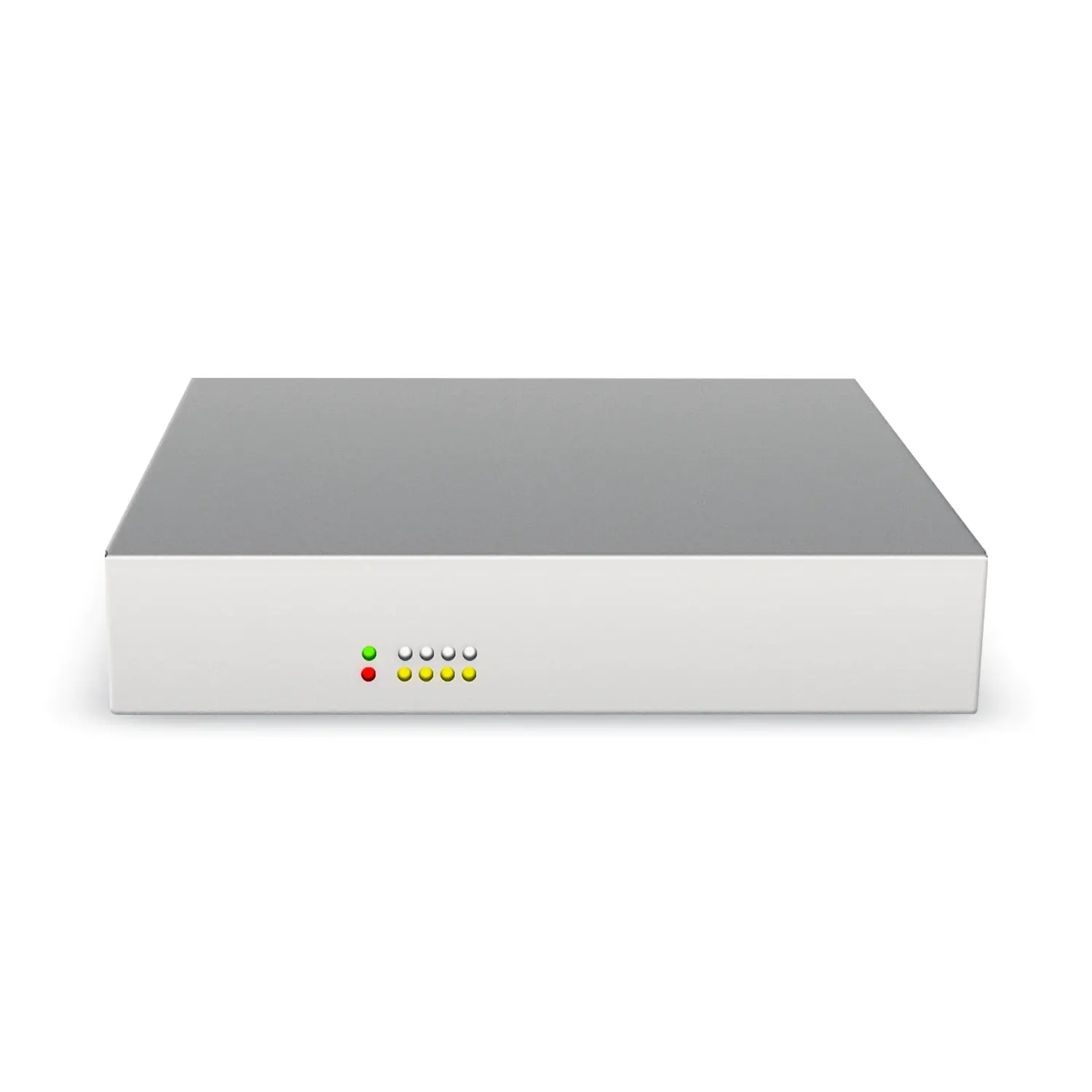

Front Panel 1 x Indicator light

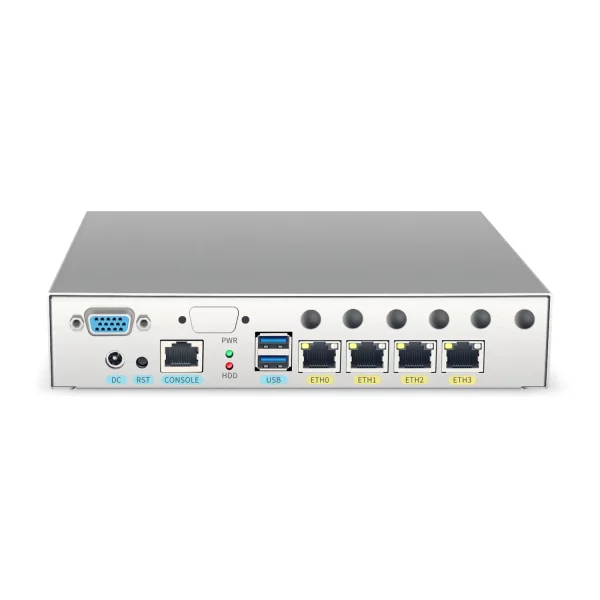

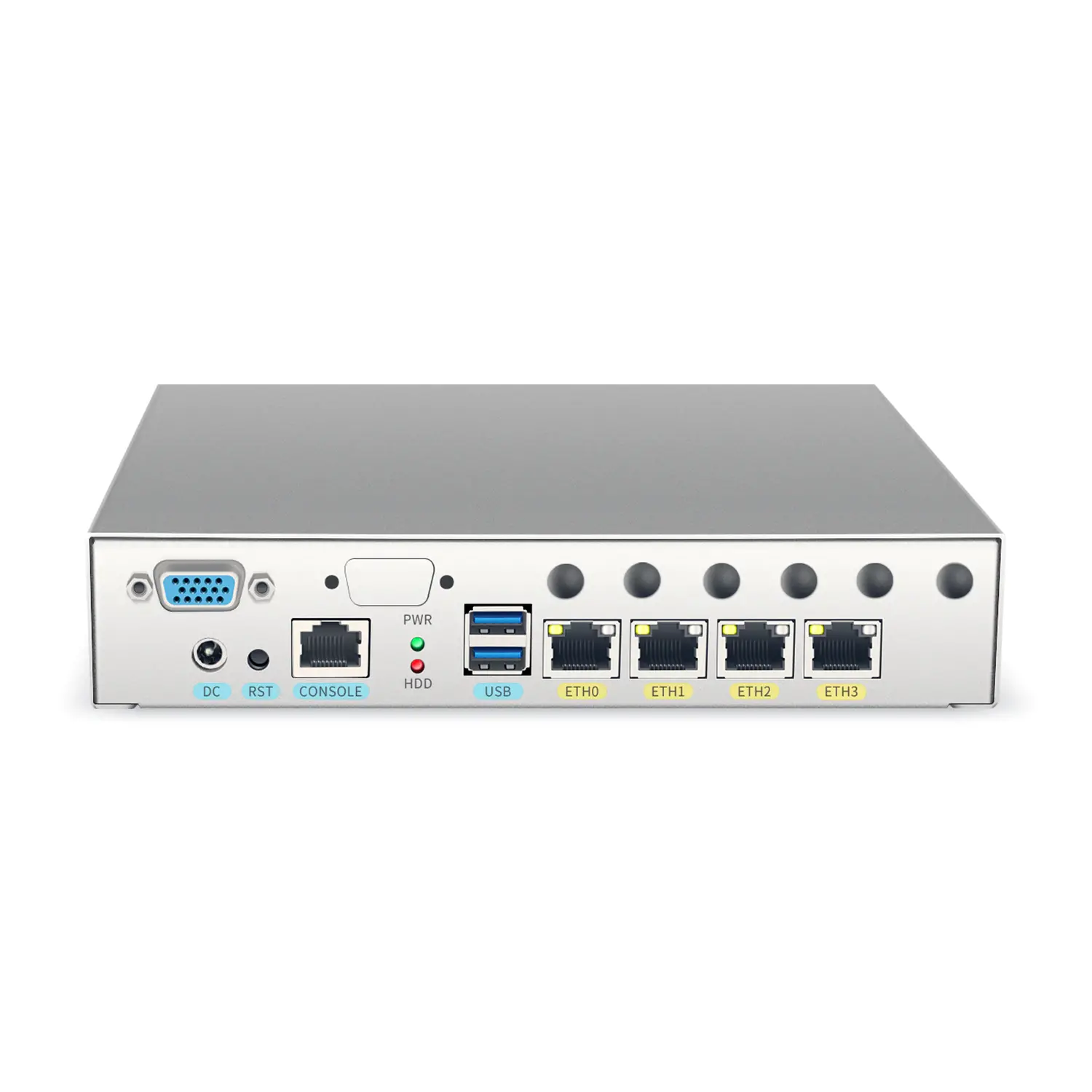

Rear Panel 1 x VGA
1 x DC IN
1 x Reset
1 x Console
1 x HDD/PWR LED light
2 x USB3.0
4 x LAN
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
Cooling Mode With Fan
Power Supply External power 12V 5A DC5.5*2.5optional
Packing List S02 mini pc, power adapter, power cord, warranty card


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S02 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA 4 2 12V/5A
