R5 4 LAN 1U Rack Firewall Appliance Support EXSI

  • CPU Options From Intel Atom, Celeron, or J4125 Series
  • Storage and Memory Options with MSATA SSD, 2.5 Inch SSD/HDD, and DDR3/DDR4 SODIMM Slots
  • Power Supply from Taiwan MEAN WELL with Industrial Grade Quality
  • Operating Systems Such as Windows, Linux, Openwrt, Pfsense, etc.
  • Support for Power-On Boot, Scheduled Boot, Wake-Up on LAN, PXE boot, Watchdog, and Console Port
  • Chassis with Standard 1U Cabinet Type, Black Color, and Cooling Fan

Share to:

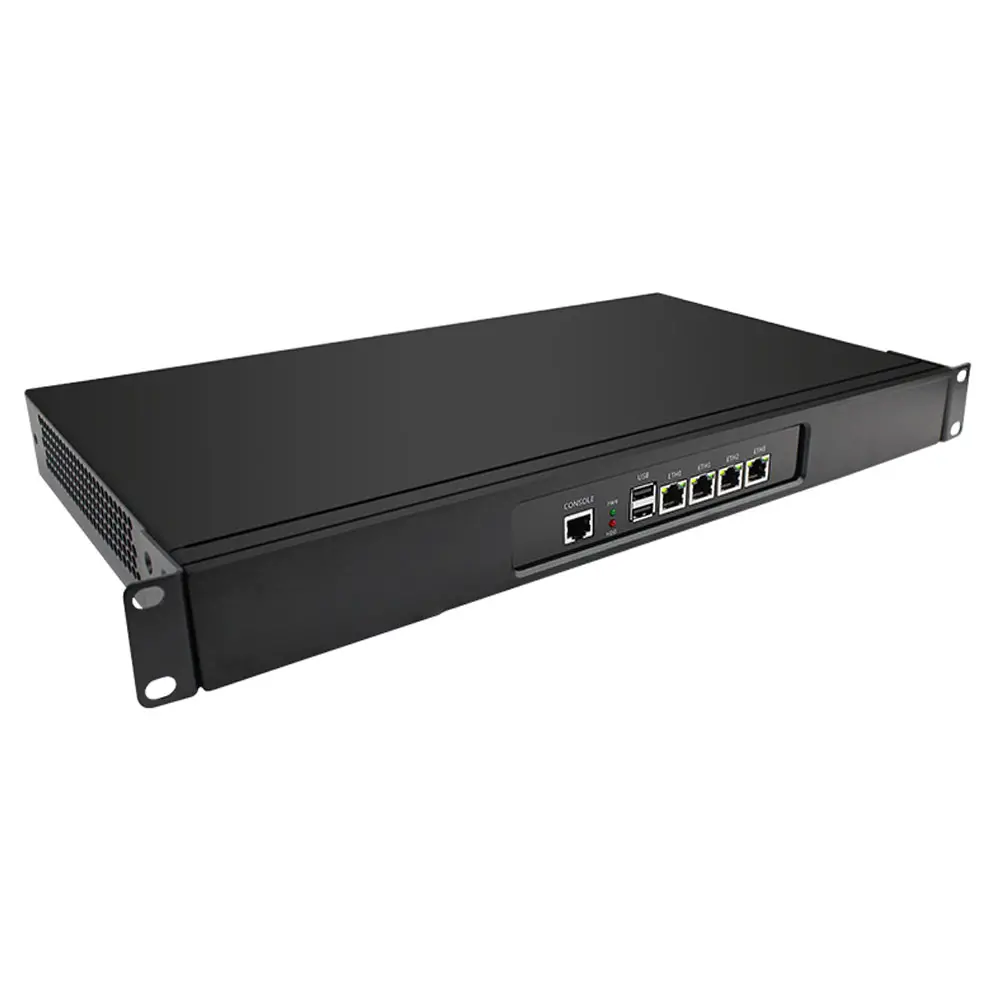

The R5 is a 1U 19 inch chassis that can be mounted on a rack with the included rack ears. It has 4 LAN ports and 1 RJ45 COM port for network and serial communication. It supports exsi, a virtualization platform that allows you to run multiple operating systems on a single machine.




Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 440 x255 x 45(mm)
Weight 6.5Kgs
Insallation Method Desktop type/rack mounting
CPU Intel Atom N2600, 2 cores 4 threads, 1M Cache, 1.6 Ghz(Optional D2500)
Intel Celeron J1900, 4 cores 4 threads, 2M Cache, up to 2.42 Ghz
Intel Celeron J4125, 4 cores 4 threads, 4M Cache, up to 2.72 Ghz
Network Card 4 x Intel 82583V/I211/I225/I226 LAN
Graphic Intel HD Graphics
Memory 1 x DDR3 1333 MHz SODIMM memory slot, up to 4GB
1 x DDR3L 1600 MHz SODIMM memory slot, up to 8GB
1 x DDR4 2400 MHz SODIMM memory slot, up to 8GB
Storage 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Display 1 x VGA
Expand Support 1 MINIPCIE channel (WIFI/Bluetooth available)
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog

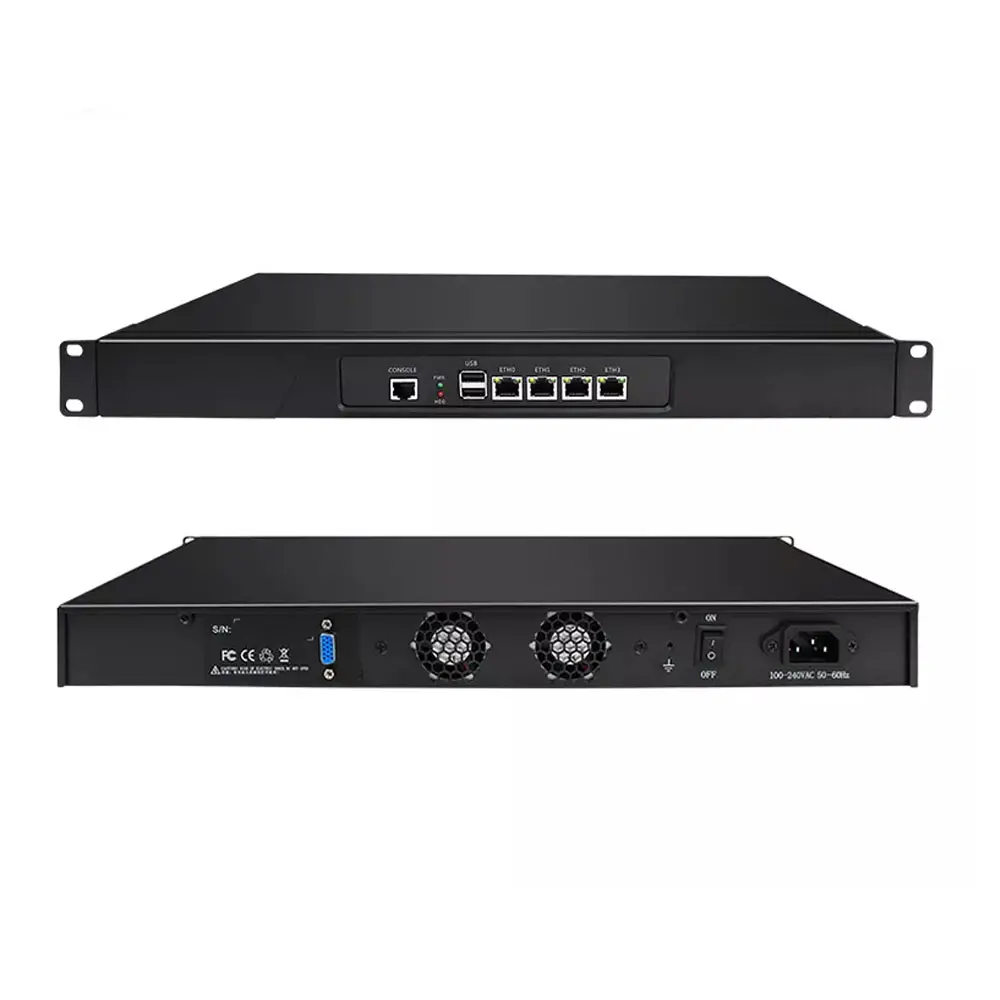

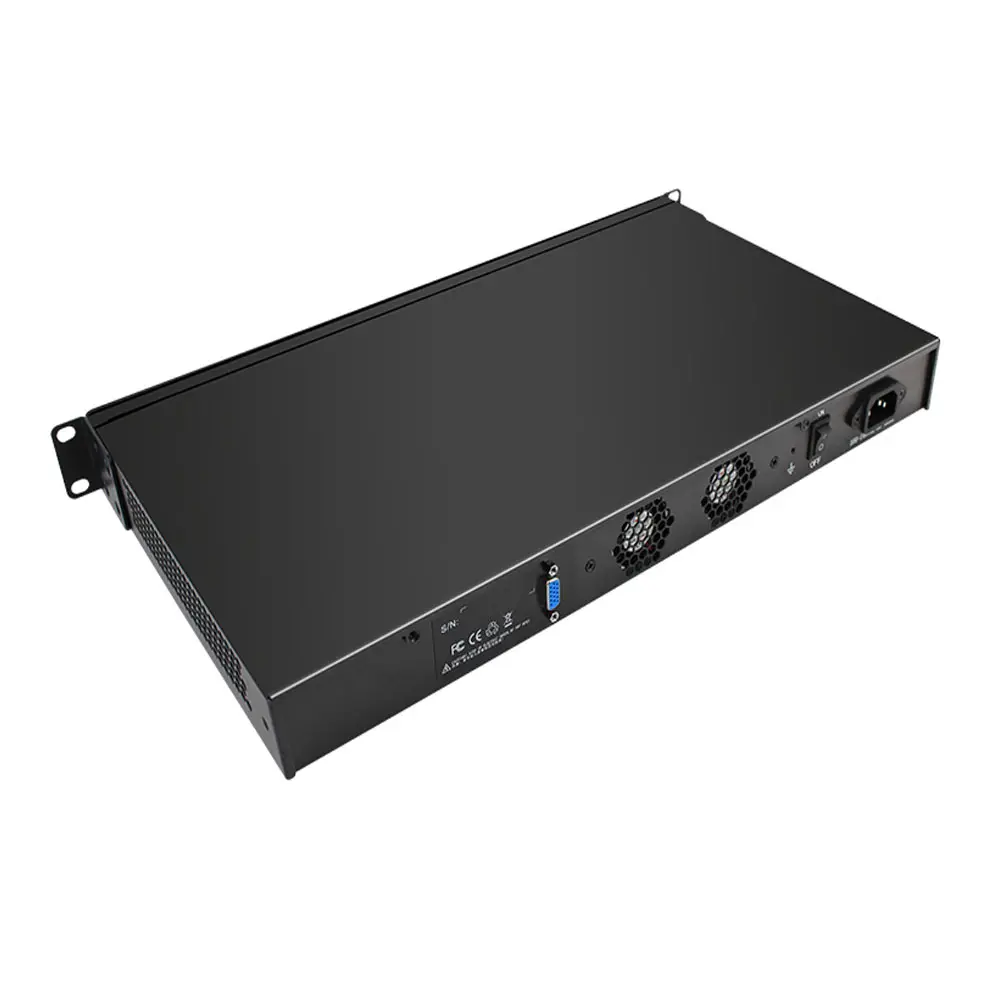

Front Panel 1 x VGA
1 x Power interface
1 x Switch

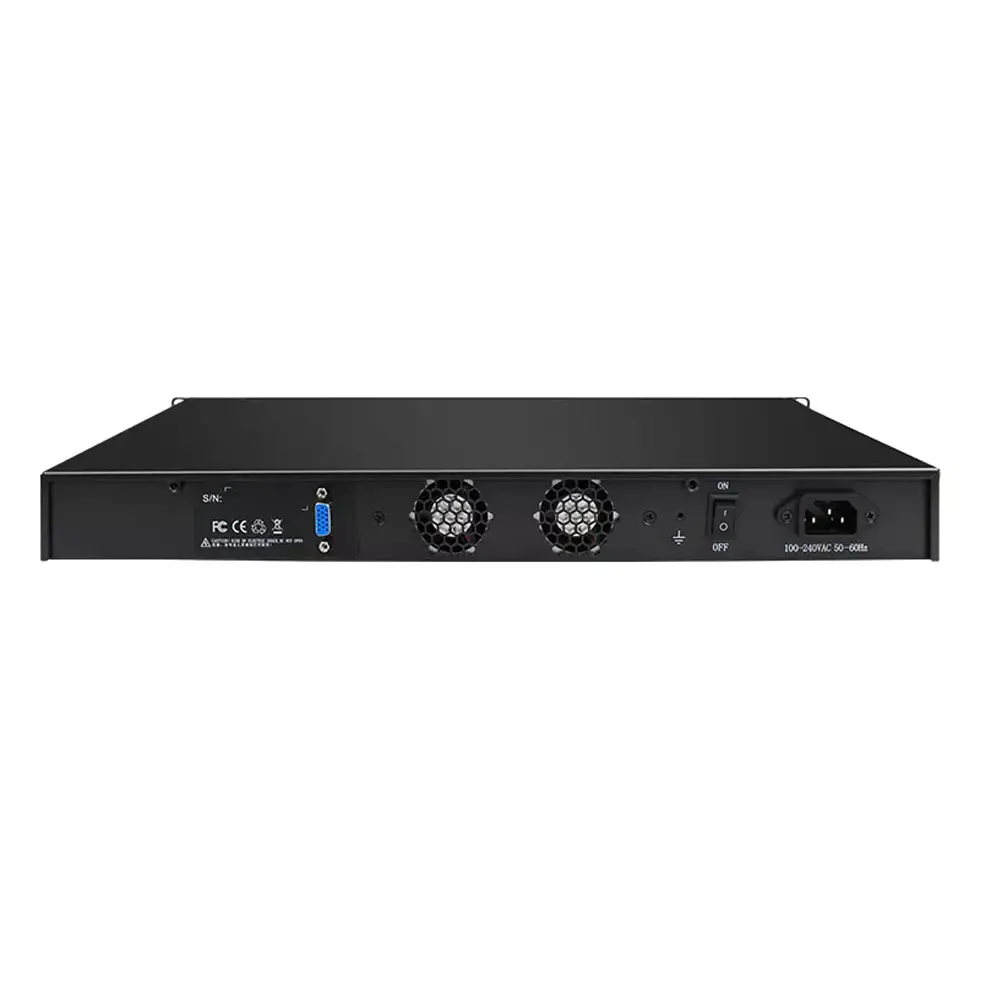

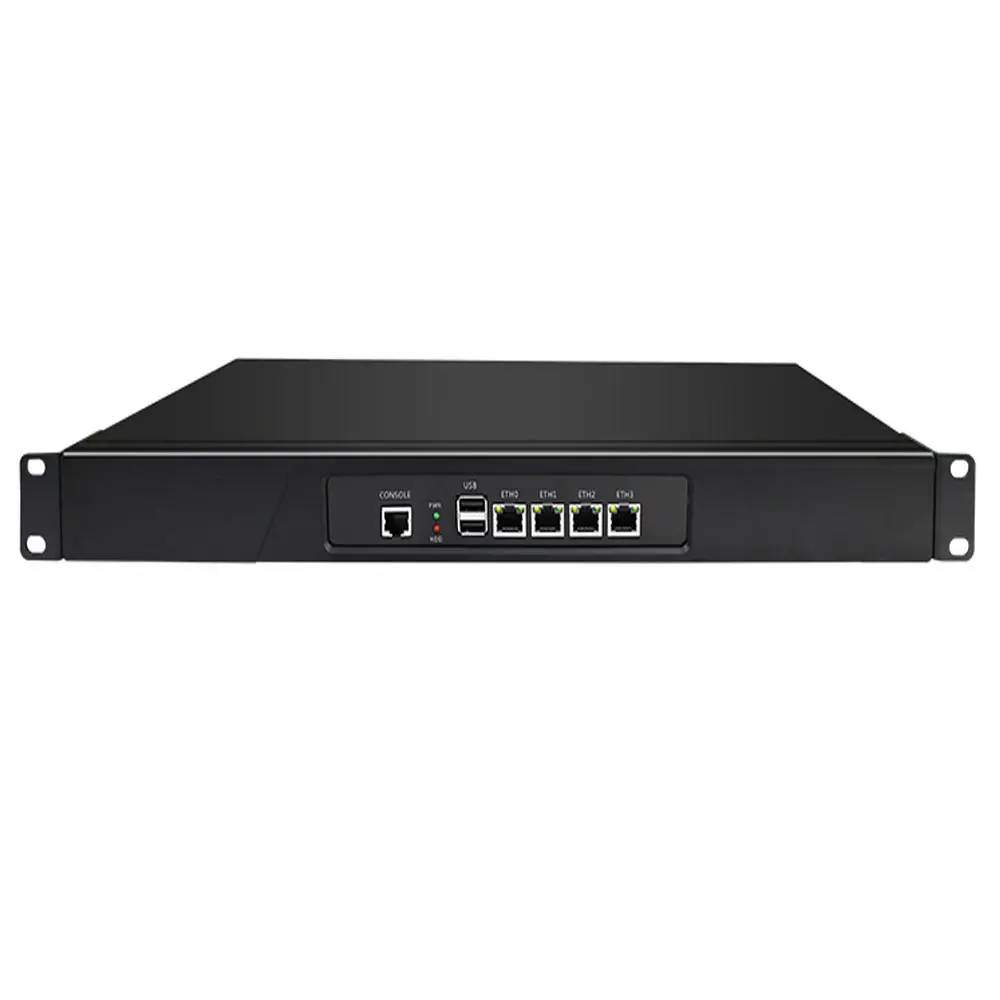

Rear Panel 1 x Console
2 x USB2.0/3.0
4 x LAN
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
Cooling Mode With Fan

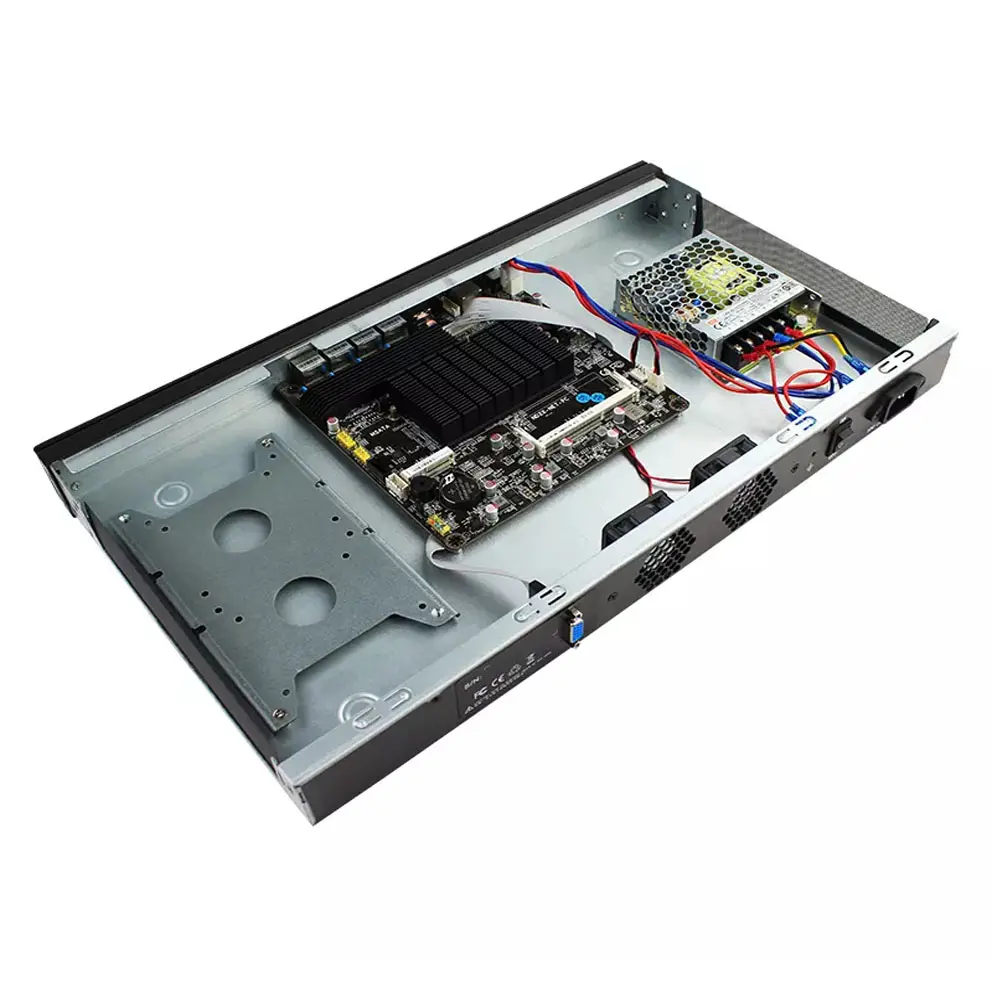

Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List R5 firewall, rack ears, power cord, warranty card
Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
R5 N2600 Intel® HD Graphics 1.60GHz 1 x VGA 1 x SO-DIMM DDR3, Max 4GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
R5 J1900 Intel® HD Graphics 2.0~2.42GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
R5 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 1 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 4 2 12V4.2A
