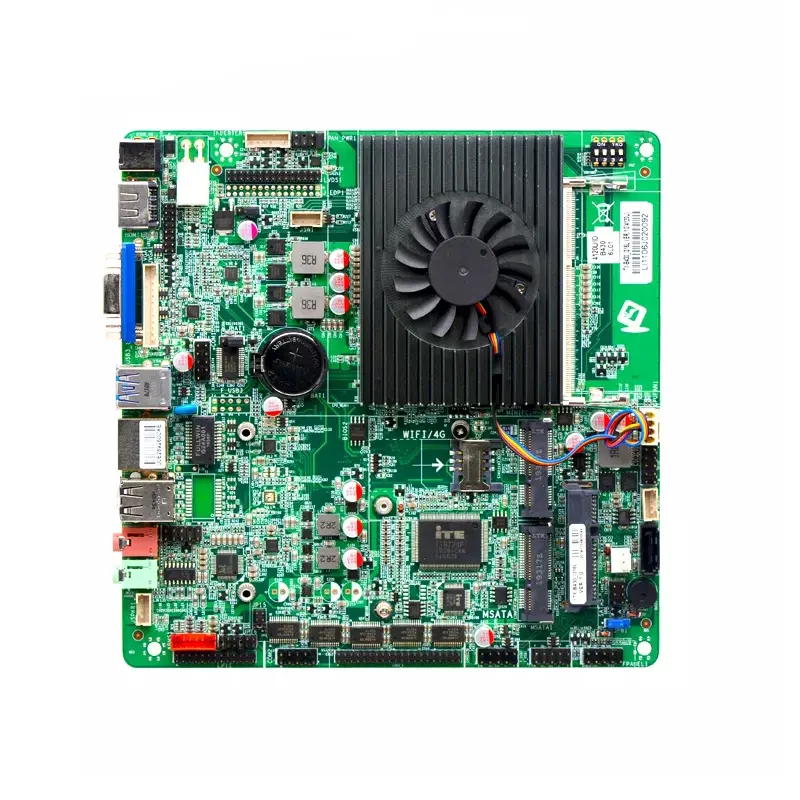

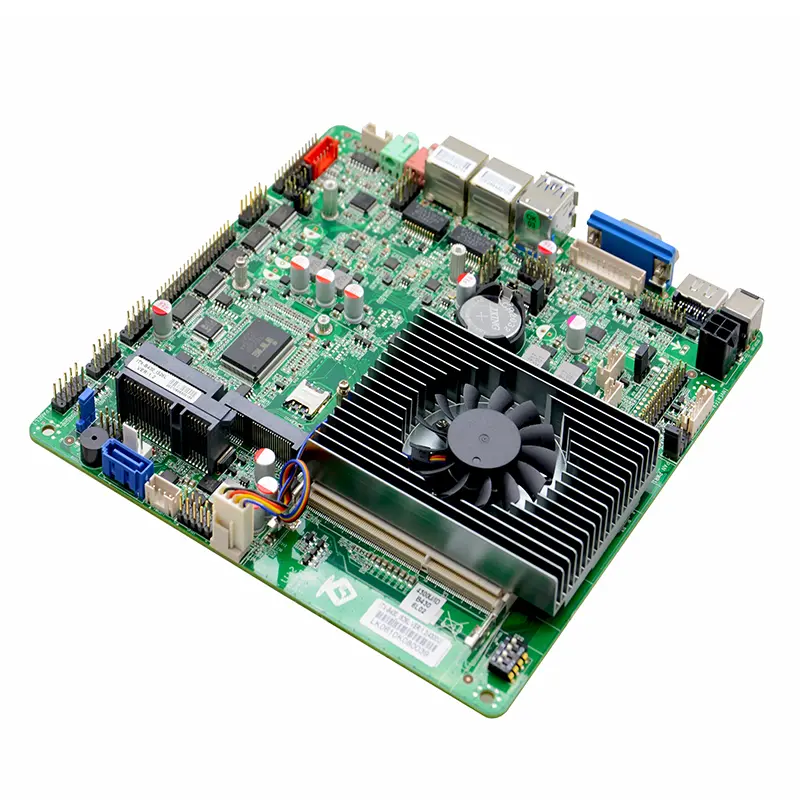

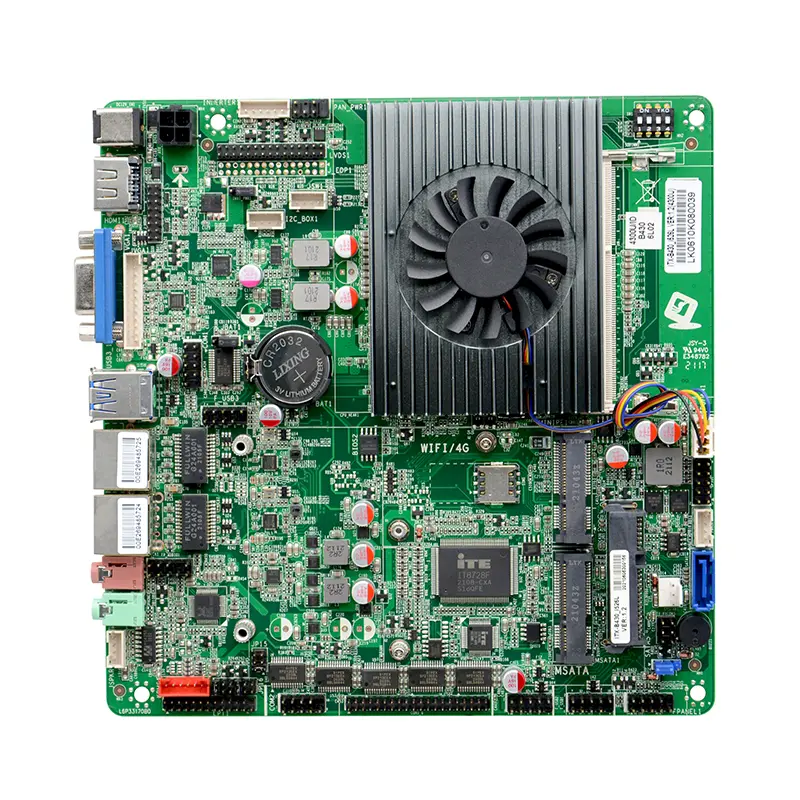

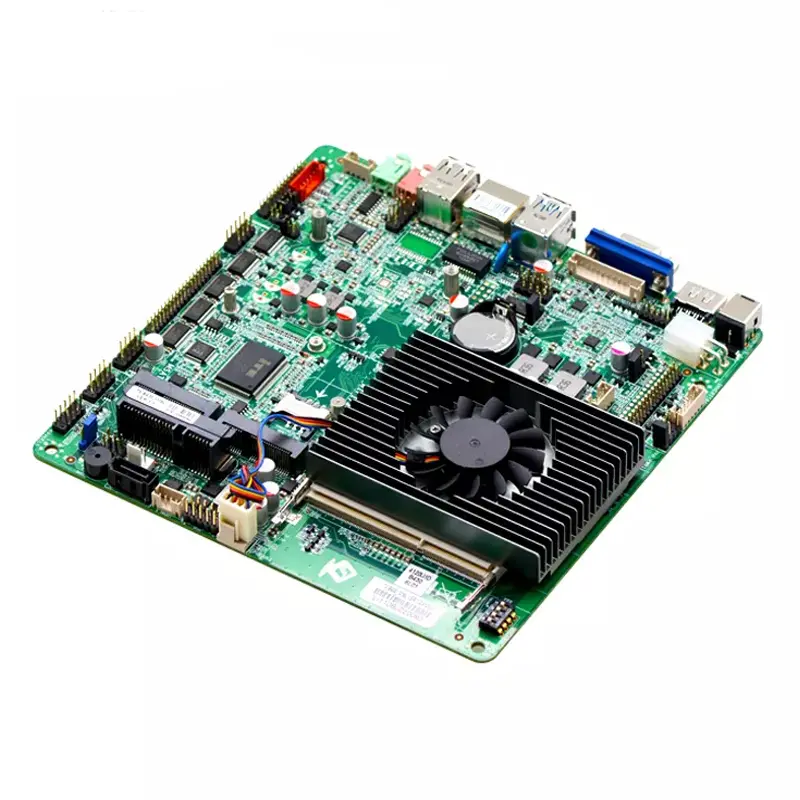

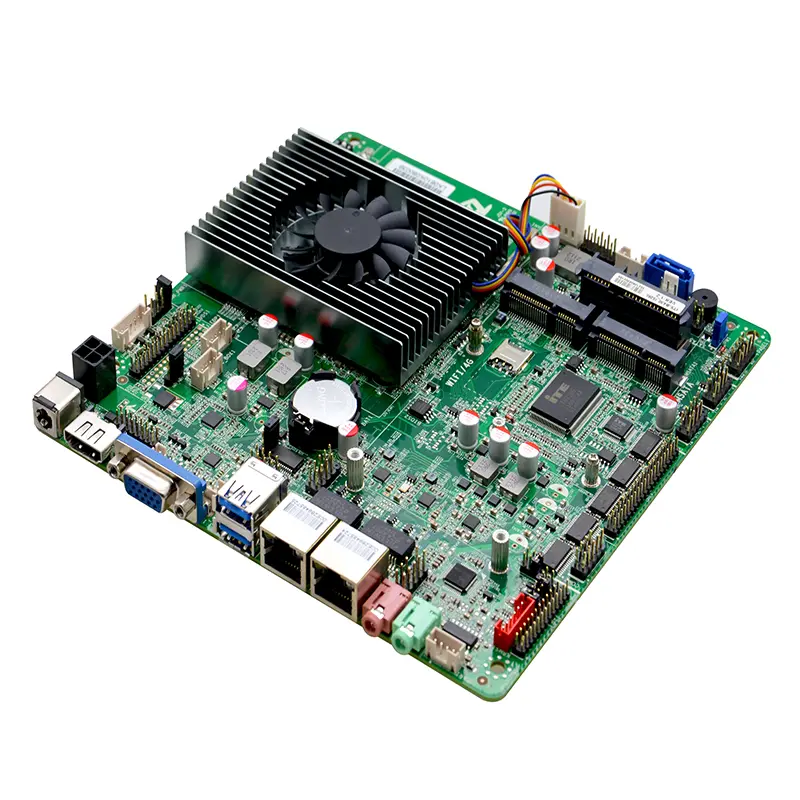

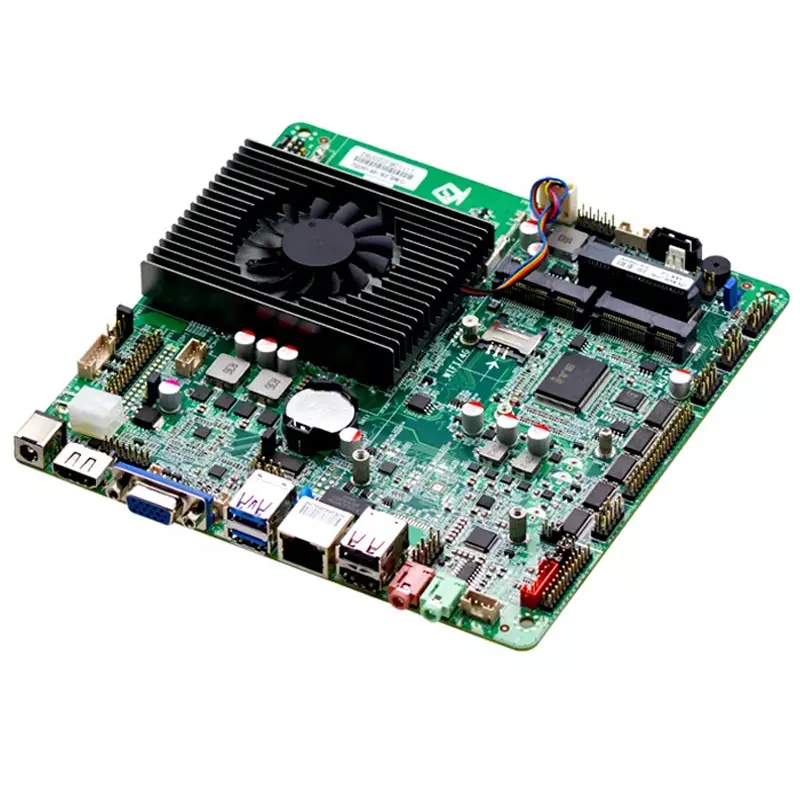

Powerful Thin Mini-ITX Board Support Intel Processor

  • High-Performance Haswell-U I5-4300U Processor
  • Efficient 1600/1333MHz DDR3L RAM Support
  • Integrated HD Graphics 4400 for Superior Visuals
  • Flexible Display Options for Single or Dual Display Mode
  • Fast Gigabit Ethernet with Wake on LAN/PXE
  • Accommodates SATA3.0 2.5-inch HDD and SSD
  • Expandable Connectivity via Mini-PCIE and MSATA Slots

Share to:



The ITX-B430_I526L VER:1.5 motherboard, featuring an Intel Haswell-U I5-4300U 1.9GHz processor, supports various Haswell/Broadwell-U CPUs. With 1 SODIMM slot accommodating up to 8GB DDR3L memory, it integrates HD Graphics 4400 for versatile display options. Offering Gigabit Ethernet, SATA3.0 storage, and ample connectivity, this board thrives in a compact form factor for multiple applications.




Product number ITX-B430_I526L VER:1.5(4300U)
processor Integrated Haswell-U I5-4300U/1.9GHz Dual-core four-thread processor, TDP 15W
Compatible with Intel Celeoron, Pentium, Core®I3/I5/I7 Haswell/Broadwell-U processors
chipset Based on Haswell-U/Broadwell-U SOC platform
RAM 1* SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB
Show Integrated HD Graphics 4400 core graphics
1* VGA, 1*HD OUTPUT, 1*LVDS interface (support dual channel 24BIT)
Support single display, dual display mode, extended mode
The internet 1* RTL8111H Gigabit Ethernet, support Wake on LAN/PXE function
Store 1* SATA3.0 2.5 inch notebook hard drive bay
1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
Audio Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
The power amplifier uses 2Ω5W speakers
Expand 1* Mini-PCIE slot supports WIFI/3G module
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
Note: If MINIPE1 needs to support 3G module, you need to adjust the related hardware settings, and it will cause F_USB2 to only support 1 USB

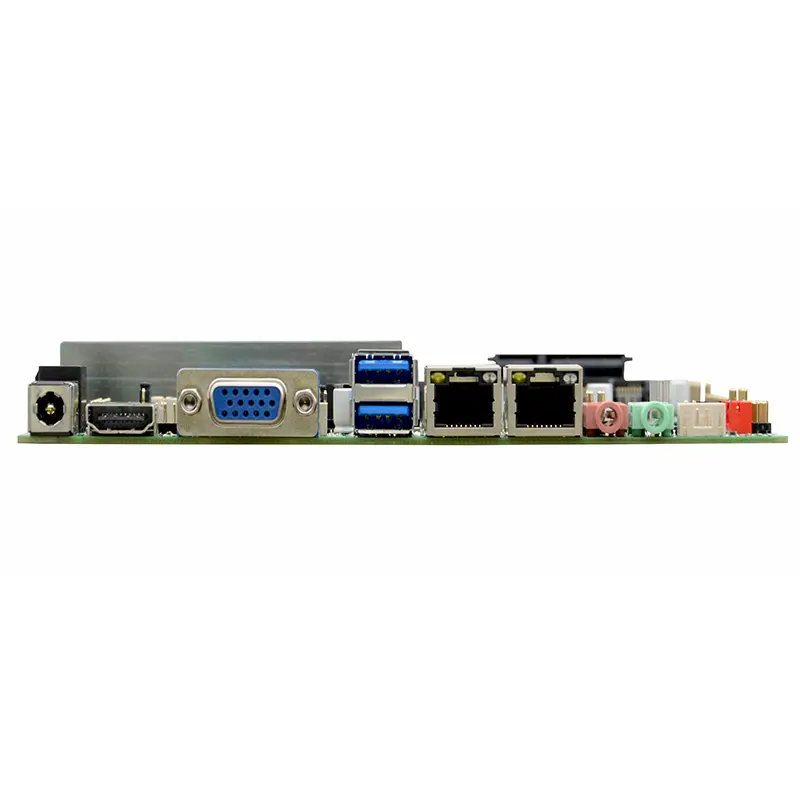

Backplane I/O interface 1* 12V DC JACK power input interface
1* HD OUTPUT display interface
1* VGA display interface
2* USB 3.0 interface
2* USB2.0 interface
1* RJ-45 Gigabit network interface
1* Line out interface (green)
1* MIC interface (red)
Built-in I/O interface 1* JVGA1 interface 1*12Pin (same signal as DB15)
1* J_HD OUTPUT interface 2*8pin (same signal with backplane IO interface HD OUTPUT)
1* Support dual channel 24bit (double 8) LVDS interface 2*15pin
1* LVDS backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
1* Front audio interface 2*5pin
1* Front power amplifier interface 1*4Pin
4* USB 2.0 interface 2*5Pin
6* RS232 serial interface 2*5pin COM1/COM2 supports the 9th pin charged function, COM2 supports RS485
1* LPT printer interface 2*13pin
1* PS/2 keyboard and mouse interface 1*6Pin
1* Hard disk power supply interface 1*4pin
1* SIM card holder
1* Front panel function button and indicator port 2*5pin
1* 4pin ATX power connector
Fan interface 1* 4pin CPU smart fan interface, 1* 3pin system fan interface
GPIO Support 4 input and output GPIO
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
operating system Windows 7/Windows 10/Linux
Power type DC_12V single power input
Operating temperature -10~60
Storage temperature -20~70
Working humidity 5%-95% relative humidity, non-condensing
Size 170mm x 170mm
