Overview

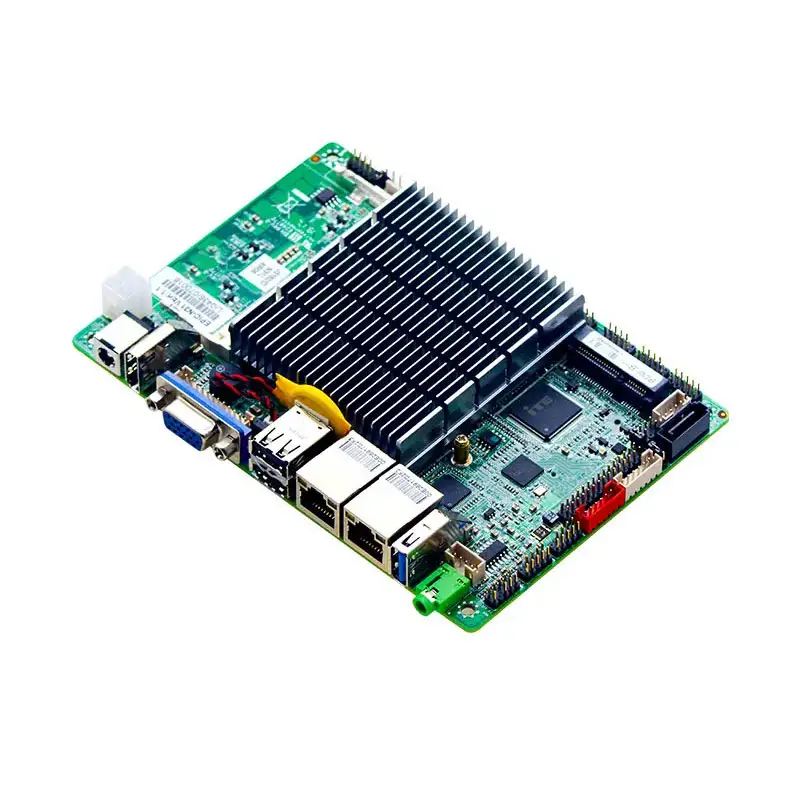

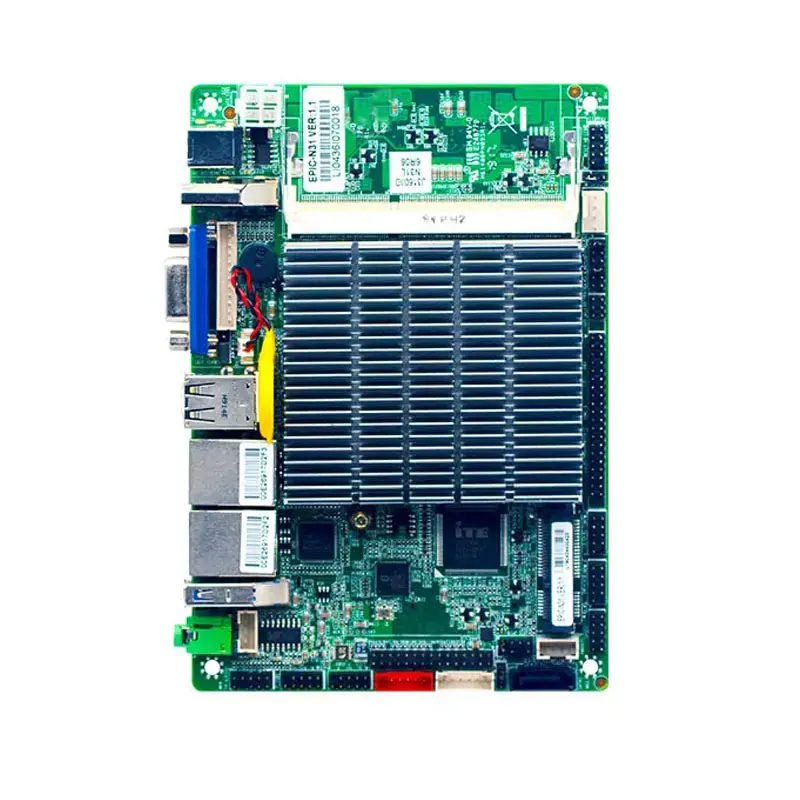

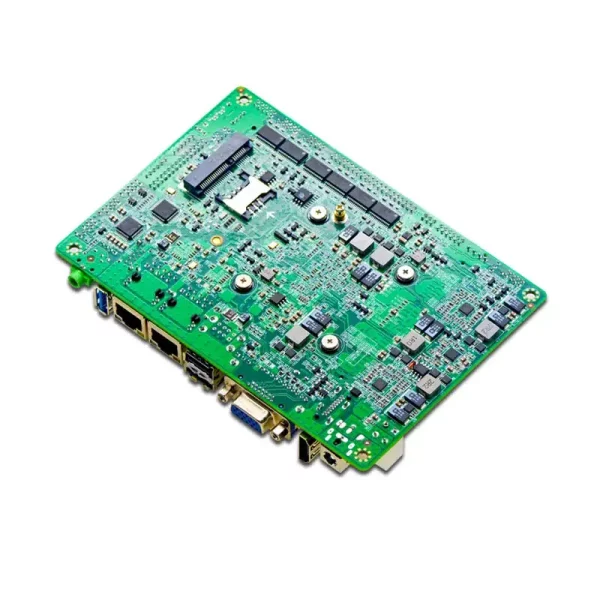

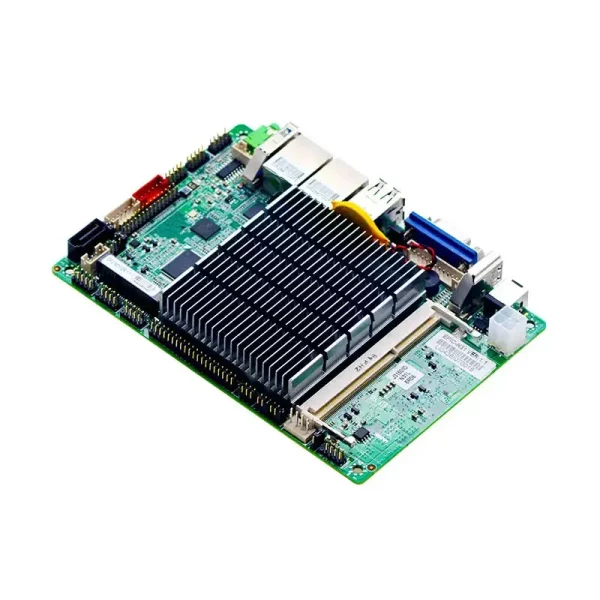

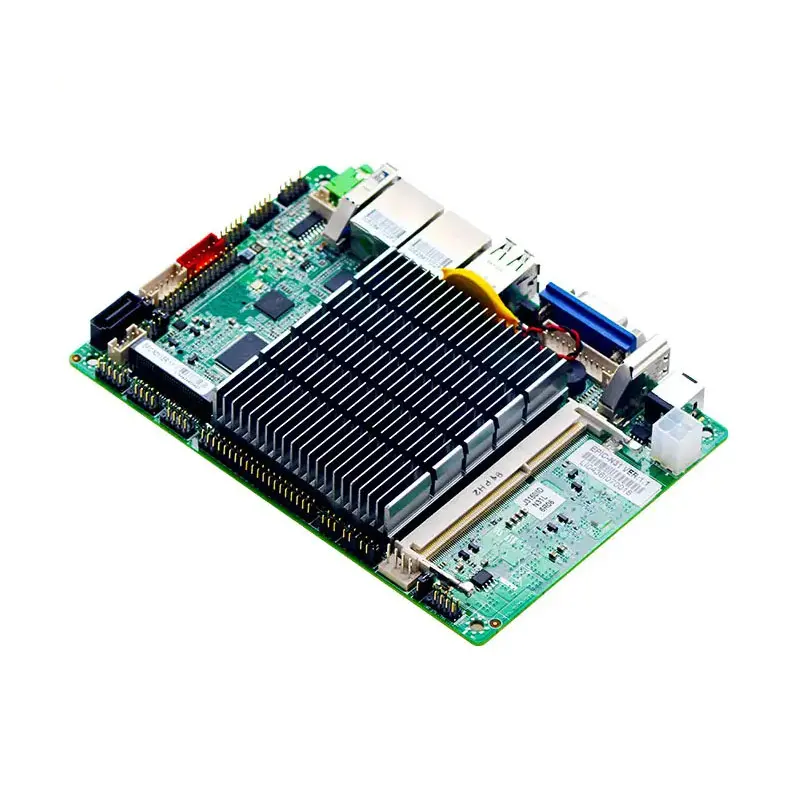

The EPIC-N31 VER:1.1 is a compact embedded board featuring an Intel J3710 quad-core processor with a low 6W TDP. Built on the Intel Braswell SOC platform, it supports up to 8GB of DDR3L memory and offers robust graphics with Intel HD Graphics.
The board boasts versatile display options, including VGA, HDMI, and LVDS support for synchronous or asynchronous display. It provides dual Intel 211 Gigabit LAN ports and flexible storage solutions with SATA3.0.
Specifications
| Model | EPIC-N31 VER:1.1 |
| Processor | Integrated Intel®J3710/1.6GHz quad core processor, TDP 6W |
| Chipset | Base on Intel® Braswelll SOC |
| Memory | Single channel 1600/1333MHz DDR3L/1.35Vmemory ,up to 8GB |
| Graphic | Intel®HD Graphics Graphics |
| Display | 1*VGA,1*HD OUTPUT,1*LVDS (support for dual channel 24BITs)
Support VGA; HD-MI,LVDS synchronous / asynchronous display |
| Network | 2*Intel 211 Gigabit LAN,Optional two gigabit support Wake on LAN/PXE |
| Storage | 1*SATA3.0 up to 6Gbps |
| Audio | On board ALC662 6hannel audio controller ,support MIC/Line-out,power amplifier
Channel audio controller ,support MIC/Line-out power amplifier 2Ω5W |
| Expansion slot | 1*Mini-PCIE,support WIFI,3G model
1*MSATA support WIFI(optional ),SSD(False SSD,support Intel consultative SSD,up to 6Gbps) |

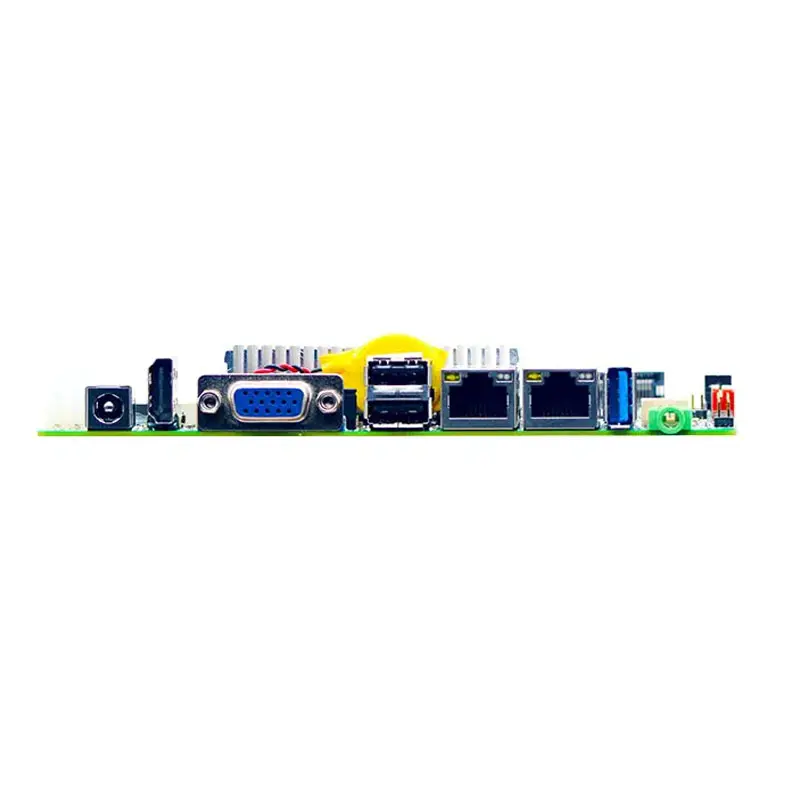

| I/O interface | 1* 12V DC Power input |
| 1* HD OUTPUT | |
| 1* VGA | |
| 2* RJ-45 Gigabit LAN | |
| 2* USB2.0,1*USB3.0 | |
| 1* Line out(Green) | |
| Internal I/O | 1* 4Pin power input (12V Input and output power connector) |
| 4* USB 2.0 2*5Pin | |
| 1* JVGA 1*12Pin | |
| 1* PS/2 KB/MS connector 1*6Pin | |
| 6* RS232 ,COM2 support RS485/RS422 | |
| 1* Front audio interface 2*5pin | |
| 1* Front amplifier interface 1*4Pin | |
| 1* LVDS 2*15pin,support dual channel 24bit ( dual 8) | |
| 1* LVDS Backlight power supply | |
| 1* Front panel switch button and indicator interface 2*5Pin | |
| 1* Hard disk power supply | |
| 1* SIM card socket | |
| Fan interface | fanless, reserve1* 4pin CPU fan interface |
| GPIO | 4-way GPIO function |
| BIOS | AMI 64Mb Flash ROM |
| Watchdog | Support hardware reset function (L256, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power type | Adopt DC 12V |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| Size | 148mm x 102mm |
