Powerful B9 Mini PC with Smart Cooling

  • Stylish aluminum build for durability
  • Dual M.2 slots for speedy storage
  • Fast LAN & Wi-Fi connectivity
  • VESA Mount or Desktop Placement
  • Reliable operation in wide temp range
  • Supports up to 32GB RAM
  • Rugged construction for longevity

Share to:



The B9 Mini PC, constructed from durable aluminum alloy, boasts a sleek silver design. It’s versatile, featuring Intel Core i5/i7 processors, plenty of RAM and storage options, and high-speed connectivity. Whether used on a desktop or VESA mounted, its smart silent fan ensures quiet operation. Ideal for Windows or Linux users, this compact PC meets rigorous quality standards.




Material Aluminum alloy
Colour Silver
Size 160 x 150 x 57mm
Weight 2Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional
CPU Intel® Core™ i5-7300HQ Processor (6M Cache, up to 3.50 GHz)
Intel® Core™ i7-7820HK/7820HQ/7700HQ Processor (8M Cache, up to 3.90 GHz)
Chipset HM370
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 32GB RAM
Storage 1 x M.2 2280 (SATA/NVME), 1 x M.2 2280 (NVME)
Expand 1 x M.2 PCIE WiFi slot

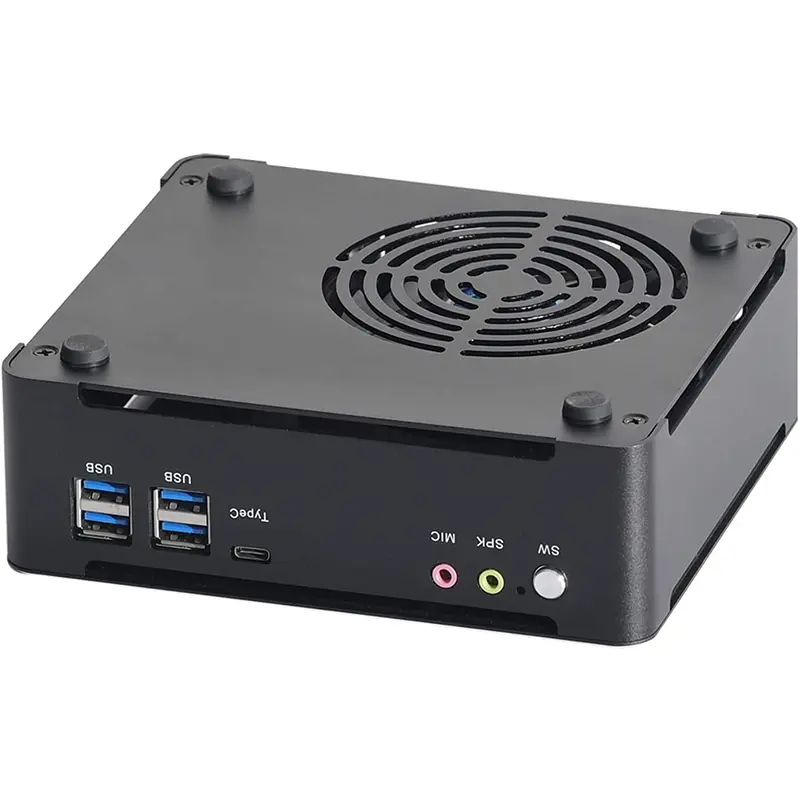

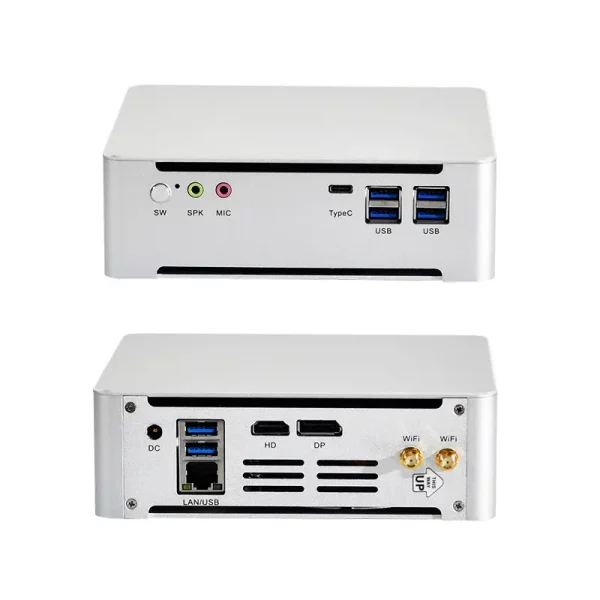

Front Panel 1 x Power button
1 x Audio
1 x Type C
4 x USB3.0

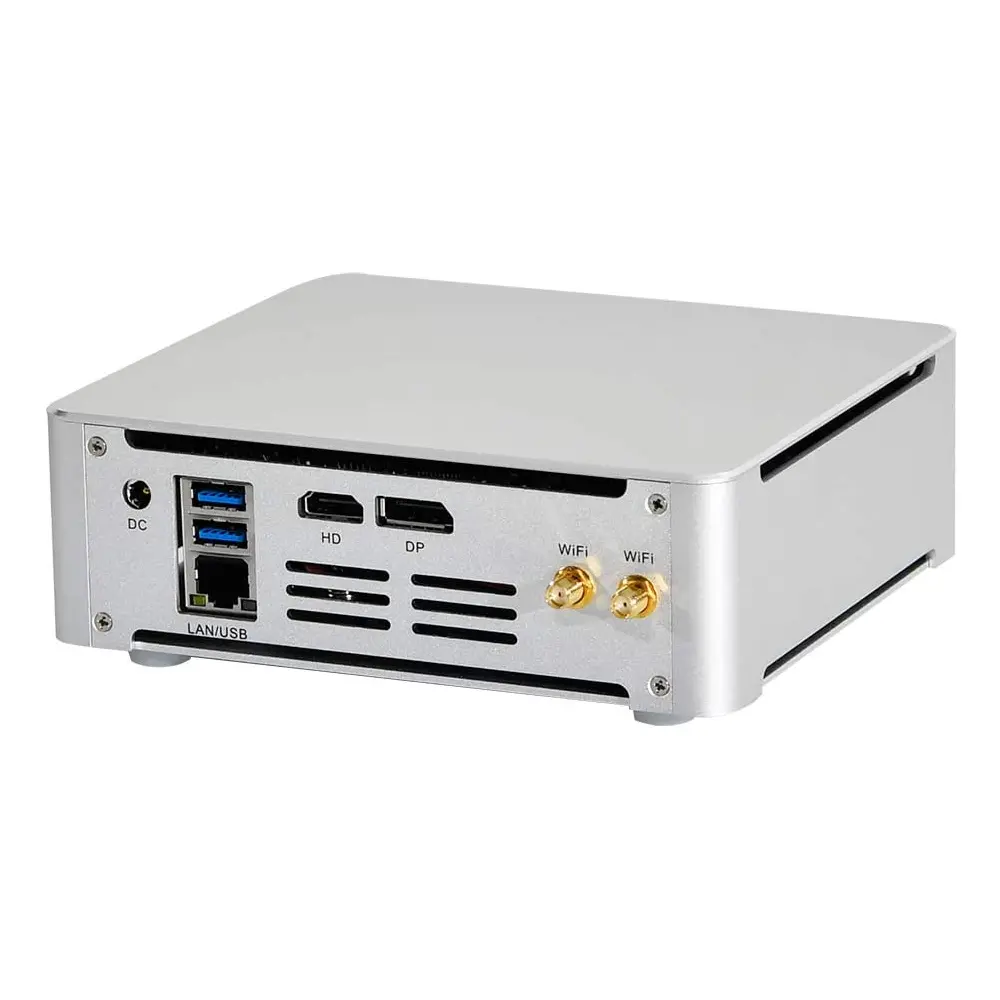

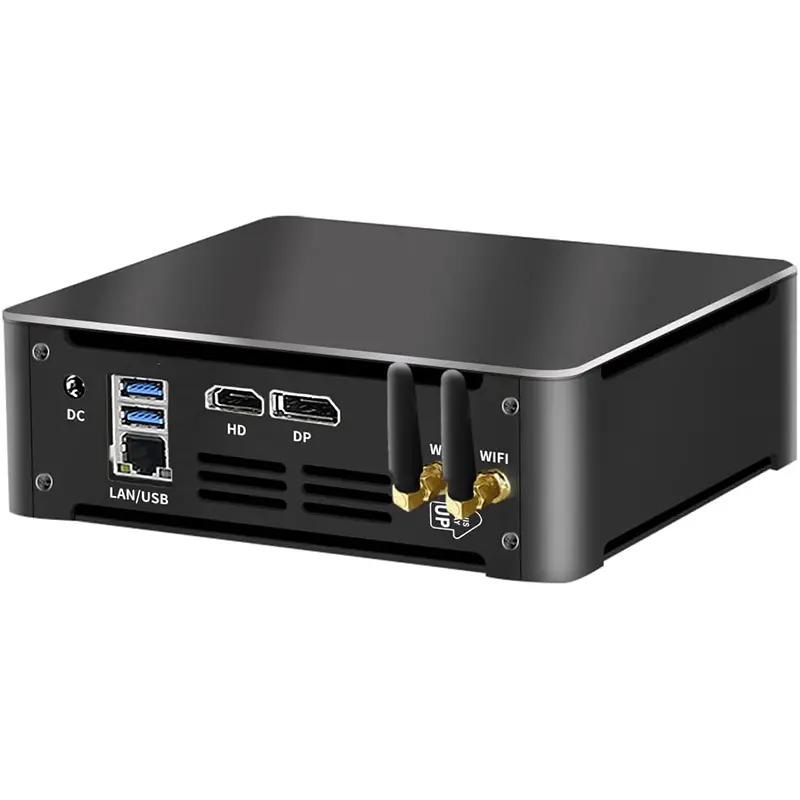

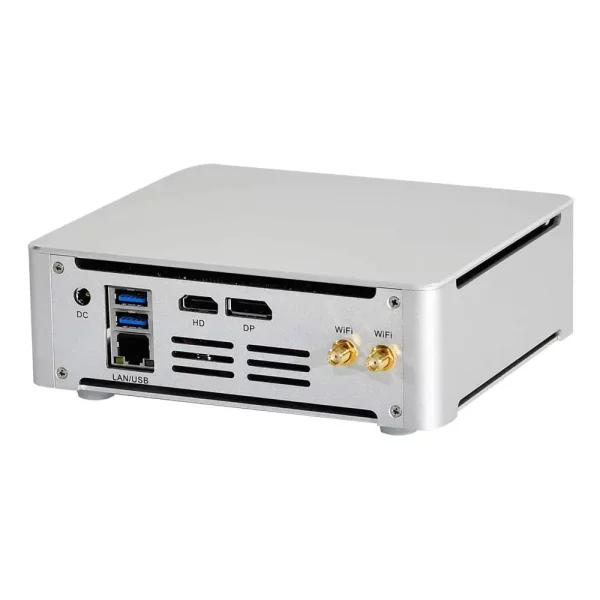

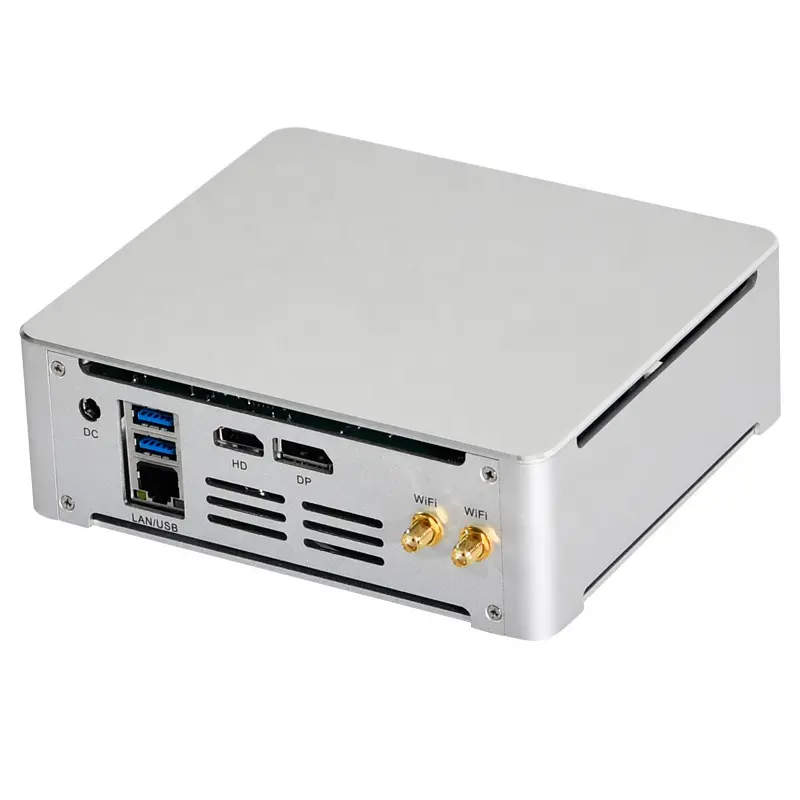

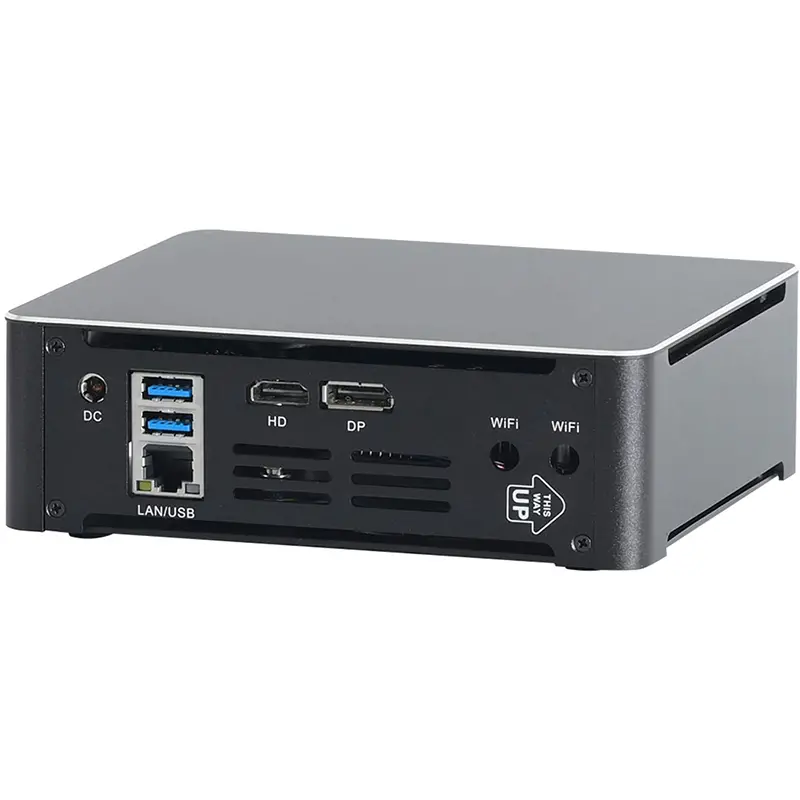

Rear Panel 1 x DC_in
2 x USB3.0
1 x Lan
1 x HDMI
1 x DP

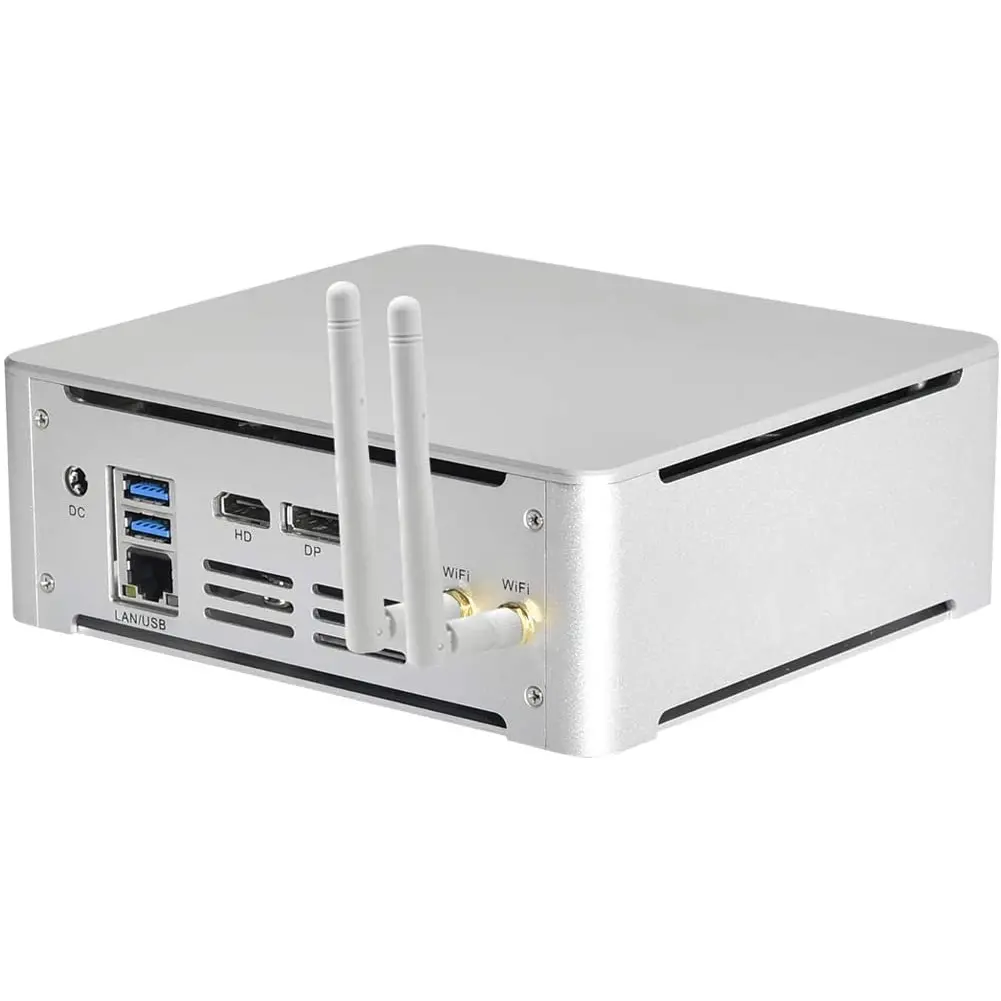

2 x WiFi antennas
Bios AMI bios
System Support Windows 10, linux ubuntu etc

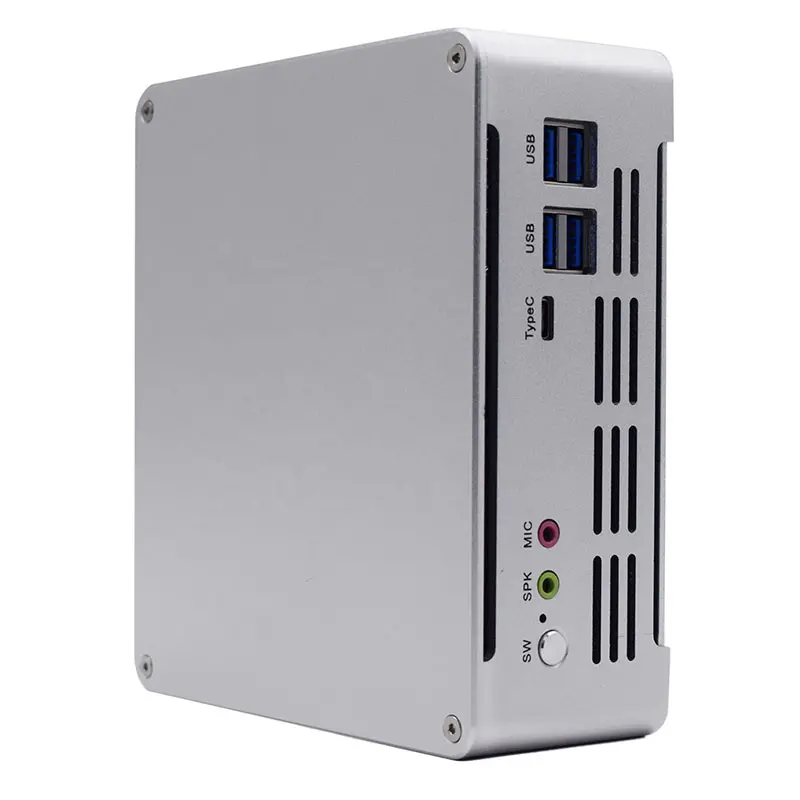

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/7A
Packing List B9 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card
Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B9 I5 7300HQ Intel® HD Graphics 630 2.5~3.5 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 32GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/7A
B9 I7 7820HK 7820HQ Intel® HD Graphics 630 2.9~3.9 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/7A
