Overview
The Partaker I16 Industrial PC is a rugged, high-performance embedded computer designed for demanding automation, medical, and machine vision applications. Featuring 6th Gen Intel Core i3/i5/i7 processors (Skylake/Kaby Lake-U) and a fanless all-aluminum chassis, it delivers reliable 24/7 operation in harsh environments (-20°C to 60°C with industrial SSD).
Specification
| System Parameter | |
| Model | Partaker I16 Industrial Grade PC |
| Processor | Intel Core i3 6100T (Dual core four threads，3.2GHz); |
| Intel Core i5 6500T (Quad core four threads，2.5GHz，Max turbo 3.1GHz) | |
| Intel Core i7 6700T (Quad core eighr threads，2.8GHz，Max turbo 3.6GHz) | |
| CPU Structure | Skylake-U / KabyLake-U |

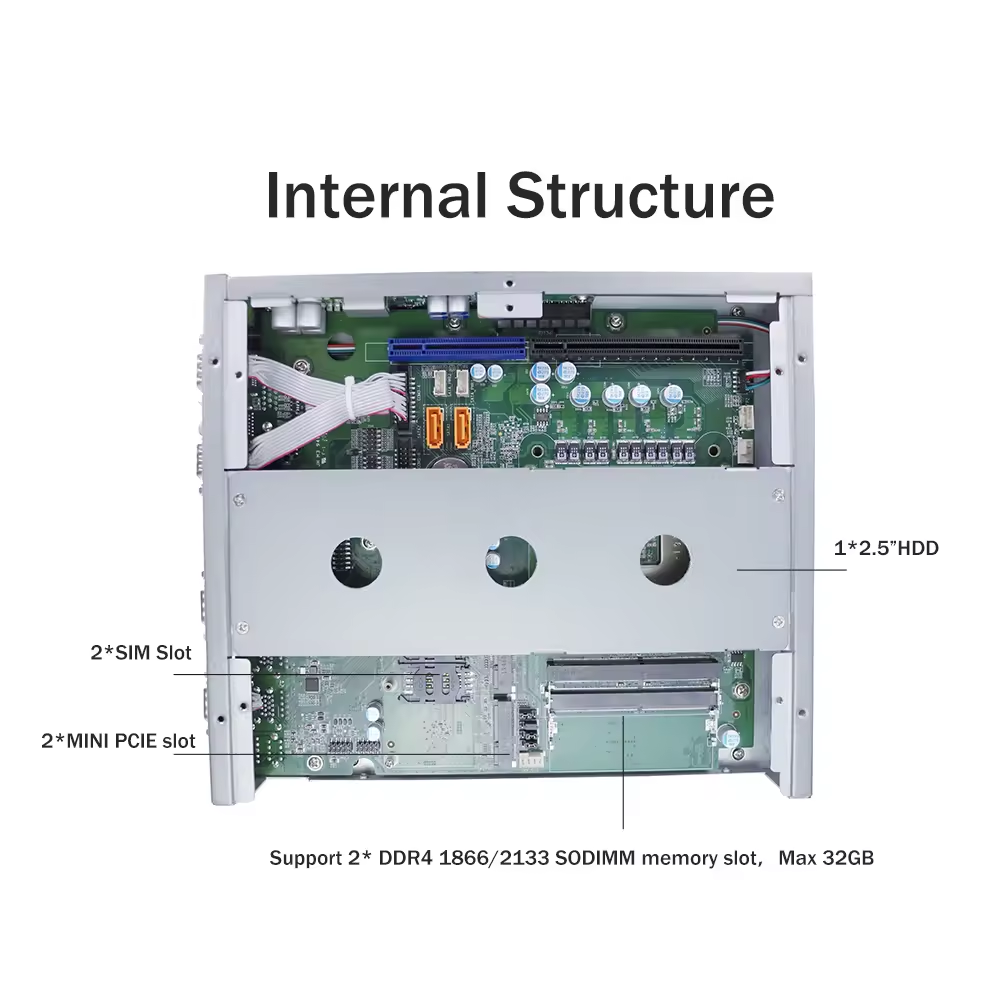

| Memory | Support 2*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 32G |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 530 |
| Display port | 1*VGA，1*HDMI,1*DP |

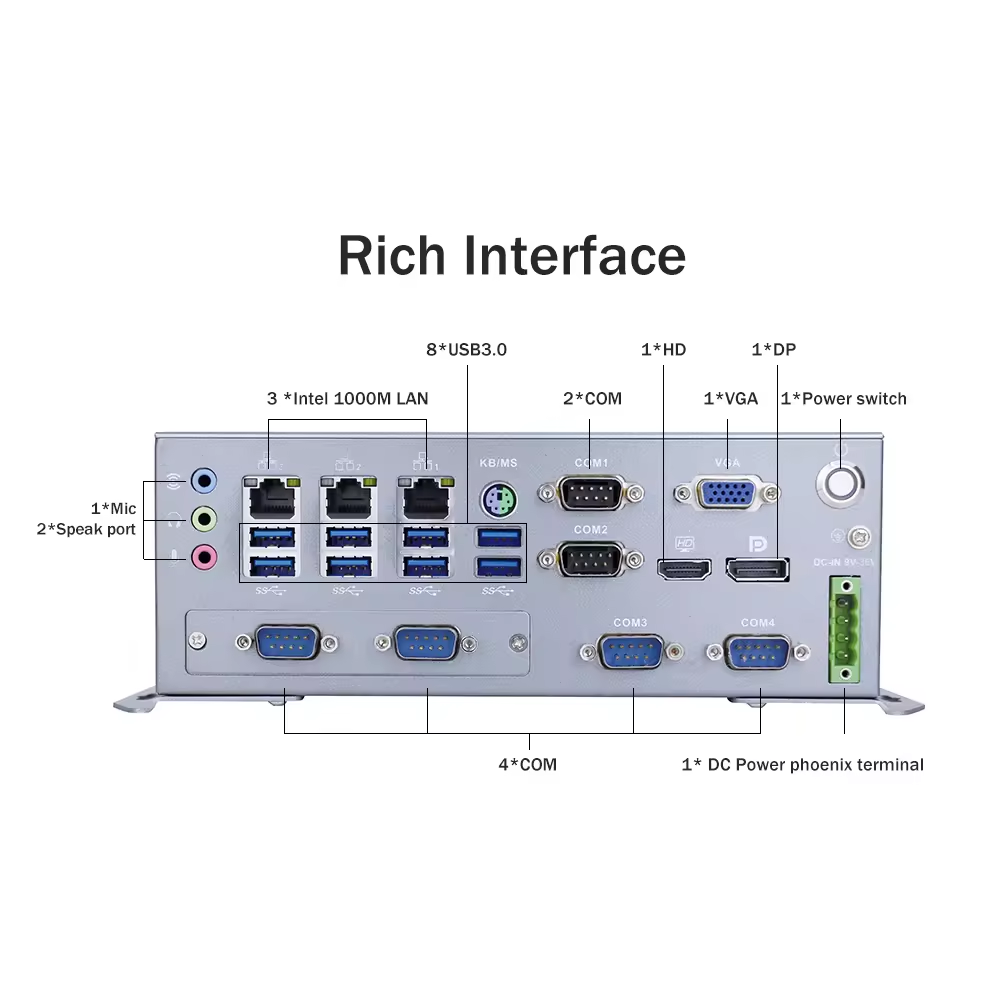

| I/O | 8*USB3.0，3*Intel 1000M LAN，1*Power Switch，1*MIC，2*Speaker，1*VGA，1*HDMI，1*DP, 1*Keyboard or Mouse port |
| 6*COM（COM1、COM2 RS232/422/485 Optional），1*DC power supply phoenix connector | |
| Expansion Slot | Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM slot ; |
| Support 1*MINI PCIE Slot（MSATA/3G/4G Optional），Embedded SIM slot | |
| Optional Ports:16Bit GPIO、4*USB2.0（Standard version doesn’t include these ports） | |
| Network | 2*Intel i211-AT，1*Intel i219-LM 1000M LAN（Support Vpro Technology） |
| Storage port | Support 1*MSATA slot，2*2.5” SATA HDD（Support RAID0/1） |
| Power Supply | DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum，surface anodic oxidation |
| Size | 210 * 240 * 83.5 mm【not include wall bracket】 |
| Weight | 4 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
