PA3046 Fanless Industrial Mini PC with 4205U Core i7 i5

  • Aluminum Alloy Case, with Titanium Gray Color Option.
  • With Desktop Type, Wall-Mounted, or Embedded Options.
  • Expandable Memory (Up to 32GB)
  • Wide Operating Temperature
  • Including an M.2 M-Key slot, a MINI PCIE slot (for WiFi/3G/4G)
  • Expansion Ports for GPIO, 2 x COM, and 1 x USB2.0.

Share to:



The PA-3046 Mini PC: A versatile computing solution featuring a durable aluminum alloy body in customizable titanium gray. It offers a range of CPU options, including Intel Celeron, Core i5, and Core i7 processors. With Skylake-U architecture, it ensures efficient performance. Equipped with four Intel i211-AT 1000M LAN ports, it’s designed for network-intensive tasks. Memory support up to 32GB and storage options including M.2 and 2.5-inch HDD with RAID support. Expandability with M.2 and MINI PCIE slots, and additional ports for GPIO, COM, and more. The fanless design keeps it cool without noise. Suitable for various applications, including Windows and Linux. It supports a wide operating temperature range and is packed with features like TPM2.0, auto power-on, and watchdog. Certified with CE, FCC, and ROHS.




Material Aluminum alloy
Colour Titanium gray(Color can be customized)
Size 280 x 143 x 40mm
Weight 2.5Kgs
Insallation Method Desktop type
CPU Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache)
Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache)
Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache)
CPU Architecture Skylake-U
Network Card 4 x Intel i211-AT 1000M Lan
Graphic Intel UHD Graphics
Memory Support 1 x DDR4 2133/2400 SODIMM Memory slot, Max. Support 32GB
Storage 1 x M.2 2280 slot, 1 x 2.5 Inch HDD, Support RAID 0/1
Expand Support 1 x M.2 M-Key 2280 slot(Support SATA Protocol)
Support 1 x MINI PCIE Slot (WIFI/3G/4G Optional; choose one from three), embedded SIM Slot
Expansion Ports: GPIO(8 Input 8 Output), 2 x COM, 1 x USB2.0 (Standard version does not include these ports)

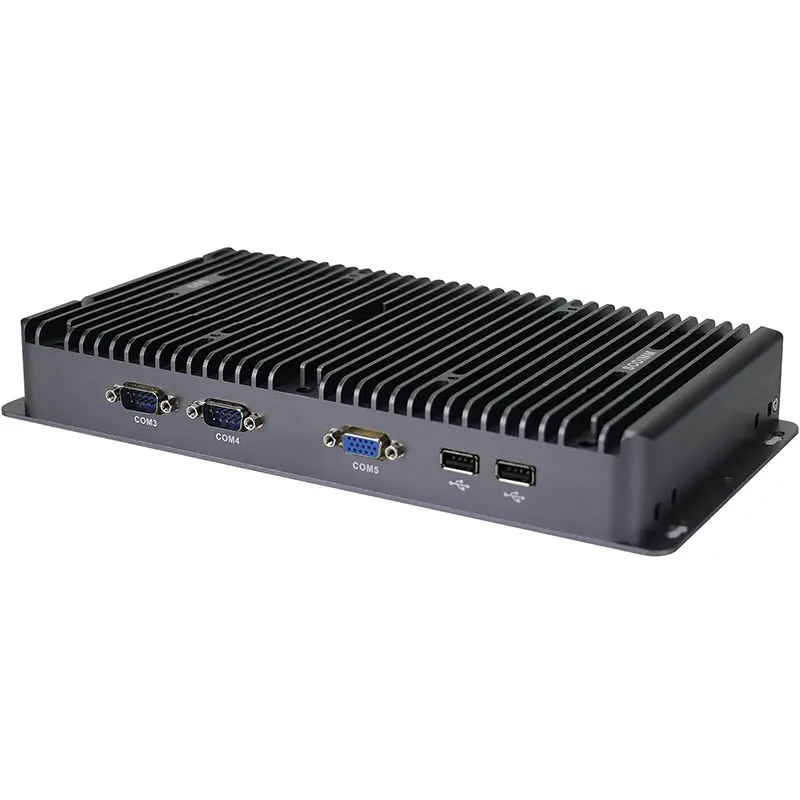

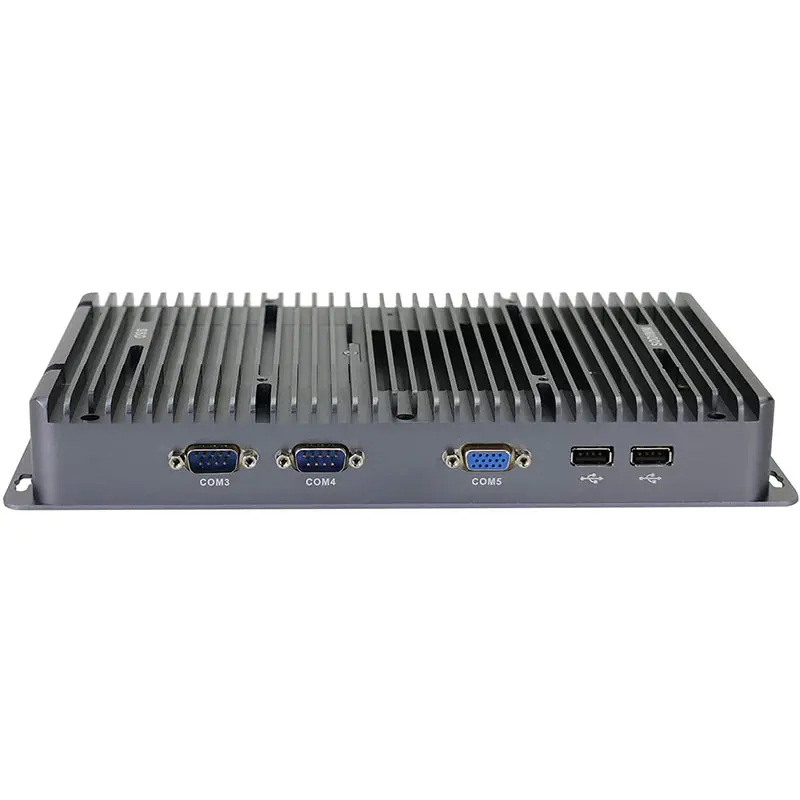

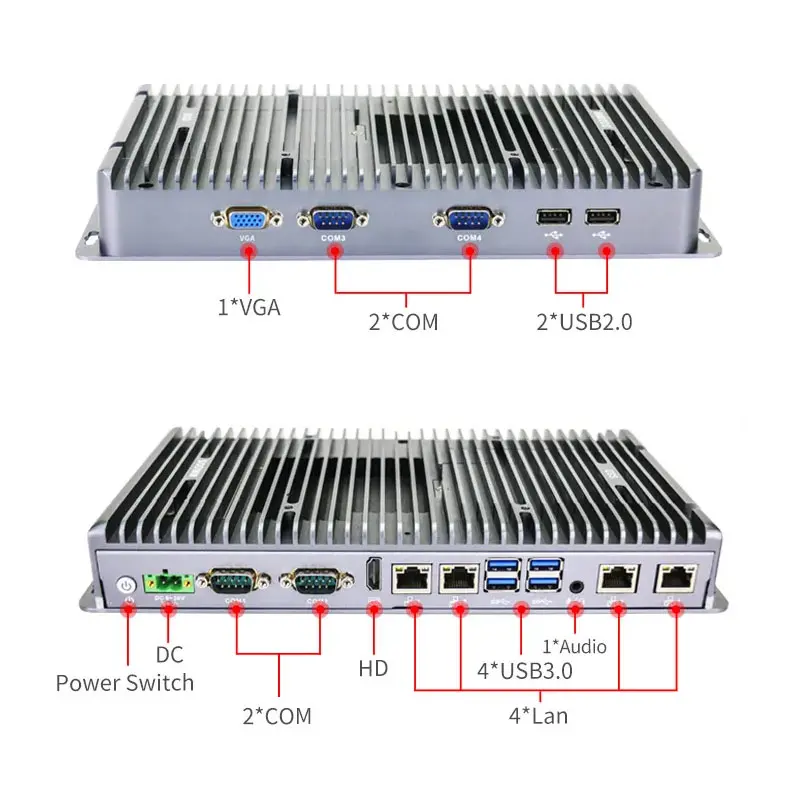

Front Panel 1 x USB2.0
2 x COM
1 x VGA

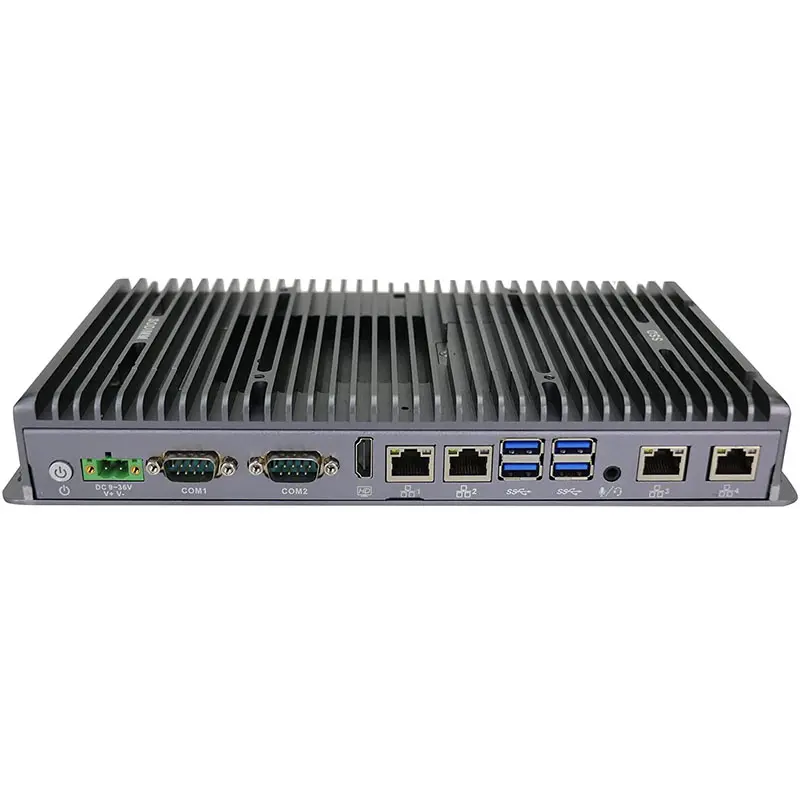

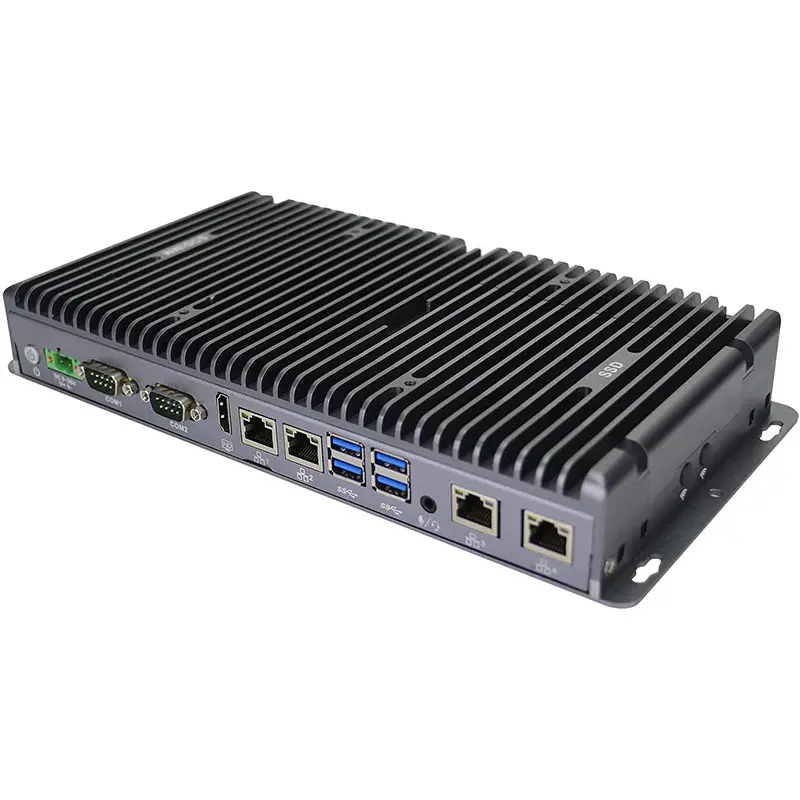

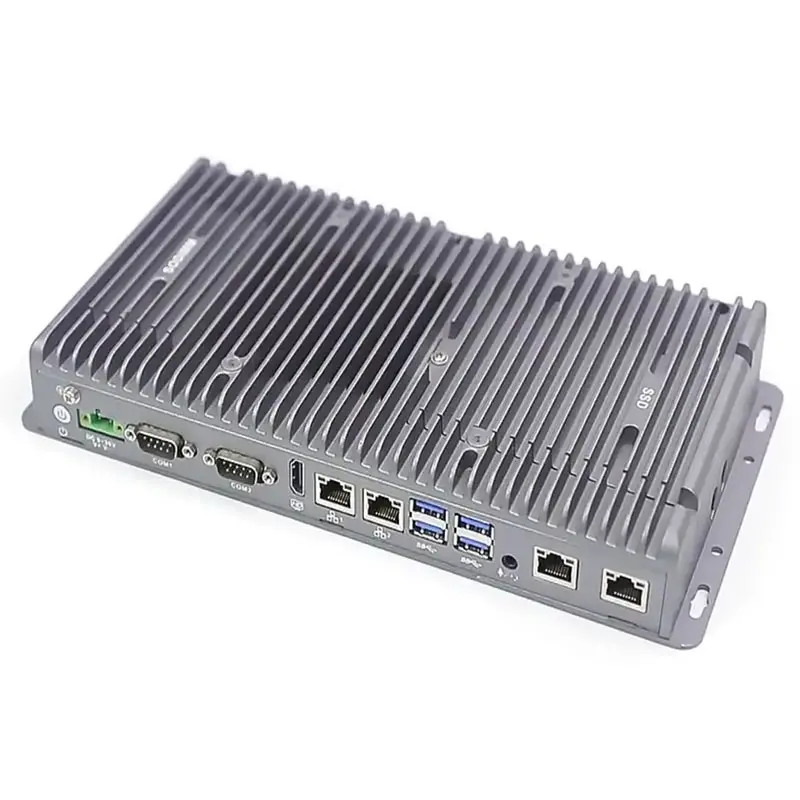

Rear Panel 4 x Intel 1000M LAN
4 x USB3.0
1 x HDMI
1 x Audio (Support Mic and Speaker at the same time)
2 x COM (COM1, COM2 RS232/RS422/RS485 Optional)
1 x 2Pin power supply phoenix connector
1 x Power Switch
System Support Windows & Linux
Cooling Mode Fanless
Power Supply Support DC 9~36V,support positive and negative reverse protection

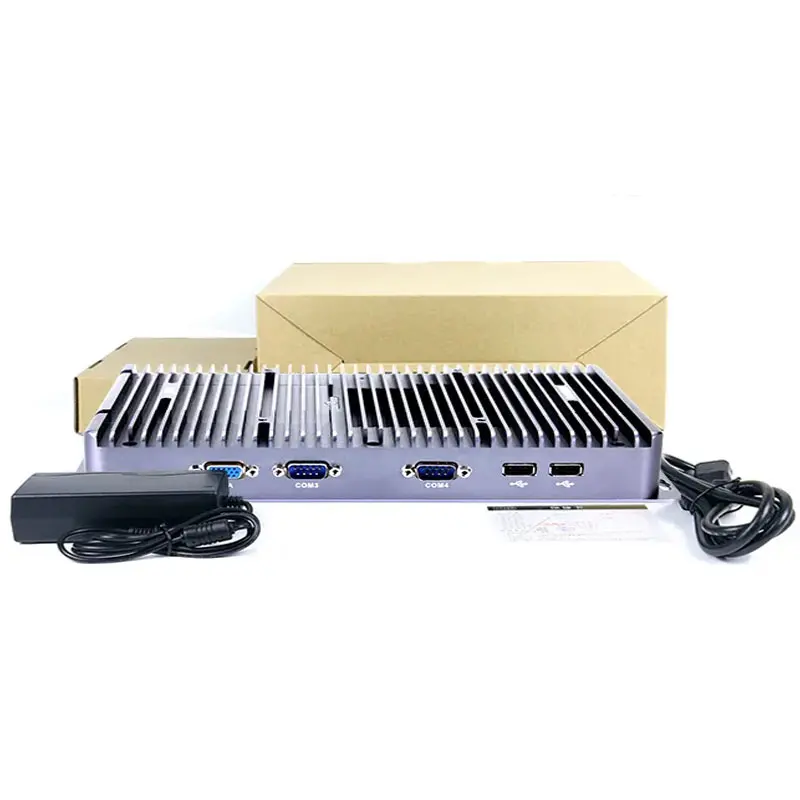

Packing List PA-3046 mini pc, power supply, power cord, warranty card
Working Temperature 0℃ ~ +50℃ ( HDD),-20℃ ~ +60℃ ( SSD),Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function TPM2.0 modem, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Certification CE FCC ROHS


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN COM USB Power
PA-3046 4205U Intel® UHD Graphics 1.8GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 4 4 6 12V/5A
PA-3046 I5 8265U Intel® UHD Graphics 1.6~3.9GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 4 4 6 12V/5A
PA-3046 I7 8565U Intel® UHD Graphics 1.8~4.6GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 4 4 6 12V/5A
