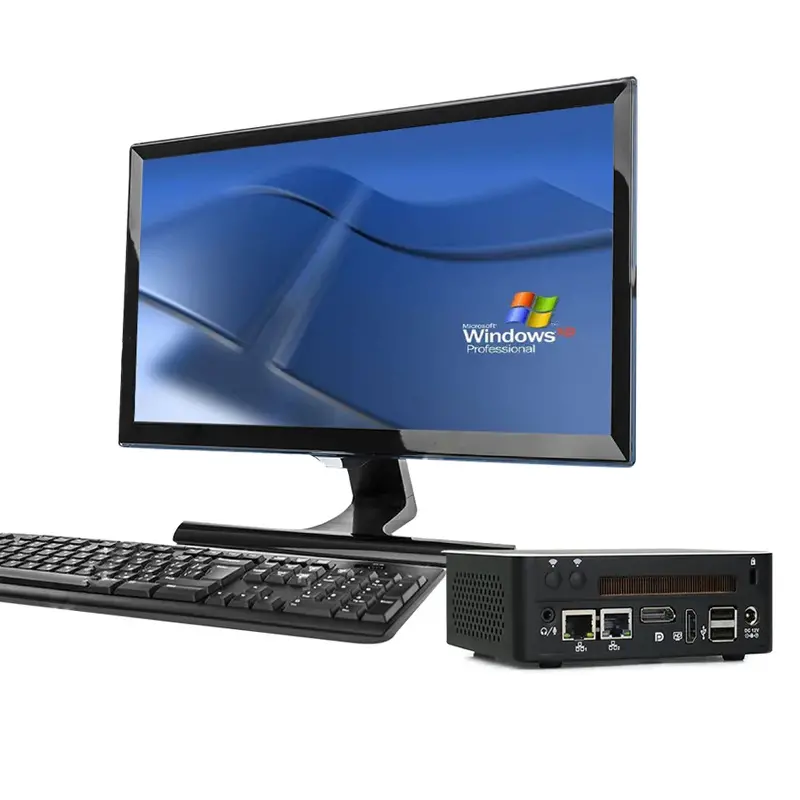

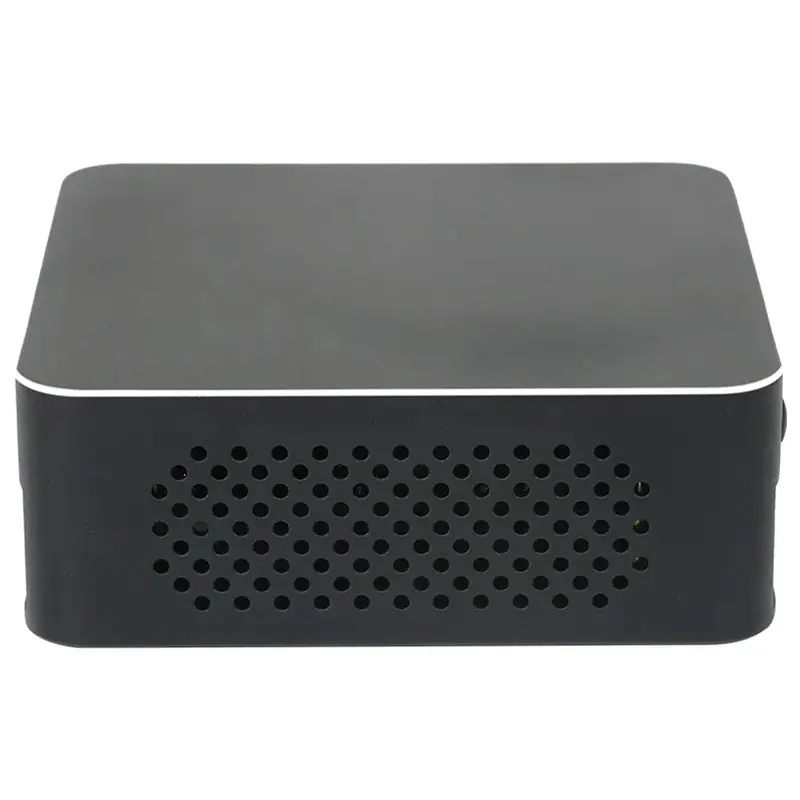

PA16 2 Lan Nano MINI PC with i7 8550u i5 8250u

  • 1 DDR4 2133/2400MHz SODIMM RAM Slot with Support for up to 16G Memory
  • 1 M.2 2280 Slot and 1 2.5” SSD/HDD Slot for Fast and Large Storage Capacity
  • 1 DP and 1 HD Ports for Dual Display and High-Definition Video Output
  •  2 COM Ports Optional with Support for RS232/485 Optional
  • Fan Cooling Mode with Low Noise and High Efficiency
  • 1 M.2 2280 Slot and 1 Mini-PCIE Slot with Support for SATA or PCIE X4 Signal, WiFi/BT/3G/4G, External SIM Card Slot
  • 2 Intel i211-AT Gigabit LAN Ports with Support for WDT, PXE boot, Wake on LAN, Auto Power on, Timing boot

Share to:



The Nano mini PC is a small and powerful device that can be used for various applications and environments. It is equipped with either an i7 8550u or an i5 8550u processor, which provide high performance and low power consumption. It also has 2 LAN ports, which support fast and stable network connection. The Nano mini PC can be easily mounted on a din rail or a vesa bracket, which save space and facilitate installation. The Nano mini PC supports Windows, Linux, and other operating systems, and can be customized according to your needs




Material Aluminum alloy
Colour Black(color can be customized)
Size 133 x 128 x 46 mm (L x W x H)
Weight 2.5Kgs
Insallation Method Desktop type
CPU Intel Kaby Lake Core i5 8250u quad core 3.4GHz
Intel core i7 8550u quad core 4.0GHz Optional
Network Card 2*Intel i211-AT 10/100/1000M lan
Chipset Integrated Intel HD Graphics Card 620
Memory Support 1 x DDR4 2133/2400MHz SODIMM ram slot, support max 16G
Storage Support 1 x M.2 2280 Slot, 1 x 2.5” SSD/HDD
Display Interface 1 x DP, 1 x HD, (Support synchronous and asynchronous dual display)
Function Support WDT (0~255 level), PXE boot, Wake on LAN, Auto power on when there is electricity,Timing boot.
Expand Support 1*M.2 2280 Slot (support SATA or PCIE X4 signal)
Support 1*Mini-PCIE (support Wifi/BT/3G/4G), External SIM card slot

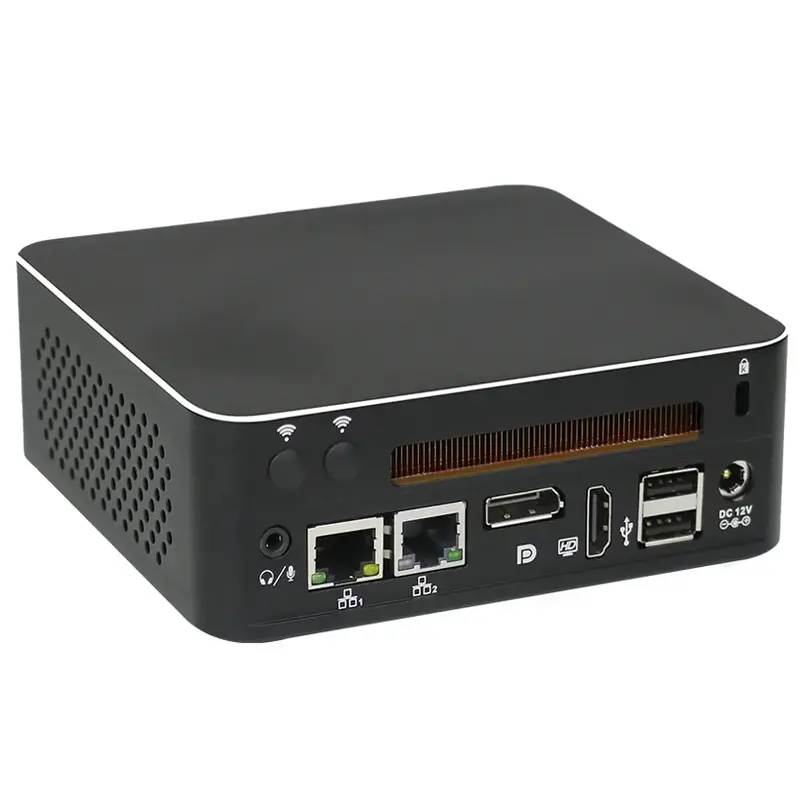

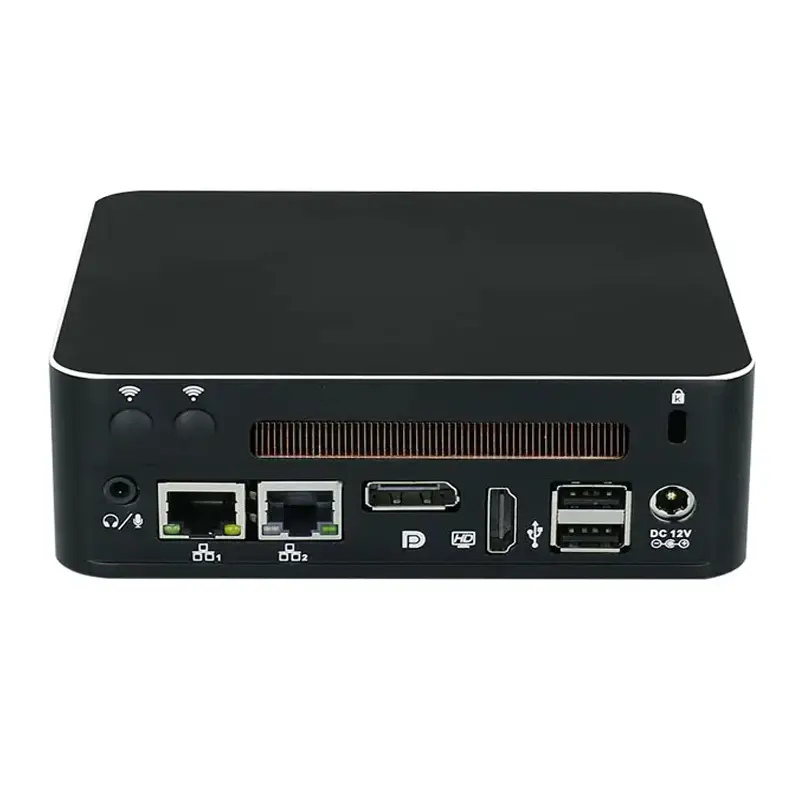

Front Panel 2 x 1000M Lan
1 x HD (support 4096×2304@24Hz)
1 x DP (support 4096×2304@60Hz)
2 x USB2.0
1 x DC-IN 12V
1 x Audio (support audio and mic input)

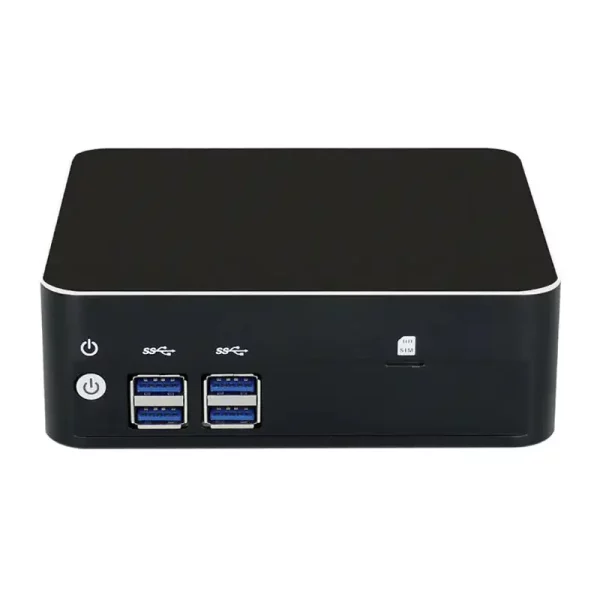

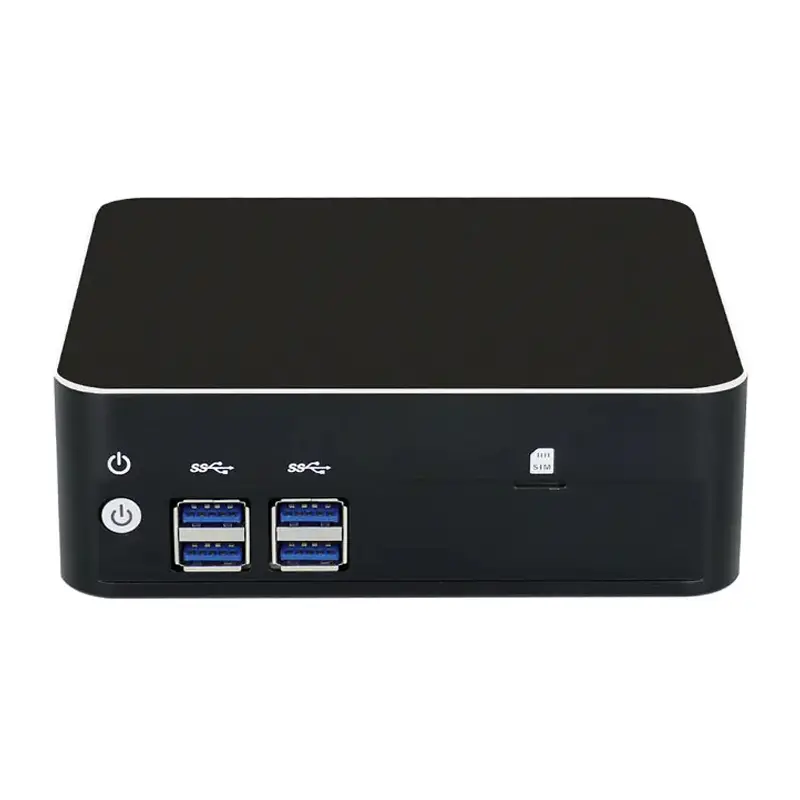

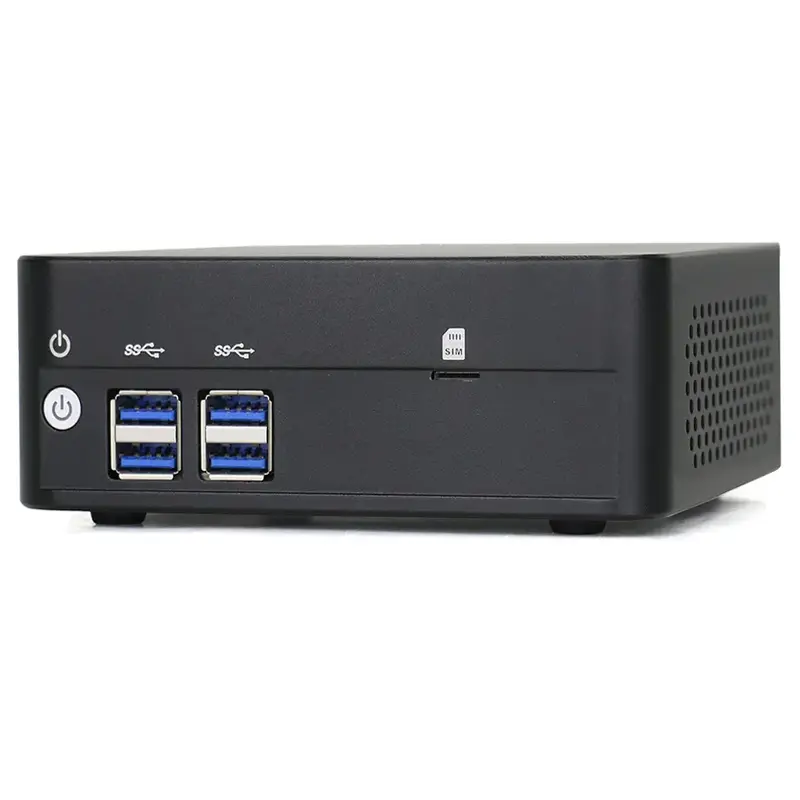

Rear Panel 1 x Power Switch
4 x USB3.0
2 x COM optional (support RS232/485 optional)
System Support Windows 7/8/10/11, Linux etc
Cooling Mode With Fan
Power Supply Support DC-IN 12V

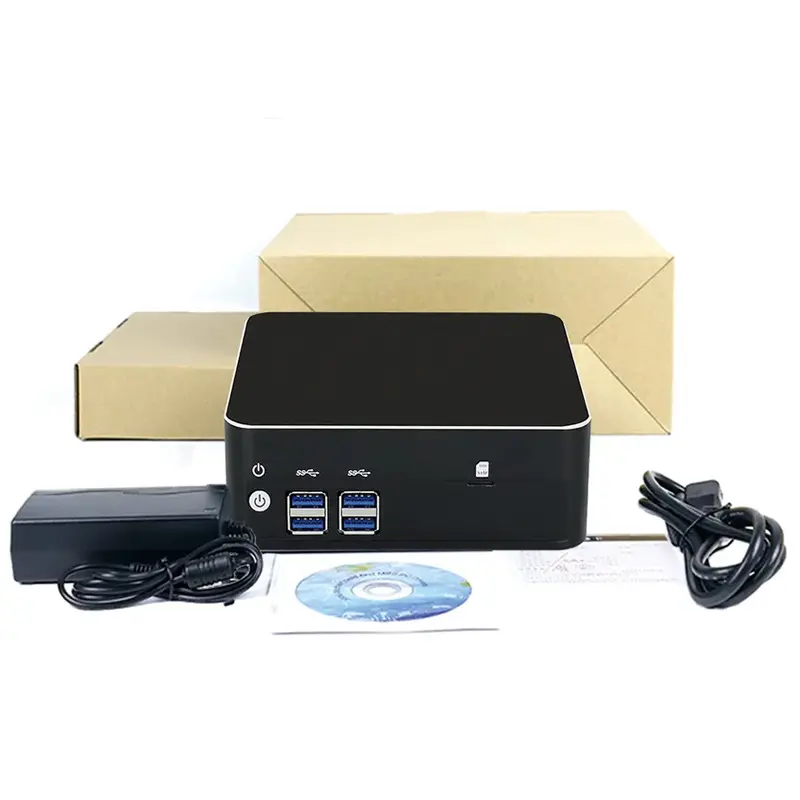

Packing List PA16 mini pc, power supply, power cord, warranty card
Working Temperature -10°C – 50°C
Working Humidity 5% – 95% relative humidity, Non-condensing
Watch Dog Timer Support
Certification CE FCC ROHS


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
PA16 I5 8250U Intel® UHD Graphics 620 1.6~3.4 GHz HDMI/DP 1 x SO-DIMM DDR4 1 x M.2 2280 Slot/ 1 x2.5” SSD/HDD 2 6 12V/5A
PA16 I7 8550U Intel® UHD Graphics 620 1.8~4.0 GHz HDMI/DP 1 x SO-DIMM DDR4 1 x M.2 2280 Slot/ 1 x2.5” SSD/HDD 2 6 12V/7.5A
