PA1126 Powerful J6412 Mini PC With 3x 2.5G LAN

  • Durable, Hard-Anodized Surface for Longevity
  • 186x140x66mm Size, 2.5Kgs Weight for Versatility
  • Intel Celeron J6412 CPU up to 2.6GHz
  • DP & HD Ports for Synchronous/Synchronous Display
  • 3 x Intel i226-V 2.5G LAN for Connectivity
  • DDR4 SODIMM Slot, up to 32GB for Efficient Operation
  • M.2 & 2.5” SSD/HDD Slots for Ample Storage
  • Auto Power-on, PXE boot, TPM2.0 Encryption
  • MINI PCIE, M.2 M/B-Key Slots for Add-ons

Share to:



“The J6412 Mini PC, crafted from durable anodized aluminum, packs an Intel Celeron J6412 processor, 3 x 2.5G LAN, DDR4 up to 32GB, and versatile connectivity options. With fanless cooling and robust features, it suits industrial automation, medical, logistics, and educational applications.”




Material High-quality all aluminum,surface hard anodized
Colour Dark grey (color can be customized)
Size 186 x 140 x 66mm
Weight 2.5Kgs
Insallation Method Desktop type/Vesa
CPU Intel Celeron J6412 (quad core, four threads, 2.0GHz,Max to 2.6GHz)
Display Ports 1 x DP, 1 x HD(Support synchronous and asynchronous dual display)
Graphic Intel HD Graphics
Network Card 3 x Intel i226-V 2.5G Lan
Memory 1 x DDR4 3200MT/s SODIMM, Max 32 GB
Storage 1 x M.2 slot (SATA protocol) , 1 x 2.5” SSD/HDD
Expansion 1 x MINI PCIE slot (WIFI/3G/4G,choose one of them),SIM card slot
1 x M.2 M-key slot 2280, SATA protocol
1 x M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot
Other Function Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption

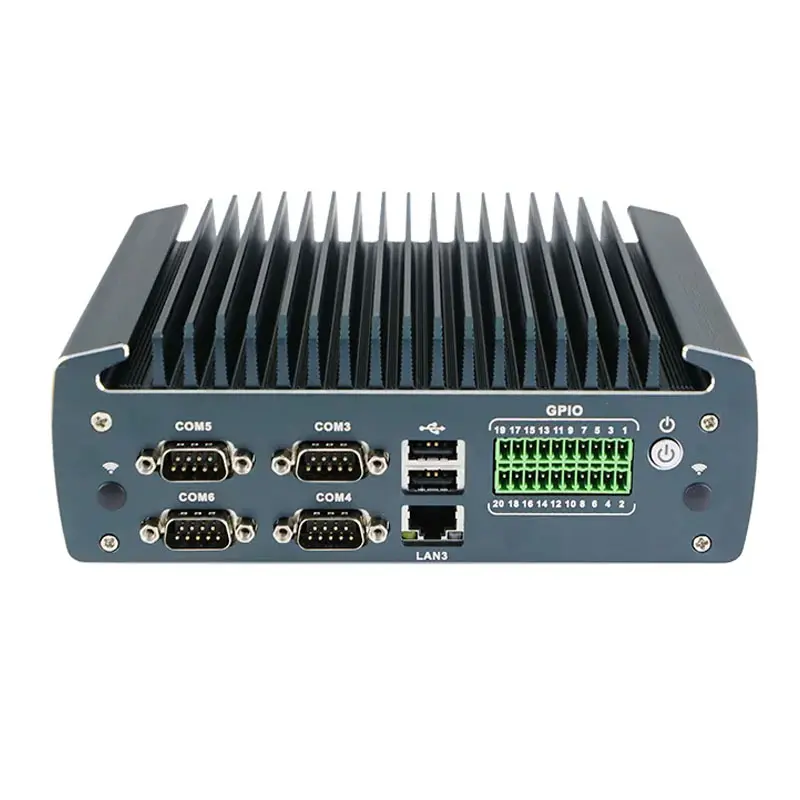

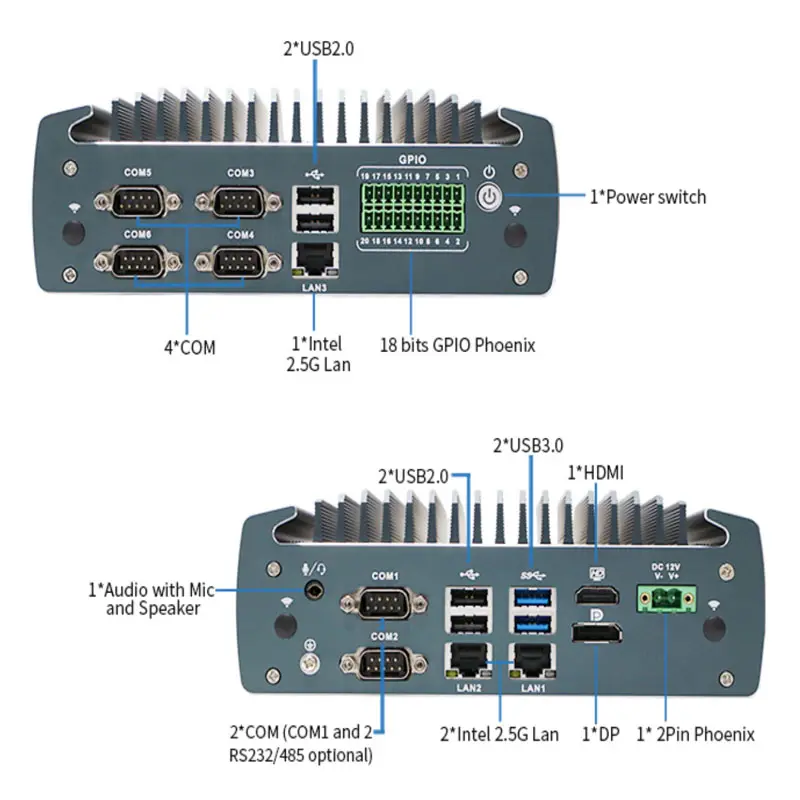

Front Panel 1 x Power Switch
2 x USB2.0
1 x 18 bits GPIO Phoenix
1 x Intel 2.5G LAN
4 x COM

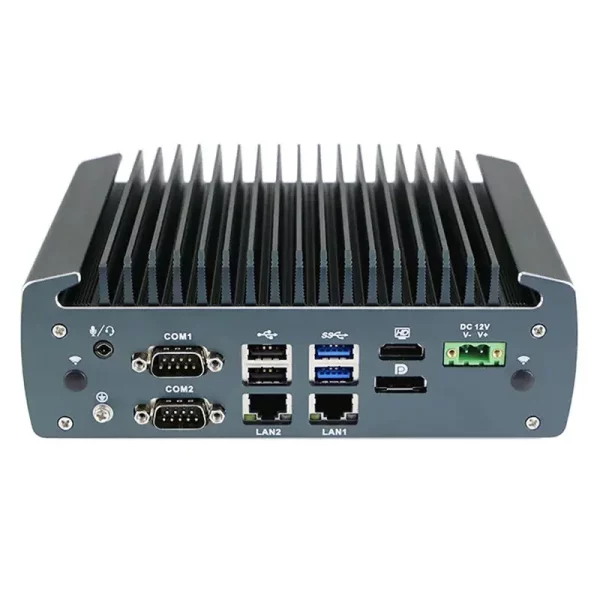

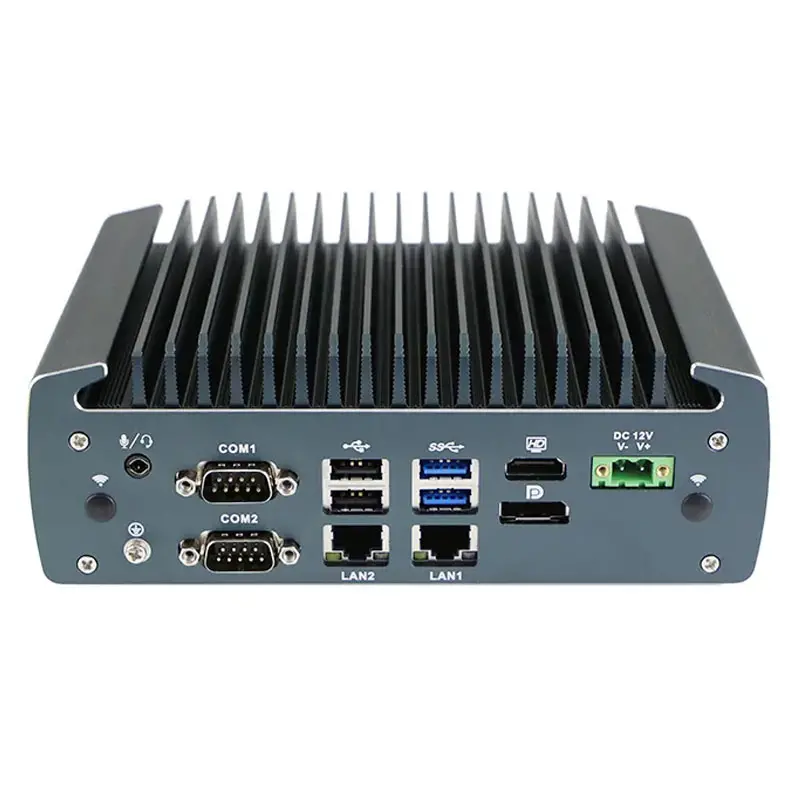

Rear Panel 1 x DC IN 2Pin Phoenix
1 x DP
1 x HDMI
2 x USB3.0
2 x USB2.0
2 x Intel 2.5G LAN
2 x COM(COM1 and 2 RS232/RS485 Optional)
1 x Audio with Mic and Speaker
System Support Windows 7/8/10, Linux
Cooling Mode Fanless
Power Supply DC 12V (DC 9-36V Optional )

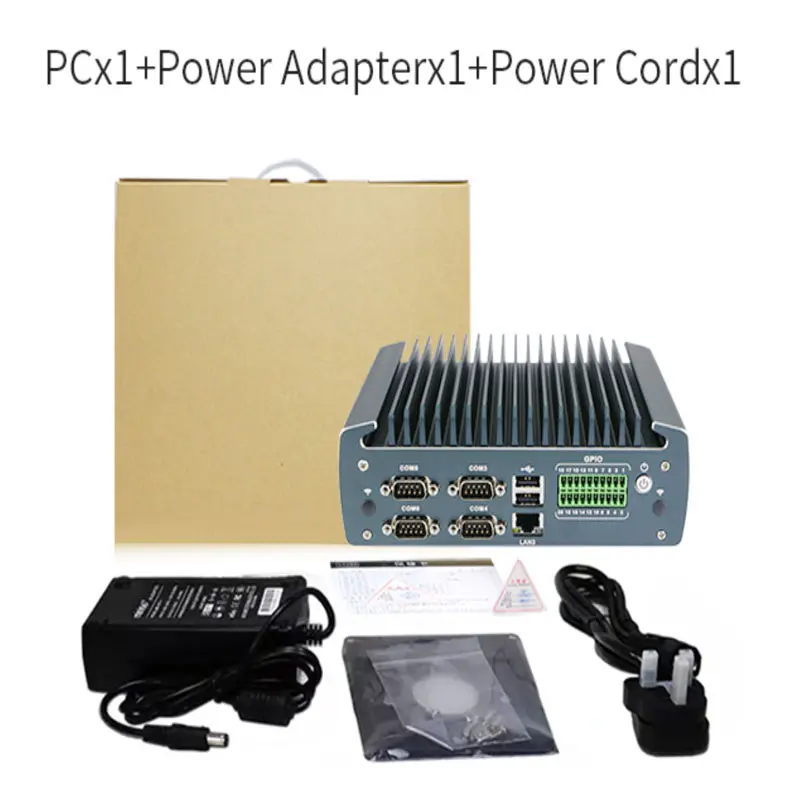

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable, 1 x VESA Mount & Screws
Work Temperature 0℃ – +50℃ (Commercial HDD), -20℃ to -60℃ (Industrial SSD), Surface air flow
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education ETC,.


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphic Frequency Display Memory Storage GPIO COM LAN USB Power
PA-1226 J6412 Intel® UHD Graphics 2.0~2.6GHz 1 x HDMI/1 x DP 1 x DDR4, Max 32G 1 x M.2/1 x 2.5 Inch HDD or SSD 18 bit GPIO Phoenix 6 3 6 DC 12V
