PA11 Nano Fanless Mini PC J1900 2 LAN 4 COM

  • 4 COM ports with support for RS232 serial interface RJ45 console function
  • 1 10PIN Phoenix Terminal with Support for 4 Input 4 Output GPIO
  • Intel Celeron J1900 Processor with Low Power Consumption up to 2.42 GHz
  • 1 MSATA and 1 2.5” SSD/HDD Slots for Fast and Large Storage Capacity
  • Onboard DDR3L 1600MHz 4GB RAM with Support for High Performance and Stability
  • 2 Intel i211-AT Gigabit LAN ports with Support for WDT, PXE Boot, Wake on LAN, Power on, Timing boot
  • 2 Mini-PCIE Slots with Support for MSATA, WiFi/BT/3G/4G, Embedded SIM Slot, TPM Module Optiona

Share to:

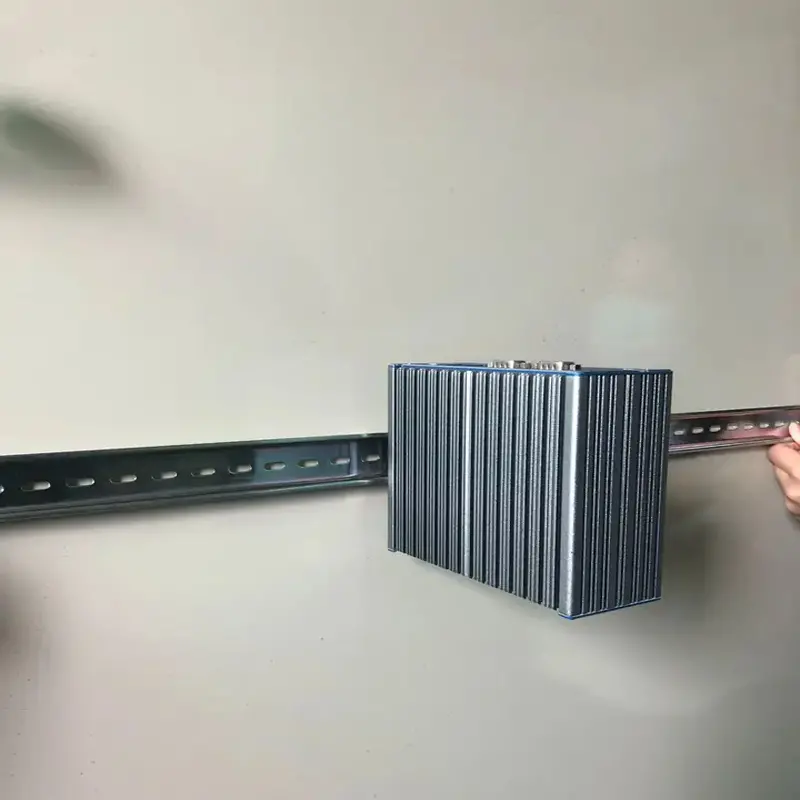

The J1900 Din Rail Industrial Mini PC is a rugged and compact device that can be used for various industrial applications. It is powered by a J1900 processor, which offers low power consumption and stable performance. It also has RS232 and RS485 ports, which support serial communication and data transmission. The J1900 Din Rail Industrial Mini PC can be easily mounted on a din rail, which saves space and facilitates installation. The J1900 Din Rail Industrial Mini PC supports Windows, Linux, and other operating systems, and can be customized according to your needs.



Material Aluminum alloy
Colour Titanium gray + blue (any color can be customized)
Size 148 x 25 x 58 mm (L x W x H);
Weight 2Kgs
Insallation Method Desktop type/vesa mounting
CPU Intel® Celeron™ Procesor J1900(2M Cache, up to 2.42 GHz)
Network Card 2 x Intel i211-AT 10/100/1000M Lan
Display 1 x VGA, 1 x HD, (Support synchronous and asynchronous dual display)
Chipset Integrated Intel HD Graphics Card
Memory Onboard DDR3L 1600MHz 4GB ram
Storage Support 1 x MSATA, 1 x 2.5” SSD/HDD
Expand Support 1 x Mini-PCIE (support MSATA (default), support 3G/4G/ SIM slot Optional)
Support 1 x Mini-PCIE (support WiFi/BT/3G/4G), Embedded SIM Slot
Optional: TPM (TPM 1.2 / 2.0 Module Optional),1 x USB2.0

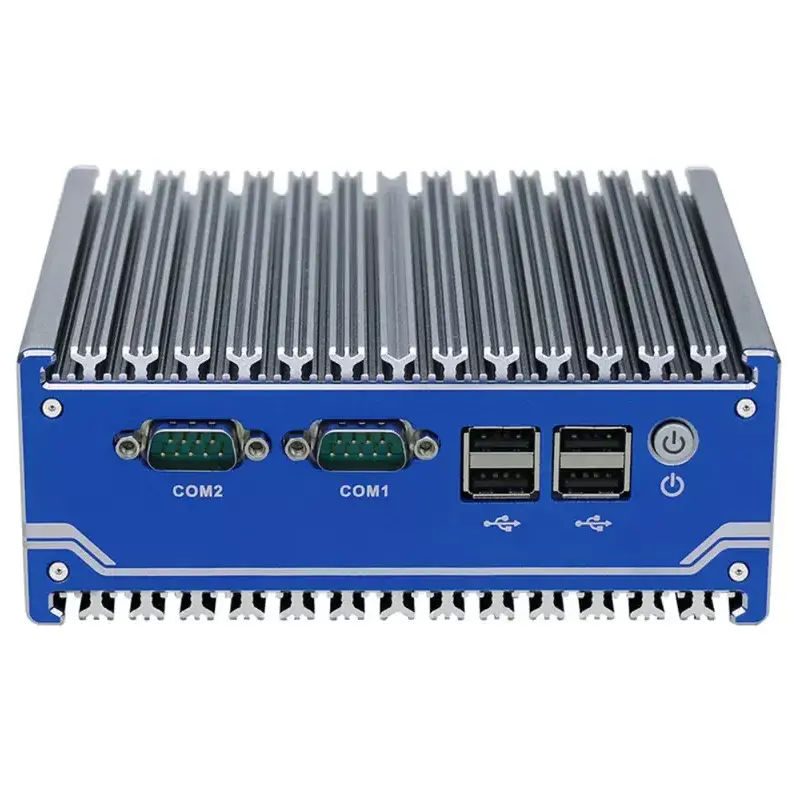

Front Panel 1 x Power button
2 x COM
4 x USB3.0

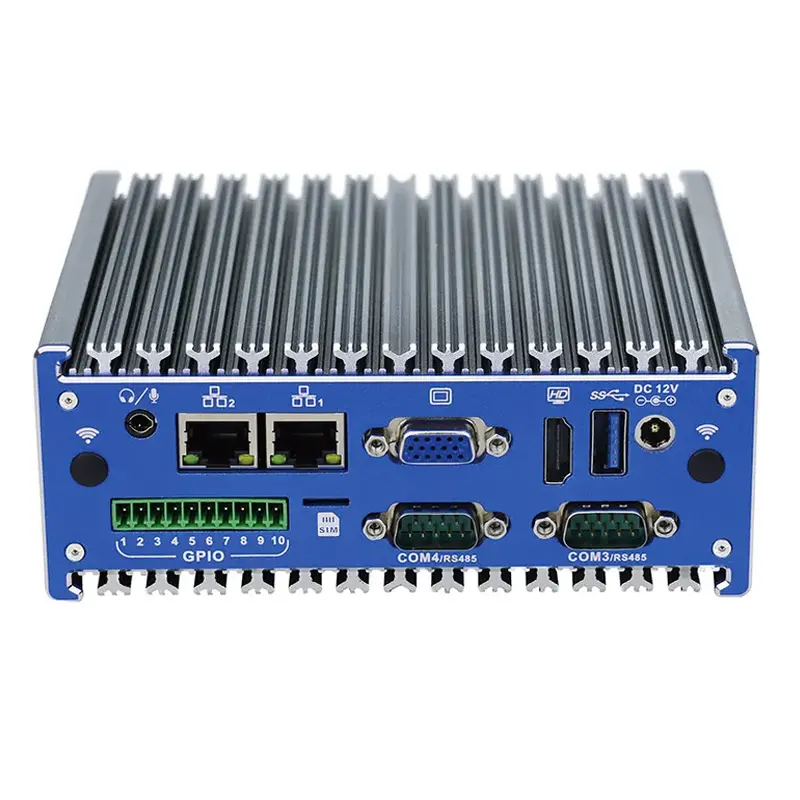

Rear Panel 1 x Audio(support audio and mic input)
1 x 10PIN Phoenix Terminal(4*Input 4*Output GPIO)
1 x SIM Slot
2 x COM
1 x VGA
1 x HDMI
1 x USB3.0
1 x DC-IN
2 x LAN
System Support Windows 7/8/10/11, Linux OS
Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

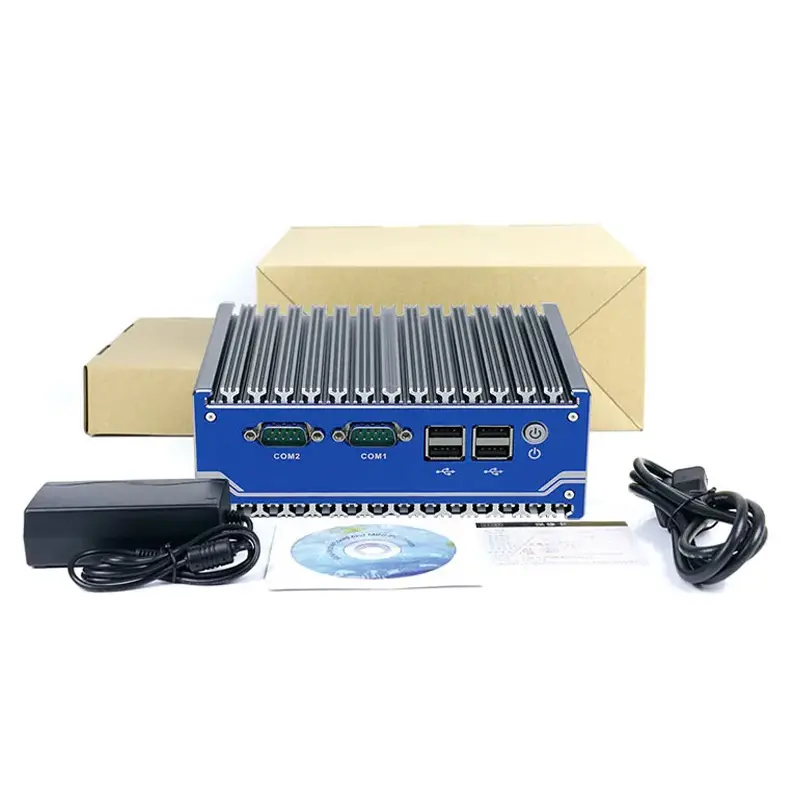

Packing List Partaker PA11 mini pc, power supply, power cord, warranty card
Working Temperature -20°C – 60°C
Working Humidity 5% – 95% relative humidity, Non-condensing
Other Function Support WDT, PXE Boot, Wake on LAN, Power on, Timing boot
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB GPIO Power
PA11 J1900 Intel® HD Graphics 2.0~2.42 GHz HDMI/VGA Onboard DDR3L 1600MHz 4GB ram 1 x M-SATA SSD/1 x 2.5 inch SSD HDD 2 5 1 x 10PIN Phoenix Terminal(4 x Input 4 x Output GPIO) 12V/4A
