PA1026 Robust Industrial PC with GPIO Powered by J4125

  • Intel Celeron J4125 Processor for Robust Performance
  • Four Intel i211-AT LAN Ports for Reliable Networking
  • Sleek Aluminum Alloy Build in a Desktop Form
  • DDR4 Slot Supports up to 8GB RAM for Efficient Multitasking
  • M.2 and 2.5-inch HDD/SSD Slots for Flexible Storage
  • M.2 and Mini PCIe Slots for Added Functionalities
  • Auto Power-On Convenient Feature For Uninterrupted Operation
  • Designed to Work Reliably in Various Environments

Share to:

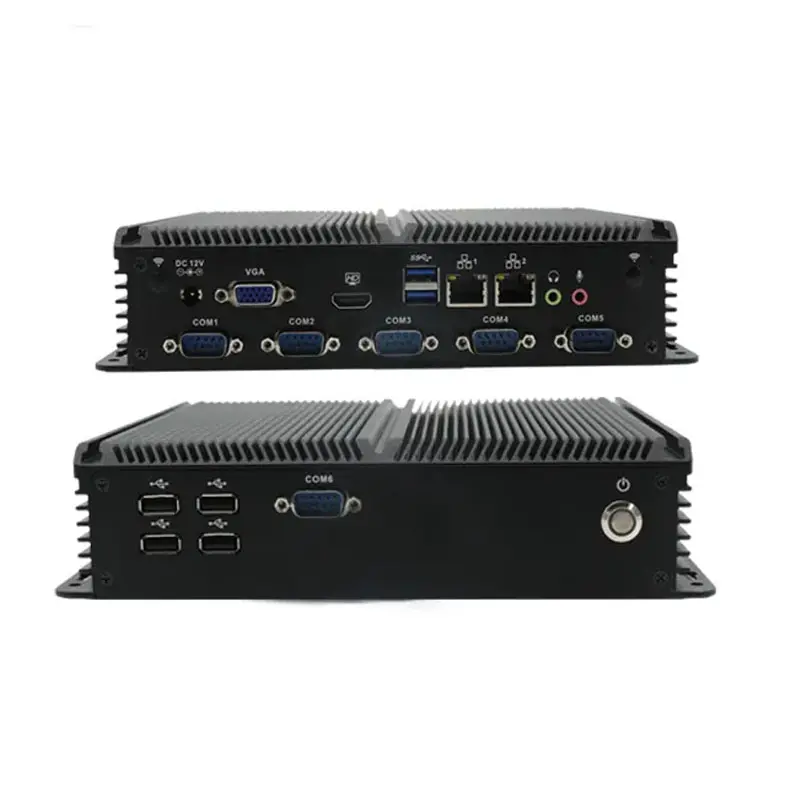

The PA-1026 mini pc has a rich interface, with 4 x Intel i211-AT 10/100/1000M lan, 1 x VGA, 1 x HDMI, 6 x COM, 2 x USB2.0, 1 x MIC, and 1 x SPK on the front and rear panels. It also has 1 x Mini PCIE slot for WiFi/3G/4G(optional), an embedded SIM slot, and optional ports for GPIO, 4 x USB2.0, PS/2, and LPT.

Running on an AMI EFI BIOS, this industrial PC seamlessly operates with Windows and Linux. Its fanless design allows for silent, efficient cooling. The package includes the PA-1026 mini PC, power supply, power cord, VESA mount, and warranty card.

With a wide working temperature range, from 0°C to +50°C (for commercial HDD) and -20°C to +60°C (for industrial SSD), it can withstand harsh environments while maintaining peak performance. This mini PC comes with additional features like auto power-on, Wake on LAN, and PXE boot, making it versatile and user-friendly.

Our PA-1026 mini PC is certified with CE, FCC, and ROHS, ensuring its quality and reliability. In summary, this industrial PC is a powerhouse of performance and adaptability, perfect for various industrial and commercial applications.”




Material Aluminum alloy
Colour Black(Color can be customized)
Size 234 * 200 * 54 mm
Weight 3Kgs
Insallation Method Desktop type
CPU Intel Celeron J4125 (Quad core quad threading, 4MB Cache, 2.0GHz, Turbo frequency 2.7GHz)
CPU Architecture Gemini Lake Refresh
Network Card 4 x Intel i211-AT 10/100/1000M lan
Graphic Intel UHD Graphics 600
Memory 1 x DDR4  Memory Slot, Max. Support 8GB
Storage 1 x M.2 2280 slot,1 x 2.5 inch HDD/SSD
Expand 1 x M.2 2280 M-key Slot(Support SATA Protocol)
1 x Mini PCIE Slot(4G/WIFI/BT Optional,Embedded SIM slot)
Optional Ports: GPIO, 4*USB2.0, PS/2 , LPT

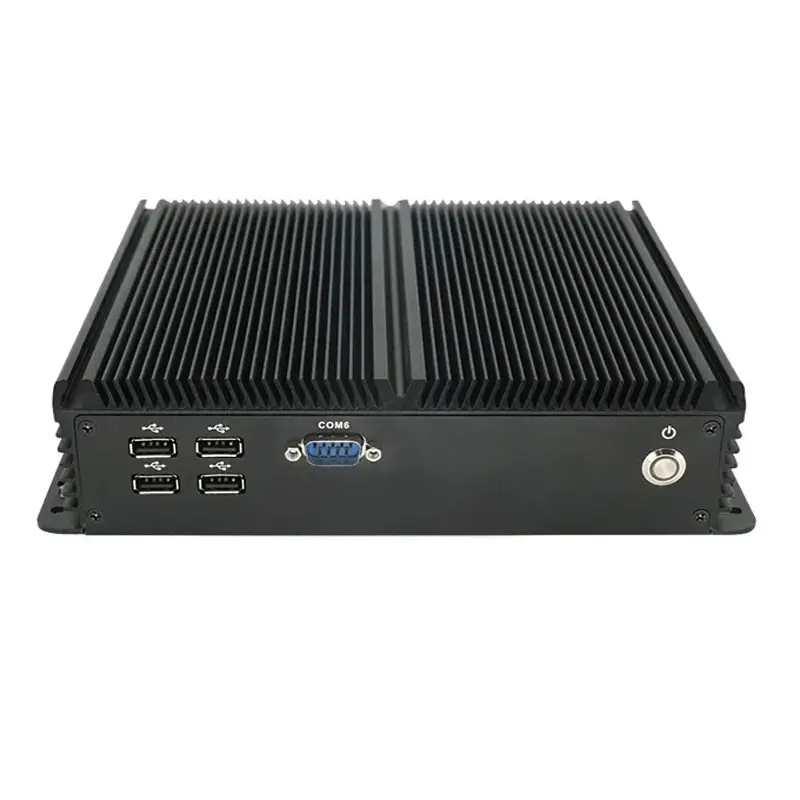

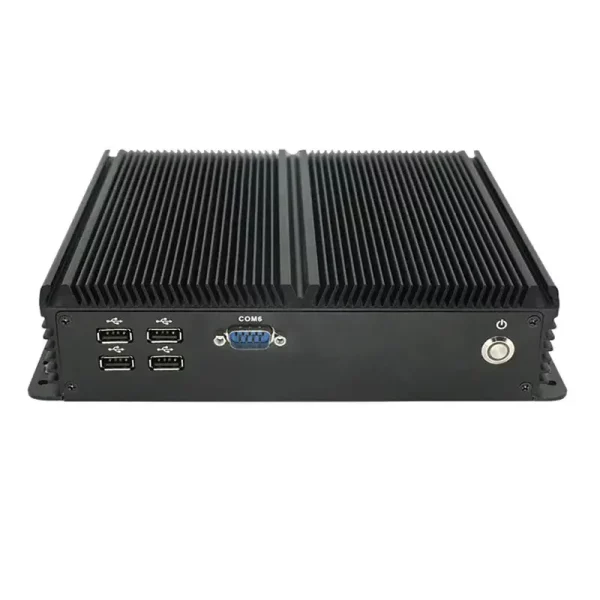

Front Panel 4 x USB2.0
1 x Power Switch
1 x COM

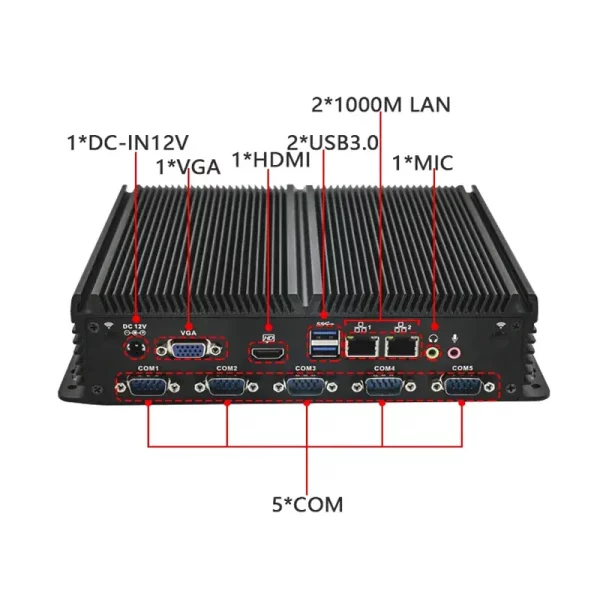

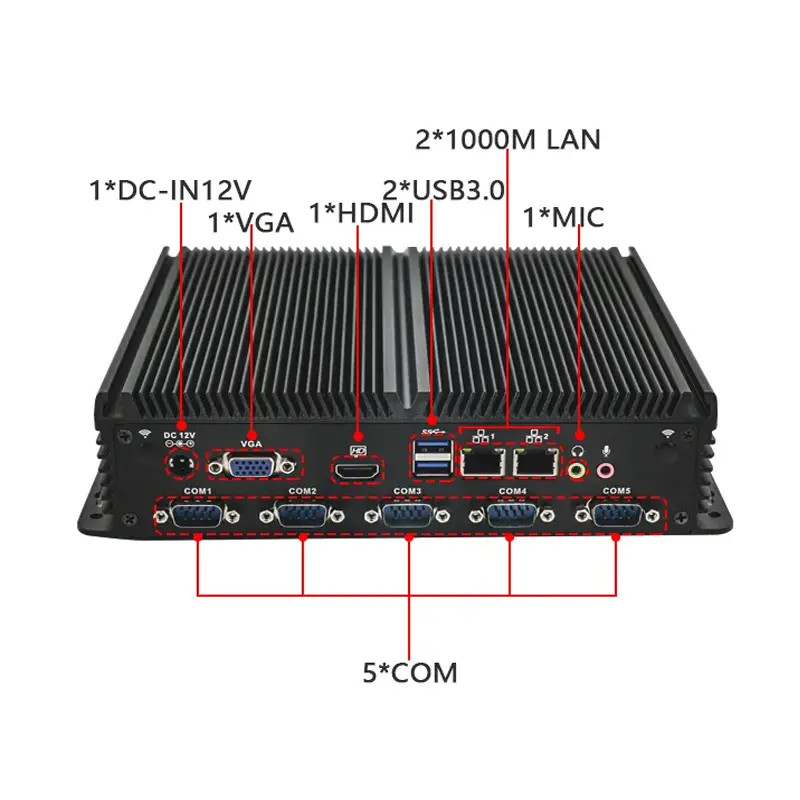

Rear Panel 4 x COM
1 x VGA
1 x HDMI
2 x USB2.0
2 x 1000M LAN
1 x MIC
1 x SPK
1 x DC-IN 12V
System Support Windows & Linux
Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

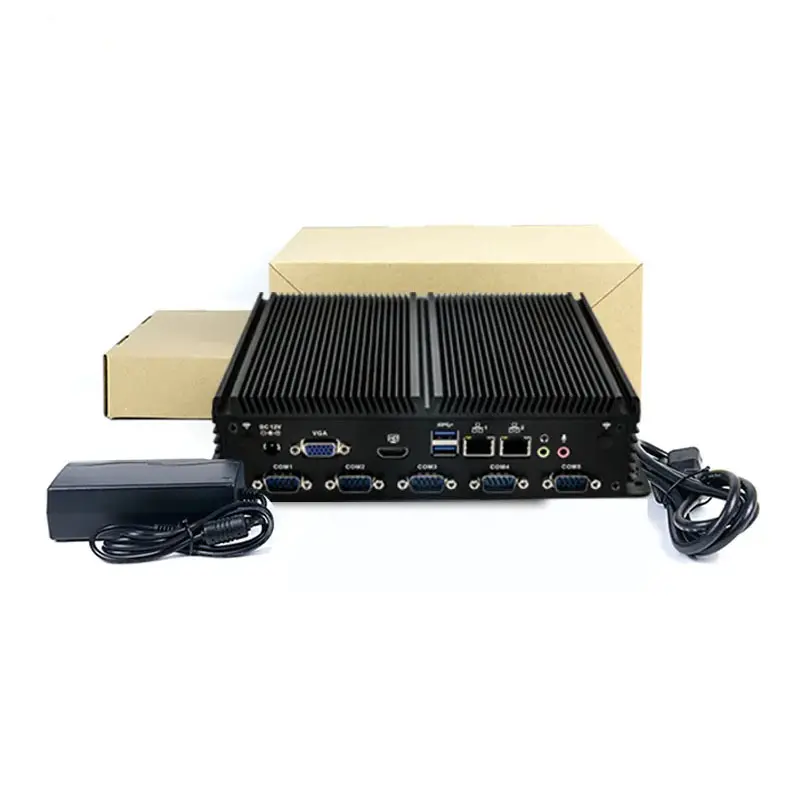

Packing List PA-1026 mini pc, power supply, power cord, vesa, warranty card
Working Temperature 0C – +50C (Commercial HDD),-20C – +60C (Industrial SSD) ,Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function Auto power on when there is electricity, Wake on LAN, PXE boot
Certification CE FCC ROHS


Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
PA-1026 J4125 Intel® UHD Graphics 600 2.0~2.7 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 2 6 12V/4A5A
