P02 Embedded Fanless Mini PC with Intel Celeron CPU

  • Powerful Intel Core i5/i7 processor
  • 6 LAN ports with optional POE
  • OPNsense firewall and routing platform
  • TPM 2.0 security encryption module
  • Intel Iris Xe graphics chipset
  • Active and passive cooling system

Share to:

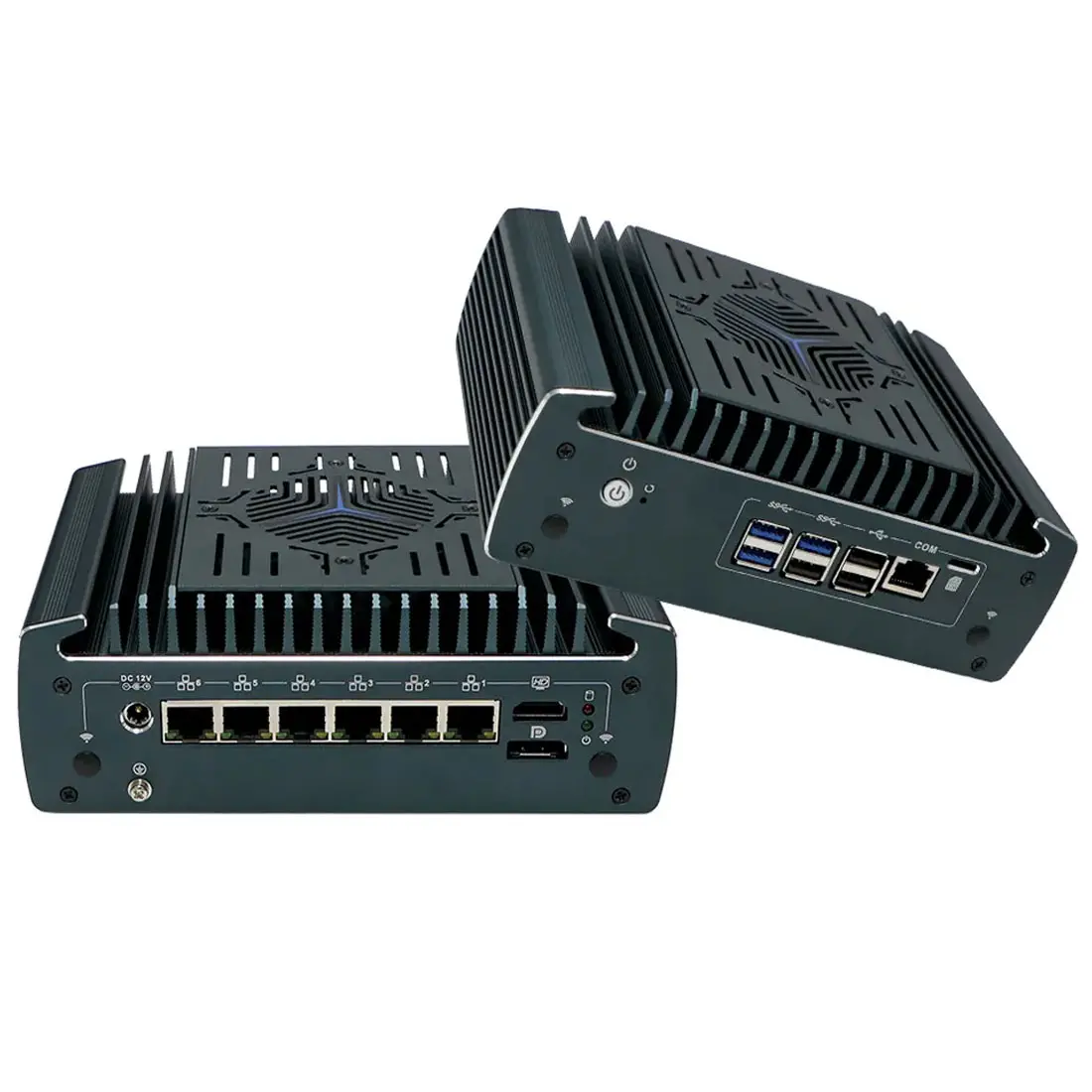

The H15 is a powerful and secure firewall PC that can protect your network from various threats. It features a choice of processors, such as i5-1245U or i7-1265U, It also comes with 6 LAN ports, which allow you to connect multiple devices and networks easily and securely. It supports OPNsense, a free and open source firewall and routing platform, which offers high performance and flexibility. It also has a TPM 2.0 module, which provides hardware-based security and encryption for your data.




Material High-quality all aluminum,surface hard anodized
Colour Metal gray (any color is optional)
Size 186 x 126.5 x 66mm
Weight 2Kgs
Insallation Method Desktop type
CPU Intel Core i3 1215U (Six cores Eight threads, turbo frequency up to 4.4 GHz)
Intel Core i5 1245U (Ten cores Twelve threads, turbo frequency up to 4.4 GHz)
Intel Core i7 1265U (Ten cores Twelve threads, turbo frequency up to 4.8 GHz)
Display Ports 1 x DP,1 x HDMI(Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz)
Network Card 6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE
Memory 2 x DDR4 3200 MHz SODIMM Ram slots, Max 64 GB
Storage 1 x M.2 2280 slot, 1 x 2.5-inch SSD/HDD
Chipset Intel Iris Xe Graphics
Other function TPM 2.0 security encryption
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255)
Expansion Slot 1 x M.2 2280 M-key slot (only supports NVME protocol)
1 x M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot
1 x M.2 2230 E-key slot (support WIFI, BT)

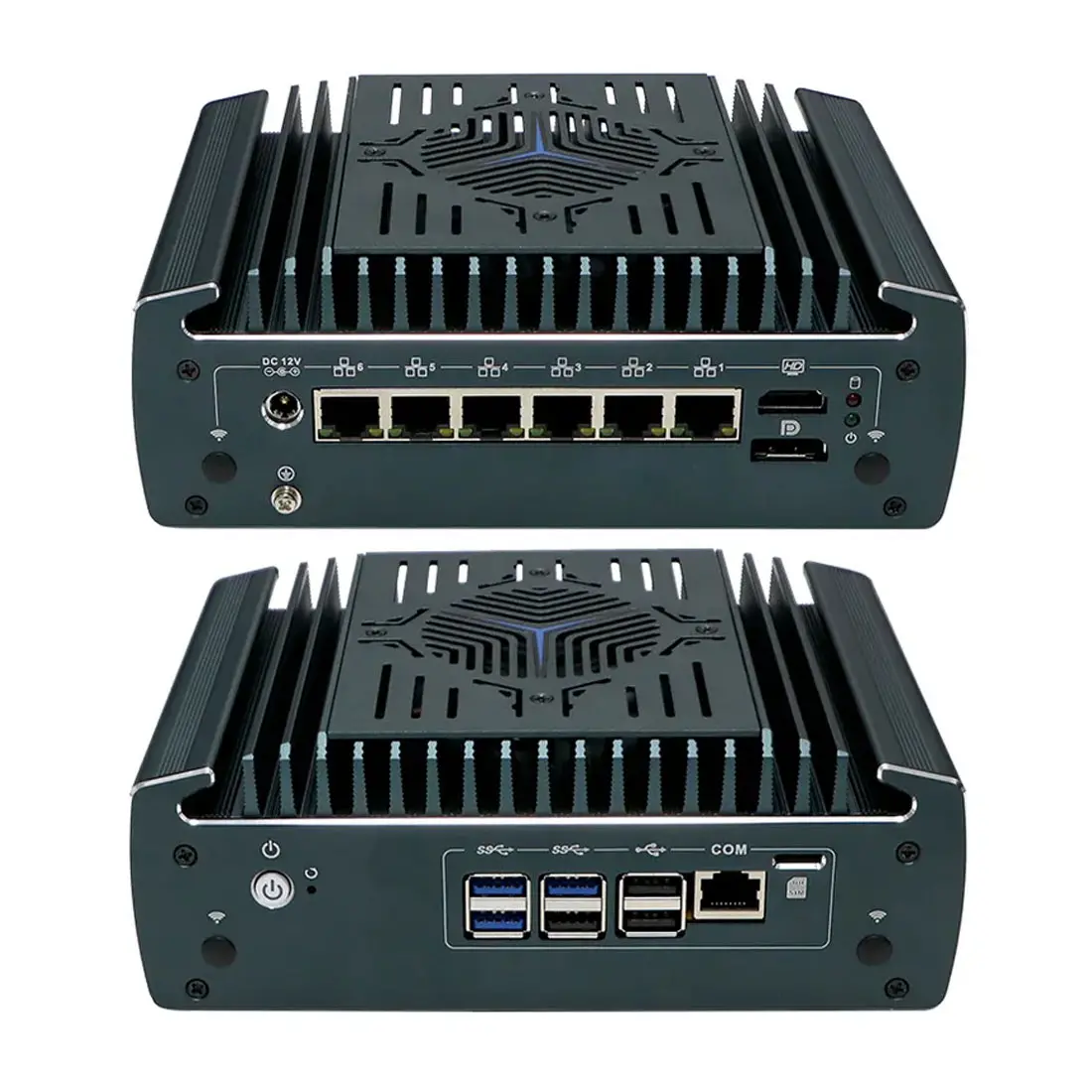

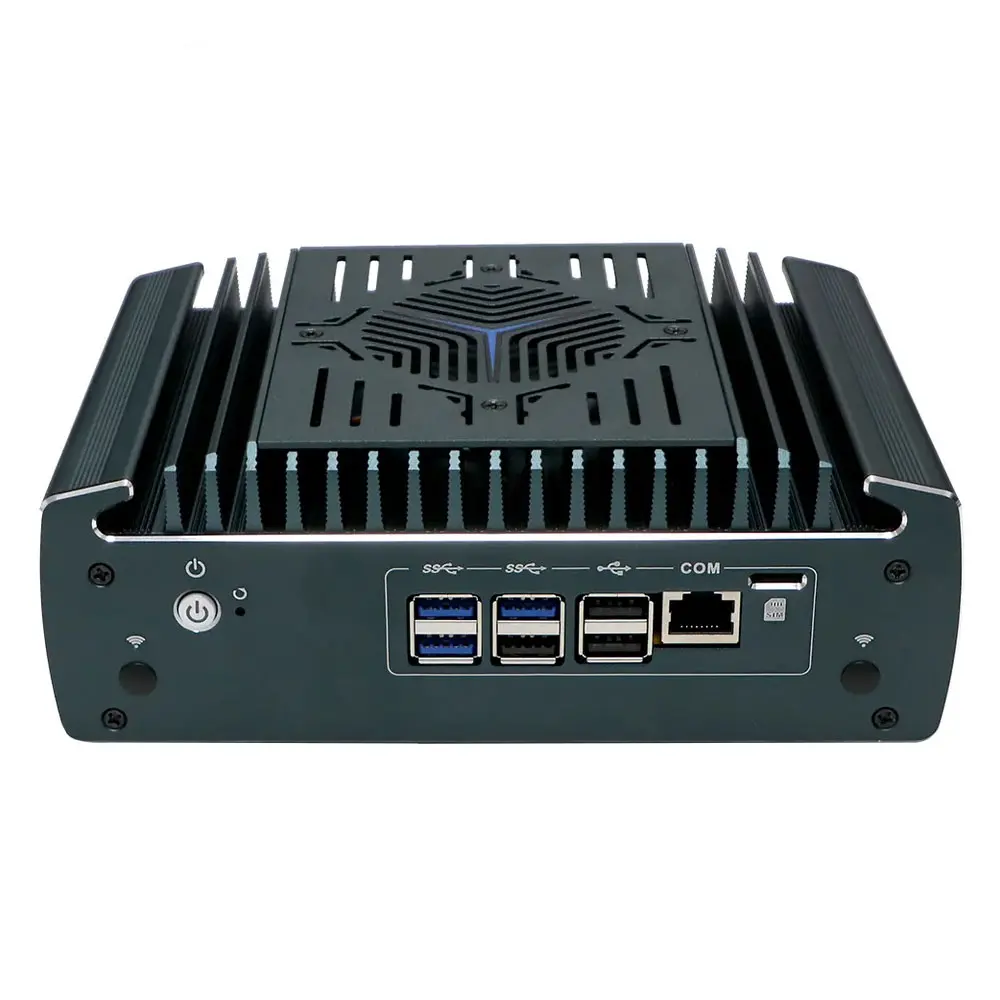

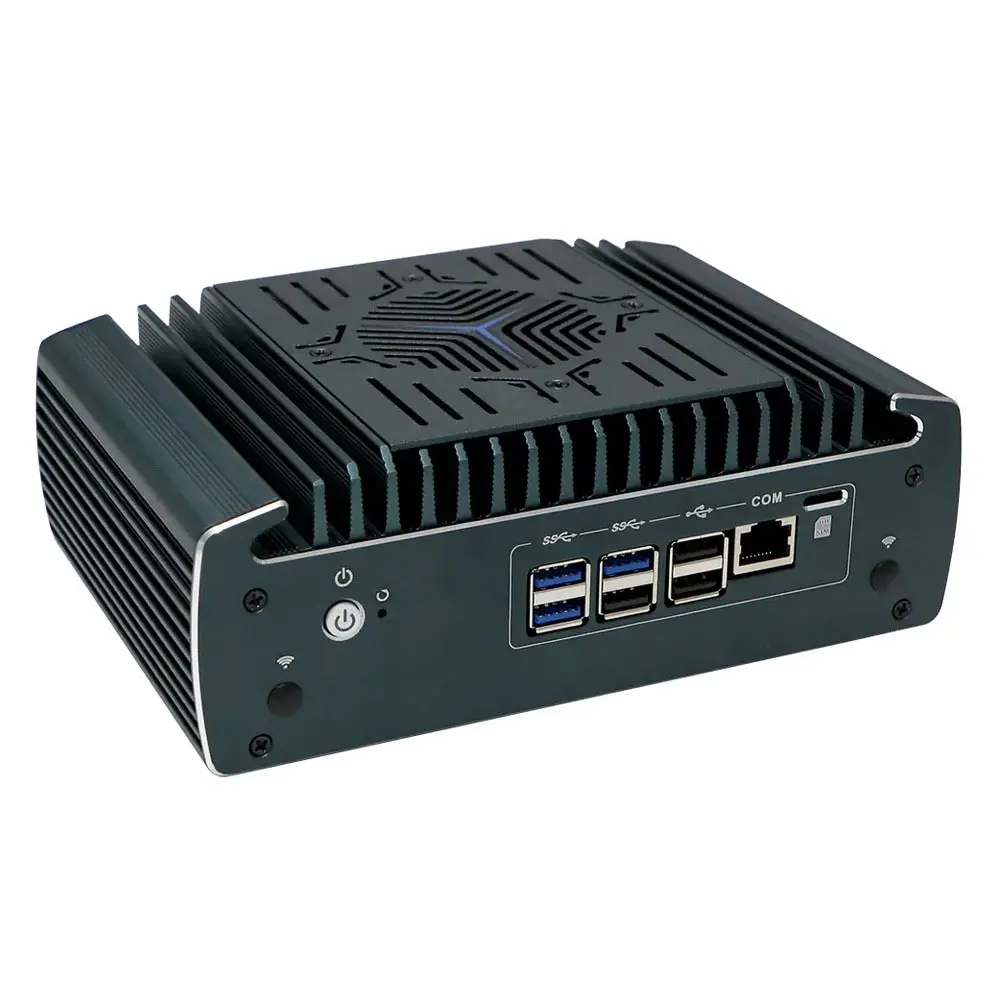

Front Panel 1 x Power Button
1 x Restart
3 x  USB3.1
3 x USB2.0
1 x RJ45 COM (support Console function)

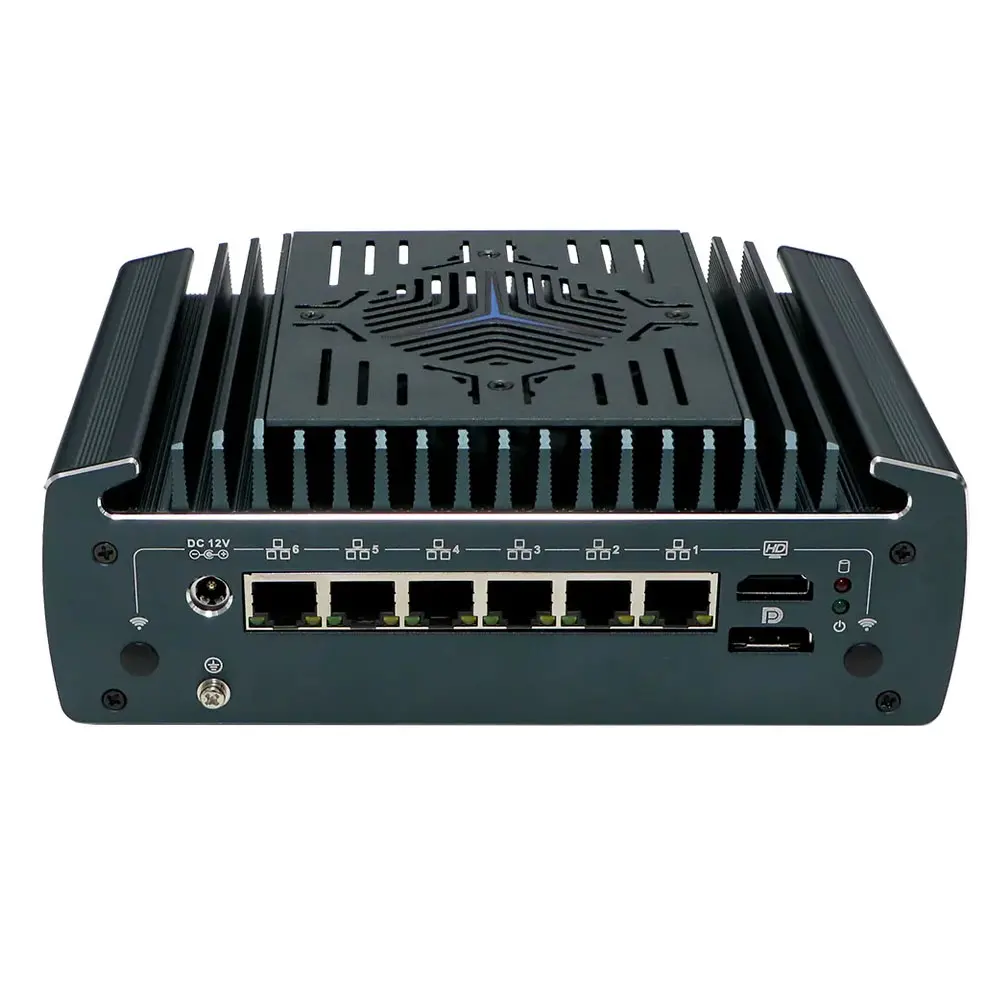

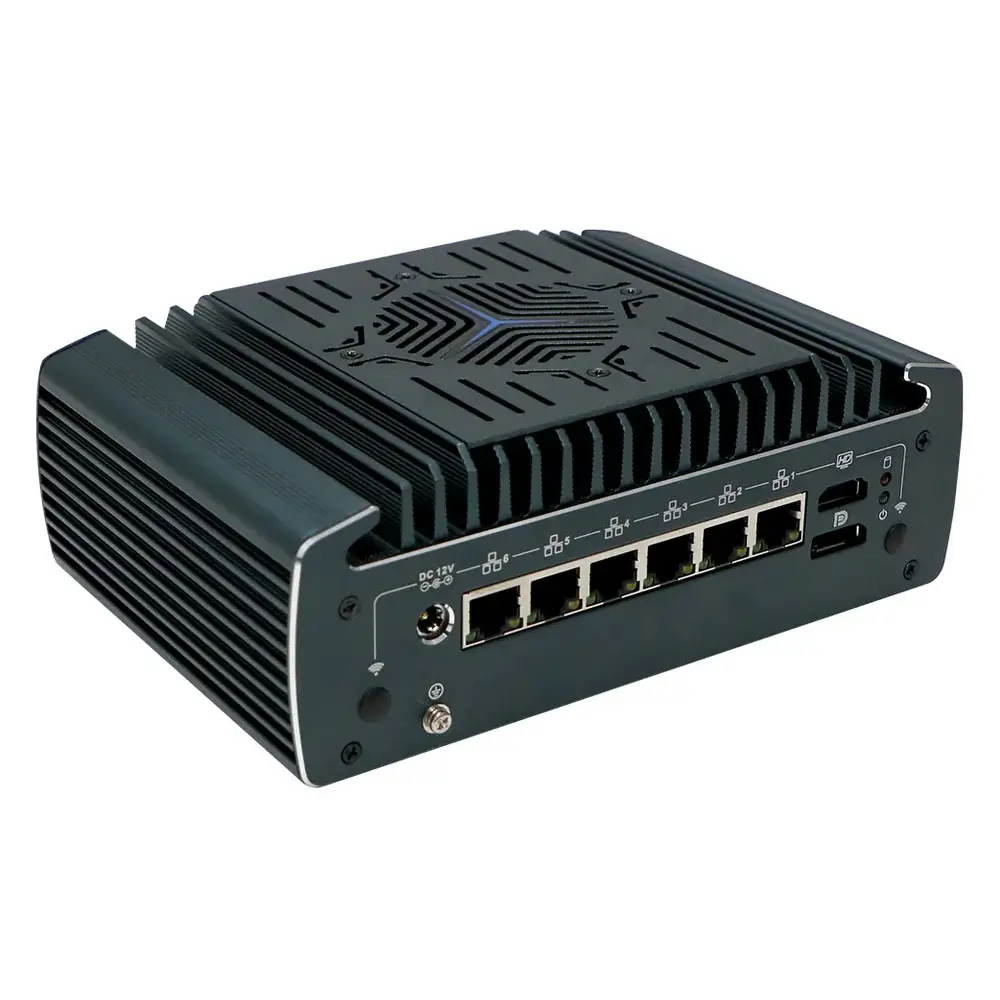

Rear Panel 1 x DC
1 x RJ45 Lan
1 x DP(1.4a)
1 x HDMI(2.1)
System Support Windows 10/11/sever2012/2016/linux/centos/ubuntu
Cooling Mode Active and passive heat dissipation design, PWM intelligent temperature control fan
Power Supply DC100-240V AC/50-60hz, 12V8A

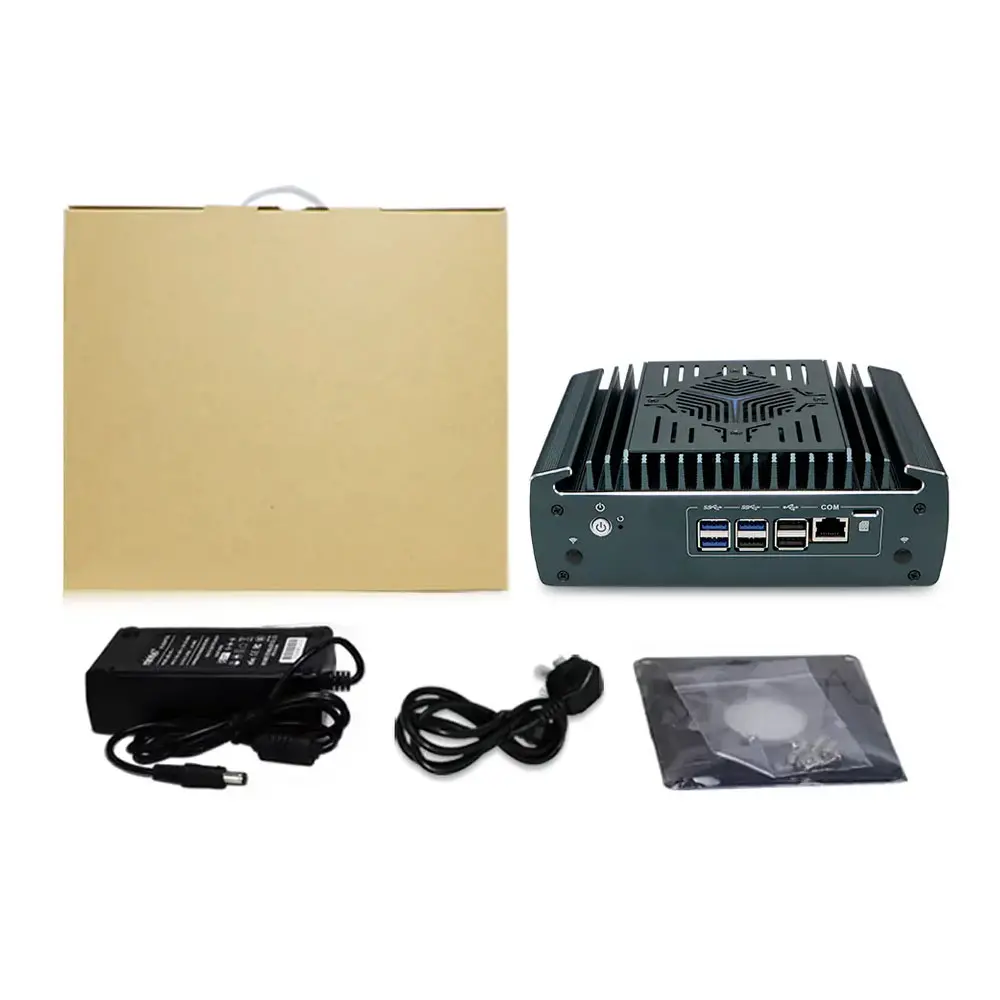

Packing List Firewall appliance, power supply, power cord, vesa mount, warranty card
Work Temperature 0°C ~ +50°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity 0%~95% non-condensing
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN POE USB Power
H15 I5 1245U Intel® Iris® Xe Graphics 3.3~4.40GHz HDMI/DP 2 x SO-DIMM DDR4 1 x M.2 2280 Slot/1 x 2.5 Inch HDD/SSD 6 4 6 DC 12V
H15 I7 1265U Intel® Iris® Xe Graphics 3.6~4.80GHz HDMI/DP 2 x SO-DIMM DDR4 1 x M.2 2280 Slot/1 x 2.5 Inch HDD/SSD 6 4 6 DC 12V
