Overview
B20 Mini PC is a compact and powerful device that can run Windows 10, Linux Ubuntu, and other operating systems. It has an Intel Core i5 or i7 processor, up to 64GB of RAM, and various storage options. It supports dual HDMI output, WiFi, Bluetooth, optical drive, and SIM slot. It has a smart silent fan that reduces noise and heat. It comes with a vertical stand, a vesa mount, a power supply, a power cord, wifi antennas, and a warranty card. It is certified by CE, FCC, and ROHS. B20 Mini PC is a great choice for home, office, or entertainment use.
Specifications
| Material | Aluminum alloy |
| Colour | Silver & Black |
| Size | 210 x 170 x 45mm |
| Weight | 3Kgs |
| Insallation Method | Desktop type/vesa mounting |
| With holding vertical stand, vesa mount as the optional | |
| CPU | Intel® Core™ i5-1035G1/1035G4 Processor (6M Cache, up to 3.60 GHz) |
| Intel® Core™ i7-1065G7 Processor (8M Cache, up to 3.90 GHz) | |
| Chipset | SOC |
| Network Card | 2 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 2 x SODIMM DDR4, up to 64GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME) |
| Expand | 2 x PCIE slot (half size and full size), with SIM slot |

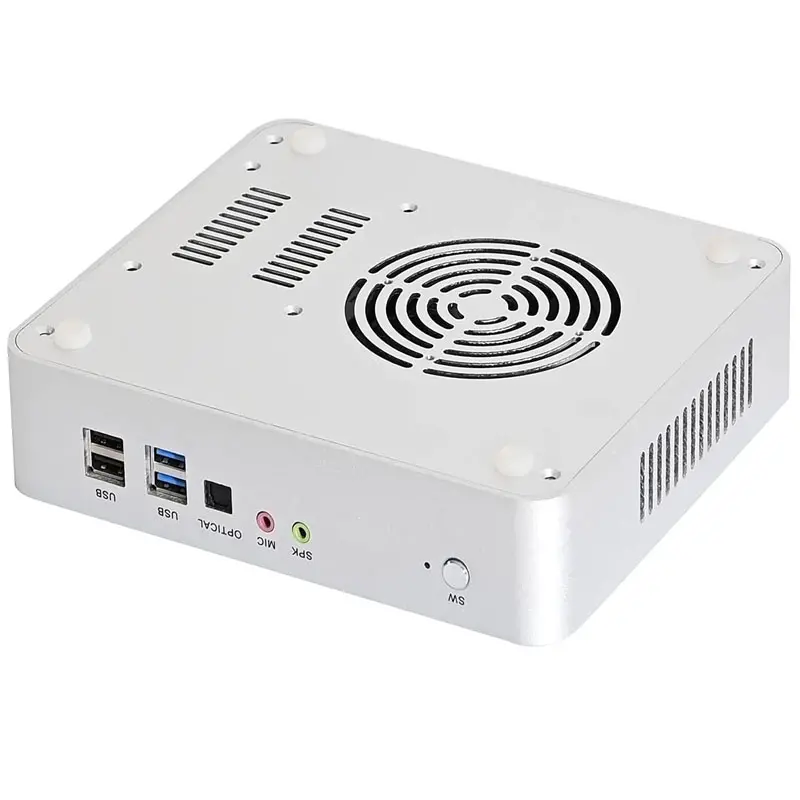

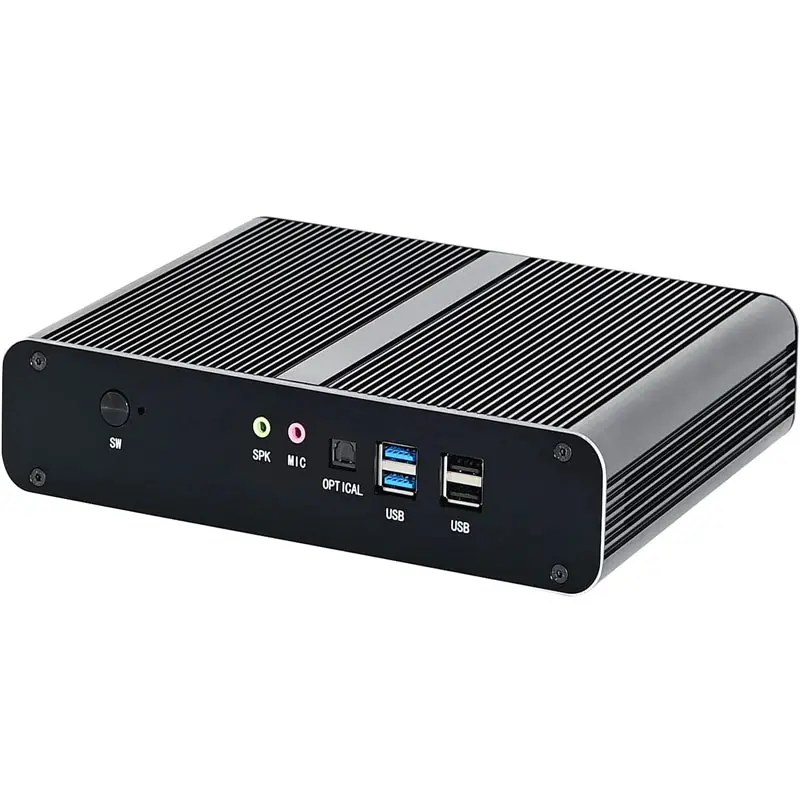

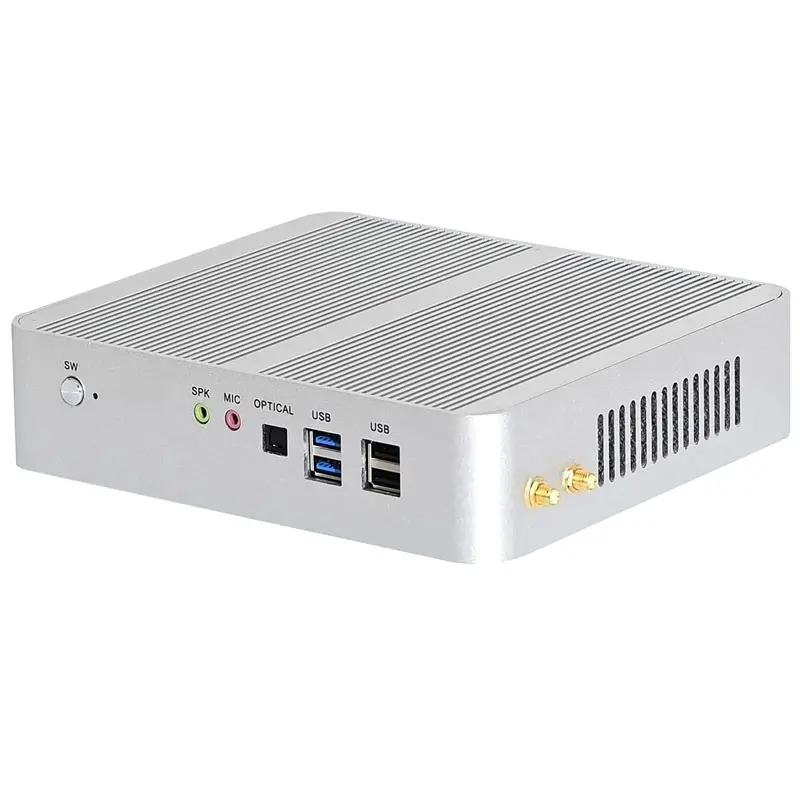

| Front Panel | 1 x Power button |
| 1 x Optical | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x Audio | |

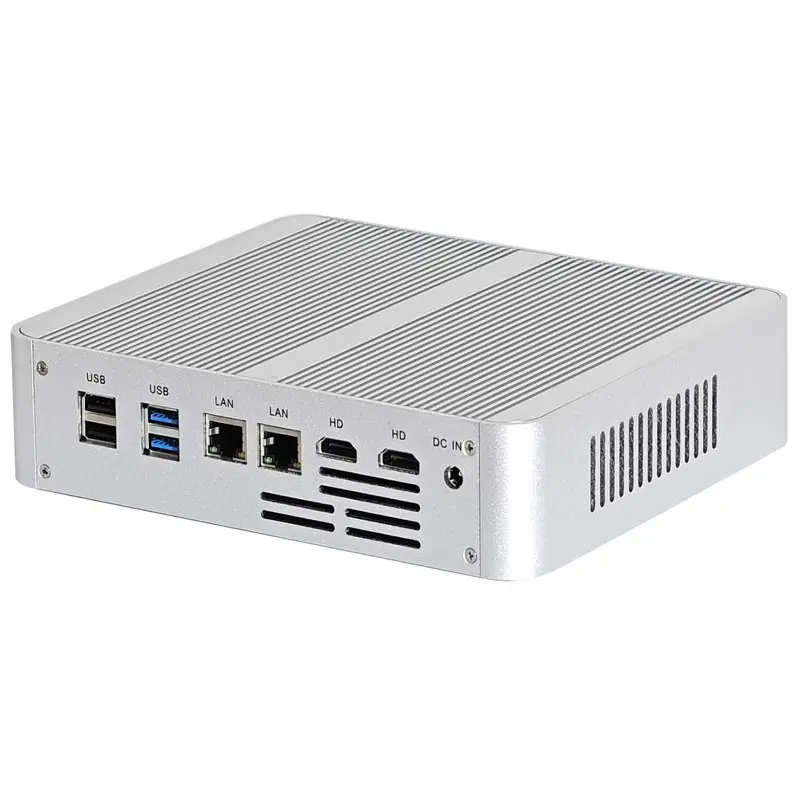

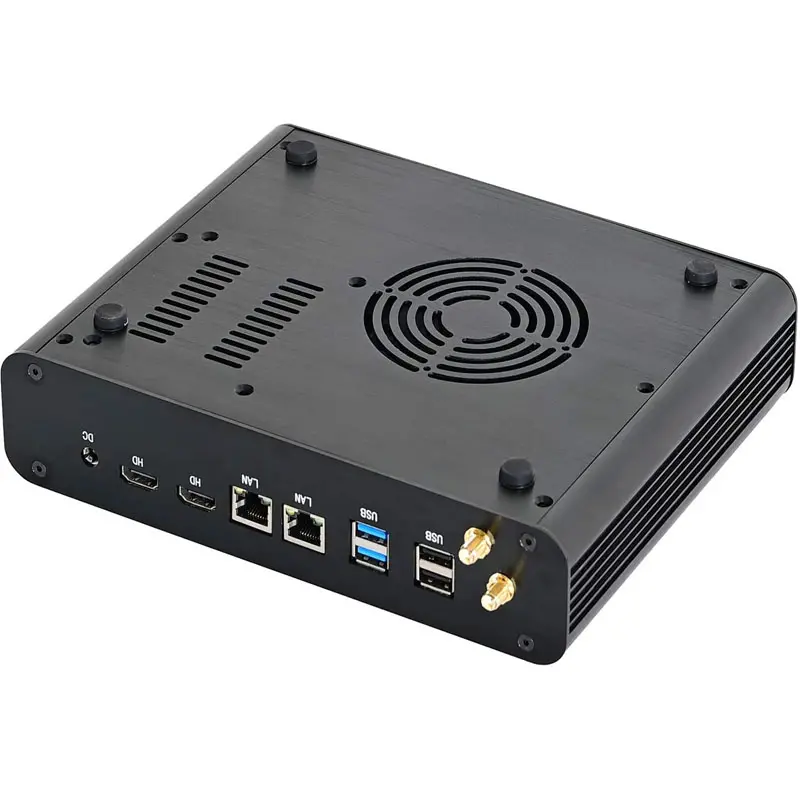

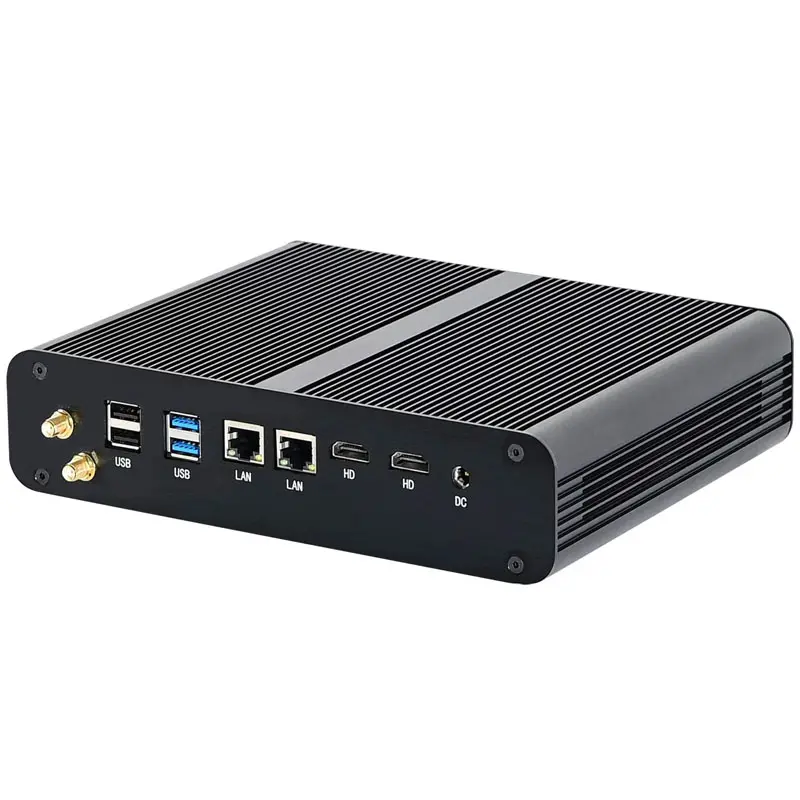

| Rear Panel | 1 x DC_in |
| 2 x HDMI | |
| 2 x Lan | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| Side Panel | 2 x WiFi antennas |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |

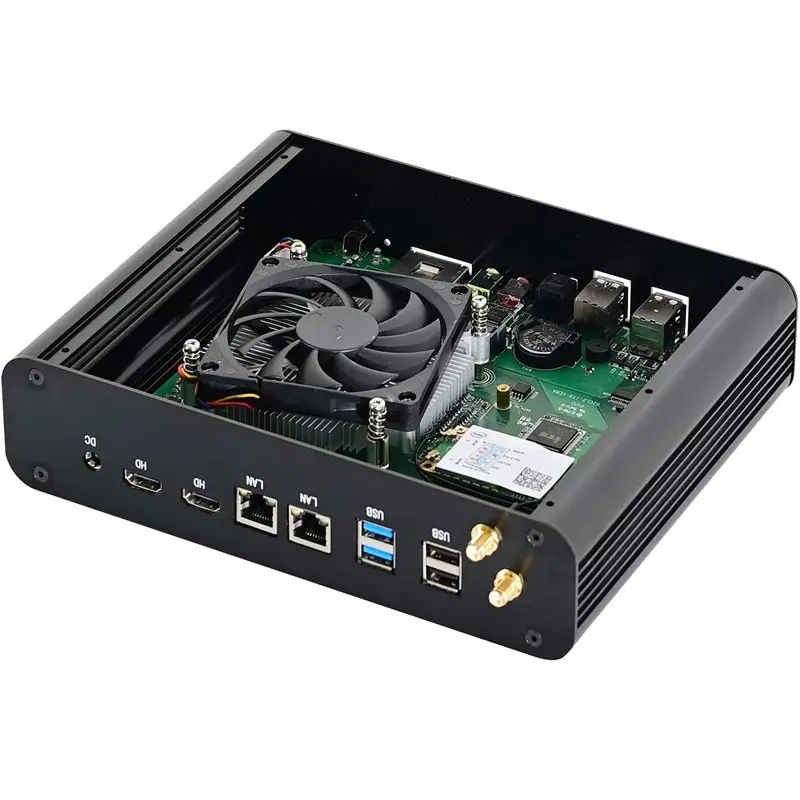

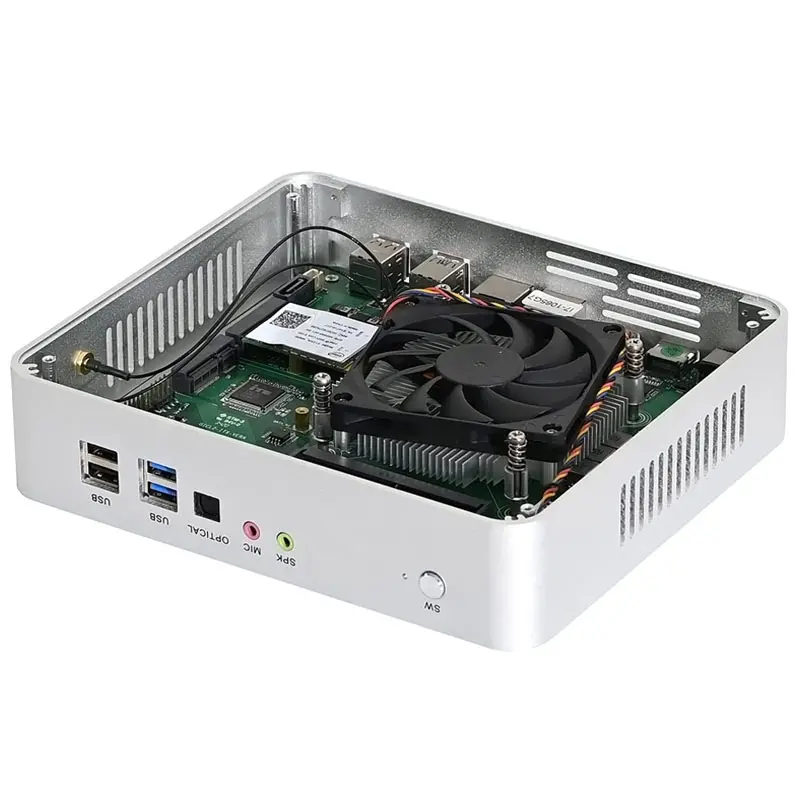

| Cooling Mode | Smart silent fan (place it vertically to reduce the fan speed & sound effectively) |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A |
| Packing List | B20 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
