Overview
Experience peak computing performance with our B24 Mini PC series. Equipped with Intel® Core™ processors up to i9-9900T, NVIDIA® GeForce® RTX 2060 6G/GTX 1660S 6G, and NVME SSD storage, it offers power and speed for demanding tasks. Featuring multiple ports, WiFi 6, and Bluetooth 5.1, our sleek, compact design ensures top-notch performance and reliability, ideal for various OS environments and applications in demanding conditions.
Specifications
Material | Aluminum alloy plus magnesium alloy |
Colour | Black |

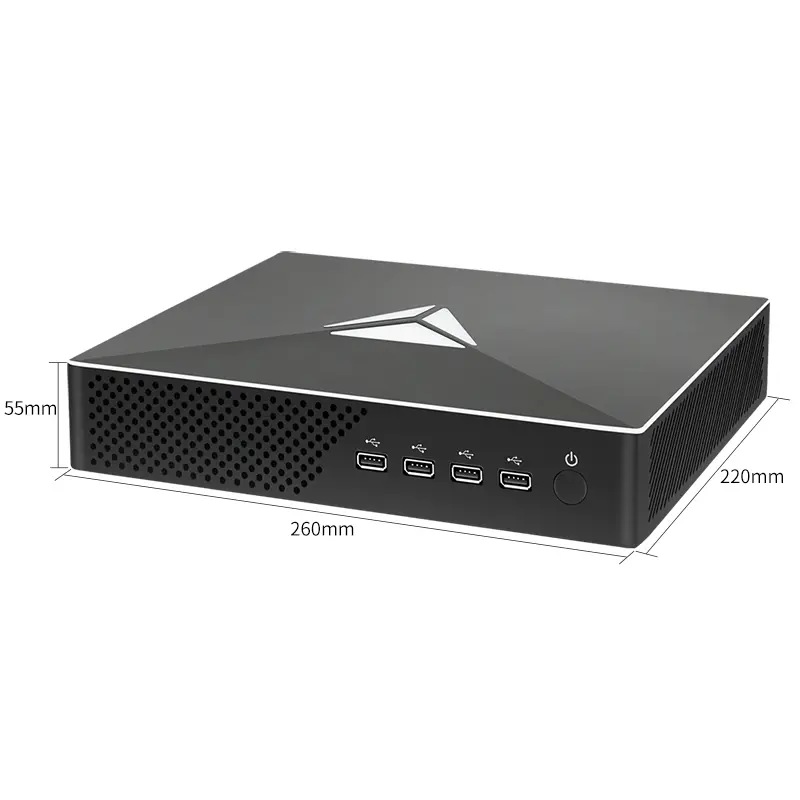

Size | 260 x 220 x 55mm |
Weight | 4Kgs |
Insallation Method | Desktop type |

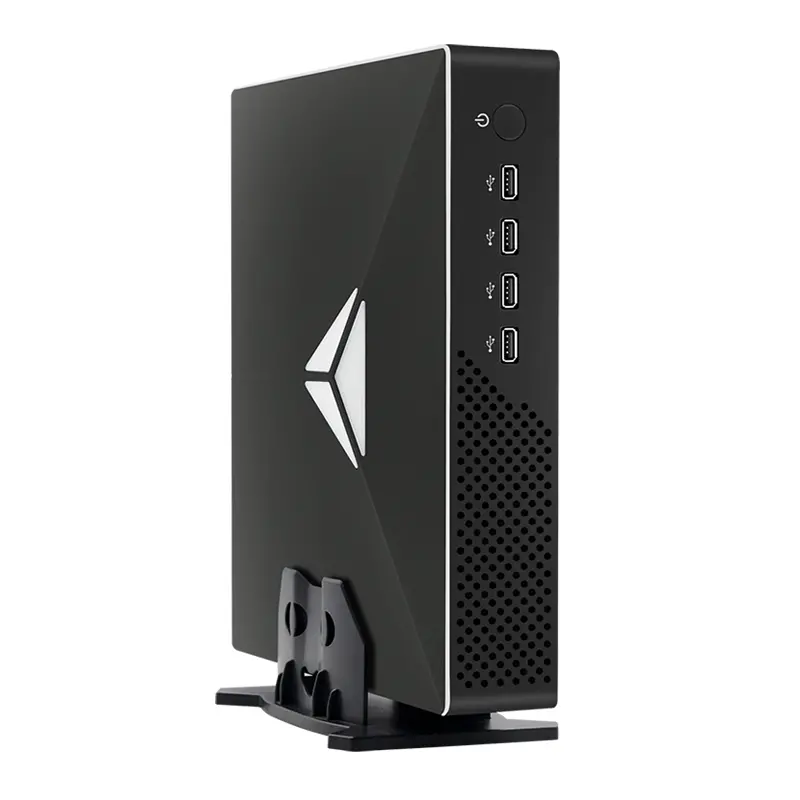

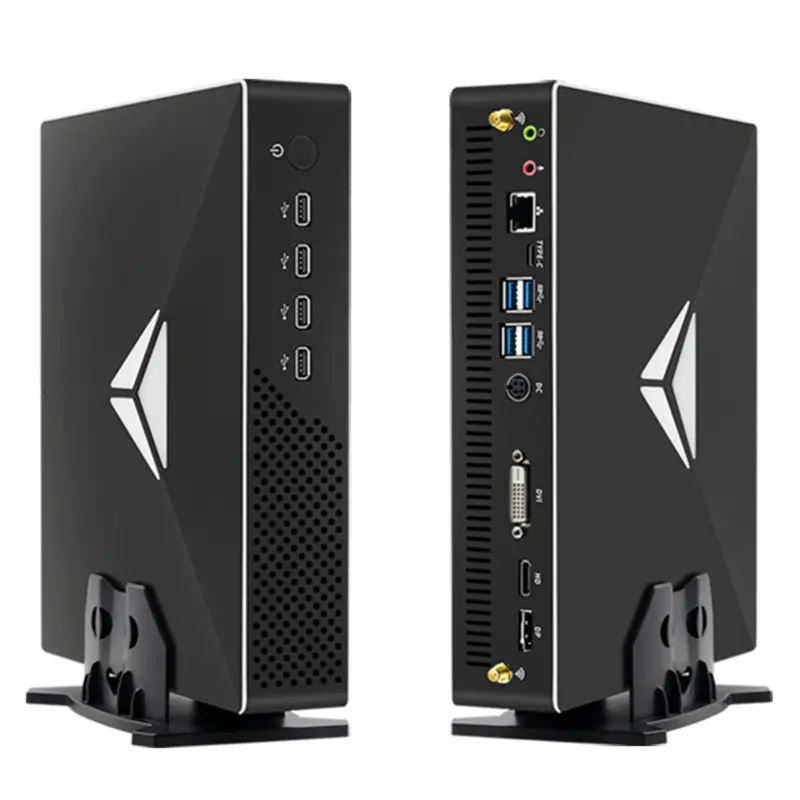

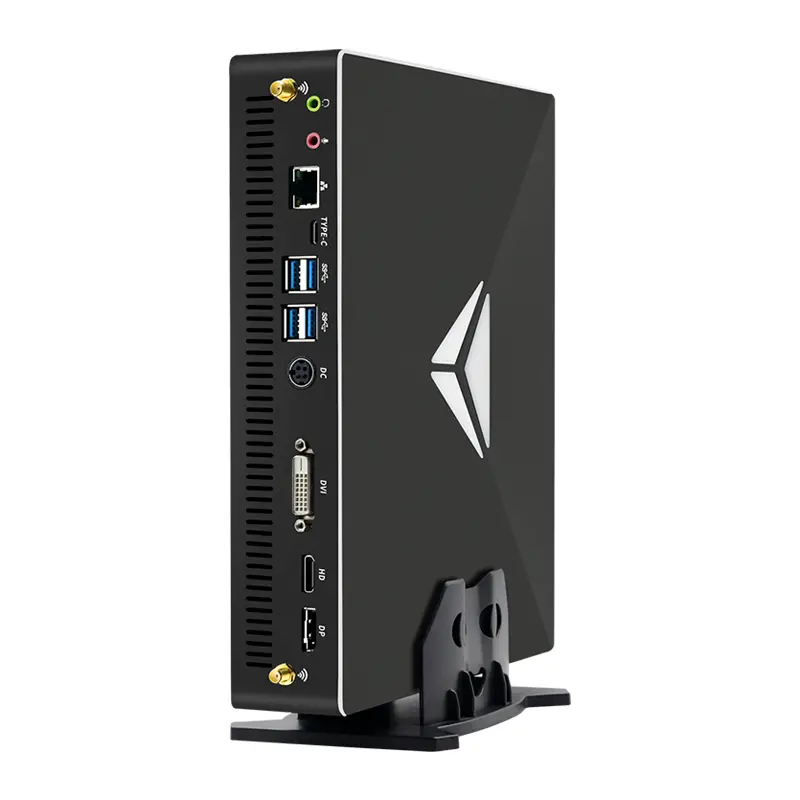

With holding vertical stand | |
CPU | Intel® Core™ i3-9100F, 4 Core 4 threads, 3.6GHz up to 4.2GHz, 6MB Cache |
Intel® Core™ i5-9400F, 6 Core 6 threads, 2.9GHz up to 4.1GHz, 9MB Cache | |
Intel® Core™ i7-9700F, 8 Core 8 threads, 3.0GHz up to 4.7GHz, 12MB Cache | |
Intel® Core™ i9-9900T, 8 Core 16 threads, 2.1GHz up to 4.4GHz, 16MB Cache | |
Display Ports | 1 x HDMI 2.0, 1 x DP 1.4, 1 x DVI |
Motherboard | B360 all solid-state motherboard |
Color | Black |
Network Card | Intel 211 series Gigabit LAN |
WiFi and Bluetooth | Built in AX200 WIFI 6 & Bluetooth 5.1 |
Memory | 2*DDR4 non-ecc SODIMM Ram slots, max 64GB |
Storage | M.2 NVME SSD – NGFF/PCIE X4 high speed SSD, MAX support 2TB |
Dedicated Graphics | GeForce RTX 2060 6G / GTX 1660S 6G Discrete Graphics |

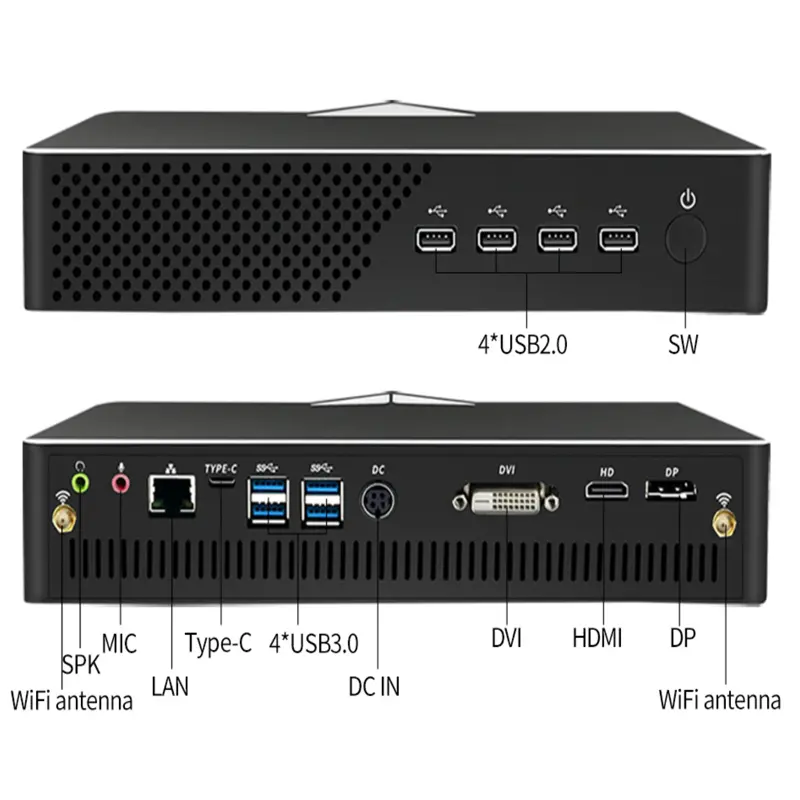

Front Panel | 4 x USB2.0 |
1 x Power SW | |

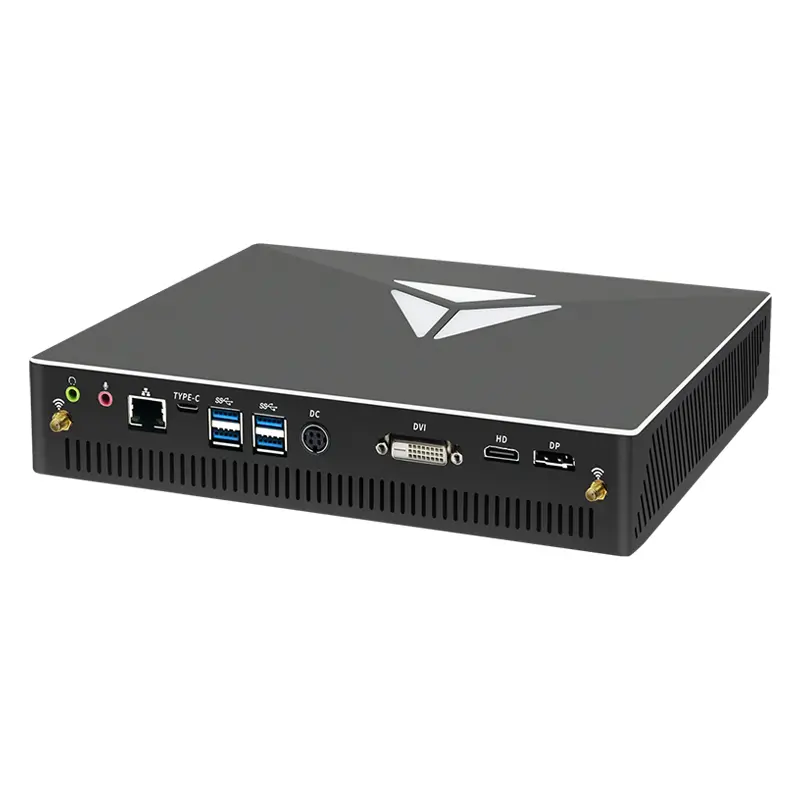

Rear Panel | 1 x SPK |
1 x MIC | |
4 x USB3.0 | |
1 x Type-C | |
1 x LAN | |
1 x DC IN | |

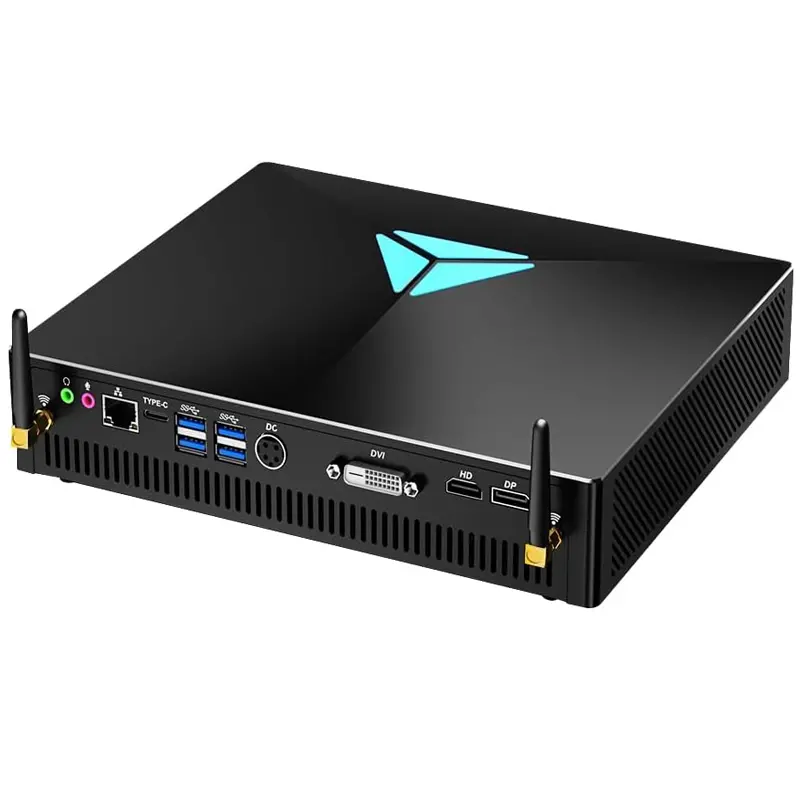

2 x WIFi Antennas Holes | |
1 x DP | |
1 x DVI | |
1 x HDMI | |
Bios | AMI bios |
System Support | Windows 10/11/sever2012/2016/linux/centos/ubuntu |

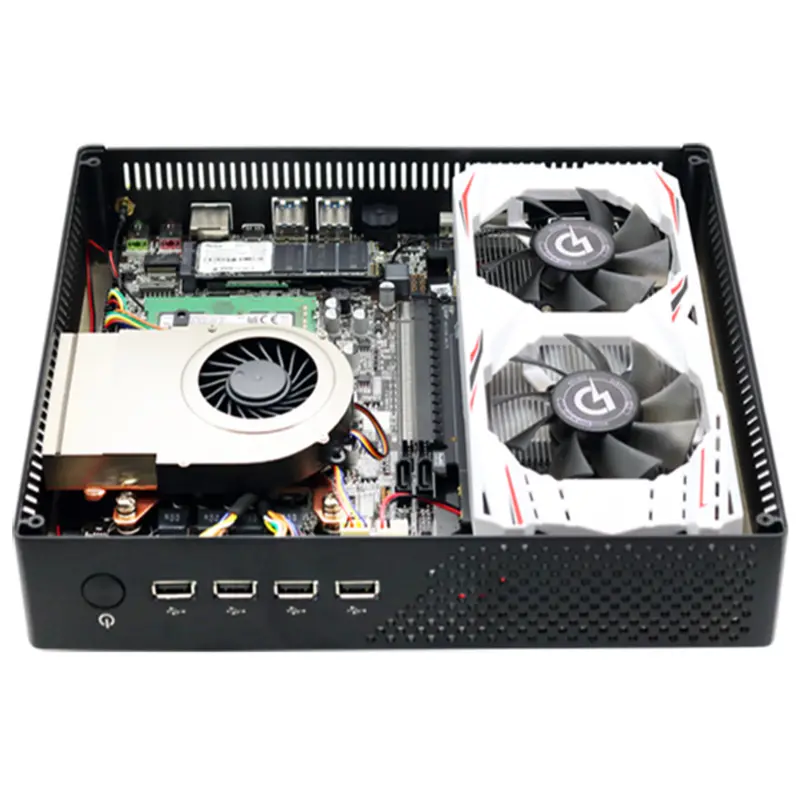

Cooling Mode | Full cooper turbo cooler |
Power Supply | 19V |
Packing List | B24 mini pc, power supply, power cord, vertical stand, warranty card |
Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
Relative Humidity | 10%~90% (non-condensing) |
Certification | CE FCC ROHS |
