Mini ITX Motherboard Intel Celeron J1900

  • Quad-Core J1900 CPU, Low Power
  • Intel HD Graphics, Dual Display Support
  • Dual Gigabit LAN, Wake-on-LAN/PXE
  • Versatile Storage Options: SSD, SATA
  • Robust Audio Controller & Speaker Advice
  • Multiple Expansion Slots for Flexibility
  • Smart BIOS & Hardware Watchdog Support
  • Efficient Fan Interface for Cooling

Share to:

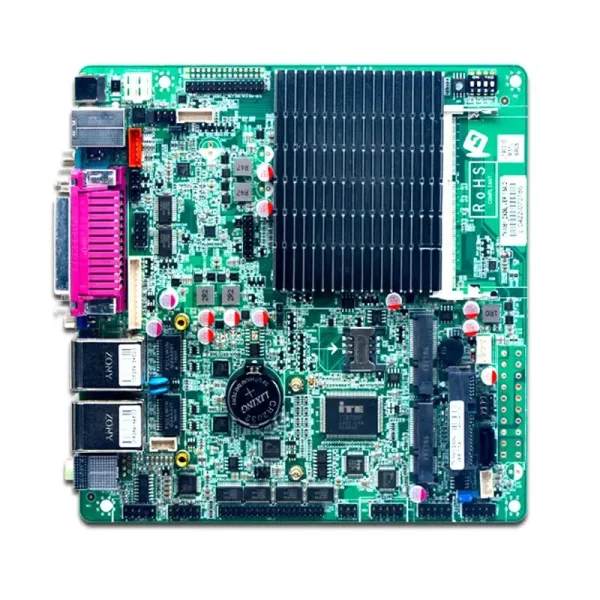

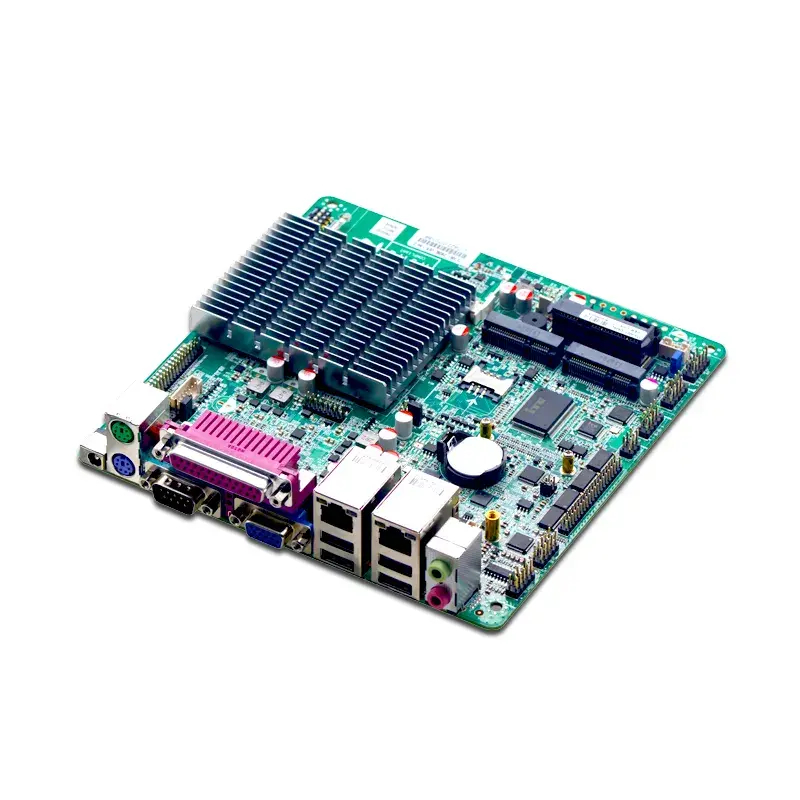

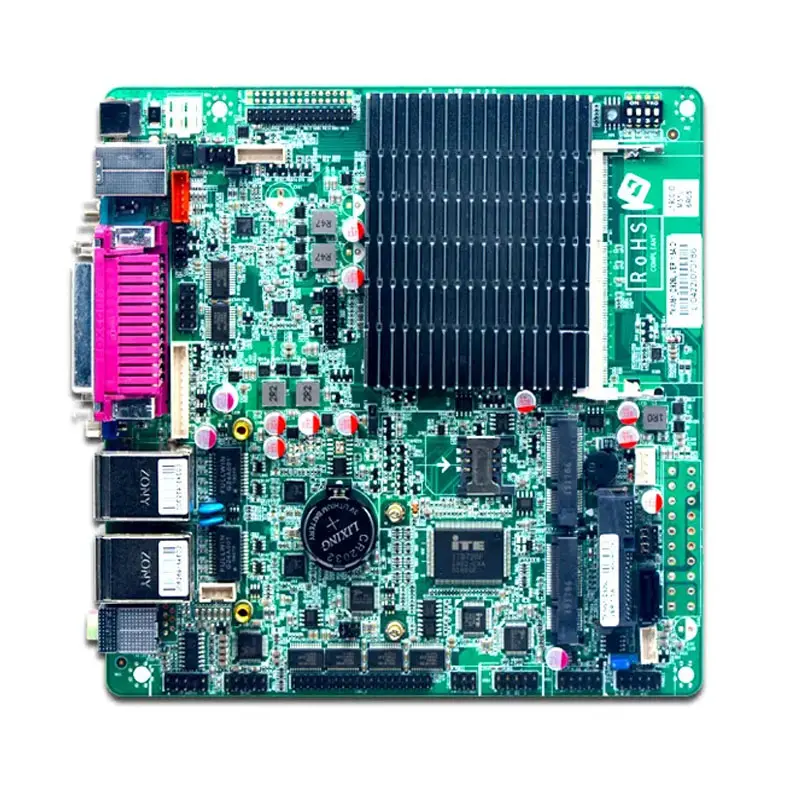

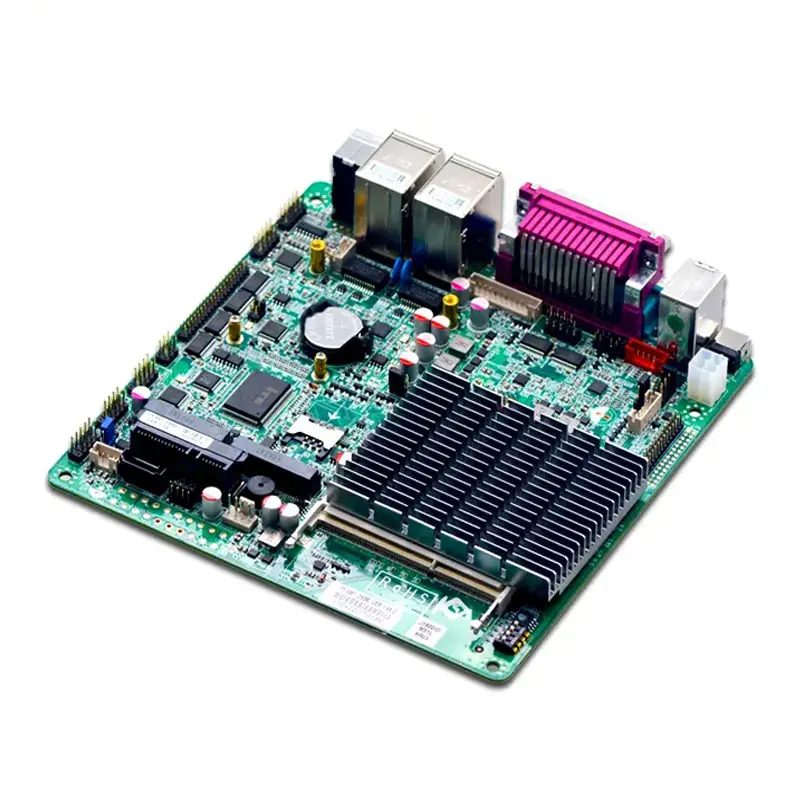

The ITX-M51_D926L VER:1.2 is a compact motherboard powered by an Intel J1900 quad-core CPU, ideal for energy-efficient applications. It supports DDR3 memory, Intel HD Graphics, and offers multiple I/O options including USB, VGA, LVDS, and LAN controllers. Equipped with audio capabilities, expansion slots for WiFi modules, and SSD connectivity, it ensures versatile functionality. Featuring a robust BIOS, fan interfaces, and diverse internal I/O connections, it’s an adaptable solution for compact systems. Operating within a wide temperature range, this motherboard is suitable for various industrial setups




Model NO. ITX-M51_D926L VER:1.2
CPU Intel J1900/2.00GHz quad core CPU, TDP10W
Chipset Intel Bay trail SOC platform
Memory 1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory , max. Up to 8GB
Graphics Intel HD Graphics
Support 1*VGA,1*LVDS ( support dual channel 24BIT)
VGA;LVDS support synchronous/asynchronous display
LAN 2* RTL8111F Gigabit LAN controller, support Wake-on-LAN/PXE
Storage 1* SSD connector
1* SATA 2.5’ laptop HDD space, 1* SATA (alternative choice when use )
Audio ALC662 6channel HD audio controller, support MIC/Line-out /amplifier
Advise 3Ω5W speaker
Expansion Slots 1* 52pin PCIEx1 slot, support WIFI module
1* MSATA slot, support SSD,SSD transfer rate up to 3Gbps

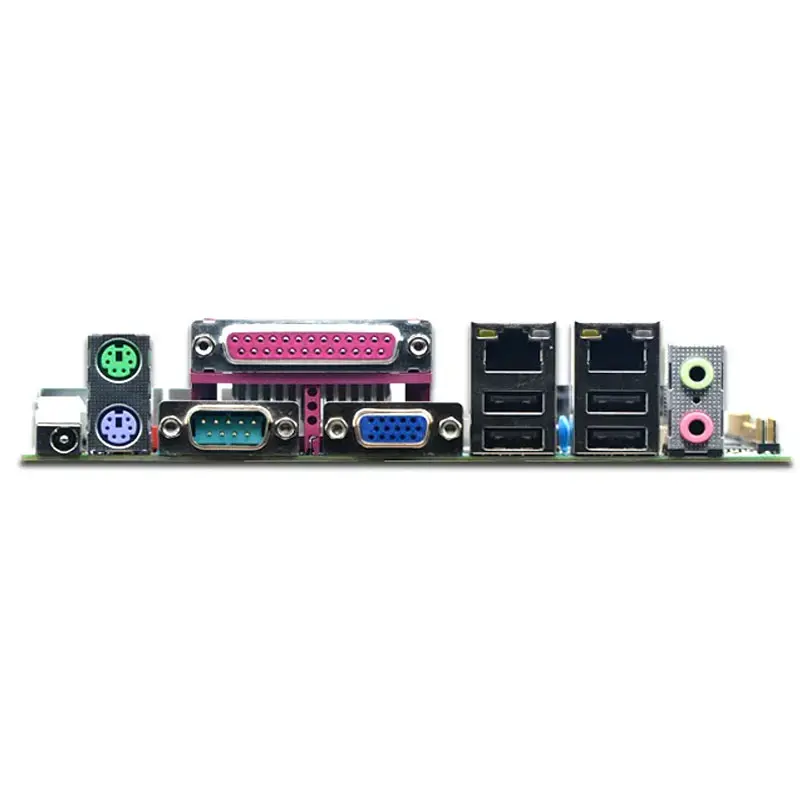

Rear I/O 1* 12V DC_JACK input
1* PS/2( KB&MS)
1* COM (the 9th pin support 5V/12V charged function)
1* VGA
1* LPT
4* USB2.0
2* RJ-45
1* Audio (Line out / MIC)
Internal I/O 1* LVDS (2*10pin),support single channel 24 BIT LCD display
1* LVDS INVERTER(1*6pin)
1* JVGA1 (2*12pin) , same signal with DB15
5* COM connector (the 9th PIN of COM2 connector with charged function,COM3 supports RS422/485
4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)
1* PS/2, KB/MS connector (1*6Pin)
1* AUDIO front panel audio connector (2*5pin)
1* SIM card socket
2*PWROUT (HDD power connector)
1* FP1 front panel function buttons and indicator connector (2*5pin)
1* ATX_12V
Fan Interface 1* CPUFAN 4pin; 1* SYSFAN 3pin
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12V single power supply
Operating Temp. -10°C~60°C
Storage Temp. -20°C~70°C
Humidity 5%-95% (relative humidity; non-condensing)
Dimension 170mm x 170mm

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor VGA Frequency LVDS Memory HD OUTPUT LAN USB RS485 COM Power
M51_D912E VER:1.6A J1900 1 2.00G/4C / 1*SODDR3


 1 9 / 2 DC-12V

M51_D912L VER:1.6A

J1900 1 2.00G/4C 2*24Bit 1*SODDR3


1 9 / 2 DC-12V

M51_D926L VER1.5A

J1900 1 2.00G/4C 2*24Bit 1*SODDR3


2 9 1 6 DC-12V
