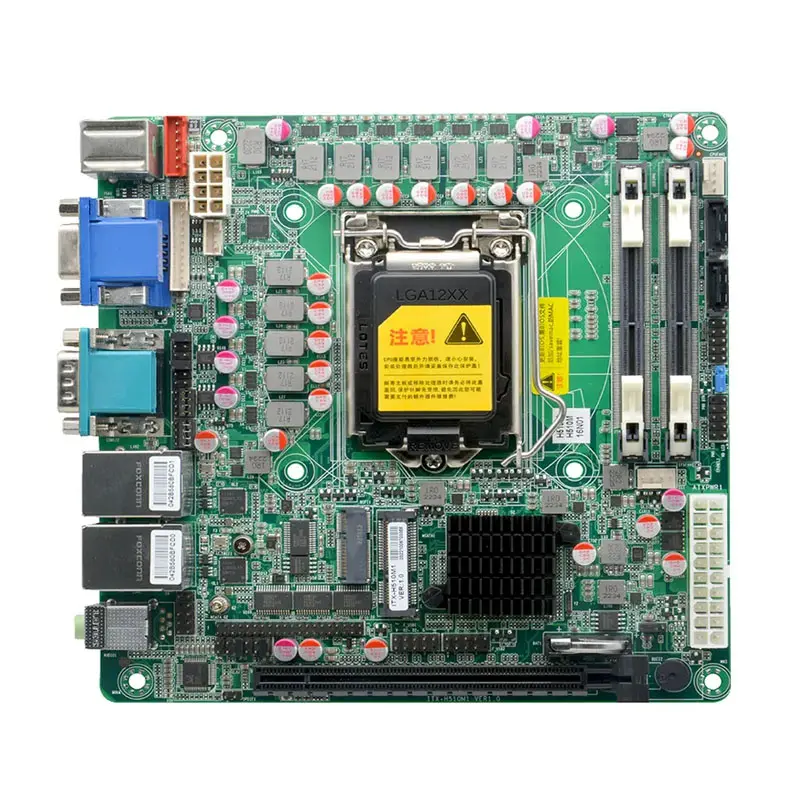

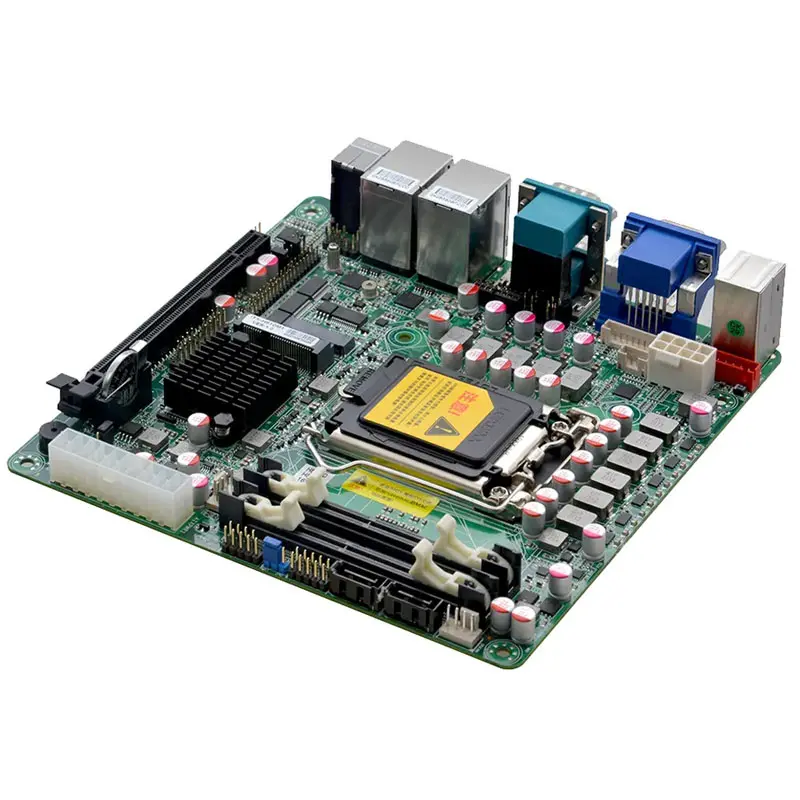

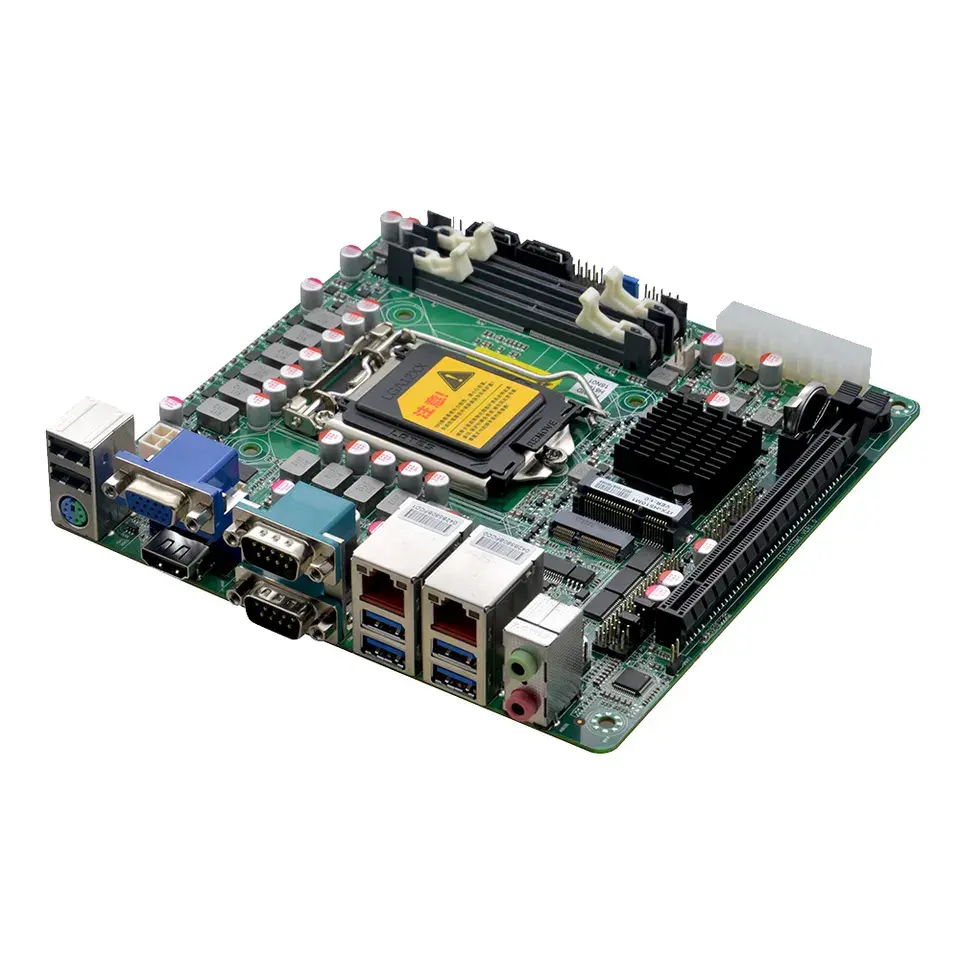

Overview
The ITX-H510R1/H510M1 VER:1.0 motherboard offers LGA1200 support for Intel® 10th/11th processors, dual-channel DDR4, HD graphics, dual Gigabit LAN, multiple I/O ports, PCIe slot, and flexible OS compatibility. It’s compact, efficient, and ideal for diverse computing needs in industrial settings.
Specifications

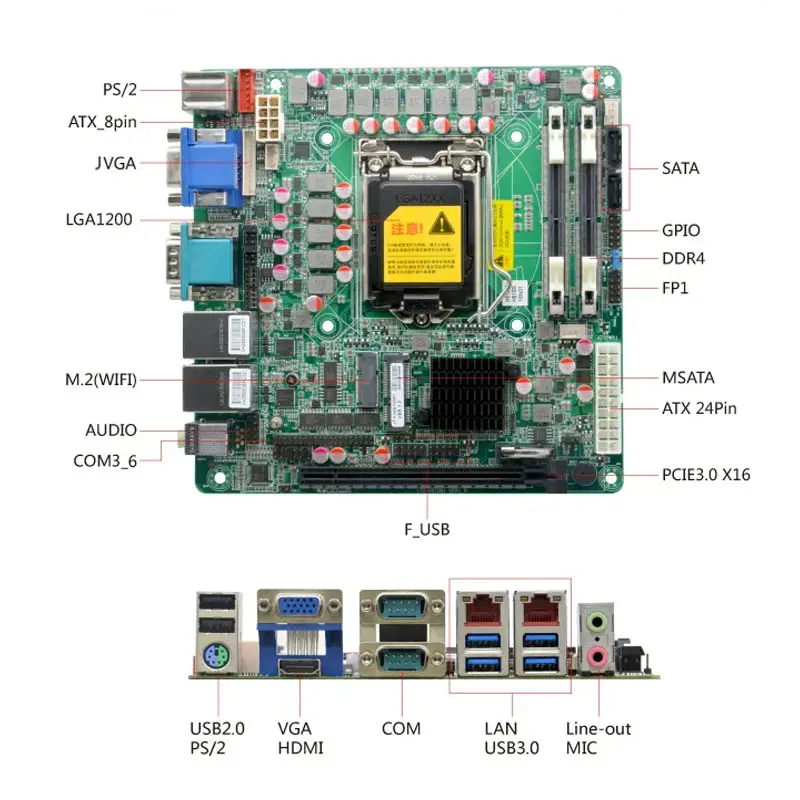

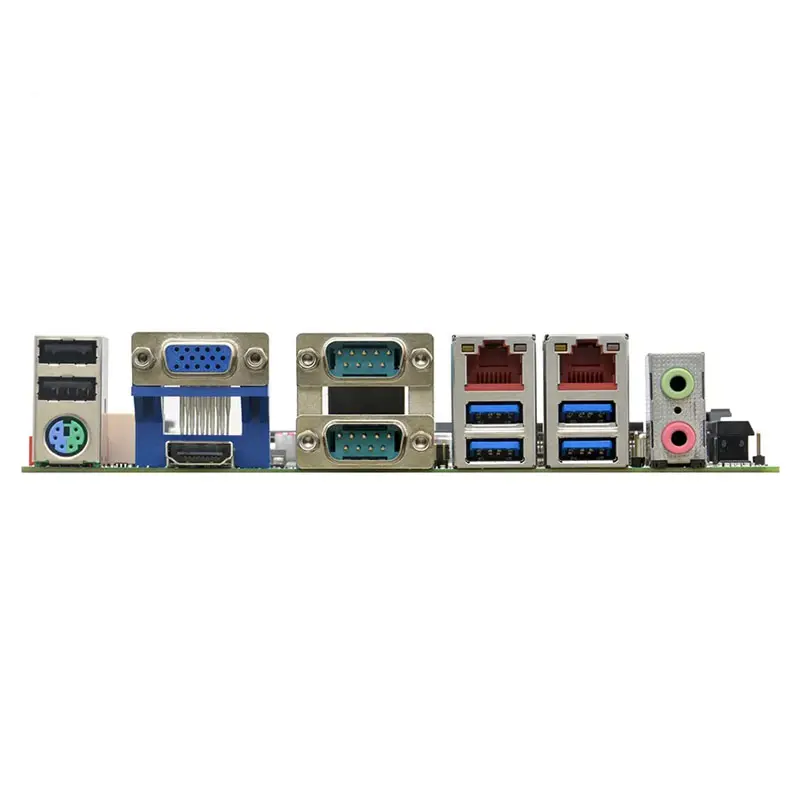

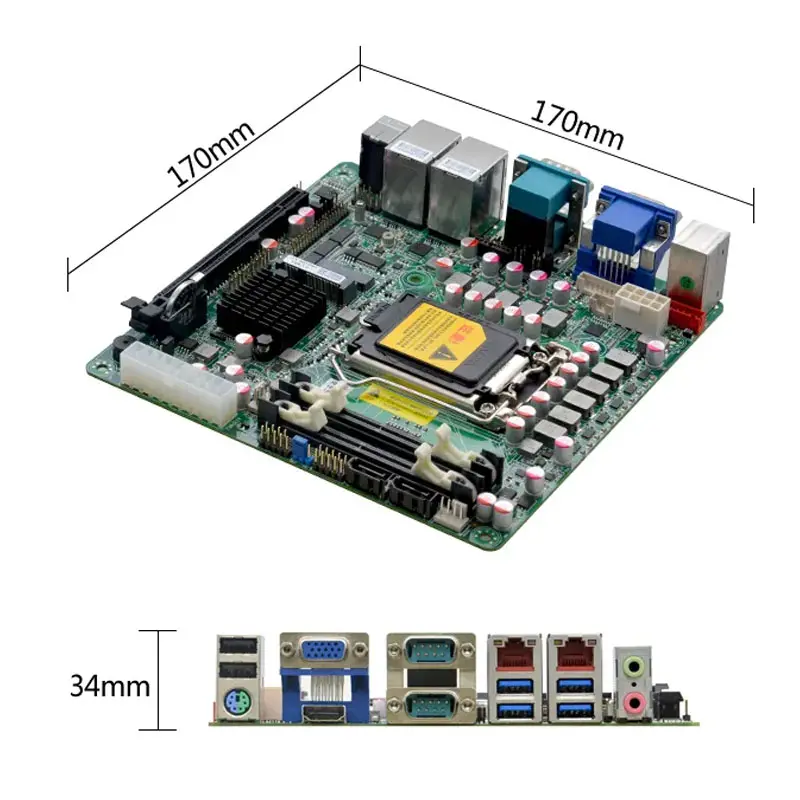

| Product model | ITX-H510R1/H510M1 VER:1.0 |
| processor | Supports LGA1200 10th/11th Intel® Celeron/Pentium/Core i3/i5/i7/i9 processors |
| Note: Support 10/11 generation 125W CPU | |
| chipset | With Intel® H510 chipset, |
| memory | 2 x DDR4 SODIMM slots, supporting a dual-channel memory of up to 3200MHz and up to 128GB |
| Display | Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display |
| 1 x VGA port, the maximum resolution is 1920X1200@60Hz | |
| 1* HD OUTPUT1.4 interface, support the highest resolution of 4096×2304@24Hz | |
| network | 2* Intel 8111H/I226V Gigabit network adapter chip, support network wake up /PXE function |
| store | 2* SATA3.0 hard disk interface, transmission speed up to 6Gbps |
| Audio frequency | 1* MSATA slot, supporting Intel SSDS |
| Audio frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support |
| Expansion slot | 1* PCIE3.0 X16 slot |
| I/O ports on the backplane | 1* M.2, supporting the M.2 2230 WIFI module |
| 1* PS/2 interface (expandable keyboard and mouse) | |
| 1 x DB15 VGA port | |
| 1* HD OUTPUT1.4 port | |
| 2* DB9 RS232 serial port, support 9pin live function, support RS485/422 | |
| 2* USB2.0 port | |
| 4* USB3.0 port | |
| 2* RJ-45 Gigabit network interface | |
| Built-in I/O interface | 1* Dual-layer audio interface (sound output and MIC input) |
| 3* USB2.0 port 2*5pin F_USB2 supports only one USB2.0 | |
| 1* Front panel audio interface (2*5pin) | |
| 1* Front panel function buttons and indicator ports (2*5pin) | |
| 1* 24pin ATX Power socket 1* 8pin ATX power socket | |
| 1* PS/2 keyboard and mouse interface 1*6pin | |
| 1* JVGA port 1*12pin, same signal as DB15 | |
| Fan interface | 4* RS232 serial port, 2*20pin |
| BIOS | 1*4pin CPU fan interface; 1*4pin system fan port |
| Guard dog | 64Mb Flash ROM |
| Operating system | Support hardware reset function (256 level, 0~255 seconds) |
| Power supply type | Windows 10/Windows 11/Linux |
| Operating temperature | Powered by ATX 20Pin and 8pin power supplies |
| Storage temperature | 0℃ to 60℃ |
| Working humidity | -20℃ to 70℃ |
| Size | 170mm * 170mm * 32 mm |
