Overview
The ITX-B641_J126L VER:1.1(J6412) is a mini-ITX motherboard that features the Intel Celeron J6412 processor, a quad-core CPU that offers high performance and low power consumption. It is compatible with the full range of Intel Elkhart Lake CPUs, giving you more flexibility to choose the best processor for your needs. The motherboard supports single-channel 2400MHz DDR4 memory, up to 16GB capacity, and has an integrated Intel UHD Graphics 600 core graphics card that supports dual display output via HDMI and VGA. It also has one LVDS or EDP interface, supporting dual channel 24bit display.
Specifications
| Product model | ITX-B641_J126L VER:1.1(J6412) |
| processor | Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor,TDP 10W,Compatible with the full range of Intel® Elkhart Lake cpus, customers can choose flexibly |
| chipset | SOC |
| Internal memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 16GB) |
| display | Integrated Intel® UHD Graphics core graphics card |
| 1* VGA,1*HD OUTPUT,1* LVDS,1* EDP, Note:LVDS and EDP interfaces are optional | |
| network | 2* RTL8111H Gigabit NIC, supports network wake up and PXE functions |
| deposit | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* MSATA slot, support SSD SSD,SSD transfer speed up to 6Gbps | |
| 1 x M.2 slot, supporting the M.2 Key M 2260/2280 PCIE X2 SSD | |
| Tone frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 4Ω3W speaker | |
| Expansion slot | 1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module |
| 1* M.2 slot, supporting the M.2 Key E 2230 WIFI module | |

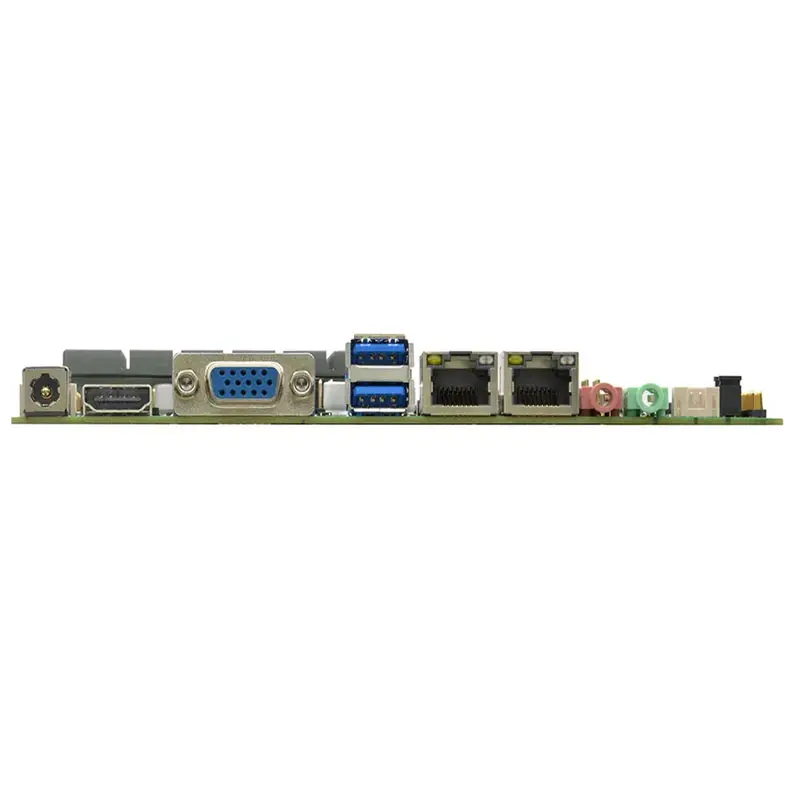

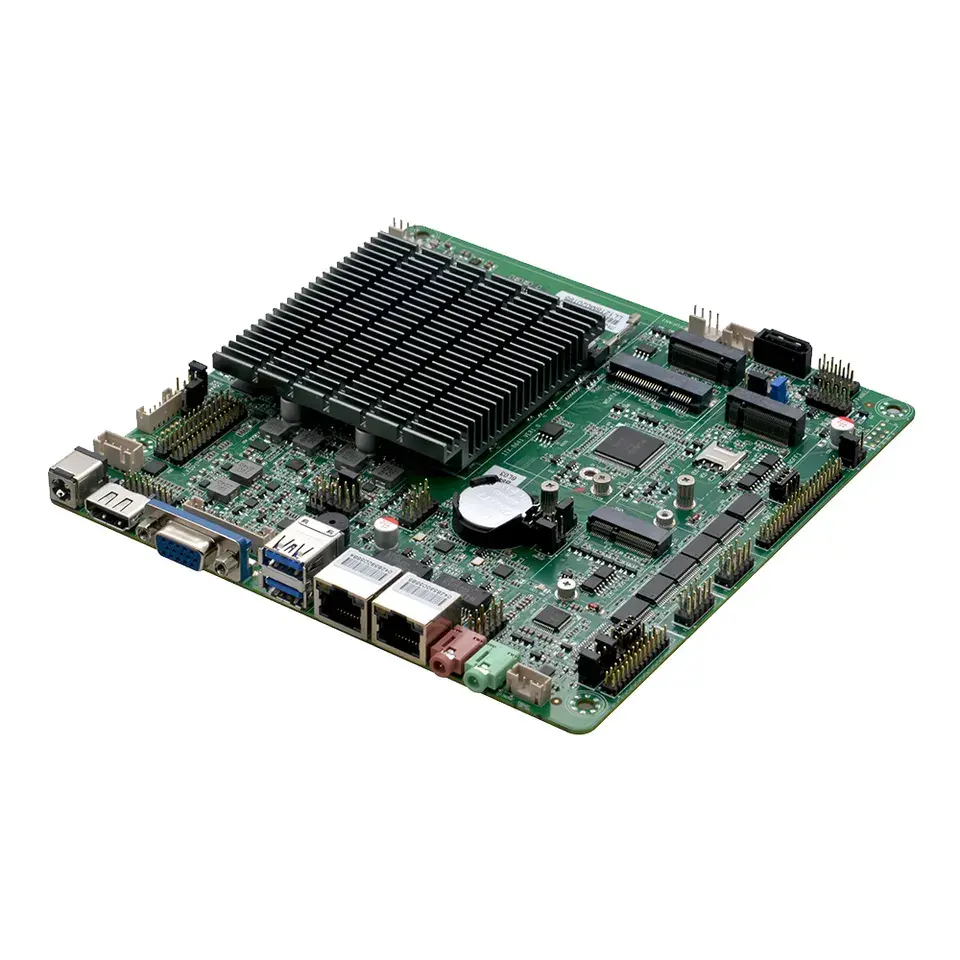

| I/O ports on the backplane | 1* DC 12V power input port |
| 1 x VGA display port | |
| 1* HD OUTPUT display interface | |
| 2* USB3.0 interface, | |
| 2* RJ45 Gigabit network interface | |
| 1* Line-out (green), 1*MICK(red) | |

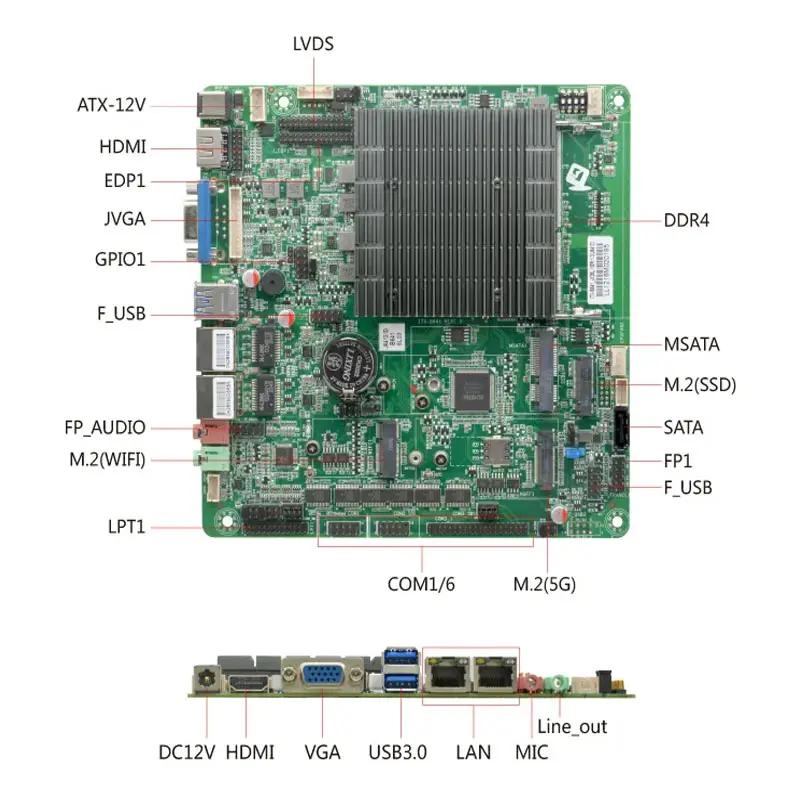

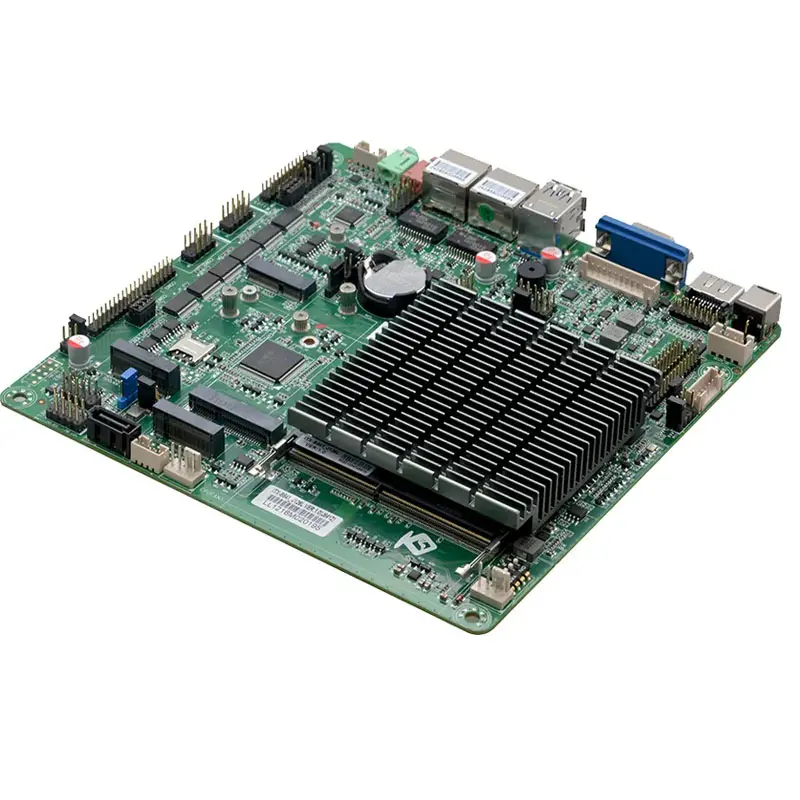

| Built-in I/O interface | 1* DC power interface, 1*4pin support 12V power input and output |
| 1* JVGA port 1*12pin, same signal as DB15 | |
| 1* J_HD OUTPUT interface, 2*8pin, the same signal as HD OUTPUT | |
| 1* LVDS interface, 2*15pin, support dual channel 24BIT, | |
| 1* EDP interface, 2*15pin, and LVDS is one of two options, the default LVDS, requires EDP, need to change the hardware | |
| 1* screen backlight power supply interface 1*6pin | |
| 4* USB2.0 interface, 2*5pin | |
| 6* RS232 serial interface,COM1/2 support 9pin live function,COM2/COM3 support RS485/422 function, | |
| 1* hard drive power port 1*4pin | |
| 1* front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* LPT interface 2*13pin | |
| 1* SIM card slot | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | Without fan heat dissipation, a 1*4pin CPU intelligent fan port and a 1*4pin system fan port are reserved |
| GPIO | Supports four input/output GPIO |
| BIOS | 256Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Windows 11/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

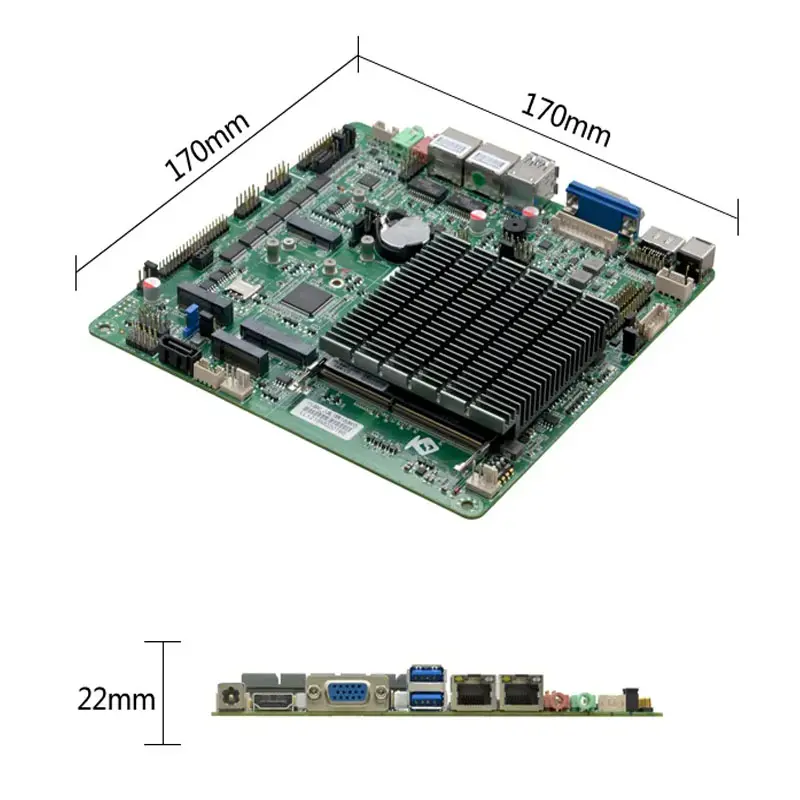

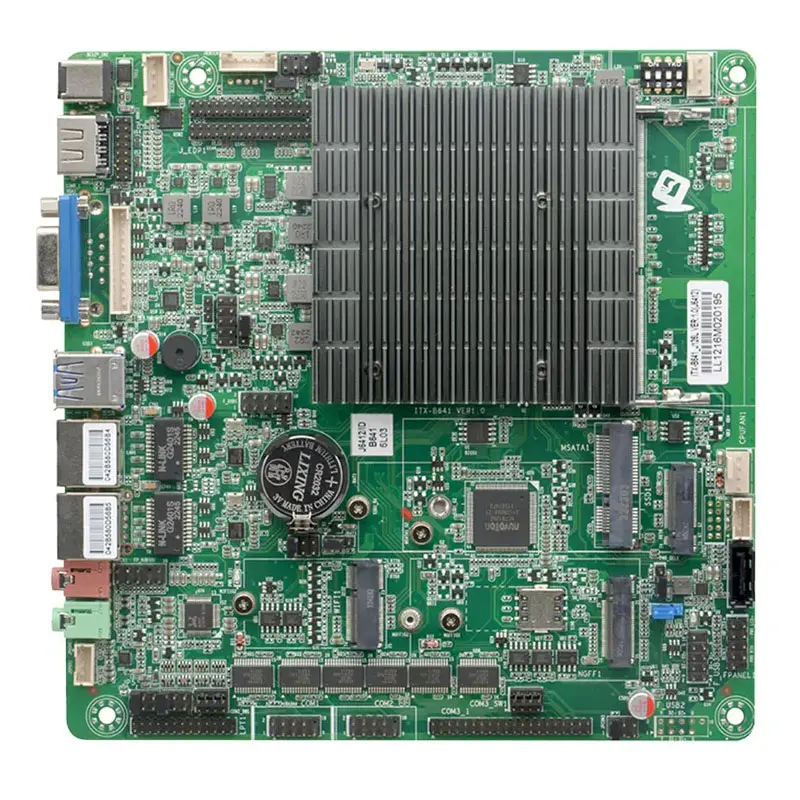

| Dimension | 170mm x 170mm |
