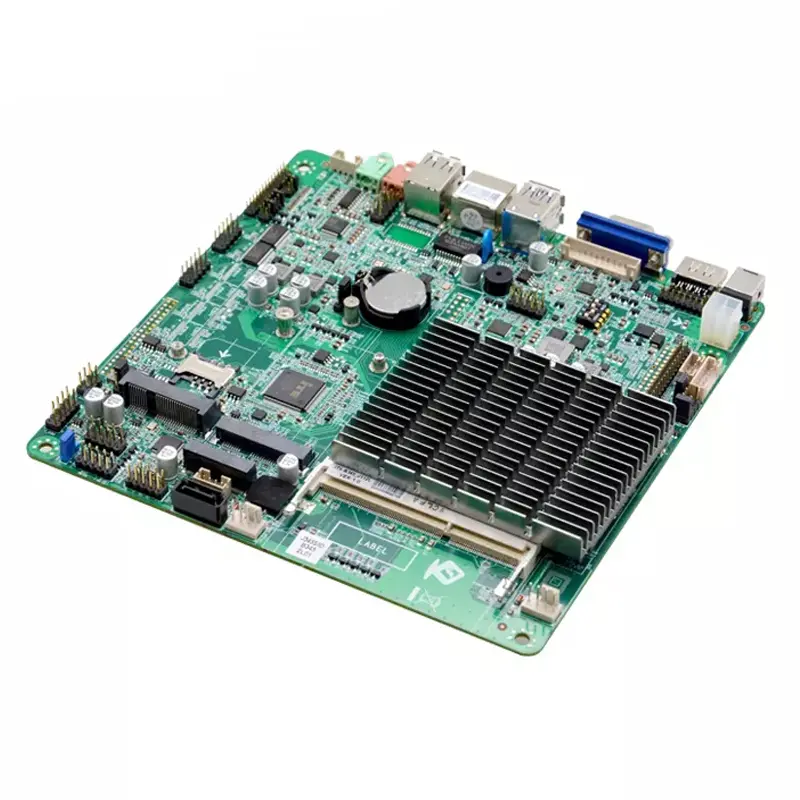

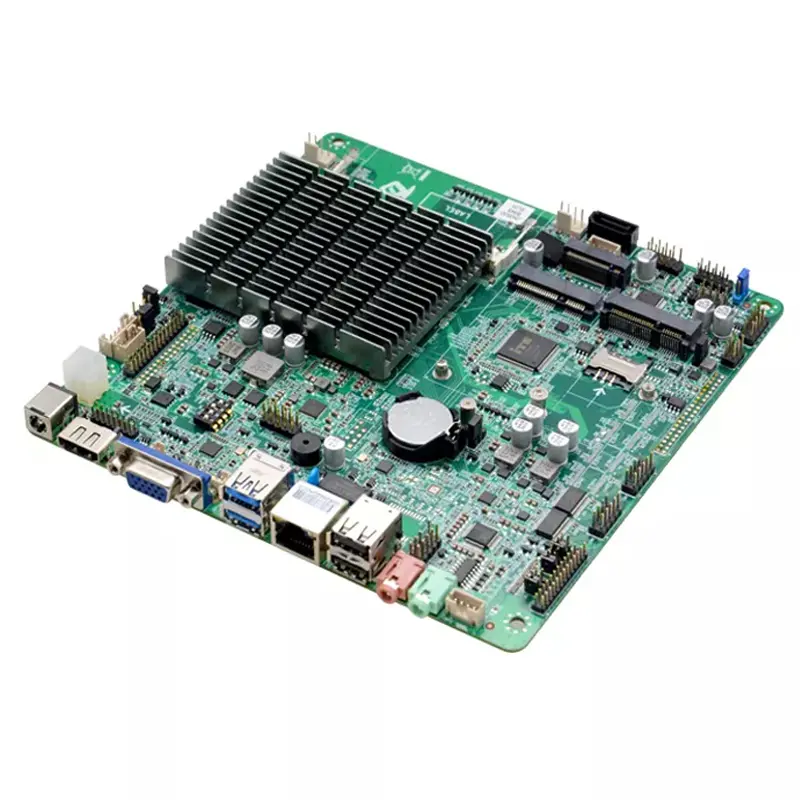

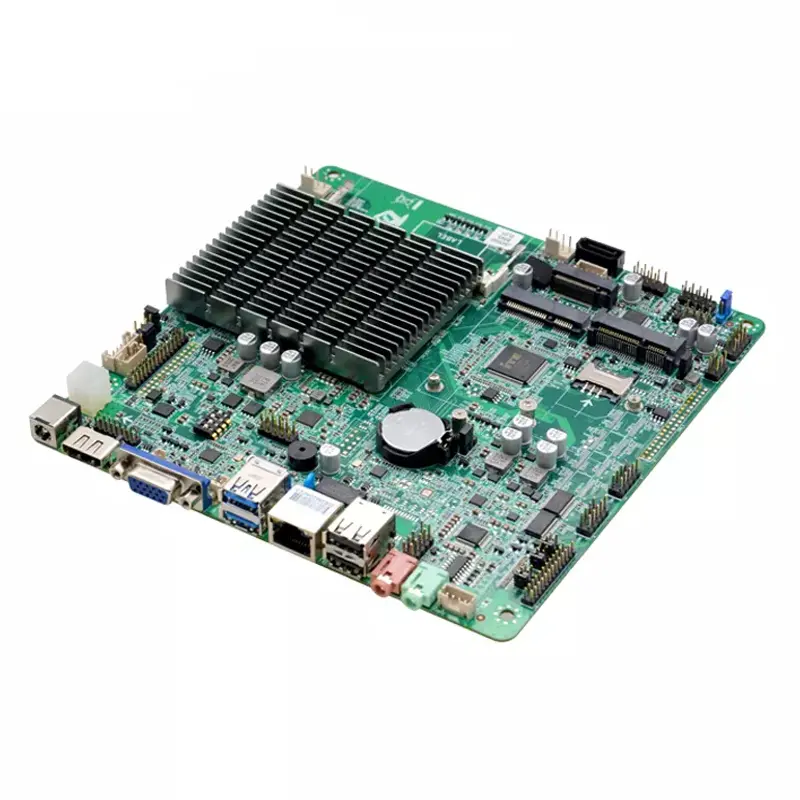

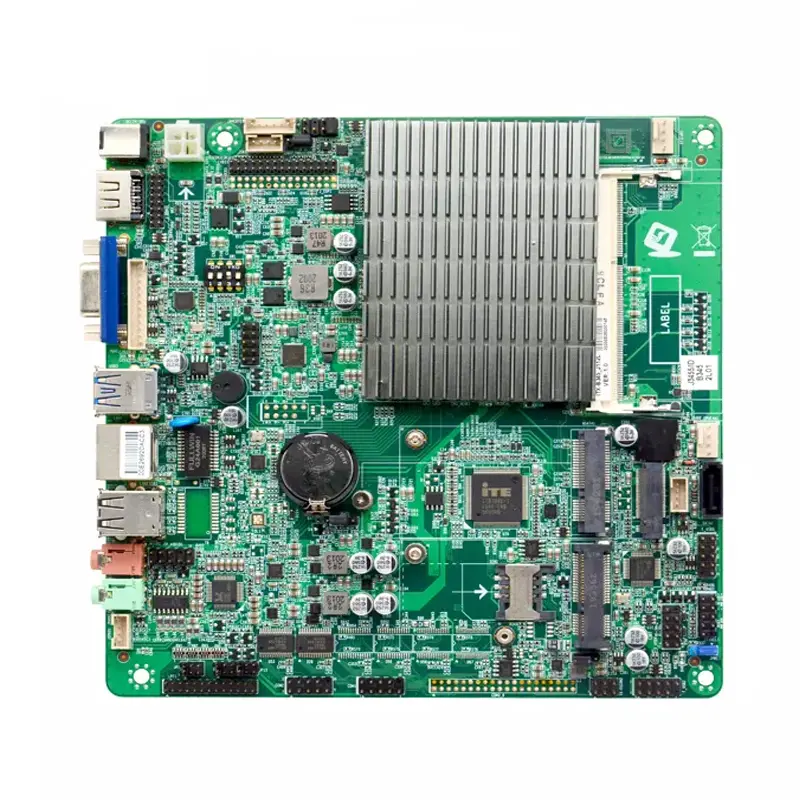

J3455 Thin ITX Motherboard VGA/HDMI/MI/LVDS

  • Intel® Celeron J3455 Quad-Core Processor, 1.5GHz, 10W TDP
  • DDR3L SODIMM, Dual Channel 1600/1866MHz, 8GB Support
  • Versatile Display VGA, HDMI, LVDS, or EDP Interface
  • RTL8111H Gigabit Ethernet with Wake-on-LAN/PXE Support
  • SATA3.0 and MSATA Slots for High-Speed SSD Storage
  • M.2 2280 NVME PCIe SSD Support via Dedicated Slot
  • Flexible System Expansion with Mini-PCIE Slot
  • Multiple GPIO Support, Including Hardware Reset Function

Share to:



The ITX-B345_J112L VER:1.0(J3455) is a versatile motherboard with an Intel® Celeron J3455 processor, supporting DDR3L RAM up to 8GB. It features Intel® HD Graphics 500, HDMI, VGA, and LVDS interfaces for efficient display output. With gigabit Ethernet, SATA3.0, and MSATA support, it ensures high-speed connectivity and storage. Its extensive I/O interfaces, audio support, and expandability make it suitable for various applications. Additionally, it offers temperature tolerance and supports fanless cooling for reliable performance.




Product number ITX-B345_J112L VER:1.0(J3455)
processor Integrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
chipset Compatible with Intel® Apollo Lake Celeron/Pentium low power processor
Show 1*DDR3L SODIMM, support dual channel 1600/1866MHz 1.35V memory, maximum support 8GB
Integrated Intel®HD Graphics 500 core graphics card
1*VGA, 1*HDMI, 1*LVDS interface (support dual channel 24Bit) or 1*EDP interface
The internet Support VGA, HDMI, LVDS synchronous/asynchronous display
Store 1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function
1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* MSATA slot, support SSD transfer speed up to 6Gbps,
Audio 1* M.2 slot, support M.2 2280 NVME PCIE standard SSD
Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
Expand The power amplifier is recommended to use 2Ω5W speakers

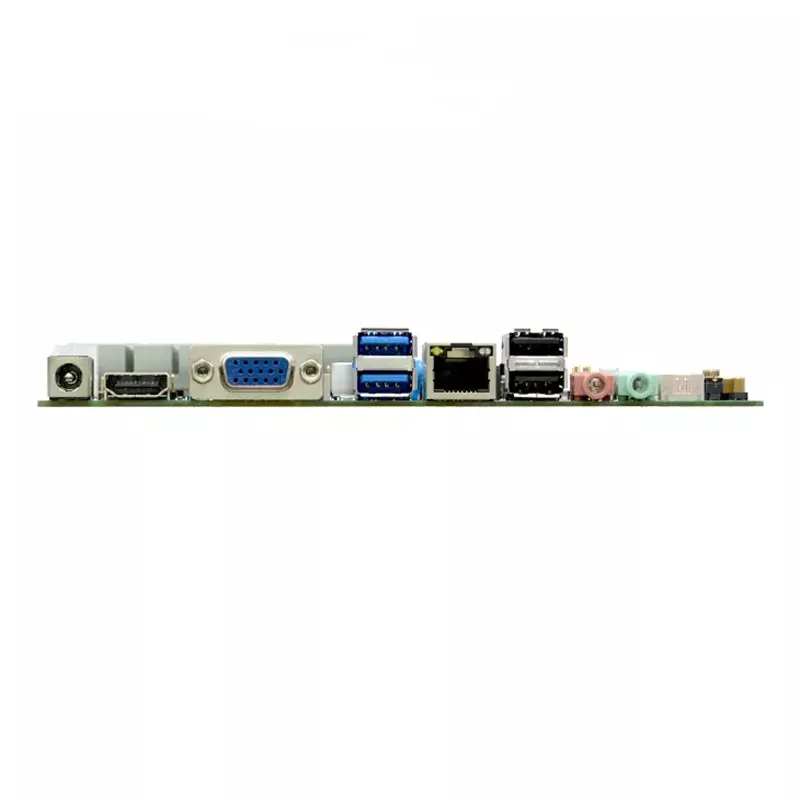

Backplane I/O interface 1* Mini-PCIE slot supports WIFI/3G module
2* USB3.0 interface
1* HDMI1.4 interface
1* VGA DB15 interface
2* RJ-45 Gigabit network interface
1* Line out (green)
1* Mic (red)
Built-in I/O interface 1* 12V DC power input interface
1* LVDS interface 2*15pin, support dual channel 24Bit LCD display
1* screen backlight power supply interface (1*6pin)
1* Screen brightness adjustment interface 1*4pin
1* EDP interface 2*15pin, (optional) and LVDS alternative
1* HDMI interface 2*8Pin, the same signal as the HDMI interface on the back panel
1* JVGA interface 1*12pin, the same signal as DB15
2* RS232 serial port, COM2 can support RS485, COM1/COM2 supports the 9th pin charged function
1* LPT interface 2*13pin
8* USB2.0 interface, 2*5pin
1* Front panel audio interface 2*5pin
1* SIM card holder
1* Hard disk power supply interface, 1*4pin
1* Front panel function button and indicator port 2*5pin
2* 2pin ATX power connector, can be used as +12V input and output
Fan interface 1* power amplifier interface 1*4pin
GPIO Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface
BIOS Support 4 input and output GPIO
Watchdog 64Mb Flash ROM
Power type Support hardware reset function (256 levels, 0~255 seconds)
Operating temperature DC 12V single power input
Storage temperature -10~60
Working humidity -20~70
Size 5%-95% relative humidity, non-condensing

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Frequency Memory VGA LVDS HDMI LAN EDP USB RS485 COM Power
ITX-B345_J112L VER:1.0(J3455) J3455 1.5G 1*SODDR3L




1*8111H / 10 COM2 2 DC 12V
