J1900 Quad Core Industrial PC 6COM WIFI/3G/4G

  • Premium Aluminum Build: High-quality, Durable Casing
  • Compact Design: 214x200x54mm, 2.5Kgs for Versatility
  • Robust CPU: Intel Celeron J1900 Quad Core 2.0GHz
  • Dual Display Support: VGA & HDMI Ports for Visuals
  • Efficient Networking: 2 x RTL8111F 10/100/1000M LAN
  • DDR3L Slot, Support up to 8G, MSATA & SSD/HDD
  • Mini-PCIE Slots, Embedded SIM Support
  • Ensures Silent and Efficient Performance

Share to:



Crafted with high-quality pure aluminum, this compact Mini ITX case measures 214 x 200 x 54mm, weighing 2.5Kgs. Powered by an Intel Celeron J1900 Quad Core 2.0Ghz CPU, it supports VGA, HDMI display ports on a mini ITX 17*17CM motherboard.

Equipped with 2 x RTL8111F 10/100/1000M LAN cards and 1 x DDR3L slot (up to 8G), it offers storage options for MSATA and 2.5” SSD/HDD. Expansion slots include Mini-PCIE for optional wifi/3G/4G and embedded SIM Slot.

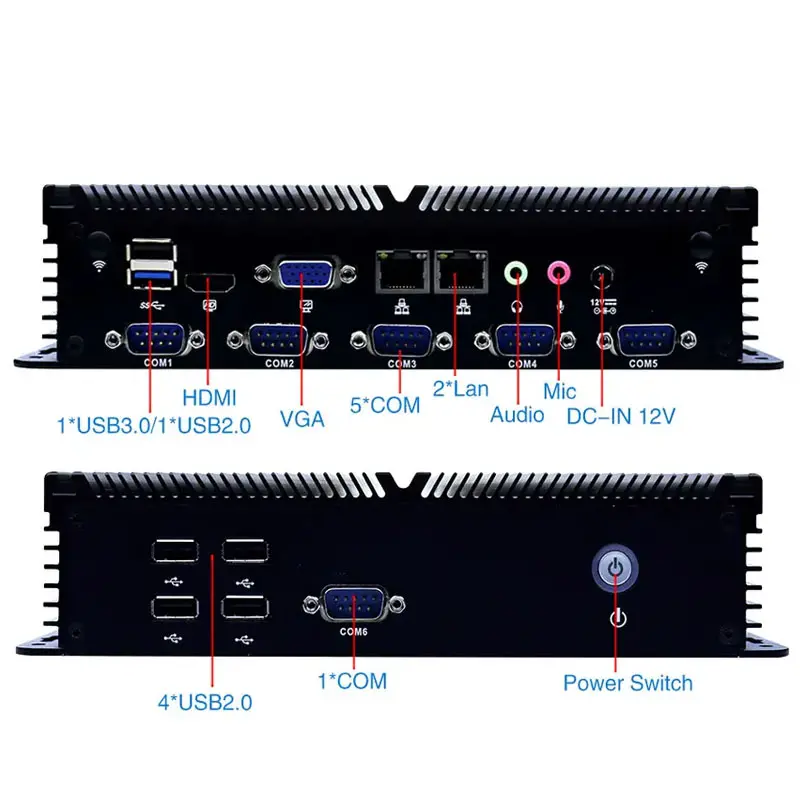

The front panel hosts 4 x USB2.0, 1 x COM, and a Power Switch, while the rear panel includes USB3.0, DC 12V, RJ45, VGA, HDMI, and 6 x COM ports. Operating fanlessly, supporting Windows 7/8/10, and Linux, it’s suited for Automat, ATM, Pos, CNC, Digital signage, and other diverse applications.




Material High-quality pure aluminum mini itx case
Colour Black (color can be customized)
Size 214 x 200 x 54mm
Weight 2.5Kgs
Insallation Method With mounting ears, Wall-mounted, embedded, desktop
CPU Adopt Intel Celeron J1900 Quad Core 2.0Ghz
Display Ports 1 x VGA, 1 x HDMI
Mainboard 17*17CM mini itx motherboard
Network Card 2 x RTL8111F 10/100/1000M Lan
Memory 1 x DDR3L 1333/1600MHz, support Max 8G
Storage Support 1 x MSATA, 1 x 2.5”SSD/HDD
Expansion 1 x Mini-PCIE (support wifi/3G/4G optional), embedded SIM Slot
1 x Mini-PCIE(support MSATA)
Optional Port: GPIO, LPT port (Standard version without this port)

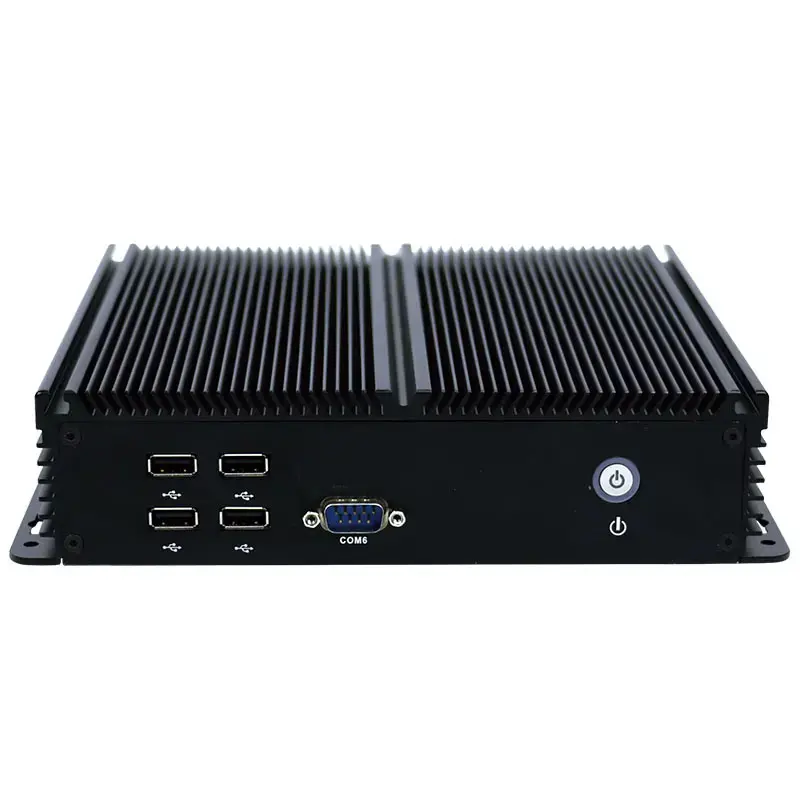

Front Panel 4 x USB2.0
1 x COM
1 x Power Switch

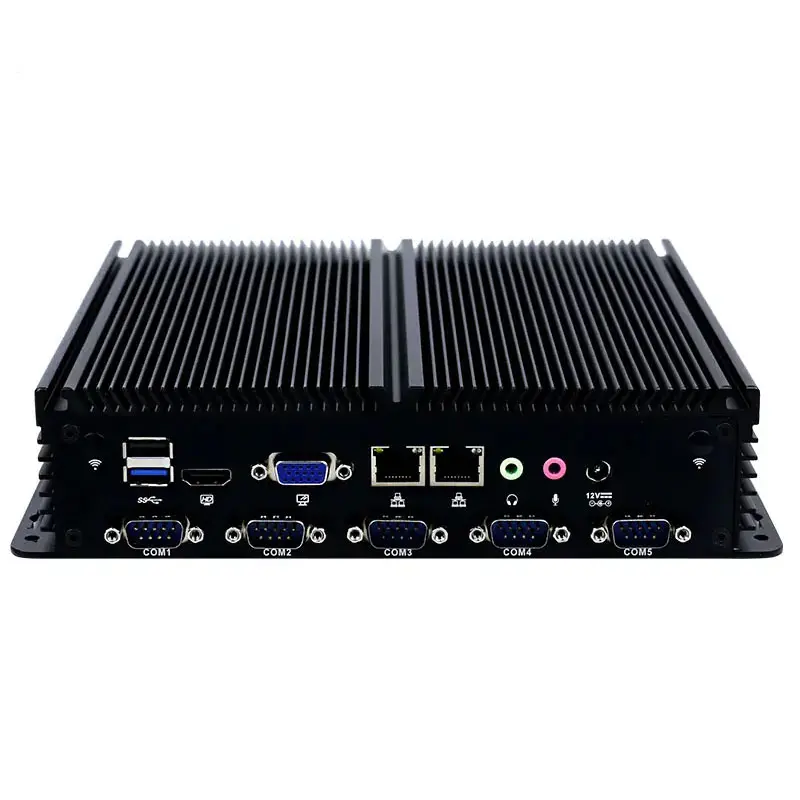

Rear Panel 1 x USB2.0
1 x USB3.0
1 x DC 12V
2 x RJ45
1 x VGA
1 x HDMI
6 x COM(COM3 support RS232/422/485 optional)
1 x Mic
1 x Line out
Bios AMI 64Mbit SMT Flash ROM
System Support Windows 7/8/10, Linux
Cooling Mode Fanless
Power Supply DC-IN 12V

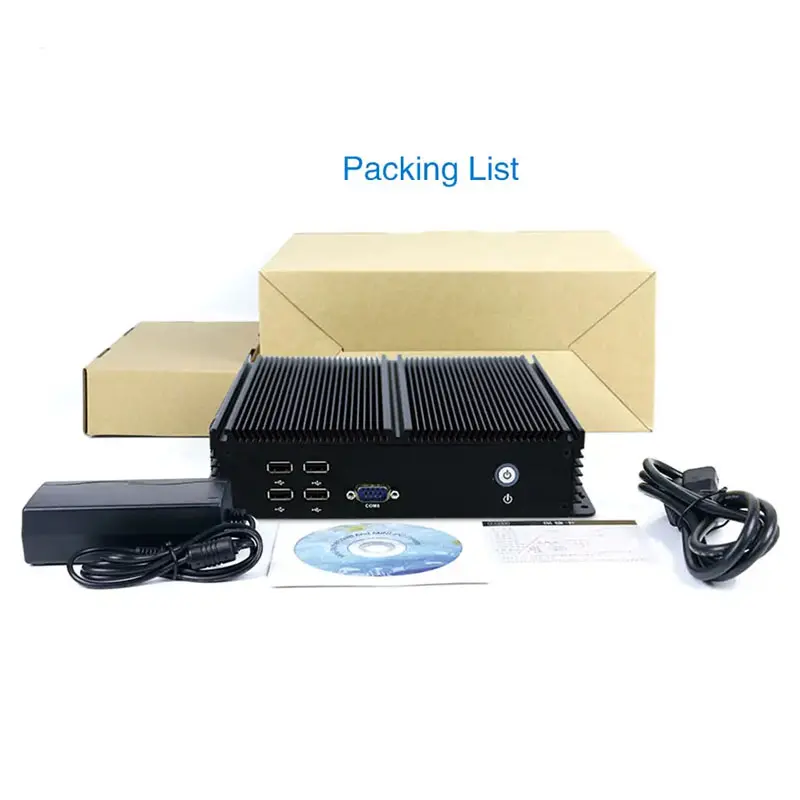

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable
Work Temperature -10 ~ 60 °C
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Automat, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking,   Gaming, Transportation etc.

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I13 J1900 Intel® HD Graphics 2.0~2.42GHz 1 x HDMI/1 x VGA 1 x DDR3L, Max 8G 1 x mSATA/1 x 2.5 Inch HDD or SSD 6 2 6 DC 12V
