Intel Xeon/i5/i7/i9 Gaming Mini PC P1000 4G T1000 8G

  • Rack, Wall, or Desktop Installation for Versatile Setup
  • Supports Various Intel Celeron/Core i3/i5/i7 Processors
  • 8 Intel 82583V Gigabit LAN Ports & 2 I350 Gigabit Optical Ports
  • Accommodates up to 8GB DDR3L 1600 MHz SODIMM
  • MSATA SSD & a 2.5-inch HDD/SSD for Expanded Storage
  • Features VGA, HDMI, USB, Mini-PCIe Slots for Expansion
  • Includes 2 Intel I350 SFP & 8 LAN Ports for Versatile Connections
  • Taiwan MEAN WELL LRS-50-12 Ensures Stability

Share to:



Crafted from full aluminum alloy, the B19 Mini PC boasts powerful Intel® processors including Xeon™ and Core™ i-series. Equipped with up to 64GB DDR4/16GB DDR3L RAM, storage options range from MSATA SSDs to M.2 SSDs and 2.5″ SATA HDD/SSD. NVIDIA Quadro P1000/T1000 graphics deliver enhanced visuals, while 4 Mini DP1.4 ports support 4K@60Hz HDR displays. With versatile connectivity options including Gigabit Ethernet, WiFi&BT, USB 3.0, and comprehensive system support, it ensures seamless performance. The system, complemented by a cooper turbo cooler, stands firm with a sleek desktop design and a vertical stand for flexible installation.




Material Full Aluminum Alloy
Colour Black
Size 265 x 185 x 45mm
Weight 4Kgs
Insallation Method Desktop type

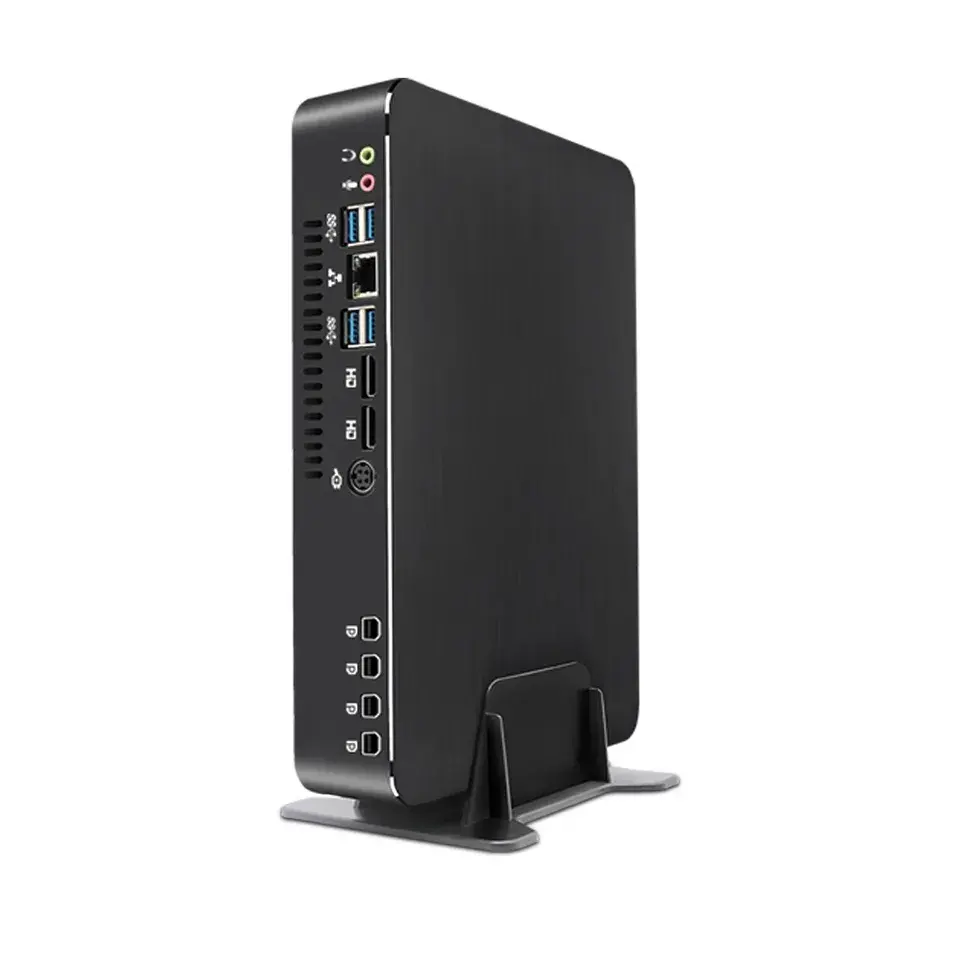

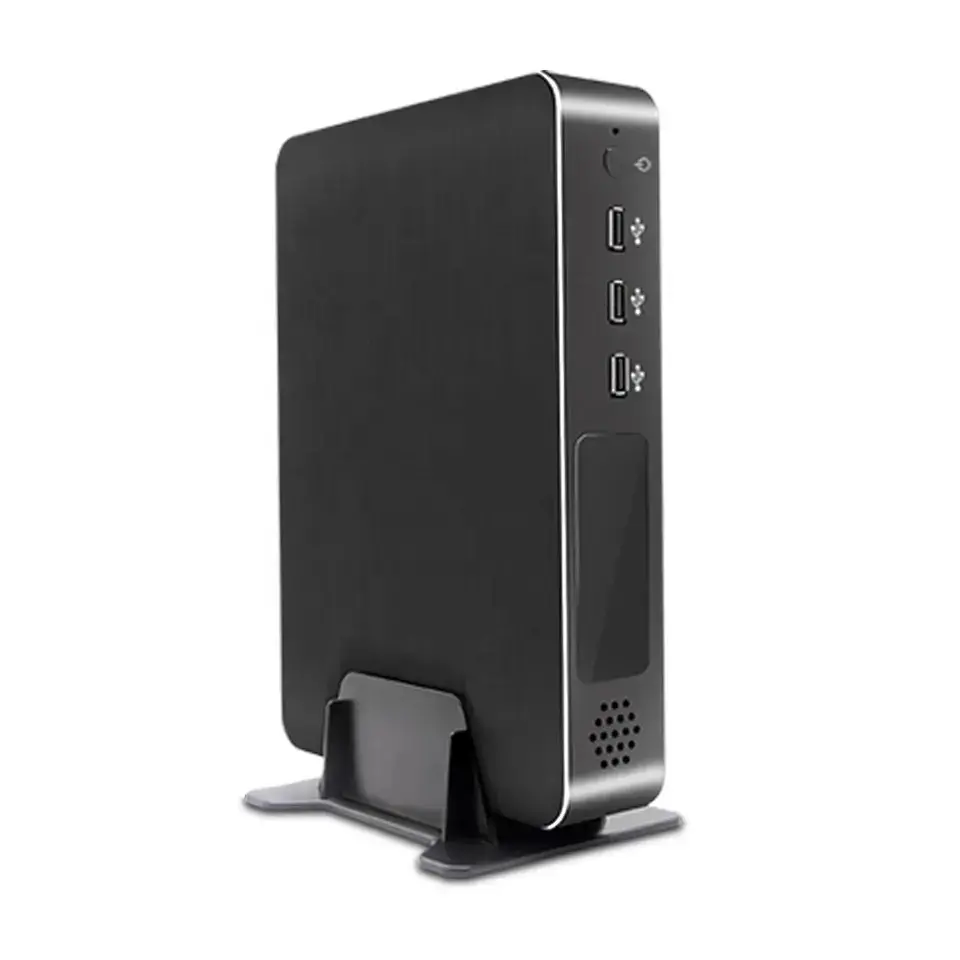

With holding vertical stand
CPU Intel® Xeon™ E3-1231 v3, 4 Core 8 threads, 3.4GHz up to 3.8GHz, 9MB Cache
Intel® Core™ i5-9400F, 6 Core 6 threads,  2.9GHz up to 4.1GHz, 9MB Cache
Intel® Core™ i7-9700F, 8 Core 8 threads,  3.0GHz up to 4.7GHz, 12MB Cache
Intel® Core™ i9-9900T, 8 Core 16 threads, 2.1GHz up to 4.4GHz, 16MB Cache
Display Ports 4*Mini DP1.4 displays, support 4*4K@60Hz HDR
Color Black
Network Card RTL8XXX series Gigabit Ethernet
WiFi and Bluetooth 2.4G/5G AC(AX) WiFi&BT
Memory 2*DDR4 RAM up to 64GB (9th Gen core i3 i5 i7)
2*DDR3L RAM up to 16GB(E3-1231V3)
Storage 1x MSATA SSD +2.5″ SATA HDD/SSD (E3-1231V3)
1xM.2 SSD+2.5″ SATA HDD/SSD(9th gen core i3 i5 i7)
Dedicated Graphics NVIDIA Quadro T1000 8G/P1000 4G

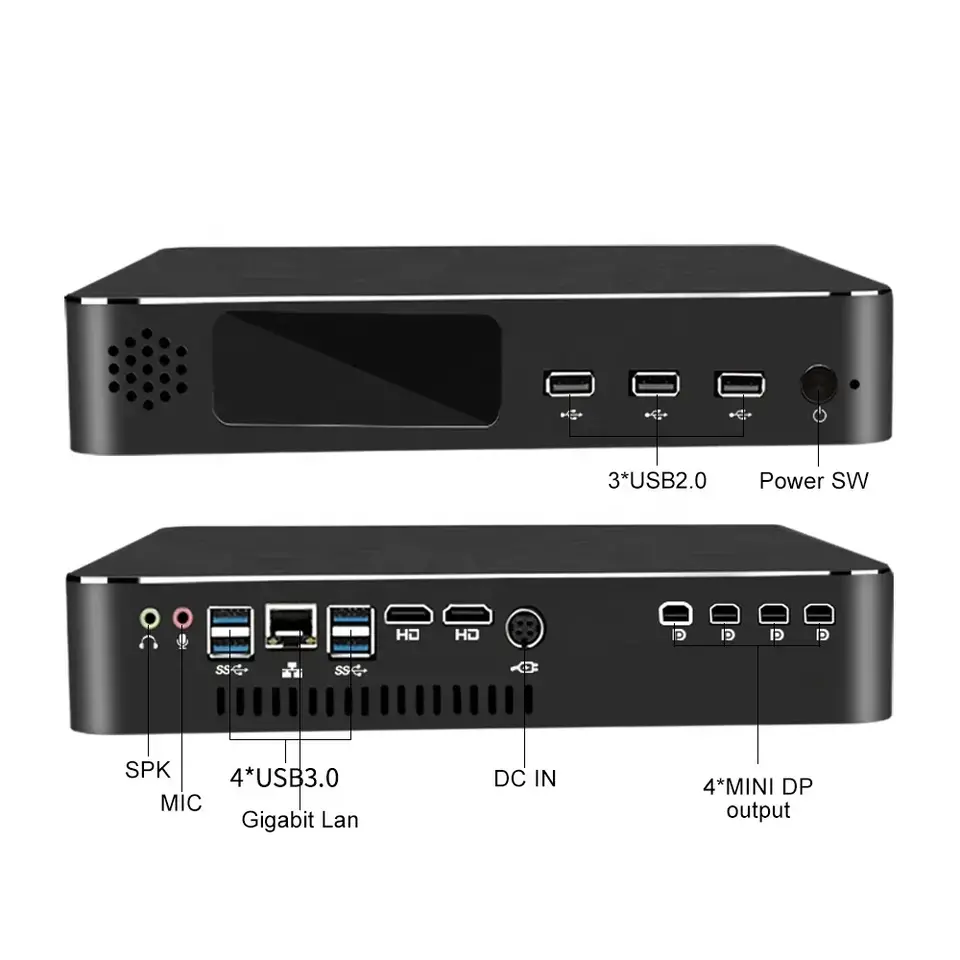

Front Panel 3 x USB2.0
1 x Power SW
Rear Panel 1 x SPK
1 x MIC
4 x USB3.0
1 x LAN
1 x DC IN
4 x Mini DP
Bios AMI bios
System Support Windows 10/11/sever2012/2016/linux/centos/ubuntu
Cooling Mode Full cooper turbo cooler
Power Supply 19V/9.5A
Packing List B19 mini pc, power supply, power cord, vertical stand, warranty card
Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B19 E3-1231V3 P1000 4G 3.4~3.80 GHz 4 x mini DP 2 x DDR3L, Max 16G 1 x mSATA SSD/1 x 2.5 inch SATA 1 7 19V/9.5A
B19 I5 9400F P1000 4G 2.9~4.1 GHz 4 x mini DP 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 SSD/1 x 2.5 inch SATA 1 7 19V/9.5A
B19 I7 9700F P1000 4G

T1000 8G

3.0~4.7 GHz 4 x mini DP 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 NVME SSD/1 x 2.5 inch SATA 1 7 19V/9.5A
B19 I9 9900T P1000 4G

T1000 8G

2.1~4.4 GHz 4 x mini DP 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 NVME SSD/1 x 2.5 inch SATA 1 7 19V/9.5A
