Overview
Space-Saving Fanless Embedded Box PC for Demanding Industrial Environments

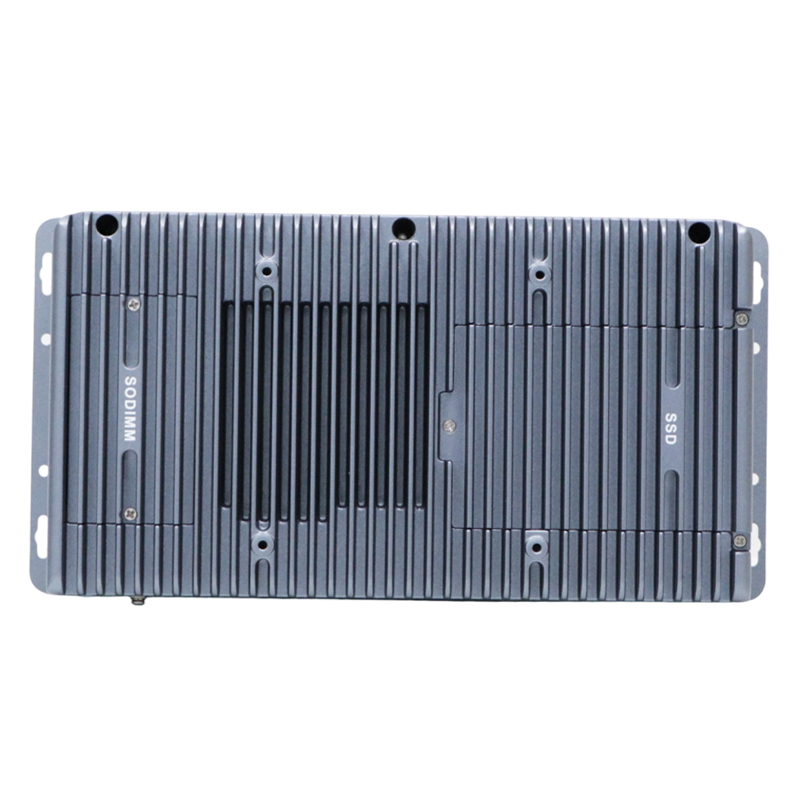

Engineered for space-constrained industrial environments, this ultra-slim (4cm) fanless embedded box PC features a rugged all-aluminum chassis for silent, maintenance-free operation. Powered by Intel Alder Lake processors (i5/i7 options), it delivers high-performance computing tailored for Edge AI, machine vision, and factory automation. Built for harsh conditions, it supports a wide 9–36V DC input with reverse polarity protection and operates seamlessly across an extended temperature range of -20°C to 60°C. The system ensures stable communication in noisy settings with 6 COM ports (including isolated RS485) and offers hardware-level security via TPM 2.0. Compatible with Windows 10/11 IoT and Linux, this versatile and durable IPC is the ultimate future-ready solution for mission-critical industrial computing.
Specifications
| Model | Partaker PA-3046 |
| Processor | Onboard Intel Core i5-1235U ( 10 cores , 12 threads, base clock speed 1.3 GHz , turbo boost 4.4 GHz ) |
| Onboard Intel Core i7-1255U ( 10 cores , 12 threads, base clock speed 1.7 GHz , turbo boost 4.7 GHz ) | |
| Color | Titanium Gray |
| Memory | Onboard 1*DDR 5 4800MHz SODIMM memory slot, up to 32GB. |
| Display chip | Integrated Intel UHD Graphics |
| Display Port | 1* HDMI |
| Storage | 2*M.2 2280 slots (1*NVME X1/ SATA protocol, 1* NVME X 4 protocol only) and 1* 2.5-inch SSD/HDD, Support RAID 0/1 |
| Expansion | 2*M.2 2280 slots(1*NVME X1/ SATA protocol, 1*NVME X 4 protocol only). |
| 1*MINI PCIe slot (optional WIFI/3G/4G), onboard a SIM card slot. | |
| 1* M.2 E-Key slot(M.2 CNVIo2: WIFI6) | |
| Expandable interface (not included in standard shipment) : GPIO (8 inputs, 8 outputs) | |

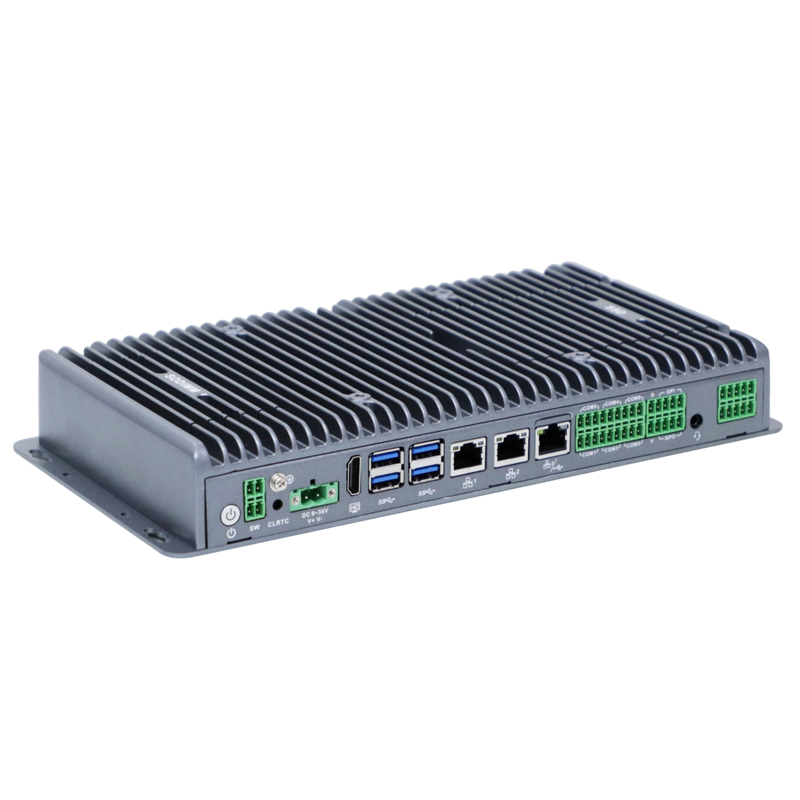

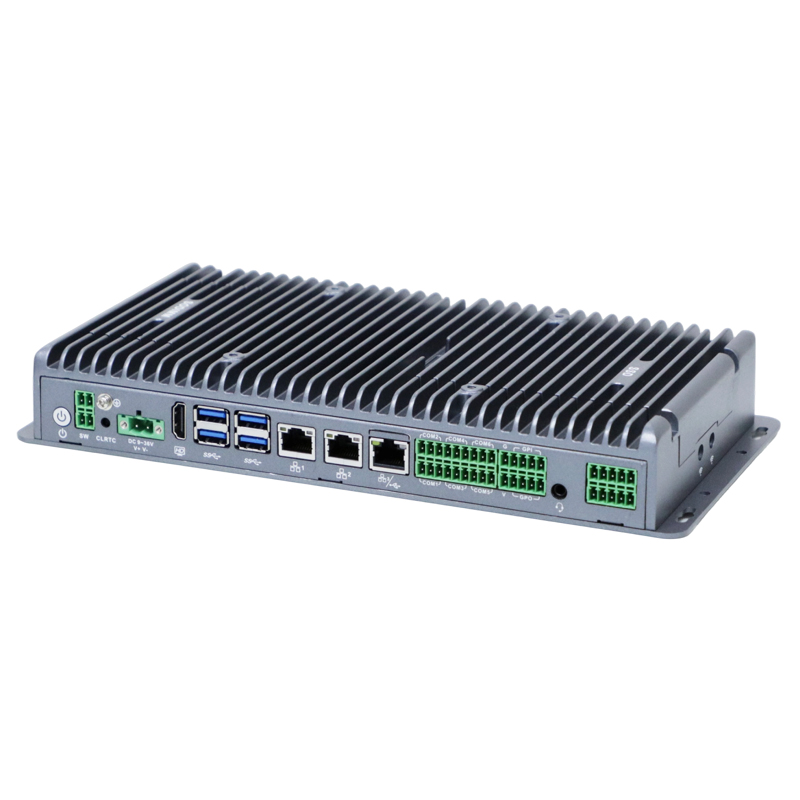

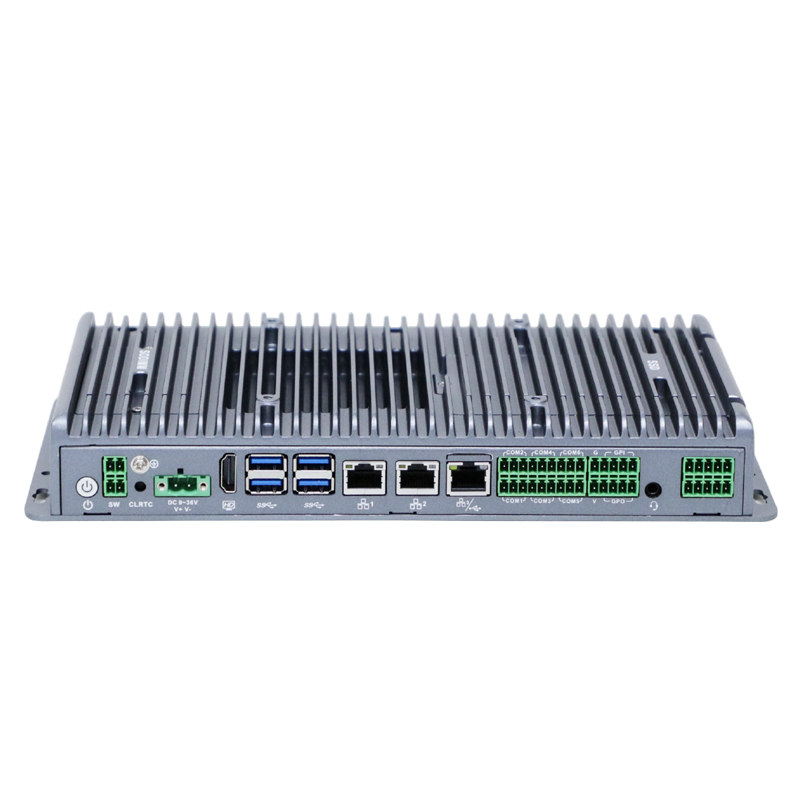

| Front I/O | 2* Intel Gigabit Ethernet port, 1* Intel 2.5G Ethernet port, 4* USB 3.2, and 1*HDMI |
| 6*COM ports | |
| COM1~2: RS485 mode with isolation; | |
| COM3~4: RS232/485 mode is optional; | |
| COM5~6: RS232; | |
| 1* power button, custom interface, 1*CMOS clear button , | |
| 1* audio/video combo port, and GPIO (4 inputs and 4 outputs). | |
| One 2*2pin Phoenix switch terminal , 1*DC power supply Phoenix terminal. | |
| BIOS | AMI EFI BIOS |
| Network | 2* Intel i210-AT 10/100/1000M Ethernet ports, 1* Intel i226-LM Ethernet port |
| Input Voltage | DC 9 ~ 36V wide voltage input, supports reverse polarity protection |
| Certificates | CE, FCC Class A,ROHS |
| Other Function | TPM2.0 security encryption, power-on, timed power-on, wake-up from network, PXE boot, watchdog (0) ~Level 255) |
| Application | Edge AI Computing, Machine Vision,Factory Automation |
| Color | Metal gray 【Any color can be customized】 |
| Material | Aluminum alloy casing |
| Dimension | 280 * 143 * 40 mm |
| Weight | 1.45kg |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
