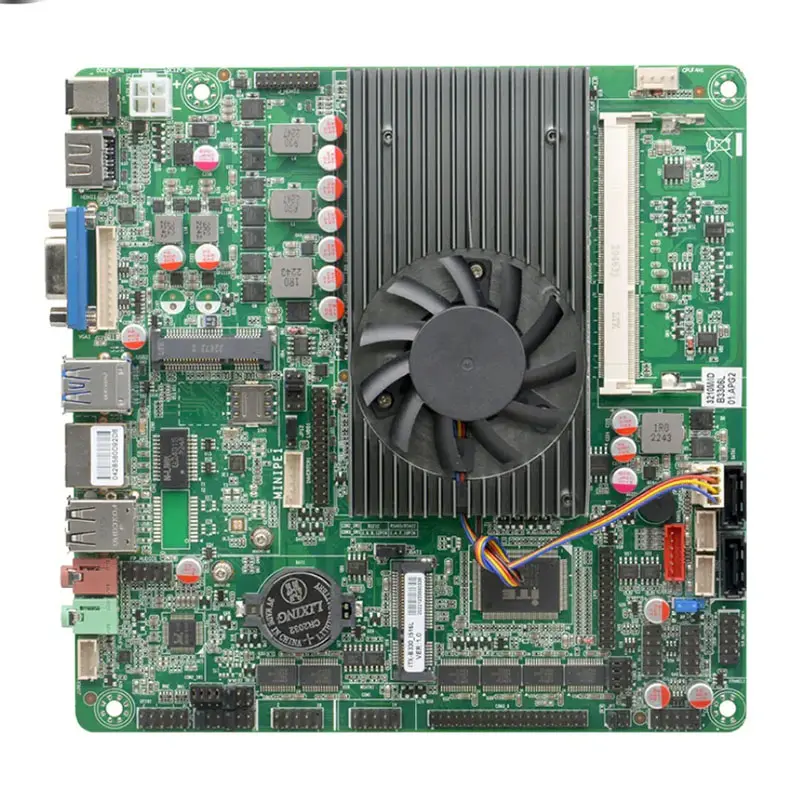

Overview
The ITX-B330_I516L VER:1.0 motherboard boasts an Intel® Core i5-3317U/3210M processor, Intel® HM76 chipset, and DDR3 memory support up to 8GB. Equipped with Intel® HD Graphics 4000, it offers extensive connectivity options including SATA, MSATA, LAN, USB, and audio interfaces. This compact motherboard, compatible with various low-power processors, supports Windows and Linux OS, operates on DC 12V power, and is ideal for digital signage, POS, gaming, and medical applications.
Specifications
| Product model | ITX-B330_I516L VER:1.0(3317U/3210M) |
| processor | Integrated Intel®Core I5-3317U/3210M 1.7/2.5GHz dual-core quad-thread processor,TDP 18W |
| Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processors | |
| chipset | Intel® HM76 high-speed chipset |
| Internal memory | 1*SODDR3 memory slot, supporting single-channel DDR3 1600/1333 memory, supporting a maximum of 8GB |
| display | Integrated Intel® HD Graphics4000 core graphics card, support single display, dual display mode, extended mode |
| 1*VGA, 2*HD OUTPUT, 1* LVDS interface, support dual channel 24bit, and EDP shared pin | |
| network | 1* RTL8111H Gigabit NIC, supports network wake up and PXE functions. |
| deposit | 2* SATA2.0 hard disk interface, transmission rate up to 3Gbps |
| 1*MSATA slot, support SSD SSD,SSD transmission speed up to 6Gbps | |
| Tone frequency | Onboard ALC262 6-channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 4Ω3W speaker | |
| expansion | 1* Mini-PCIE slot, supporting WIFI, 3G/4G modules |

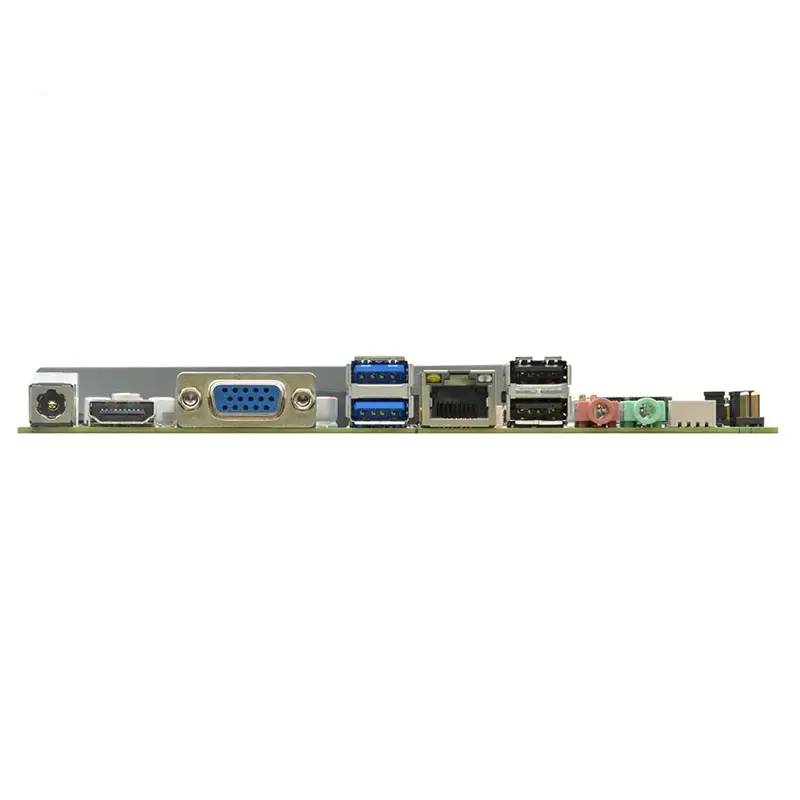

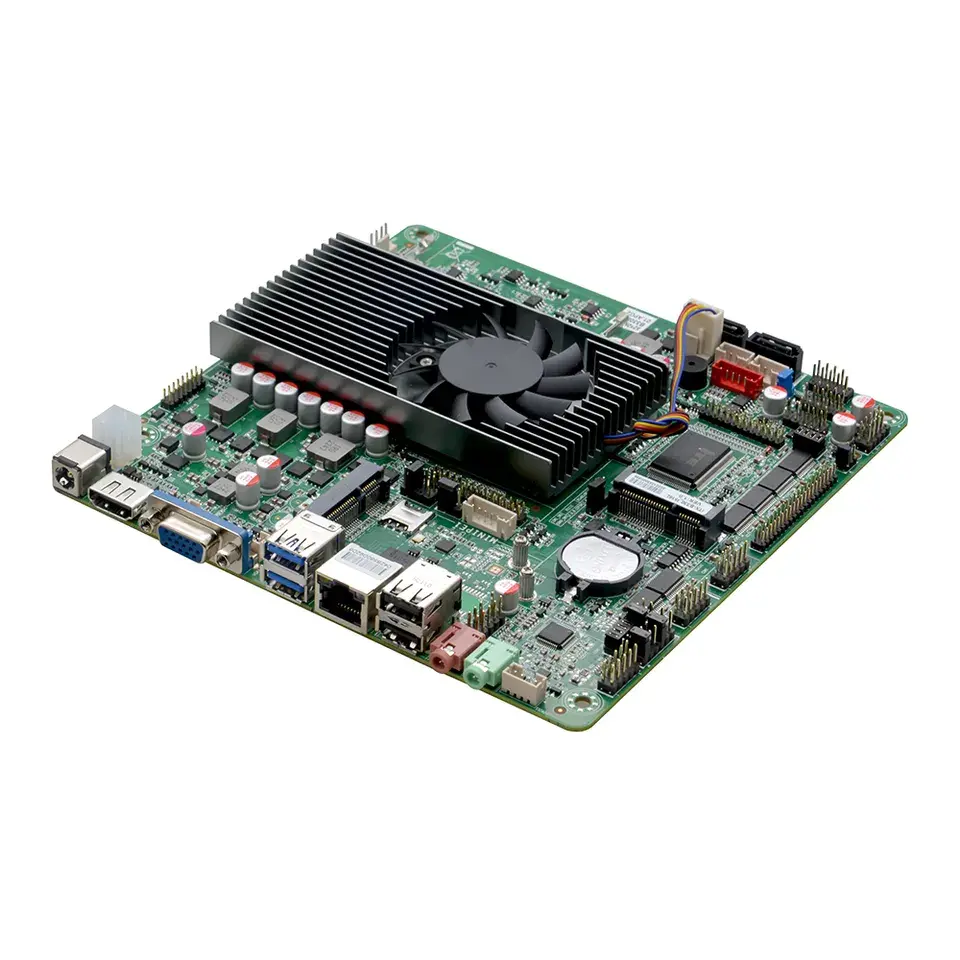

| I/O ports on the backplane | 2 x USB3.0,2 x USB2.0 |
| 1* HD OUTPUT port | |
| 1 x VGA port | |
| 2* RJ-45 Gigabit network interface | |
| 1* Line out (green) | |
| 1* Mic (red) | |
| 1 x 12V DC_JACK input | |

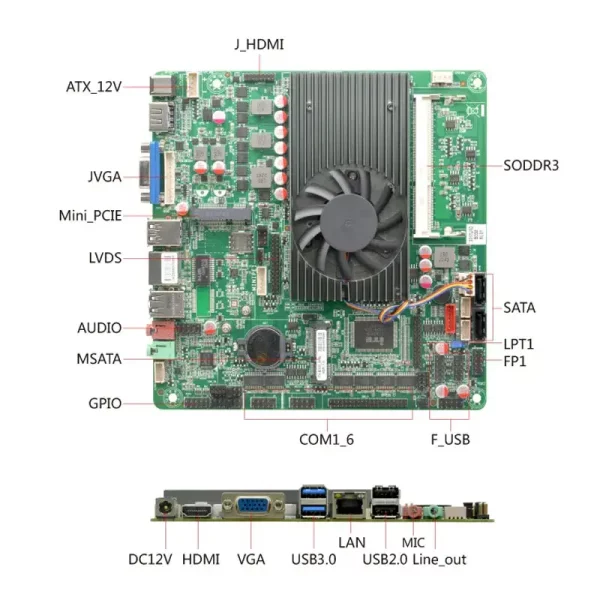

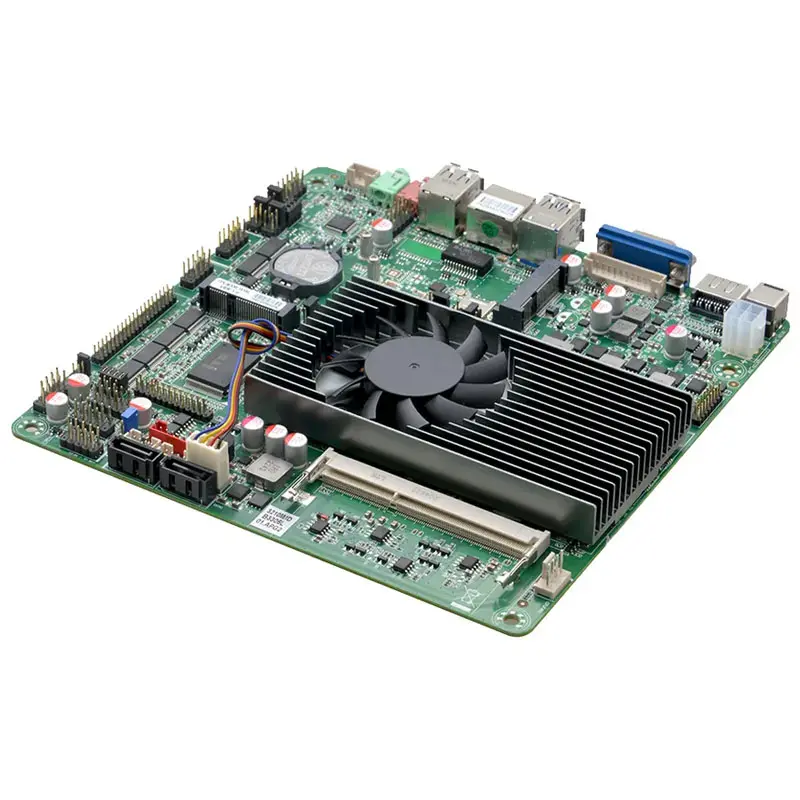

| Built-in I/O interface | 1* LVDS interface (2*15pin), support dual channel 24bit (dual 8) |
| 1* LVDS backlight Interface (1*6pin) | |
| 1* J_HD OUTPUT interface (2*8Pin) | |
| 1* JVGA1 interface (1*12pin), same signal as DB15 | |
| 6* RS232 serial port (COM2/3 supports RS422/485, COM1/COM2 9pin supports live function) | |
| 1* LPT print port (2*13pin) | |
| 6* USB 2.0 interface (2*5pin), | |
| 1* PS/2 Mouse and keyboard interface (1*6Pin) | |
| 1* Front panel function buttons and indicator ports (2*5pin) | |
| 1* Front panel audio interface (2*5pin) | |
| 1* Power amplifier interface (1*4pin) | |
| 1* SIM card seat | |
| 2* hard disk power supply interface (1*4pin) | |
| 1* 4pin DC power interface, support 12V power input and output | |
| Fan interface | 1*4pin CPU intelligent fan interface,1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 32Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Window 7/Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

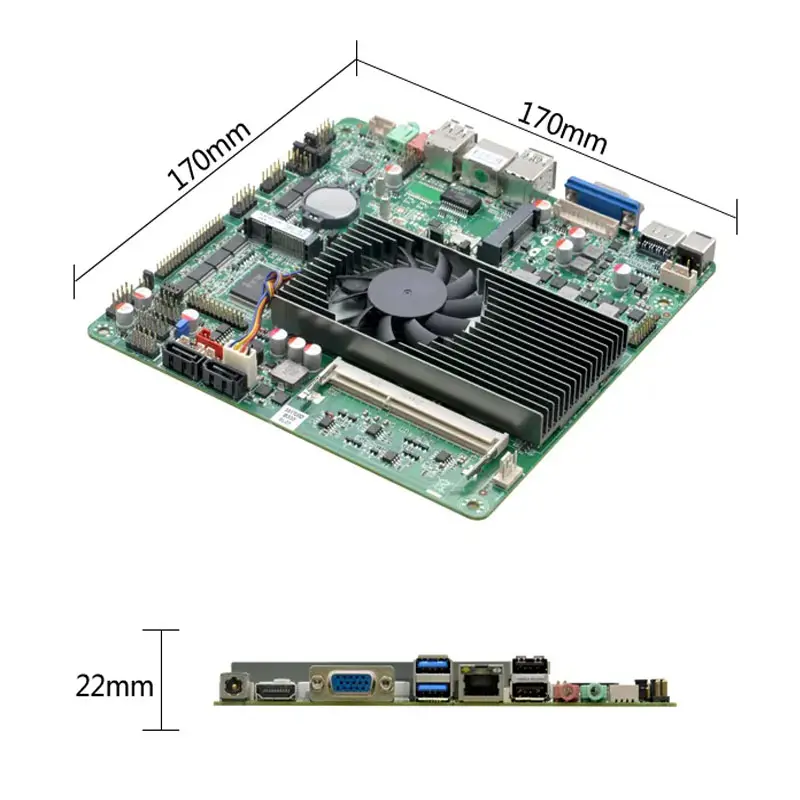

| dimension | 170mm * 170mm * 22mm |
