Overview

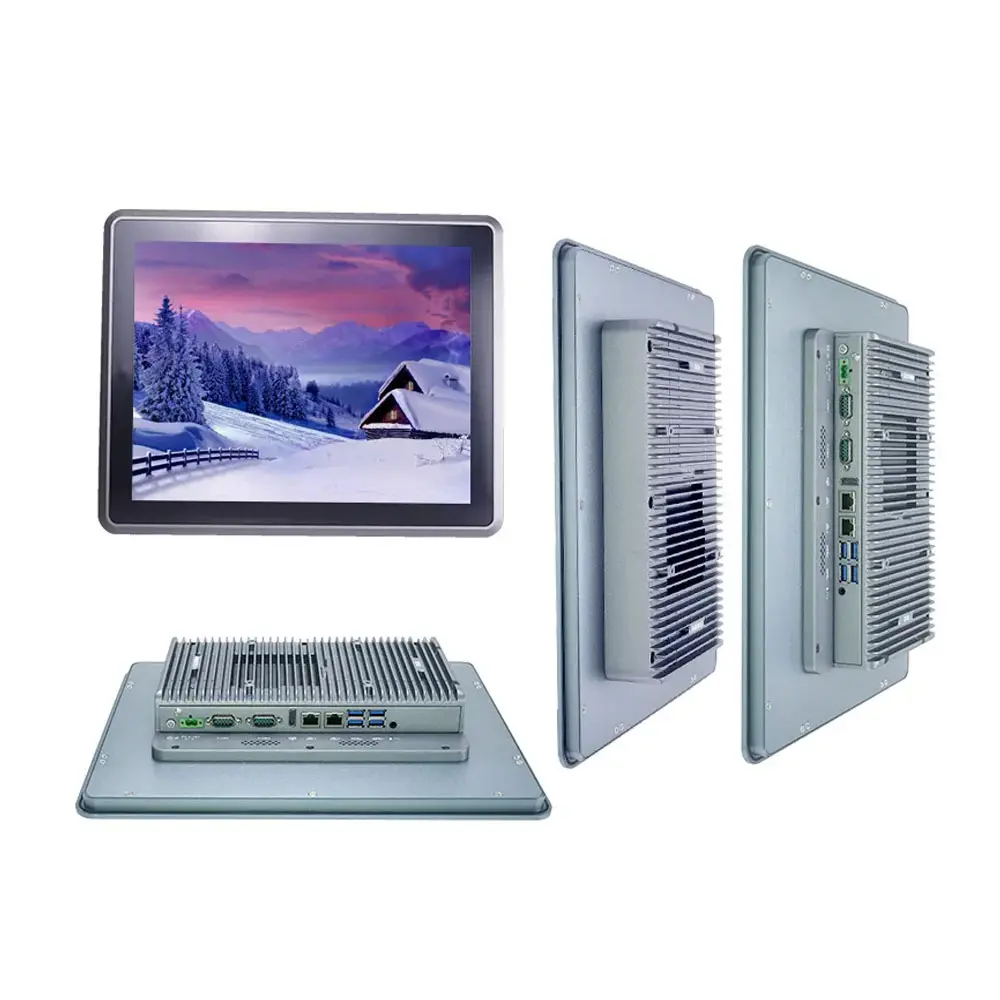

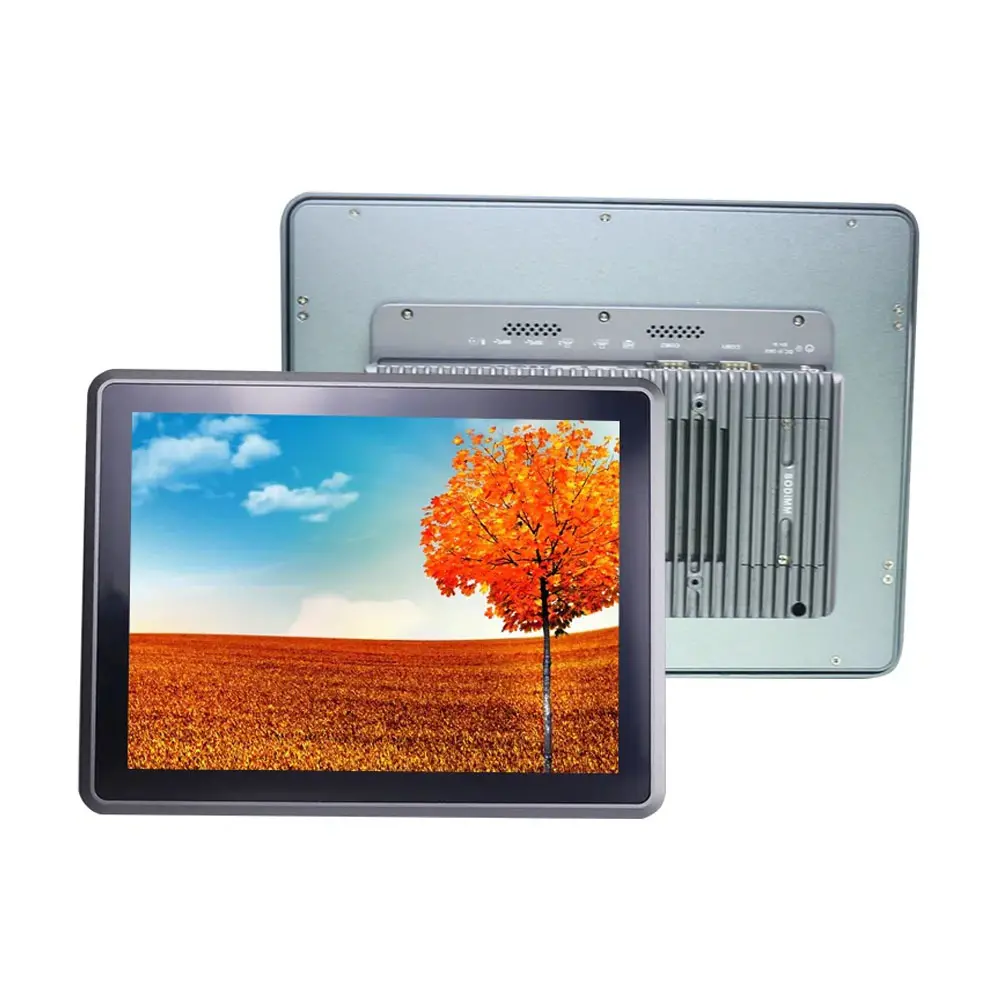

The A18 Touch Screen Panel PC, crafted with aluminum alloy, offers diverse installations. Featuring Intel processors, expandable memory, RAID-supported storage, and TPM2.0 encryption, it excels in industrial applications like automation, medical, logistics, and more. Equipped with a 10.1-inch capacitive touch display and versatile I/O ports, it ensures reliability in various environments. With IP65 front panel protection and fanless design, it’s a robust solution for demanding industrial scenarios.
Specifications
| Material | Aluminum alloy chassis |
| Color | Titanium gray (Color can be customized) |
| Model | A18 Touch Screen Panel PC |
| Size | 271.5 x 190 x 53mm |
| Weight | 3Kgs |
| Insallation Method | Embedded recommended/Wallmounted/Desktop/Cantilevered etc |
| CPU | Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache) |
| Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache) | |
| Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache) | |
| Network Card | 2 x Intel 1000M LAN（4*LAN Optional） |
| Memory | Support 1 x DDR4 2133/2400 SODIMM Memory Slot，Max. Support 32GB |
| Storage | Onboard 1 x M.2 2280 slot(SATA Protocol),1 x 2.5 Inch HDD, Support RAID 0/1 |
| Display Port | 1 x HDMI, 1 x LVDS (Support synchronous or asynchronous dual display) |
| Other Function | TPM2.0 security encryption, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Touch Type | Industrial grade multi-touch capacitive touch screen，Life Time: more than 50000 Thousand Times; |
| Speaker | Two 8-ohm 2-watt speaker |
| Display Type | 10.1 inch TFT-LCD |
| Resolution | 1280 x 800 |
| Brightness | 350 cd/m2 |
| Ratio | 16:09 |
| Viewing Angle | Full Viewing Angle |

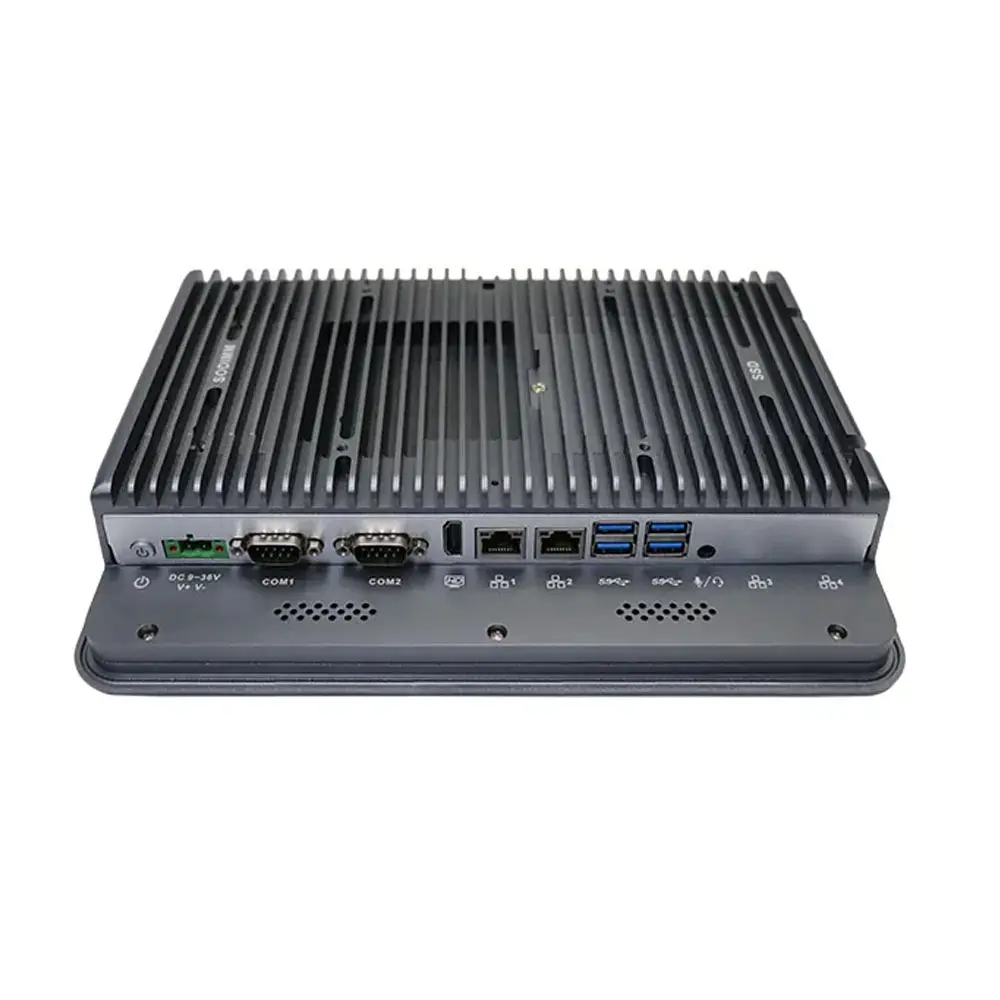

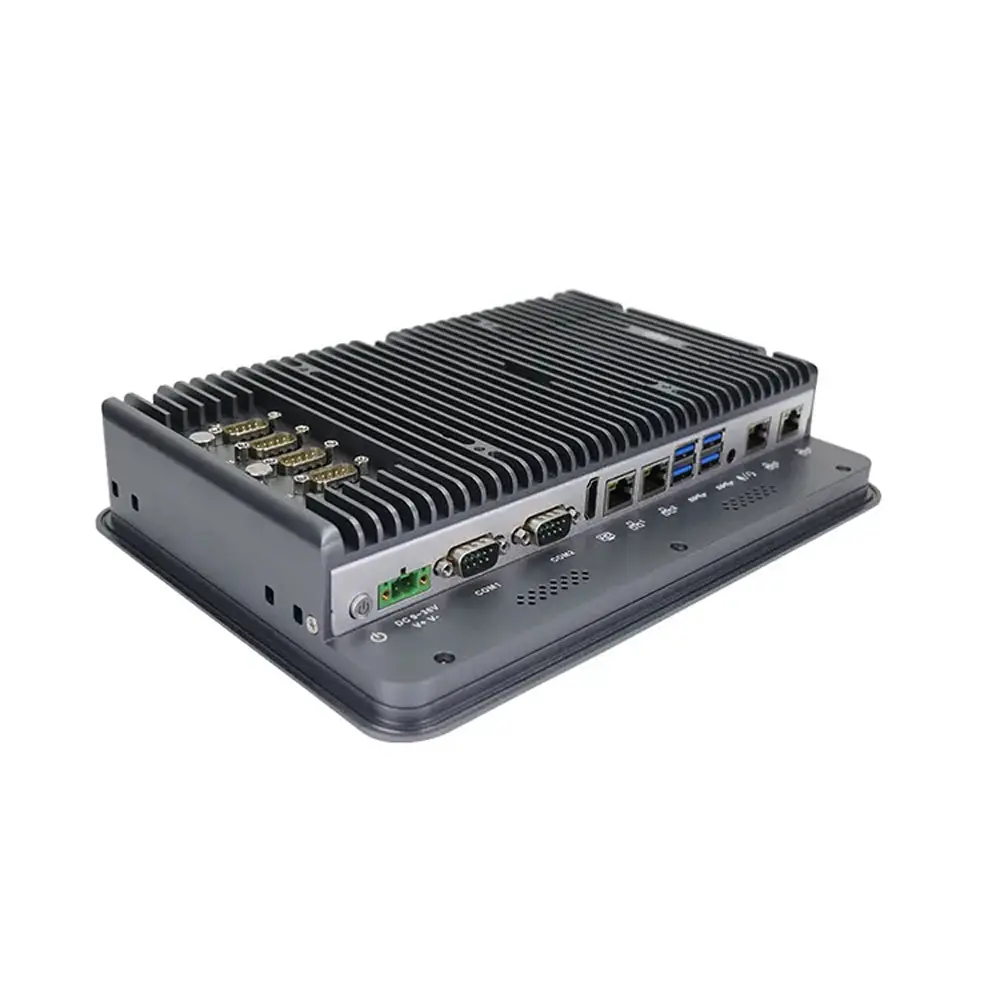

| I/O | 1 x HDMI |

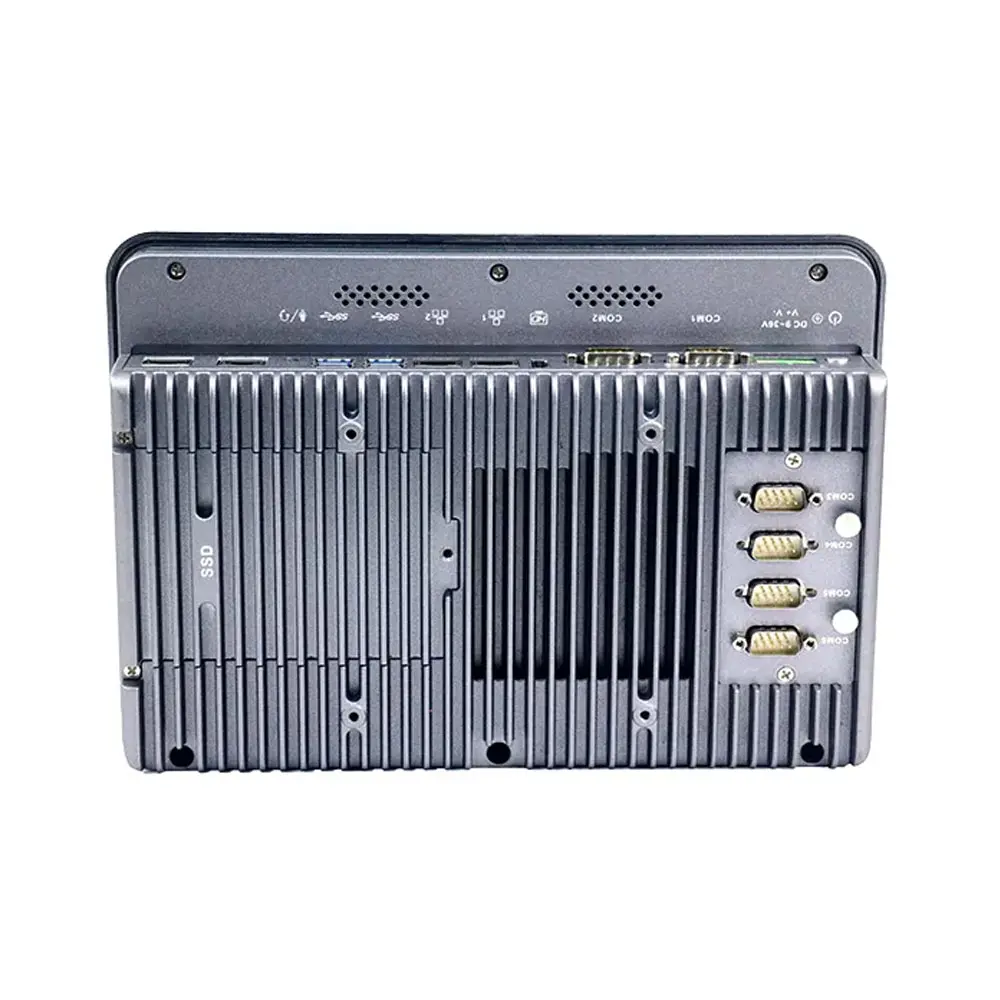

| 2 x COM (COM1, COM2 RS232/RS422/RS485 Optional, 6*COM Optional) | |
| 1 x Power Switch | |
| 1 x 2Pin power supply phoenix connector | |
| 1 x Audio (Support Mic and Speaker at the same time) | |
| 4 x USB3.0 | |
| 2 x Intel 1000M LAN（4*LAN Optional） | |
| Bios | AMI EFI BIOS |
| System Support | Window 10/11/Linux |

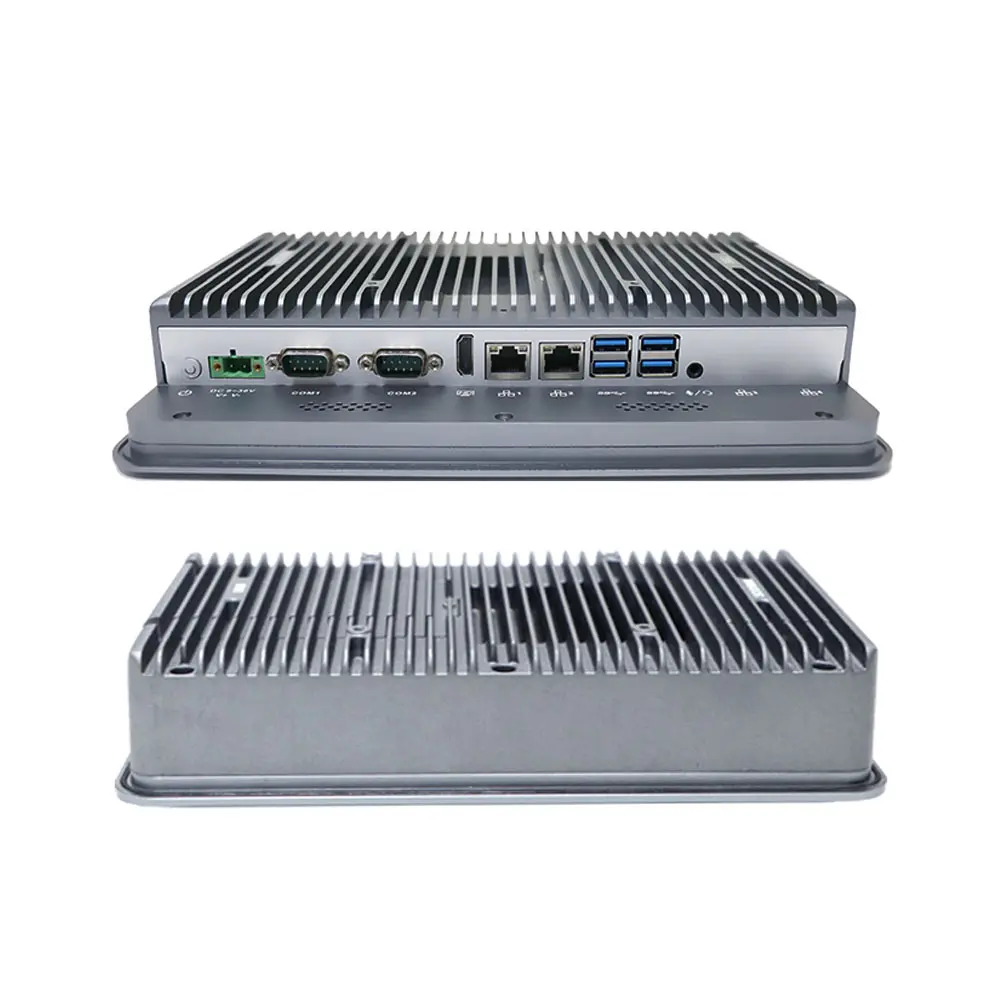

| Cooling Mode | Fanless design |
| Power Supply | DC 9V~36V wide voltage Input, support positive pole and negative electrode connect reversely protection |
| Packing List | A18 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision, etc. |
| Work Temperature | 0℃ ～ +50℃(Commercial), -20℃ ～ +60℃(Industrial SSD), Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
| Certification | CE FCC ROHS |
| Front panel protection | IP65 standard |
