Overview
Industrial Aluminum Mini PC with Intel i3/i5/i7, 32GB DDR4, 3x 1G LAN, -20°C~60°C Operation

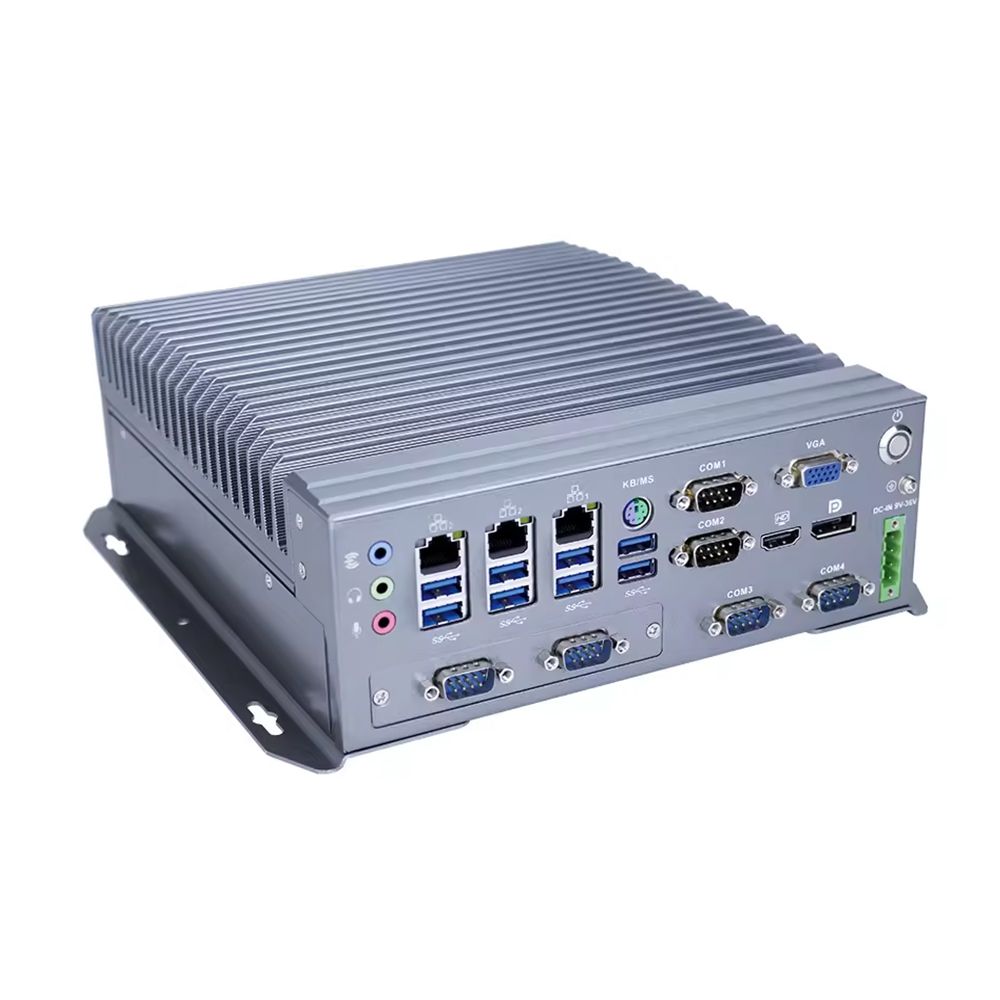

This all-aluminum industrial mini PC (210×240×83.5mm) features Intel Skylake/Kaby Lake i3/i5/i7 processors (up to 3.6GHz) and supports 32GB DDR4 RAM for multitasking. Equipped with 2x 2.5″ SATA HDD + 1x M.2 SATA/MSATA, it offers flexible storage with RAID 0/1 support.
With 3x 1G Intel LAN (VPro compatible), 8x USB 3.0, 6x COM ports (RS232/485), and 1x Mini PCIe slot (4G/Wi-Fi), it ensures robust connectivity for automation. Fanless design with 9–36V wide-voltage input guarantees reliability in harsh environments (-20°C~60°C).
Supports Windows 7/10, Linux, pfSense via AMI BIOS. CE/FCC/RoHS certified, ideal for industrial automation, logistics, medical, and machine vision requiring 24/7 operation.
Specifications
| Material | High-quality all aluminum，surface anodic oxidation |
| Colour | Titanium gray (Color can be customized) |
| Size | 210 * 240 * 83.5 mm【not include wall bracket】 |
| Weight | 4 kgs【not include wall bracket】 |
| CPU | Intel Core i3 6100T (Dual core four threads，3.2GHz) |
| Intel Core i5 6500T (Quad core four threads，2.5GHz，Max turbo 3.1GHz) | |
| Intel Core i7 6700T (Quad core eighr threads，2.8GHz，Max turbo 3.6GHz) | |
| CPU Structure | Skylake-U / KabyLake-U |
| Display Ports | 1 x VGA，1 x HDMI, 1 x DP |
| Network Card | 2 x Intel i211-AT, 1 x Intel i219-LM 1000M LAN（Support Vpro Technology） |
| Memory | Support 2 x DDR4 1866/2133 SODIMM RAM Slot, Max. Support 32G |
| Storage | Support 1 x MSATA slot，2 x 2.5 Inch SATA HDD（Support RAID0/1） |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level) |
| Expansion | Support 1 x MINI PCIE Slot(WIFI/3G/4G Optional), Embedded SIM slot |
| Support 1 x MINI PCIE Slot(MSATA/3G/4G Optional), Embedded SIM slot | |
| Optional Ports:16Bit GPIO, 4 x USB2.0(Standard version doesn’t include these ports) | |

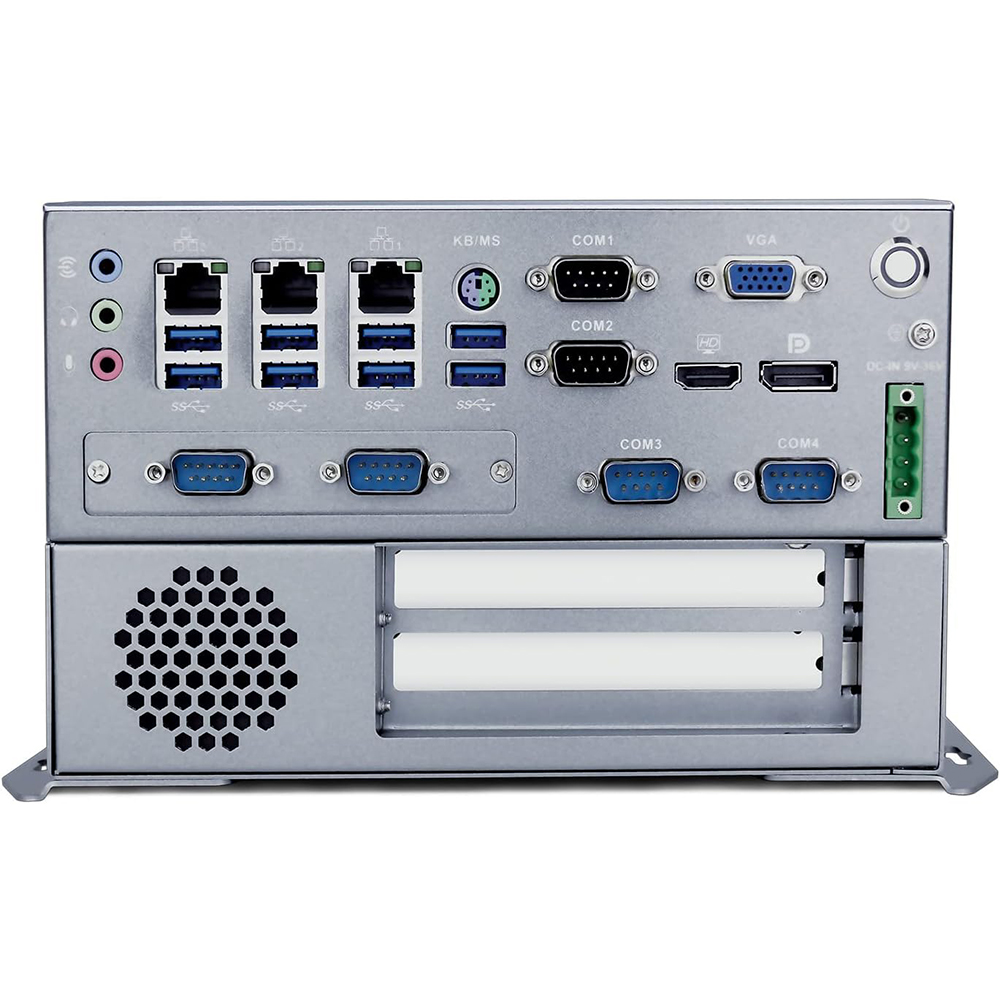

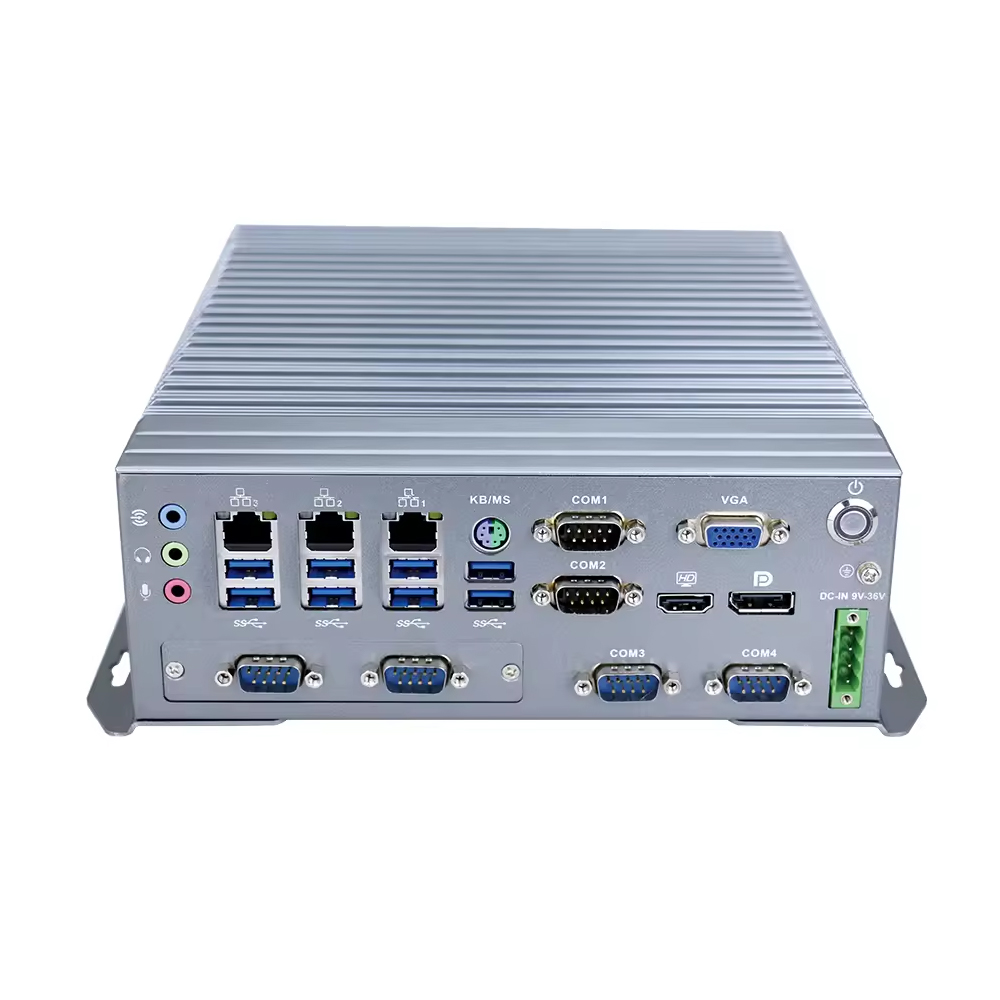

| I/O Ports | 8 x USB3.0 |
| 3 x Intel 1000M LAN | |
| 1 x Power Switch | |
| 1 x MIC | |
| 2 x Speaker | |
| 1 x VGA | |
| 1 x HDMI | |
| 1 x DP | |
| 1 x Keyboard or Mouse port | |
| 6 x COM(COM1, COM2 RS232/422/485 Optional) | |
| 1 x DC power supply phoenix connector | |
| Bios | AMI EFI BIOS |
| System Support | Windows 7/8/10 & Linux & pfSense |

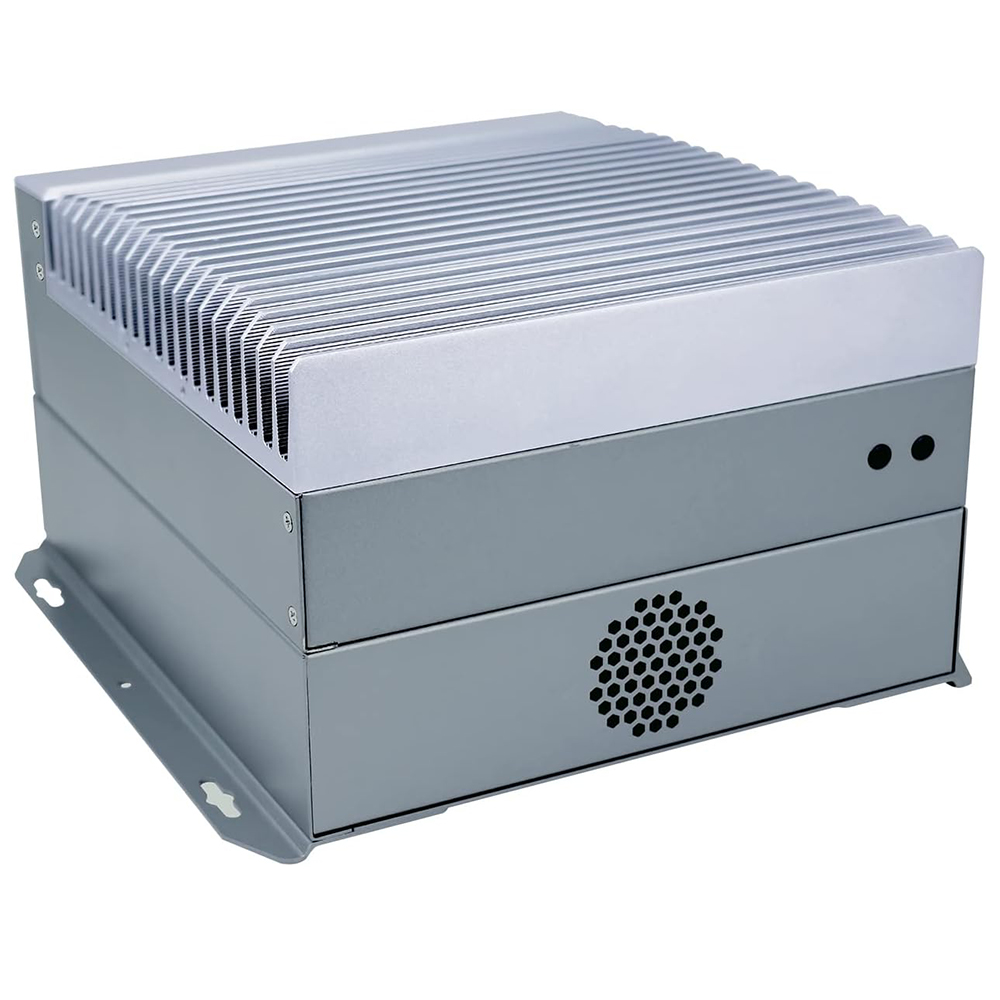

| Cooling Mode | Fanless |
| Power Supply | DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection |
| Packing List | Industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc. |
| Work Temperature | 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow |
| Work Humidity | 5% ~ 95% non-condensing state |
| Certification | CE FCC ROHS |
