Overview
Industrial Aluminum Mini PC with Intel N100, 16GB DDR4, 3x Display, 2x 1G LAN, -10°C~60°C for Automation
The industrial mini PC features a high-quality all-aluminum chassis (170×125×50mm, 1.5kg) with Intel N100 processor (6M Cache, up to 3.4GHz) and 16GB DDR4 RAM (3200MT/s). It supports dual 1G LAN, 3x display outputs (2x HDMI + DP), and flexible storage (mSATA + M.2 NVMe + 2.5″ SATA).
With fanless design, 10–240V wide-voltage input, and -10°C~60°C operation, it ensures 24/7 reliability in harsh environments. Additional features include 2x COM ports, USB 2.0/3.0, AC power loss recovery, WOL/PXE boot, and CE/FCC/ROHS certification.
Ideal for industrial automation, surveillance, medical devices, and edge computing, this compact PC combines low power consumption (10W typical) with expandable connectivity (Wi-Fi 6 optional) and RAID-compatible storage.
Specifications
| Material | High-quality all aluminum |
| Colour | Black |
| Size | 170 * 125 * 50 mm |
| Weight | 1.5Kgs |
| Insallation Method | With mounting ears, Wall-mounted, embedded, desktop |
| CPU | Intel Processor N100 6M Cache, up to 3.40 GHz |
| Display Ports | 2 x HDMI, 1 x DP |
| Network Card | 2 x Realtek 10/100/1000 BaseT LAN |
| Memory | 1 x SO-DIMM DDR4 3200 MT/s, max. 16GB RAM |
| Storage | 1 x mSATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD |
| Audio Card | ALC892 |
| Other Function | First-class temperature control ensures 24h/7 days without shutting down |
| 12V green and environmentally friendly, only 10W power for daily use | |
| Support restore AC power loss/WOL/LAN PXE boot | |
| Support dual screen for simultaneous display or synchronous different display | |

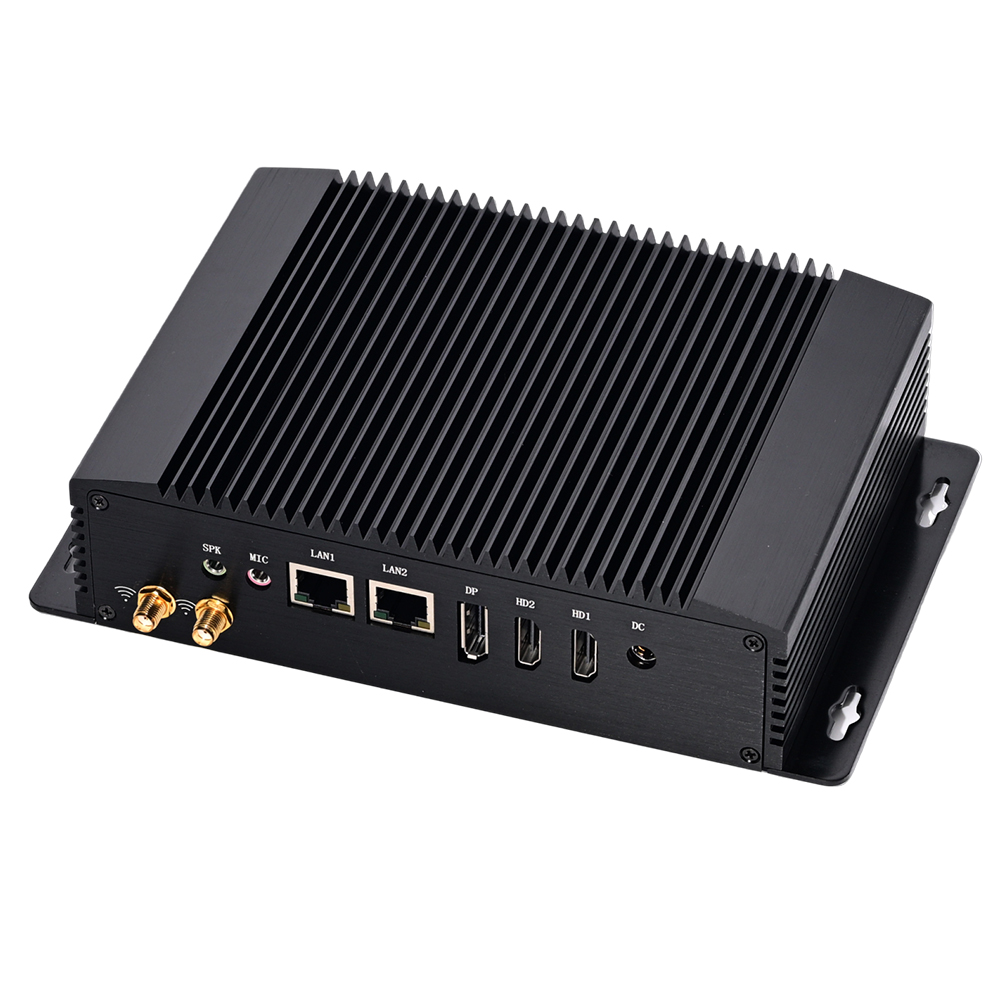

| Front Panel | 2 x WiFi Holes |
| 1 x SPK | |
| 1 x MIC | |
| 2 x LAN | |
| 1 x DP | |
| 2 x HDMI | |
| 1 x DC IN | |

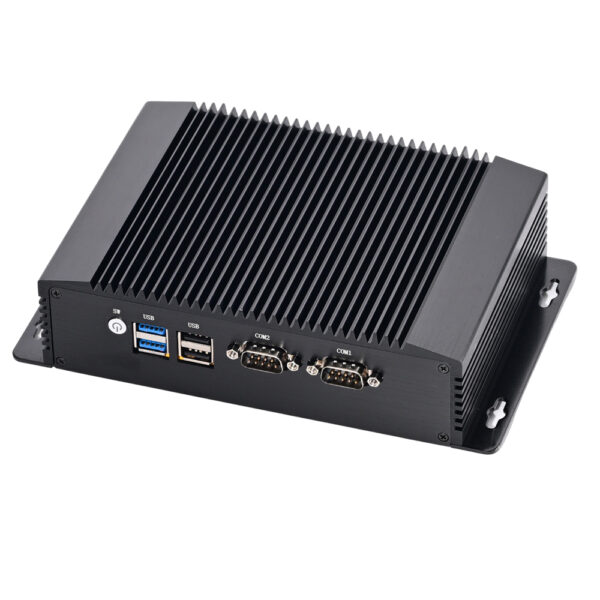

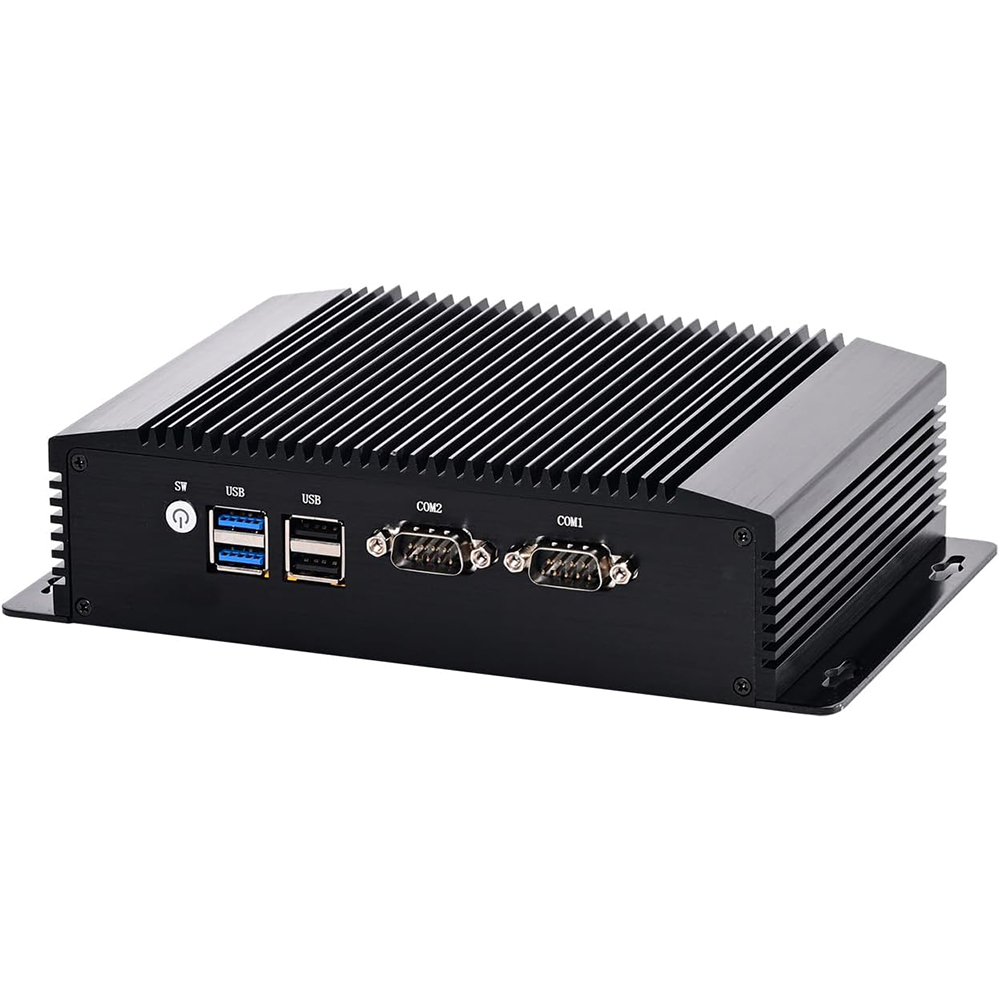

| Rear Panel | 1 x SW |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 2 x COM | |
| Bios | AMI EFI BIOS |
| System Support | Windows 10/11, Linux |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A |
| Packing List | Industrial pc, power supply, power cord, WiFi antennas, warranty card |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~80°C |
| Relative Humidity | 10%~90% non-condensing |
| Certification | CE FCC ROHS |
