Overview

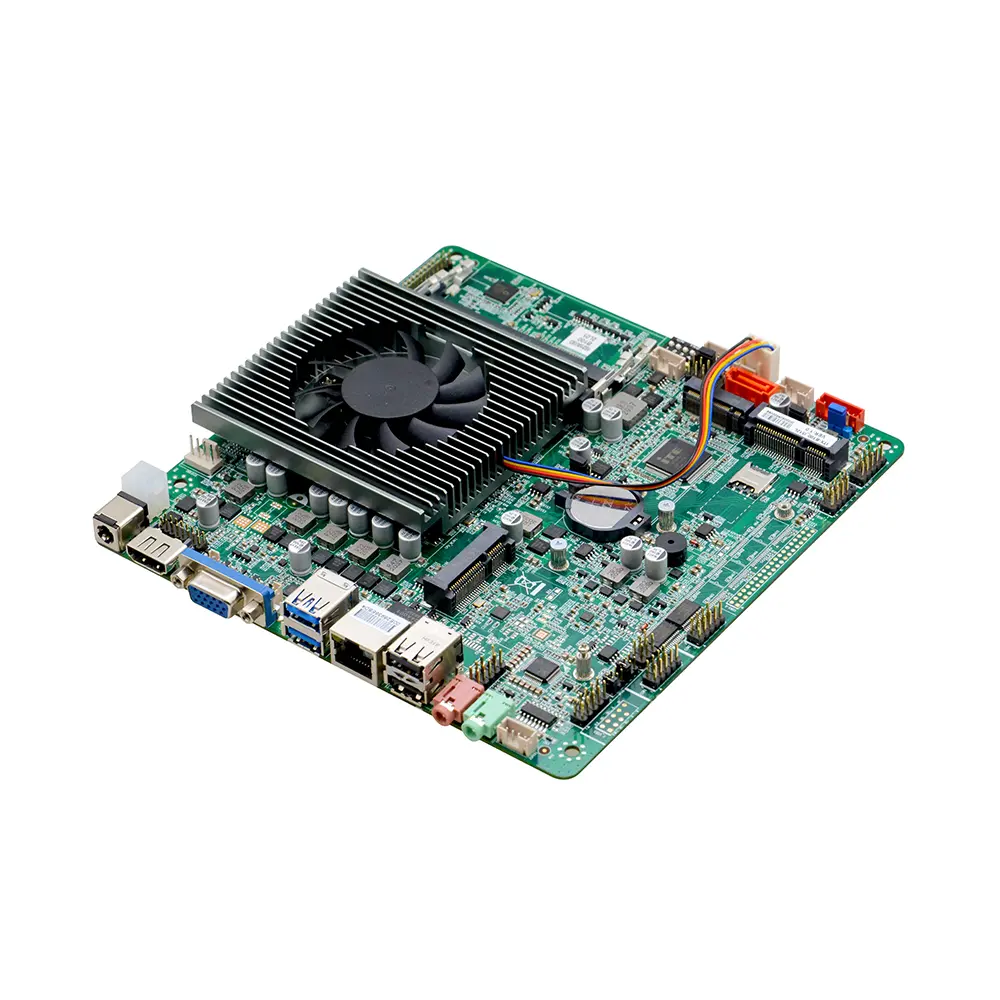

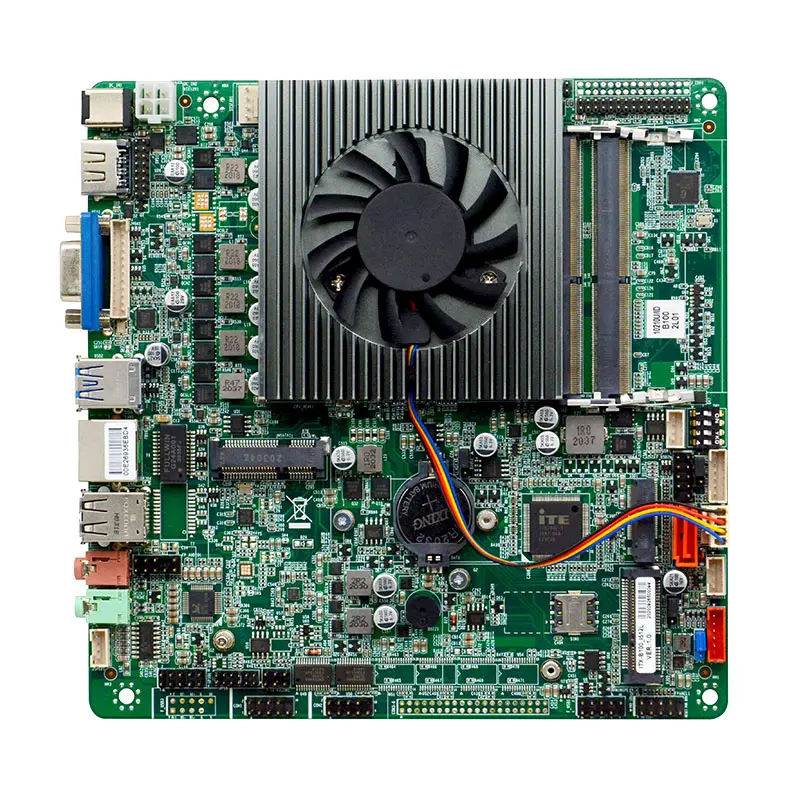

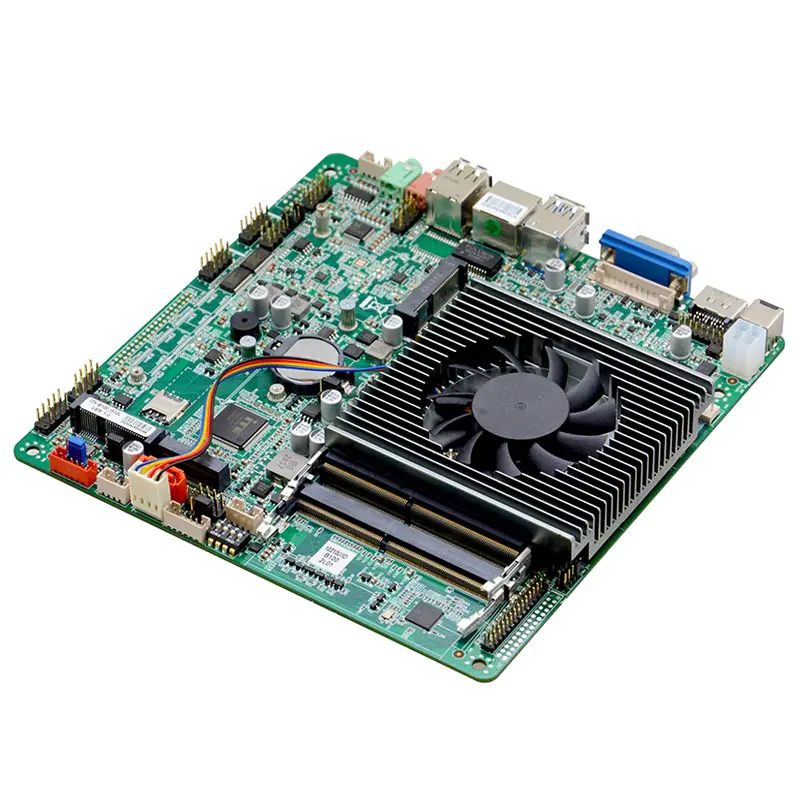

The ITX-B100_I516L VER:1.6(10210U) motherboard boasts an Intel® I5-10210U processor, supporting DDR4 2666MHz memory up to 64GB. It features versatile display options, efficient storage interfaces including SATA3.0 and NVME SSD support, alongside Gigabit LAN, multiple I/O interfaces, and GPIO support. This mini ITX solution is ideal for high-performance, space-efficient applications requiring stability, diverse connectivity, and low power consumption.
Specifications
| Product No. | ITX-B100_I516L VER:1.6(10210U) |
| Processor | Integrated 10th generation Intel®I5-10210U 1.6GHz quad-core eight-thread processor, TDP 15W |
| Compatible with Intel® Comet Lake-U Celeron/Pentium/I3/I5/I7 low-power processors | |
| Chipset | SOC |
| RAM | 2*DDR4 SODIMM memory slot, support 2666MHz memory, maximum support 64GB |
| Display | Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K |
| 1*VGA interface, the highest resolution supported is: 1920X1200@60Hz | |
| 1*HD OUTPUT1.4 interface, the highest resolution supported is: 4096×2304@24Hz | |
| 1*Support dual channel 24bit LVDS interface, choose one of two with EDP, default LVDS | |
| Internet | 1* RTL8111H Gigabit network card, support Wake on LAN, PXE function |
| Store | 1* SATA3.0 hard disk interface, transmission speed can reach 6Gbps |
| 1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps | |
| 1* M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD | |
| Audio | Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier |
| Support power amplifier 2Ω5W speaker | |
| Expansion slot | 1* Mini-PCIE slot, support WIFI/4G module |

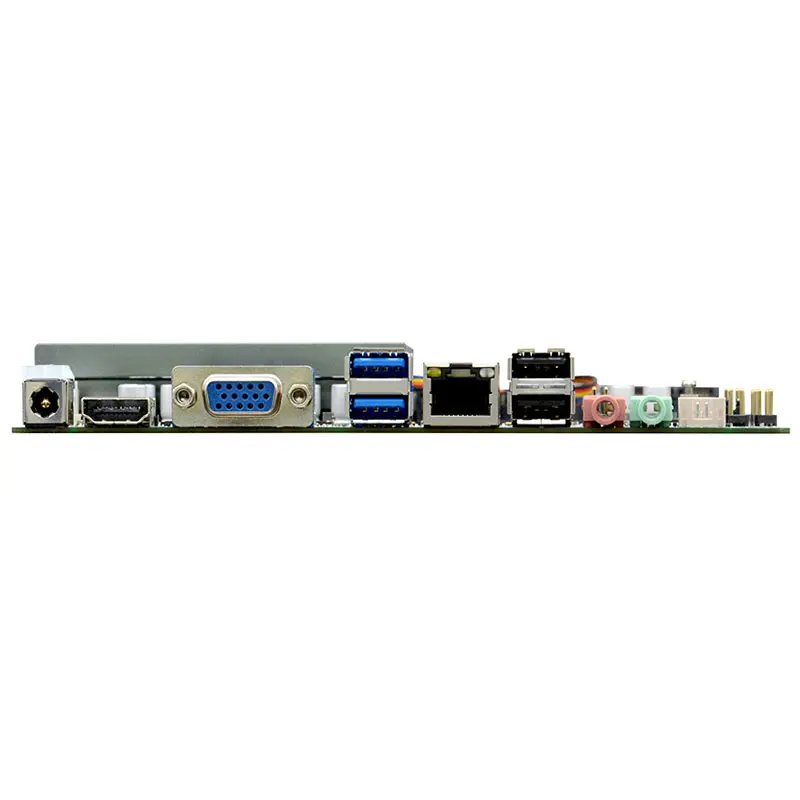

| Backplane I/O interface | 2*USB3.0 interface, 2*USB2.0 interface |
| 1* HD OUTPUT port | |
| 1* DB15 VGA interface | |
| 1* RJ45 Gigabit network interface | |
| 1* Line-out (green), 1*MIC (red) | |
| 1* DC12V power interface, support 12V power input | |
| Built-in I/O interface | 1* JVGA1 interface 1*12pin (same signal with DB15) |
| 1* JHD OUTPUT interface 2*10pin, same signal as HD OUTPUT interface | |
| 1* LVDS interface 2*15pin, support dual channel 24bit, | |
| 1* LVDS backlight power supply interface 1*6pin | |
| 1* Screen brightness adjustment interface 1*4pin | |
| 2* RS232 serial interface, COM1/2 supports the 9th pin charged function, COM2 supports RS485 function, | |
| 1* PS/2 keyboard and mouse interface (red) 1*6Pin | |
| 4* USB2.0 interface 2*5pin, | |
| 1* Front audio interface 2*5pin | |
| 1* Front panel switch button and indicator light interface 2*5Pin | |
| 1* Hard disk power supply interface 1*4pin | |
| 1* power amplifier interface 1*4pin | |
| 1* 4pin ATX power interface (can be used as 12V input power interface) | |
| 1* SIM card holder | |
| Fan interface | 1*4pin CPU smart fan interface, 1* 4pin system fan interface |
| GPIO | Support 4 input and output GPIO function |
| BIOS | 128Mb Flash ROM |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Power type | Powered by DC 12V power supply |
| operating system | Windows 10 ,/Linux |
| Operating temperature | -10℃~60℃ |
| Storage temperature | -20℃~70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| Size | 170mm x 170mm |
