IN-N3 Dual LAN Mini PC with J1900 Processor

  • Sleek 134x126x39mm design
  • 2 x RTL8111E 1000M for high-speed connectivity
  • Supports mSATA SSD and 2.5″ HDD/SSD
  • Mini PCIe slots for WiFi/BT and MSATA
  • Front and rear USB, HDMI, VGA, and more
  • Support Desktop or VESA mount

Share to:



The IN-N3 mini pc has a durable and black aluminum alloy case, which can be customized according to the user’s preference. It can be installed in various ways, such as desktop type or vesa mounting. It has a wide working temperature range from 0℃ to +50℃ (commercial HDD) or -20℃ to +50℃ (industrial SSD), with surface air flow cooling system. It also has a high working humidity tolerance from 5% to 95% (non-condensing).

The IN-N3 mini pc is an ideal solution for network security, firewall, VPN, router, and other fields that require reliable and stable performance. It comes with a power supply, a power cord, a vesa, and a warranty card in the package.




Material Aluminum alloy
Colour Black(color can be customized)
Size 134 x 126 x 39 mm (W*D*H)
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
CPU Adopt Intel Celeron J1900 quad core 2.0GHz
Chipset Adopt Intel express chipset
Network Card 2 x RTL8111E 1000M lan, support wake on lan

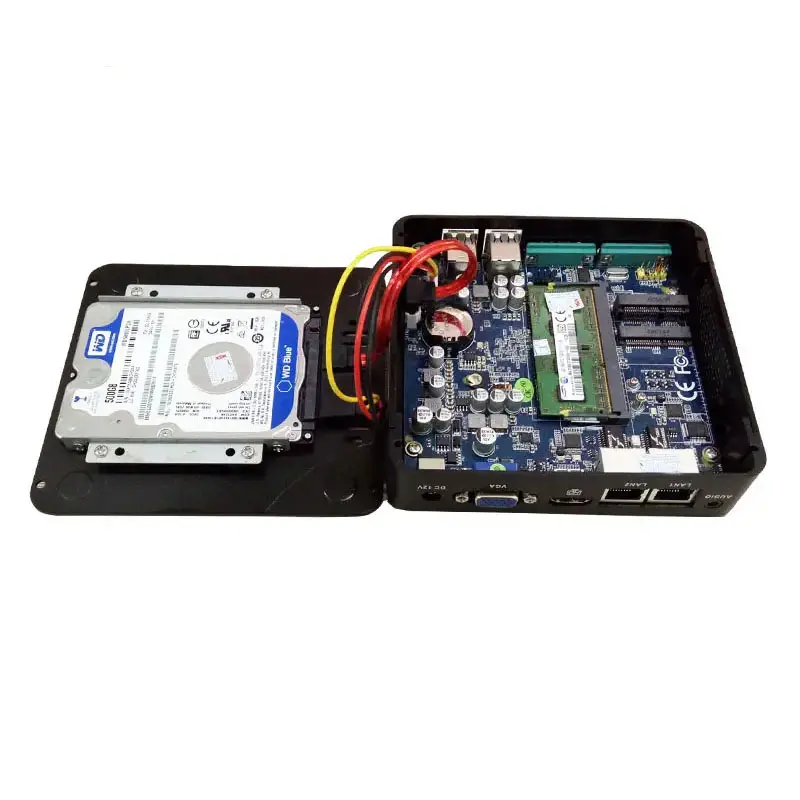

Mainboard 120*120mm mini itx mainboard
Memory 1 x SO-DIMM DDR3, Support Max 8G
Storage 1 x mSATA SSD,1 x 2.5 inch HDD/SSD

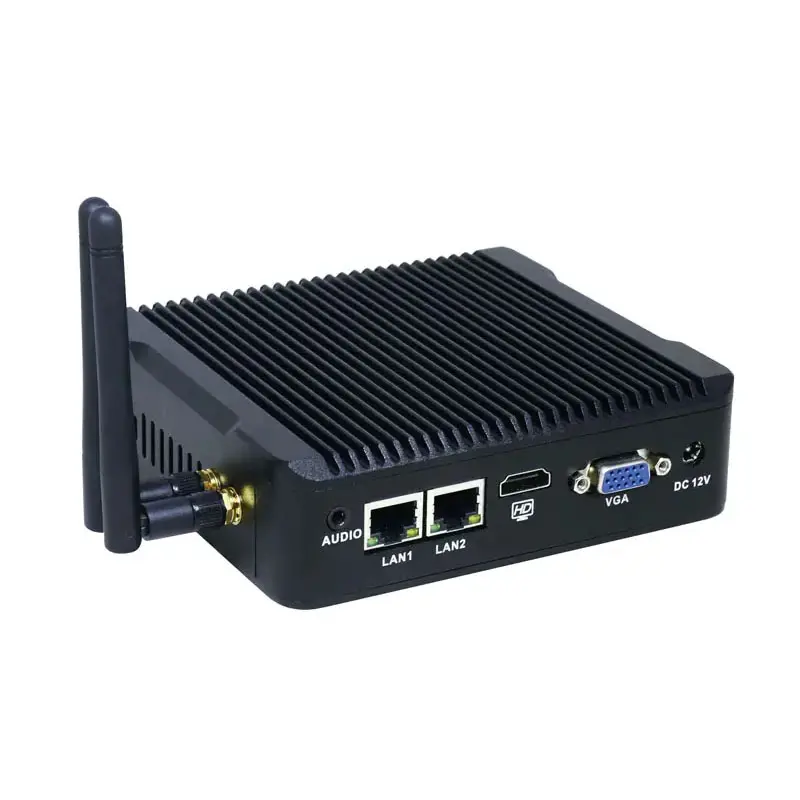

Expand Support 1 x MINI PCIE Slot(WIFI and Bluetooth Optional)
Support 1 x MINI PCIE Slot(Support MSATA)

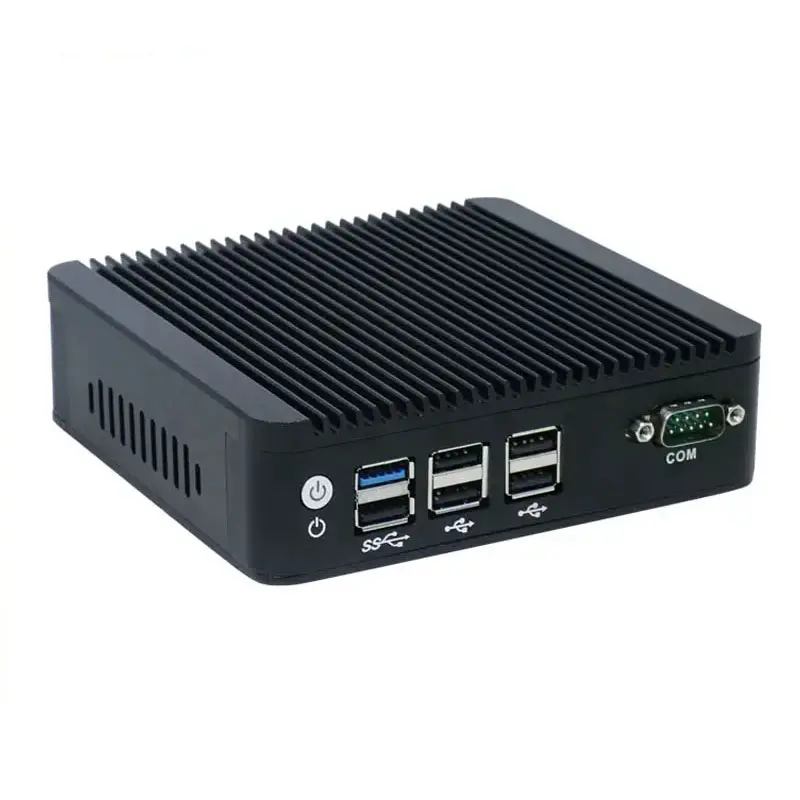

Front Panel 1 x Power Switch
1 x USB3.0
5 x USB2.0
1 x RS232
2 x USB2.0

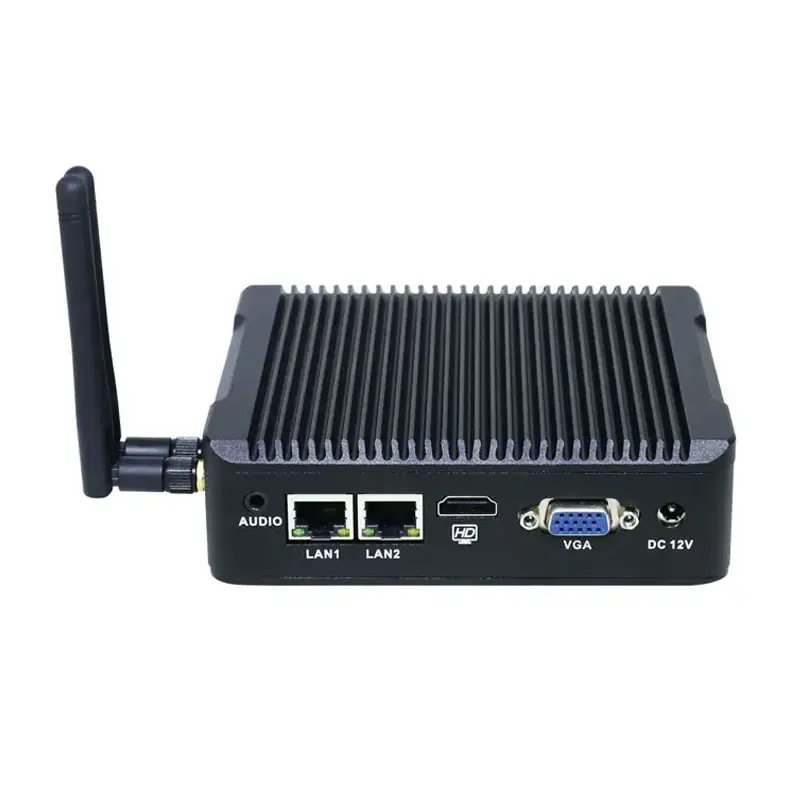

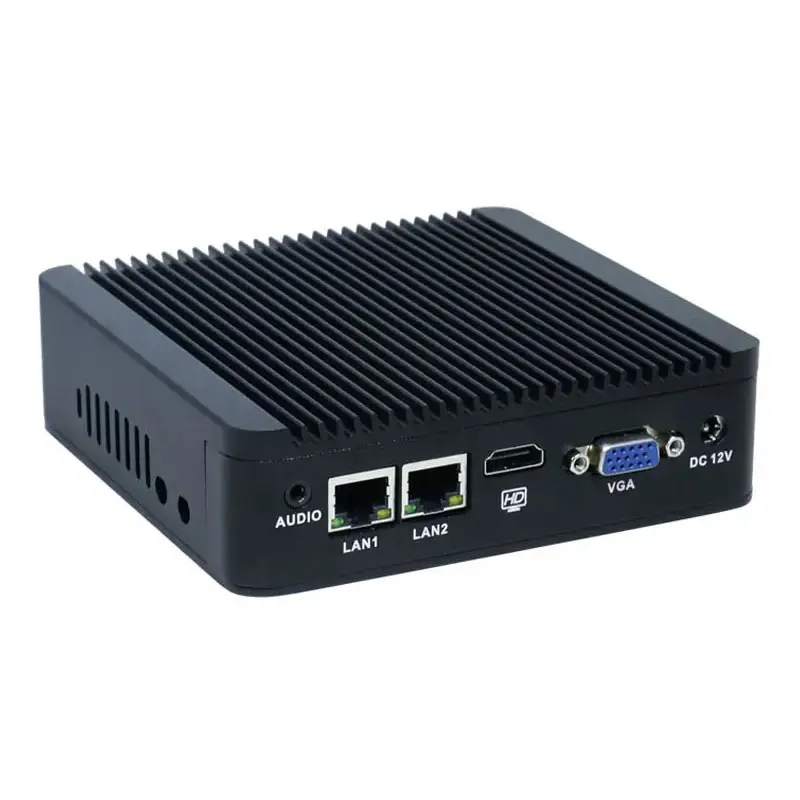

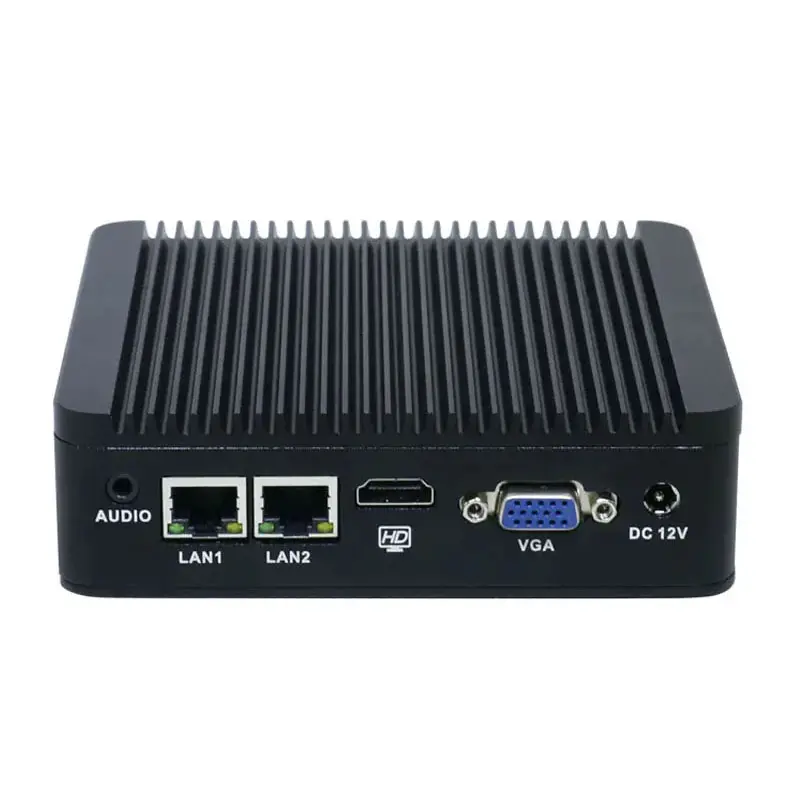

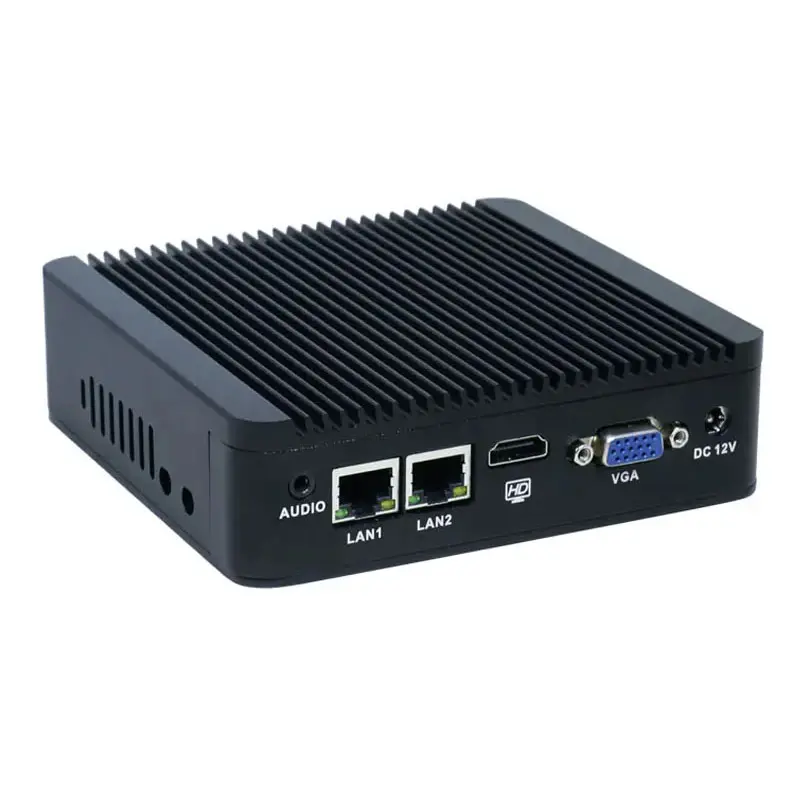

Rear Panel 1 x Audio
2 x RJ45 LAN
1 x VGA
1 x HDMI
1 x DC-IN 12V
System Support Windows 7/8/10, Linux
Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

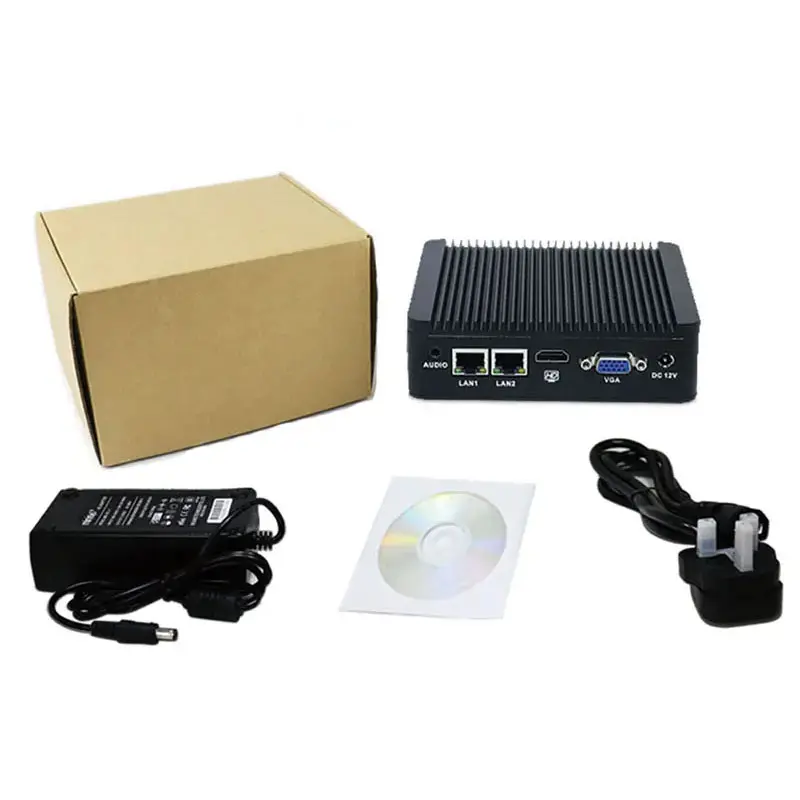

Packing List IN-N3 mini pc, power supply, power cord, vesa, warranty card
Working Temperature 0℃ ~ +50℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow
Working Humidity 5% ~ 95% non-condensing
Other Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
IN-N3 J1900 Intel® HD Graphics 2.0~2.42 GHz VGA/HDMI 1 x SO-DIMM DDR3 1 x mSATA/1 x 2.5 inch SSD/HDD 2 6 12V/4A
