Overview
This high-performance industrial mini PC is built for demanding environments, combining robust construction, powerful processing, and versatile connectivity in a compact, fanless design. Featuring Intel 12th/13th Gen U-series processors (i5/i7), triple 2.5GbE LAN ports, and extensive I/O options, it delivers reliable computing for factory automation, transportation control, energy monitoring, and military/defense applications.
Specifications
| Material | High quality aluminum alloy |
| Colour | Black |
| Size | 255 x 155 x 80mm |
| Weight | 2.12KGs |
| Type | IPC type with mounting ears |
| CPU | Intel I5 1335U Processor 12M Cache, up to 4.60 GHz |
| Intel I7 1355U Processor 12M Cache, up to 5.00 GHz | |
| Intel i5-1235U Processor 12M Cache, up to 4.40 GHz | |
| Intel i7-1255U Processor 12M Cache, up to 4.70 GHz | |
| Display Ports | 2 x HDMI port, 1 x DP port |
| Network Card | 3 x Intel I226-V 2.5GbE |
| Memory | 2 x SO DIMM DDR5 4800 MT/s MAX.64GB RAM |
| Storage | 2 x M.2 2280 PCIE4.0 x4 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD |
| Other Function | RTC/Wake on Lan/Auto Power on, Support install pfSense software to get up and running fast. Support 7*24 hours stable operation in harsh environments. |
| Expansion | 1 x Mini PCIE slot for 4G, with sim slot, 1 x M.2 NGFF slot for WiFi |

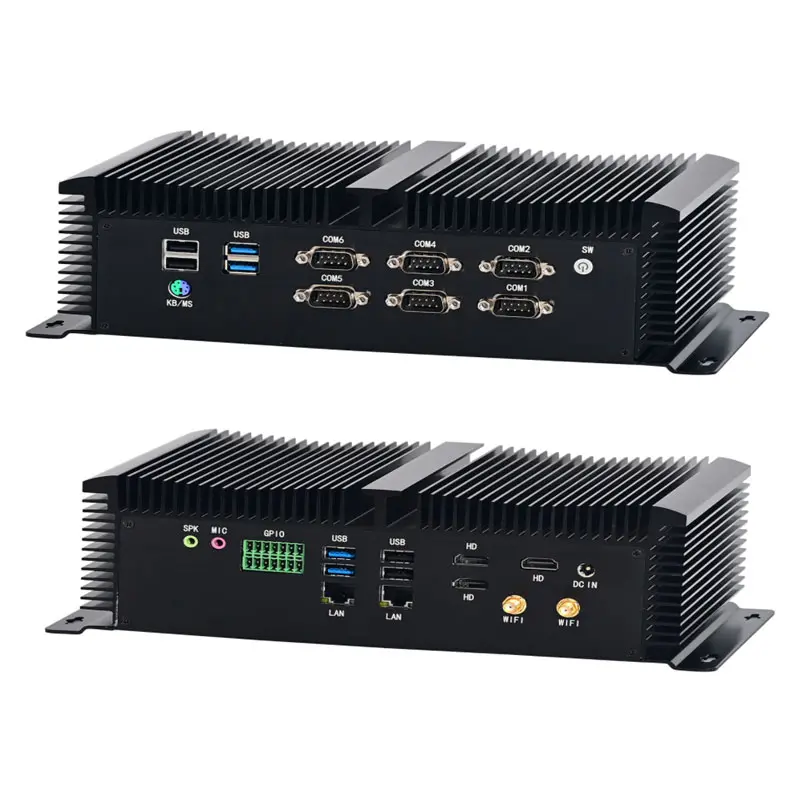

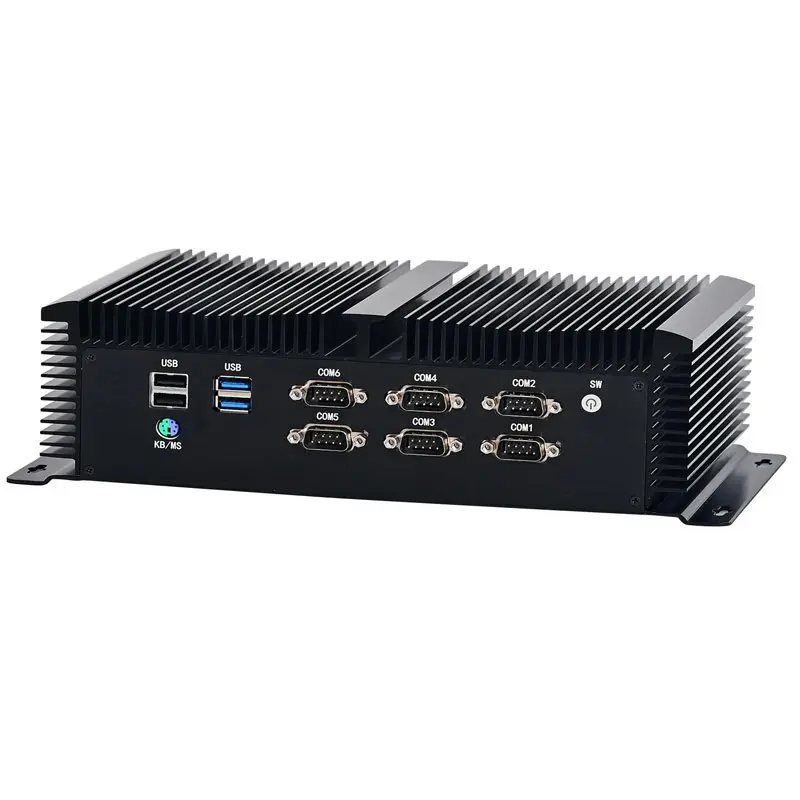

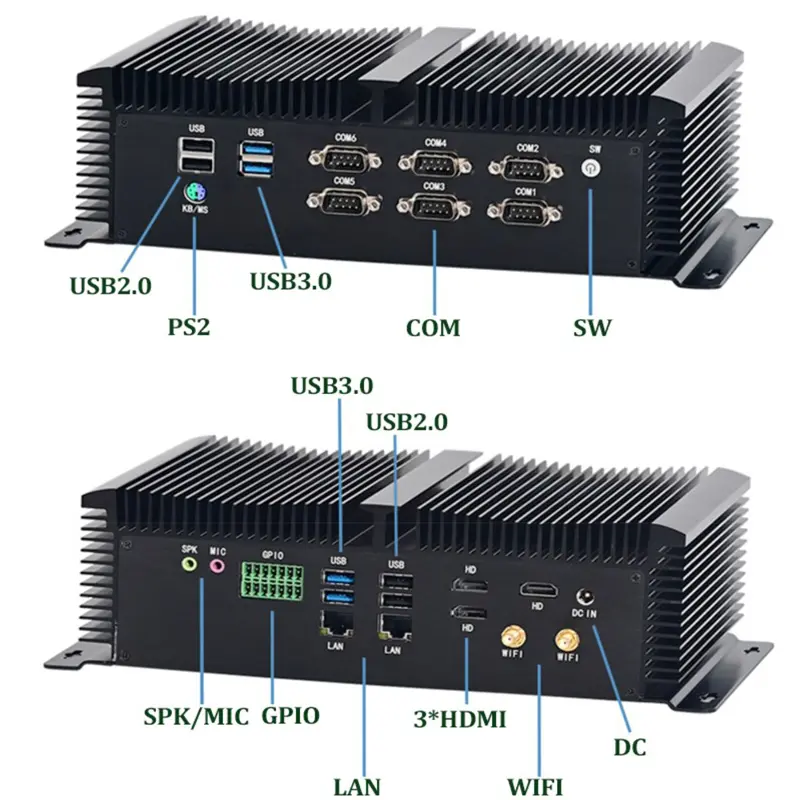

| Front Panel | 8 x COM RS232 ports |
| COM1 and COM2 support RS232/RS422/RS485 soft switching, set it in BIOS | |
| 1 x PS/2 port | |
| 2 x USB2.0 ports | |

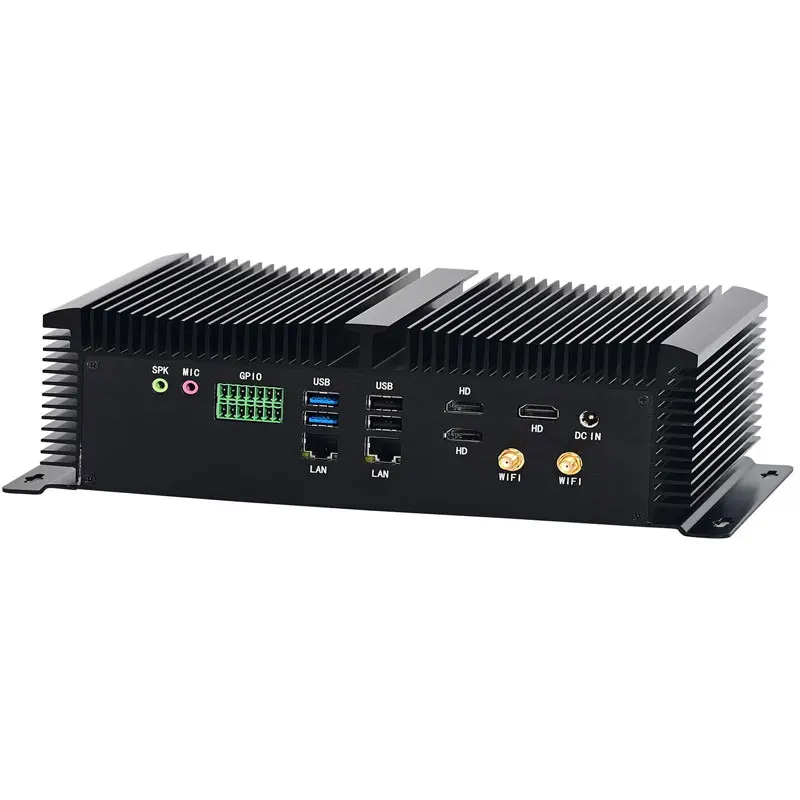

| Rear Panel | 4 x USB3.0 ports, 2 x USB2.0 ports |
| 2 x Audio Connector, 2 x Antennas, 1 x GPIO port | |
| 2 x HDMI port, 1 x DP port | |
| 3 x RJ45 2.5G LAN ports, 1 x DC input | |
| Bios | AMI BIOS, ACPI supported |
| System Support | Pre-installed Windows 11 pro, also support Install win 10 pro/Linux/ubuntu |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 19V5A |
| Packing List | Industrial pc, power supply, power cord, WiFi antennas, warranty card |
| Application | Factory automation, transportation control systems, energy infrastructure monitoring, military/defense equipment, and harsh-environment applications requiring ruggedized, 24/7 operational reliability. |
| Work Temperature | Operating Temperature: 0C~70C (32F~140F), Storage Temperature: -20C~80C (-68F~176F) |
| Work Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
