I29 Fanless Firewall Router Intel 10th Gen CPUs

  • Rugged Aluminum Build for Durability
  • Stylish Black Finish for Elegance
  • Multiple Installation Options
  • Versatile Intel CPU Choices
  • Robust Network Connectivity with 6 LAN ports
  • Expandable Memory up to 32GB
  • Flexible Storage Solutions for Customization
  • Efficient Fanless Cooling Technology

Share to:



Introducing the I29 Fanless Firewall Router: Compact and Powerful ,The I29 firewall router boasts a robust aluminum alloy build, designed for versatility with wall-mounted, embedded, and desktop installation options. Powered by Intel® processors, including Core i5, Core i3, and Celeron models, it delivers exceptional performance for various applications, from security monitoring to network server and firewall tasks. Equipped with six Intel LAN ports and featuring Intel® AES New Instructions, this firewall router ensures efficient data processing and security. With support for up to 32GB of DDR4 RAM and versatile storage options, it can handle demanding workloads. The fanless design ensures quiet and reliable operation, and its compatibility with popular open-source software solutions makes it a flexible choice. Whether you need a robust firewall, VPN, or network security solution, the I29 is a reliable, high-performance option that can thrive in various environments




Material Aluminum alloy
Colour Black

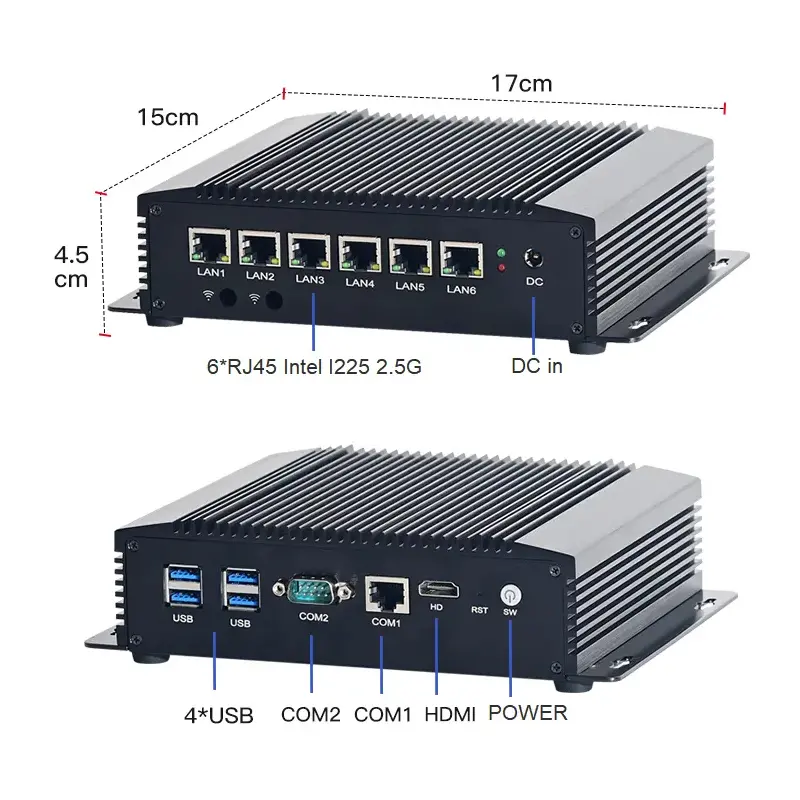

Size 170 x 150 x 45mm
Weight 2Kgs

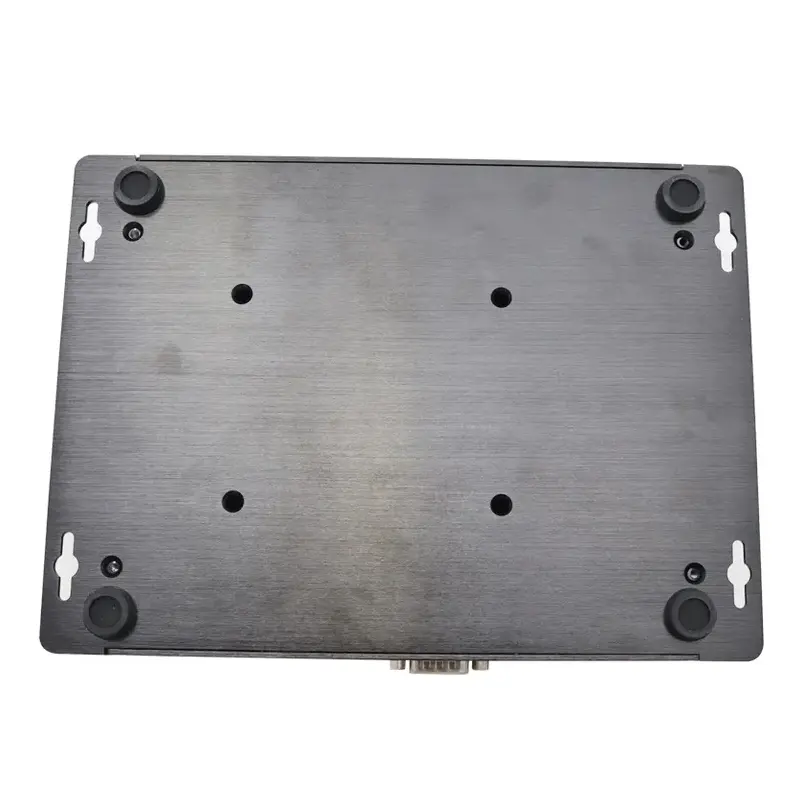

Insallation Method With mounting ears
Wall-mounted, embedded, desktop
CPU Intel® Core™ i5-8265U Processor (6M Cache, up to 3.90 GHz)
Intel Core i3-8140U Processor (4M Cache, up to 3.90 GHz)
Intel Celeron Processor 5205U (2M Cache, 1.90 GHz)
Chipset Intel SOC
Network Card 6 x Intel I225 226 LAN
Intel® AES New Instructions Yes

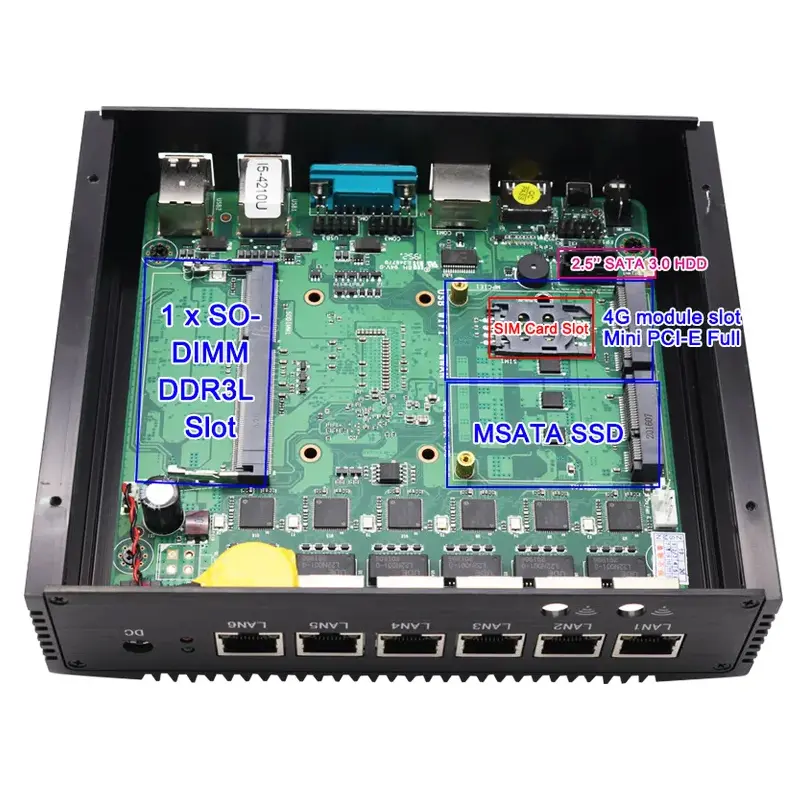

Memory 1 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot, 1 x SIM Slot

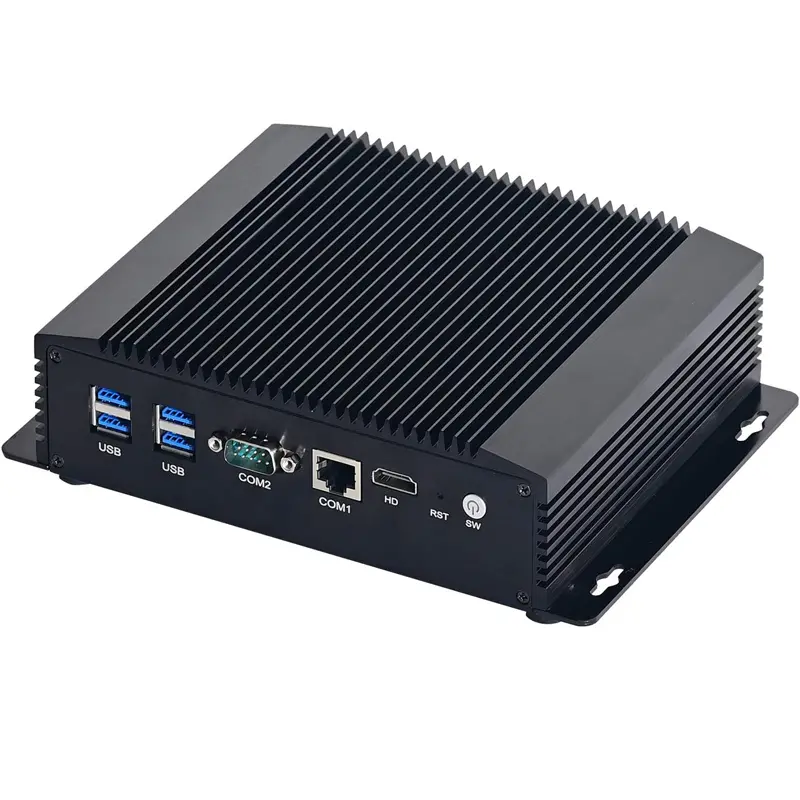

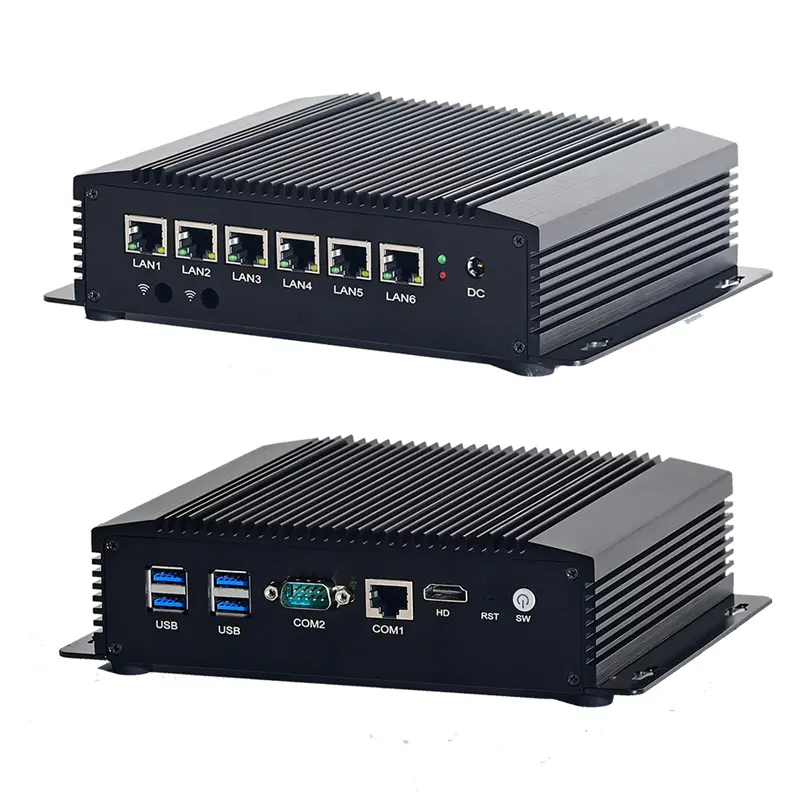

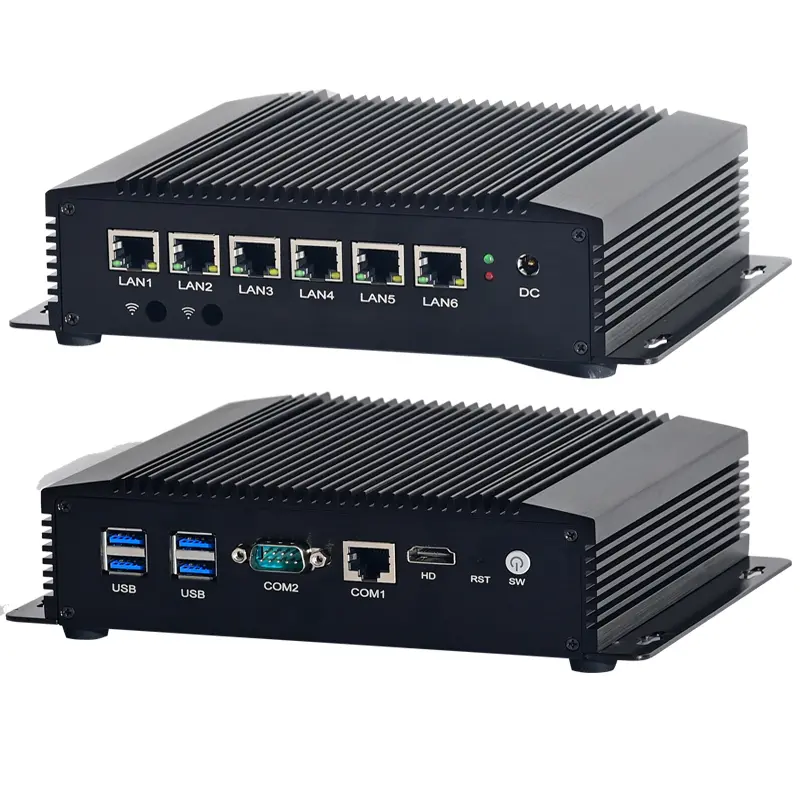

Front Panel 1 x Power button
1 x RST
1 x HDMI
1 x COM
4 x USB3.0
1 x Console RJ45 RS232

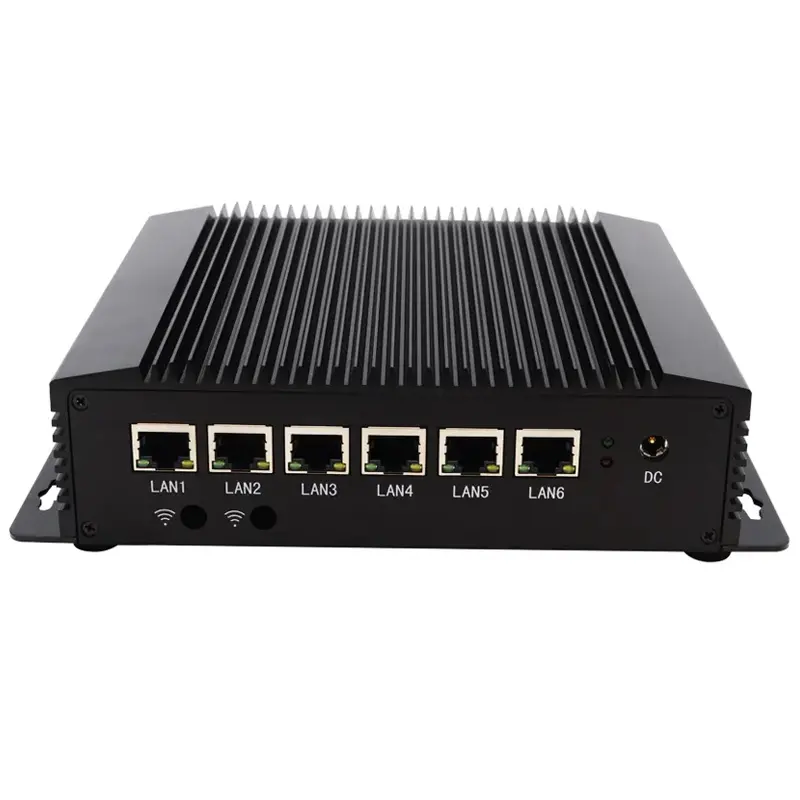

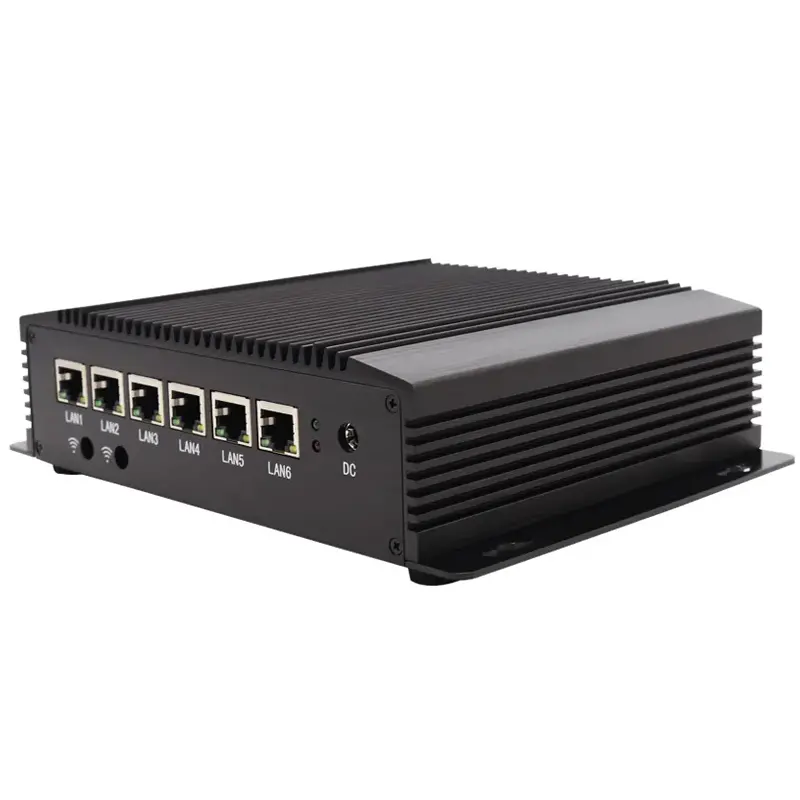

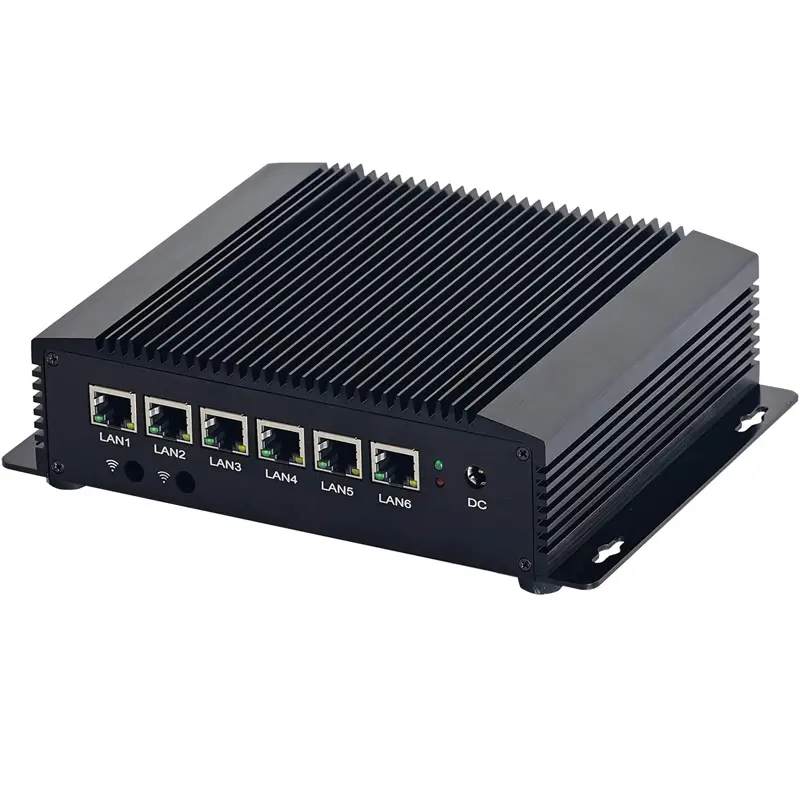

Rear Panel 1 x DC_in
6 x LAN
Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 5A
Packing List I29 firewall appliance, power supply, power cord, warranty card
Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
I29 I5 8260U Intel® UHD Graphics 1.6~3.9 GHz HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V5A
I29 I3 8140U Intel® UHD Graphics 620 2.1~3.9 GHz HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V5A
I29 5205U Intel® UHD Graphics 1.90 GHz HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V5A
