Overview
The Partaker I27 industrial PC is a versatile, fanless computer designed for demanding applications. With a robust aluminum alloy construction and compact form factor, it’s suitable for wall-mounted, embedded, or desktop installations. The choice of Intel Core processors, ample DDR4 RAM support, and various storage options ensure high-performance computing. Equipped with dual Intel Gigabit LAN, multiple USB ports, and comprehensive connectivity, this PC is ideal for industrial automation, self-service kiosks, monitoring centers, and more. It features a fanless cooling system for silent operation and low power consumption. Whether used in multimedia classrooms, meeting rooms, or command and control centers, the Partaker I27 offers stability and reliability. The inclusion of PS/2, VGA, and HDMI interfaces adds to its versatility. Operating within a wide temperature range and holding certifications for quality and safety, this industrial PC is a robust solution for diverse environments.
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 230 x 175 x 50mm |
| Weight | 2.5Kgs |
| Insallation Method | With mounting ears |
| Wall-mounted, embedded, desktop | |
| CPU | Intel® Core™ i3-6006U/6157U Processor (3M Cache, 2.00 GHz) |
| Intel® Core™ i3-7020U/7167U Processor (3M Cache, 2.30 GHz) | |
| Intel® Core™ i5-7200U/7267U Processor (3M Cache, up to 3.10 GHz) | |
| Intel® Core™ i5-8250U/8260U Processor (6M Cache, up to 3.40 GHz) | |
| Intel® Core™ i7-8550U/8565U Processor (8M Cache, up to 4.00 GHz) | |
| Intel® Core™ i7-7510U Processor (4M Cache, up to 3.70 GHz) | |
| Intel® Core™ i7-10510U Processor (8M Cache, up to 4.90 GHz) | |
| Chipset | SOC |
| Network Card | 2 x Intel I211 10/100/1000 gigabit ethernet nics |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR4, up to 32GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME) |
| Expand | 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard |

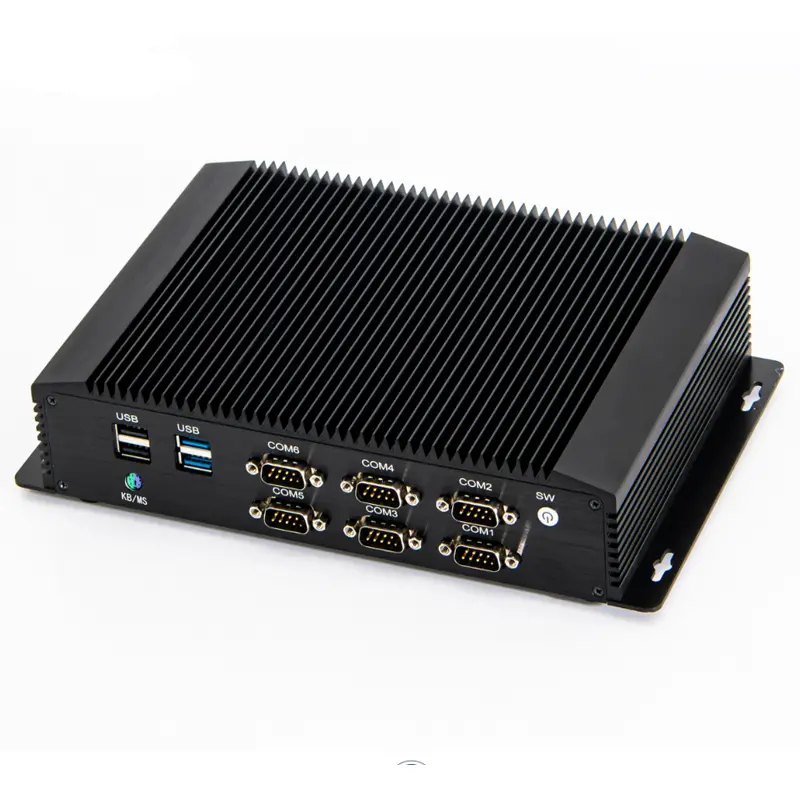

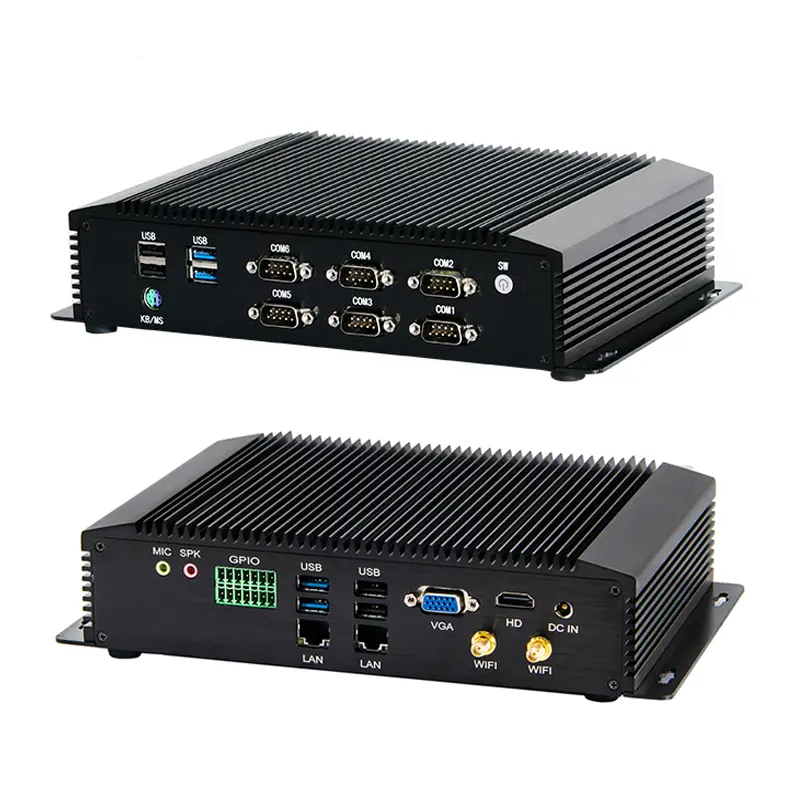

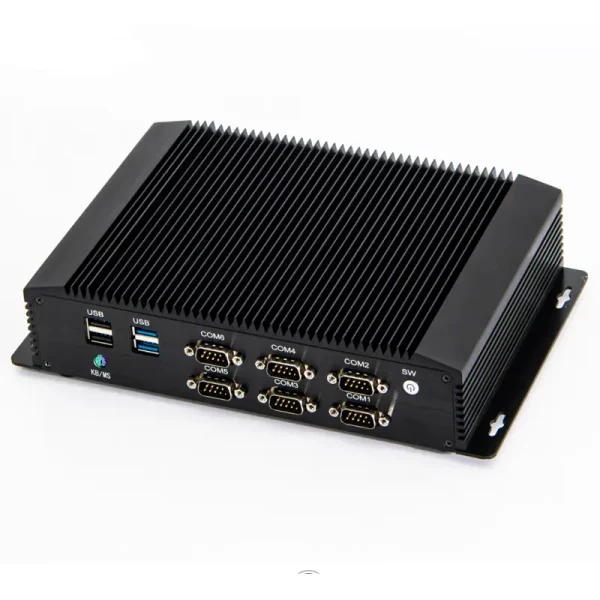

| Front Panel | 1 x Power button |
| 6 x COM (COM1 COM2 for RS232 RS422 RS485) | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x PS/2 | |

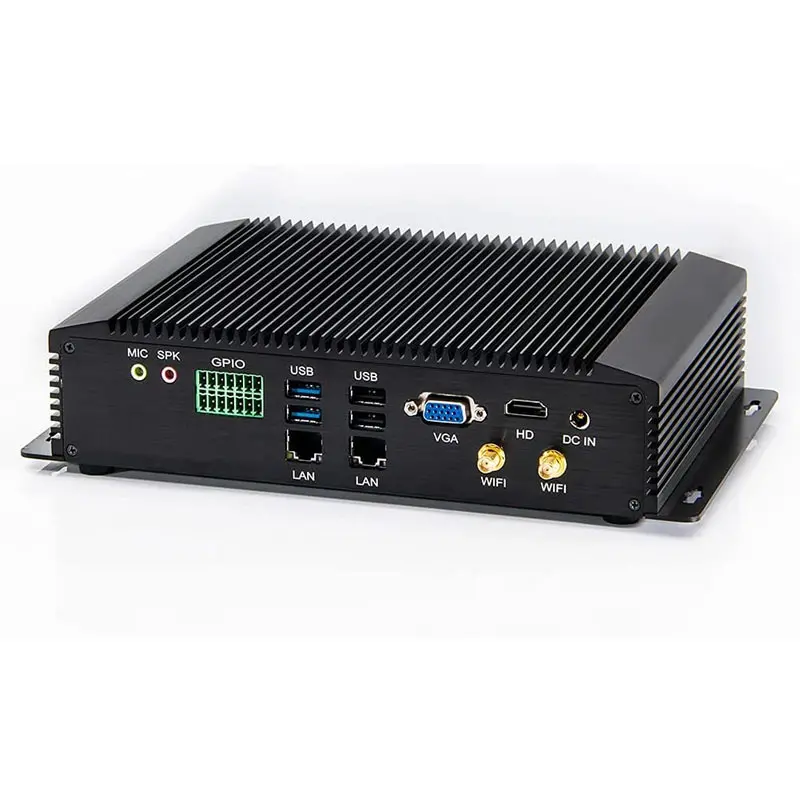

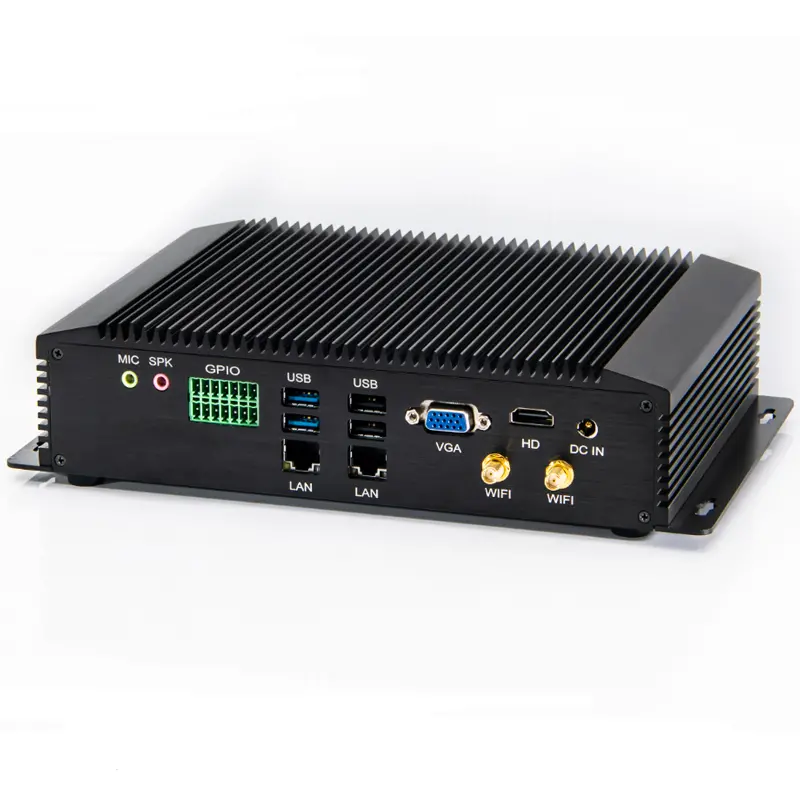

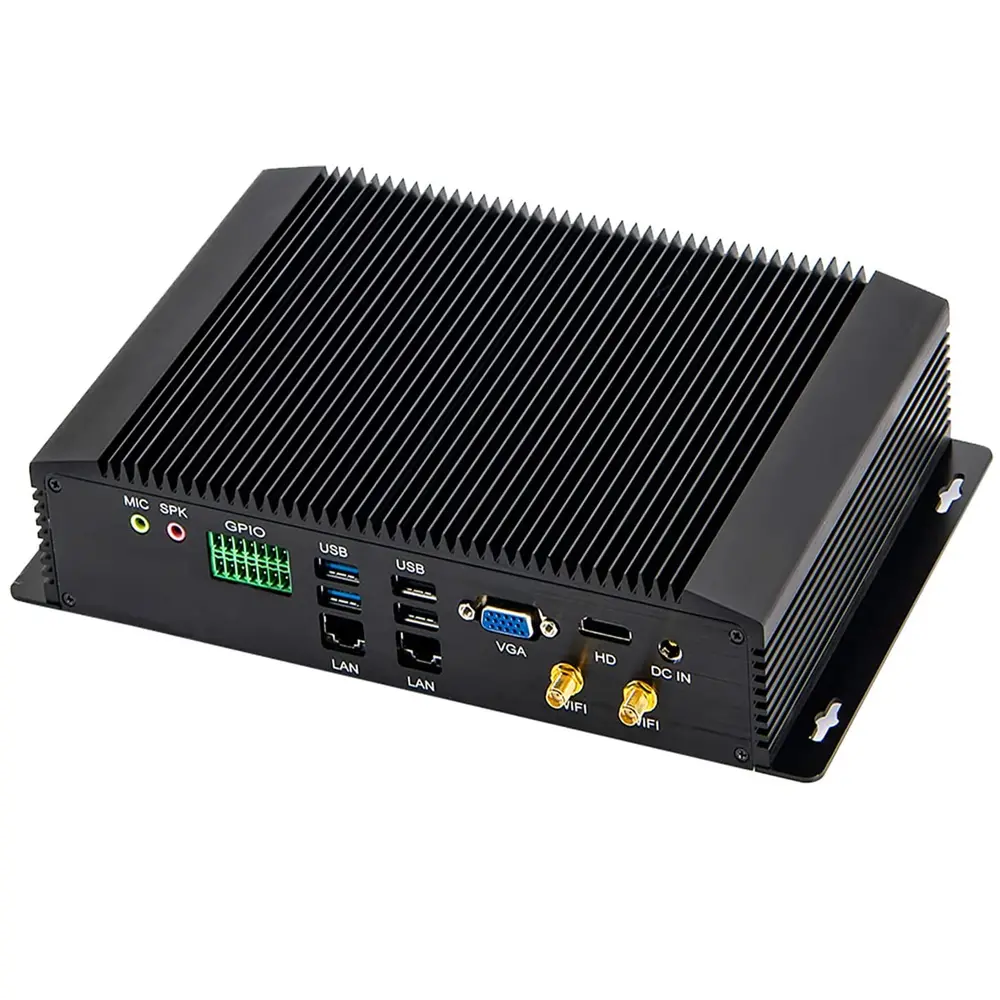

| Rear Panel | 1 x DC_in |
| 1 x VGA | |
| 1 x HDMI | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 2 x Lan | |
| 1 x GPIO | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A |
| Packing List | Partaker I27 industrial pc, power supply, power cord, wifi antennas, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
