I26 6 COM Industrial Mini PC with Core i5 i7

  • Built with Robust Aluminum Alloy for Resilience
  • Modern and Professional Design
  • Fits in Small Spaces, Mountable.
  • Intel i5 & i7 CPUs Efficient and Capable Processors.
  • Dual Intel Gigabit Ethernet Ensures Fast and Reliable Networking.
  • Supports up to 8GB DDR3L Memory.
  • Wide Temperature Range Works in Diverse Environments.

Share to:



The I26 industrial pc has a rich interface, with 6 COM ports (COM1 COM2 for RS232 RS422 RS485), 2 USB3.0, 2 USB2.0, 1 HDMI, 1 VGA, 2 Lan, 1 GPIO, and 1 Audio on the front and rear panels. It also has 2 Mini PCIE slots (WiFi/4G), with a sim slot onboard, and 2 WiFi antennas for wireless connectivity. It supports Windows 10 and linux ubuntu operating systems.

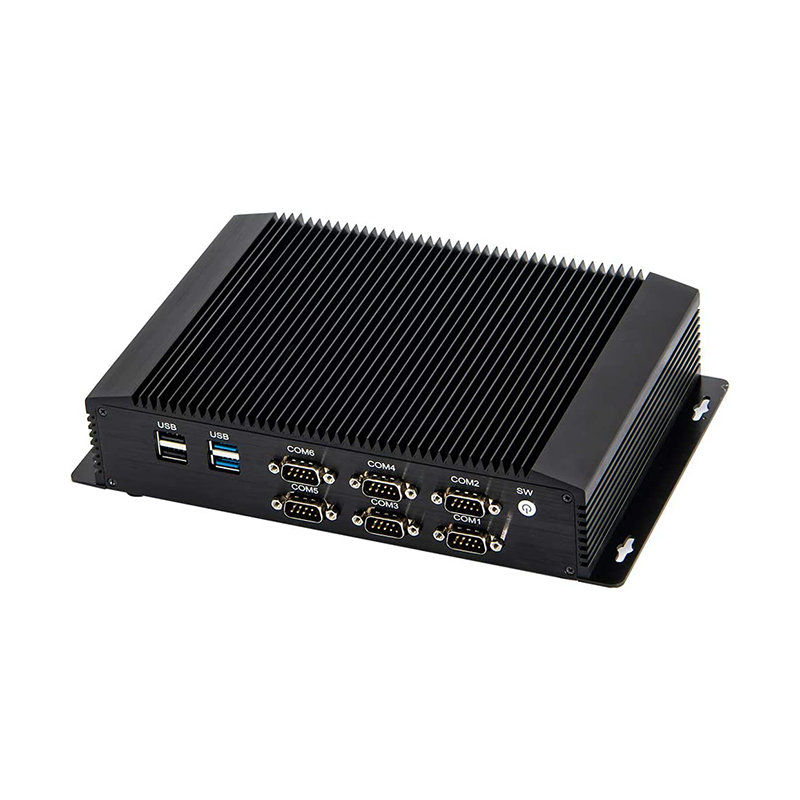

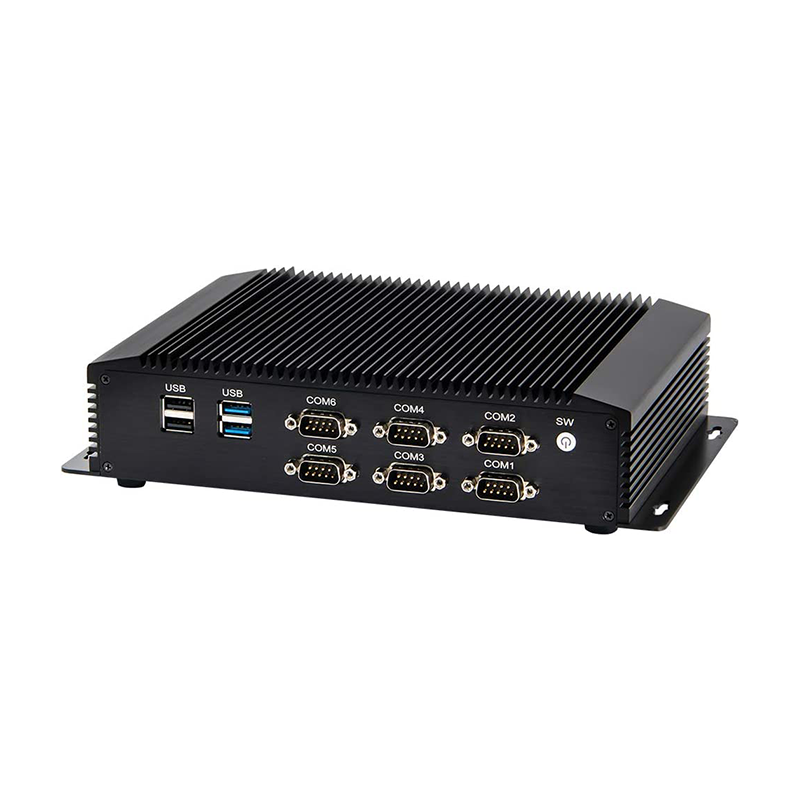

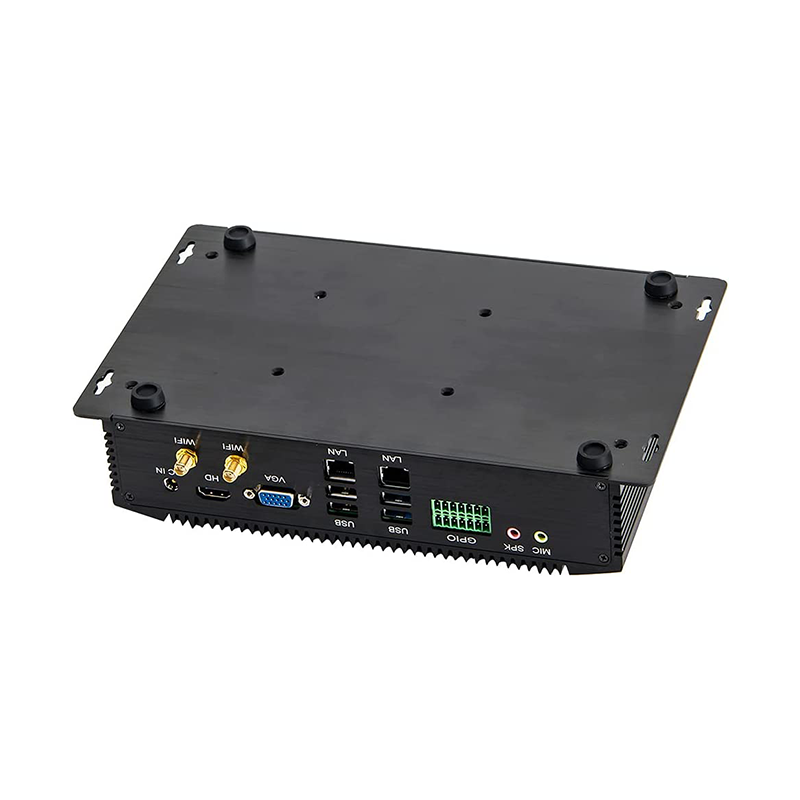

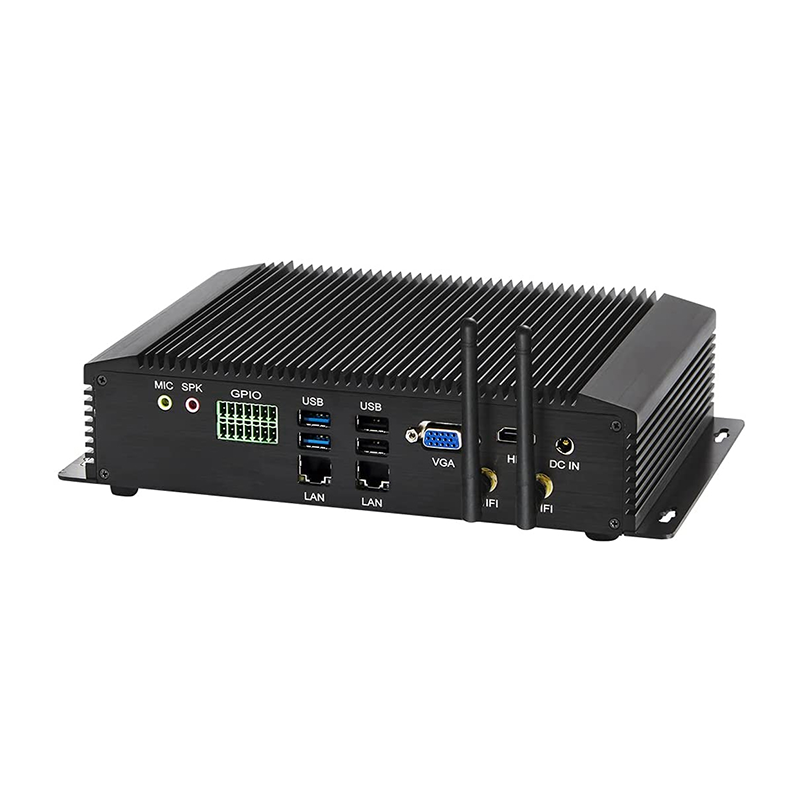

The front panel features a power button, 6 COM ports supporting RS232, RS422, and RS485, and a mix of USB 3.0 and USB 2.0 ports. On the rear panel, you’ll find a DC input, HDMI, VGA, additional USB ports, LAN ports, GPIO, and audio support. WiFi antennas enhance wireless connectivity.




Material Aluminum alloy
Colour Black
Size 230 x 175 x 50mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop
CPU Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-I7 4500U Processor (4M Cache, up to 3.30 GHz)
Chipset SOC
Network Card 2 x Intel I211 10/100/1000 gigabit ethernet nics
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expansion Slot 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard
Front Panel 1 x Power button
6 x COM (COM1 COM2 for RS232 RS422 RS485)
2 x USB3.0
2 x USB2.0
Rear Panel 1 x DC_in
1 x HDM
1 x VGA
2 x USB3.0
2 x USB2.0
2 x Lan
1 x GPIO
1 x Audio
2 x WiFi antennas
Bios AMI bios
System Support Windows 10, linux ubuntu etc
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V5A

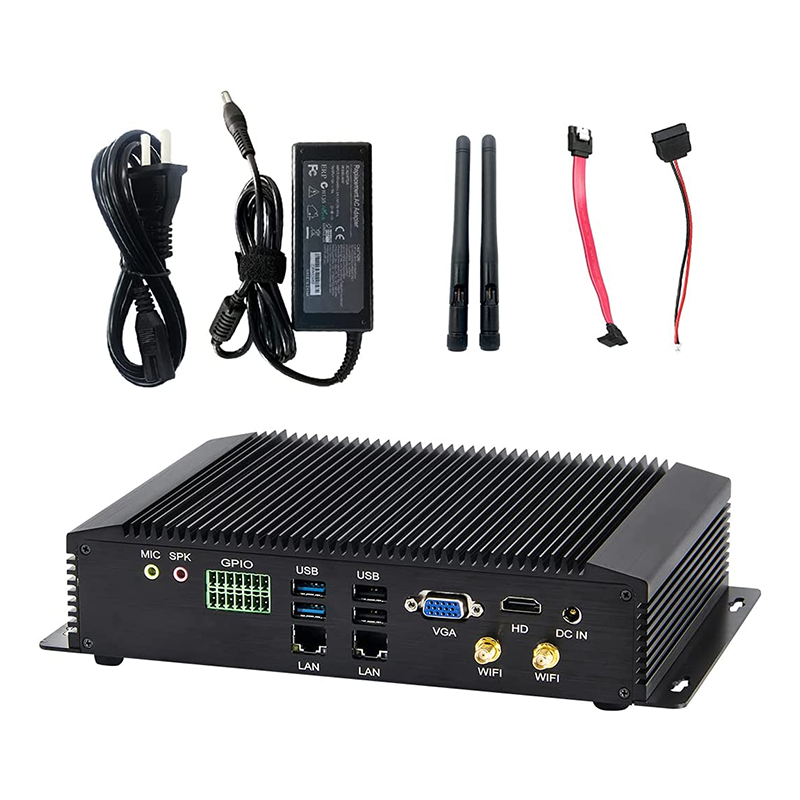

Packing List I26 industrial pc, power supply, power cord, wifi antennas, warranty card
Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature 0°C~80°C Centigrade (-68°F~176°F)
Certification 10%~90% (non-condensing)

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB COM Power
I26 i5 4200 Intel® HD Graphics 4400 1.60~2.60 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 6 12V5A
I26 i7 4500U Intel® HD Graphics 4400 1.7~3.3 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 6 12V5A
