Overview
The Partaker I25 is a compact industrial PC featuring durable aluminum alloy construction. With options for wall-mounting, embedding, or desktop use, it offers flexibility in installation. Powered by Intel processors, it includes dual gigabit LANs and supports 8GB of DDR3L RAM. With a fanless design, it provides silent and efficient cooling. The unit comes with a variety of I/O ports, including USB, COM, VGA, HDMI, and dual antennas for WiFi and Bluetooth. This industrial PC is suitable for Windows 10 and Linux Ubuntu, making it versatile for various applications. It operates within a wide temperature range and meets certification standards for quality and reliability.
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 175 x 130 x 36mm |
| Weight | 1.5Kgs |
| Insallation Method | With mounting ears |
| Wall-mounted, embedded, desktop | |
| CPU | Intel Pentium Processor N3520 (2M Cache, up to 2.42 GHz) |
| Intel Celeron Processor N2920 (2M Cache, up to 2.00 GHz) | |
| Chipset | SOC |
| Network Card | 2 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR3L 1333, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 1 x Mini PCIE WiFi slot |

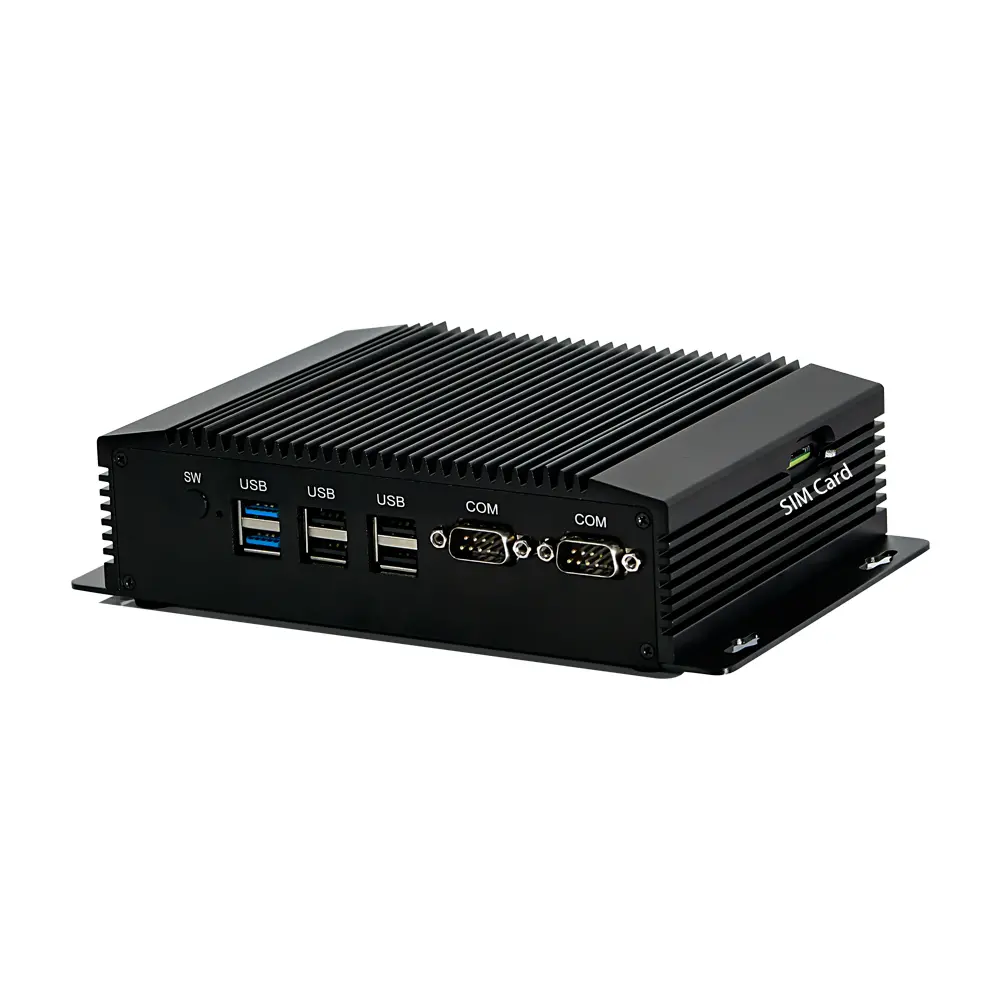

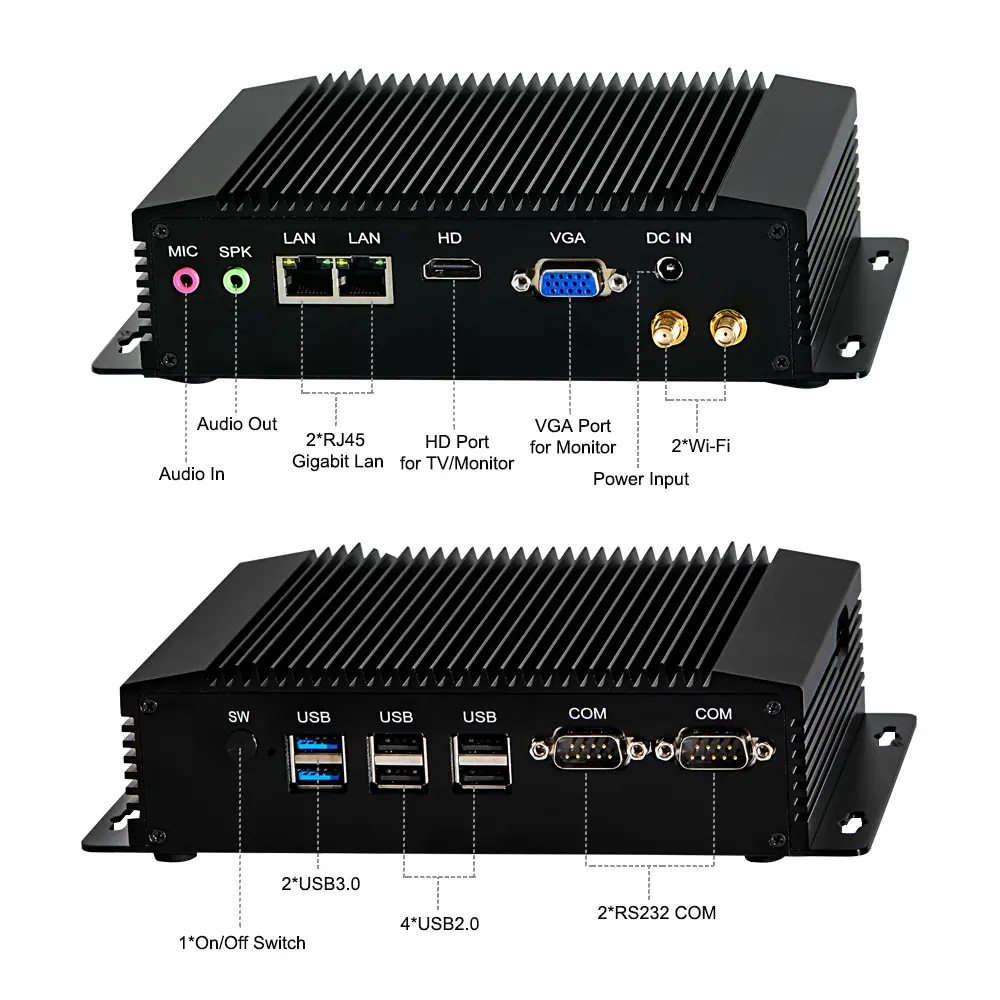

| Front Panel | 1 x Power button |
| 2 x USB3.0 | |
| 4 x USB2.0 | |
| 2 x COM | |

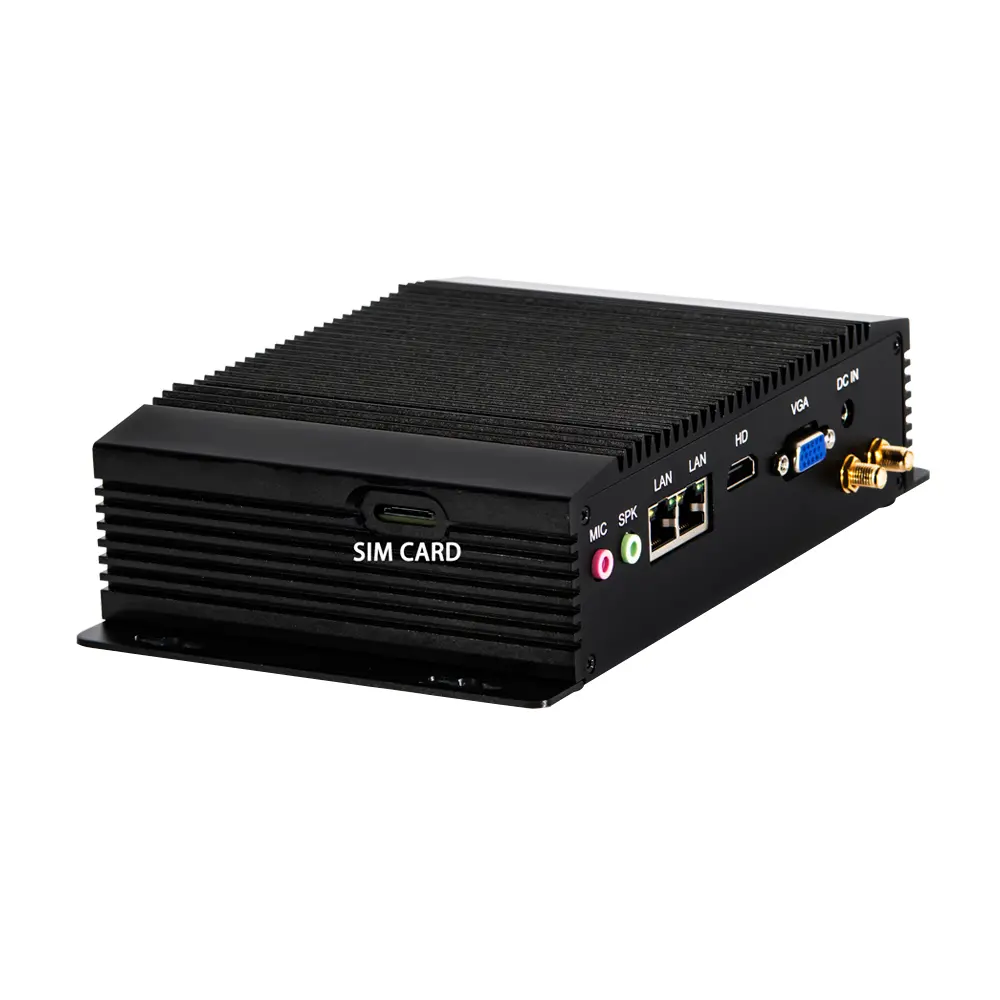

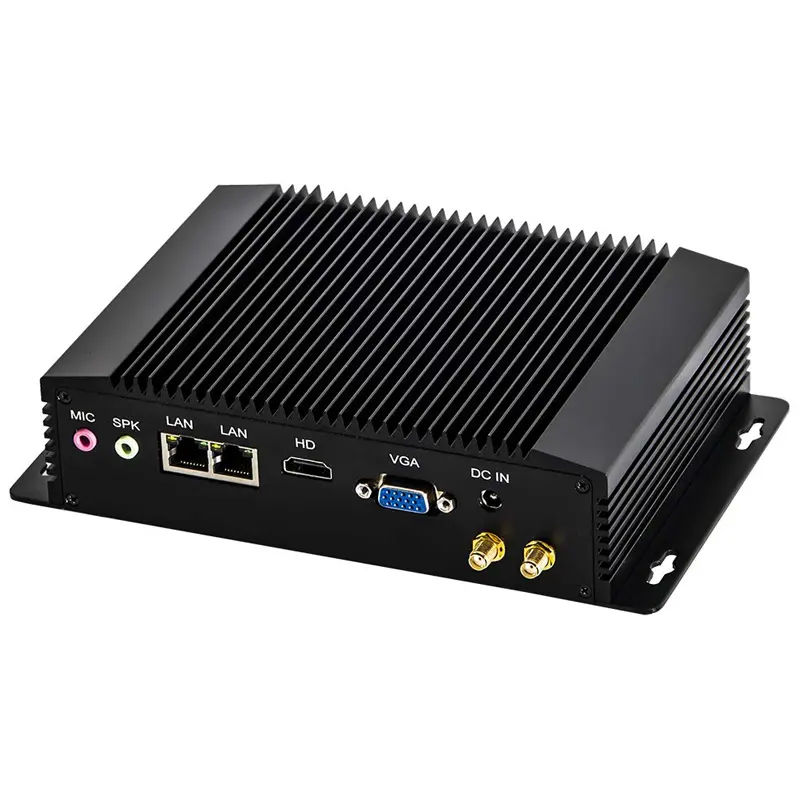

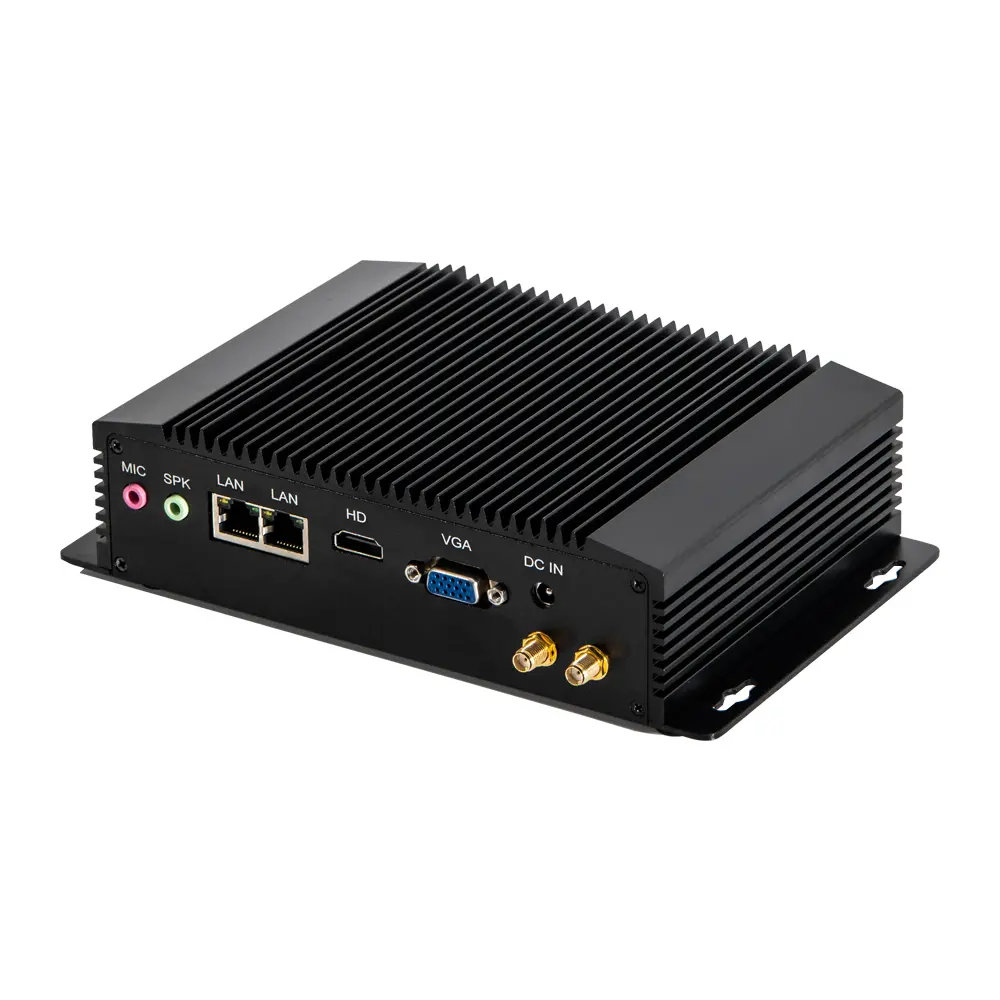

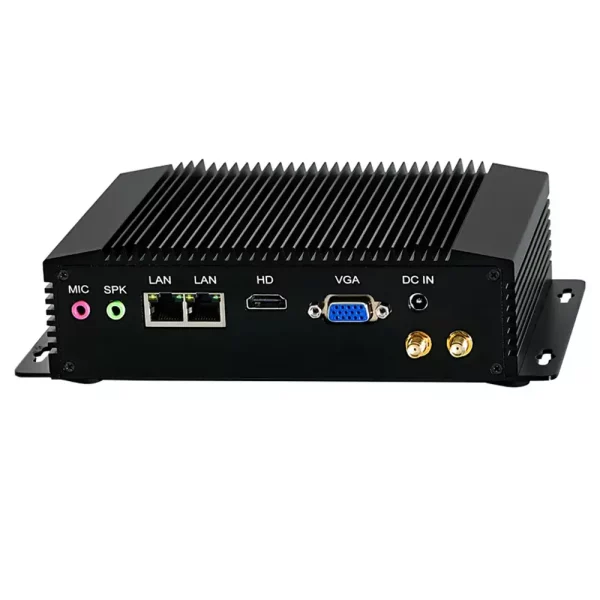

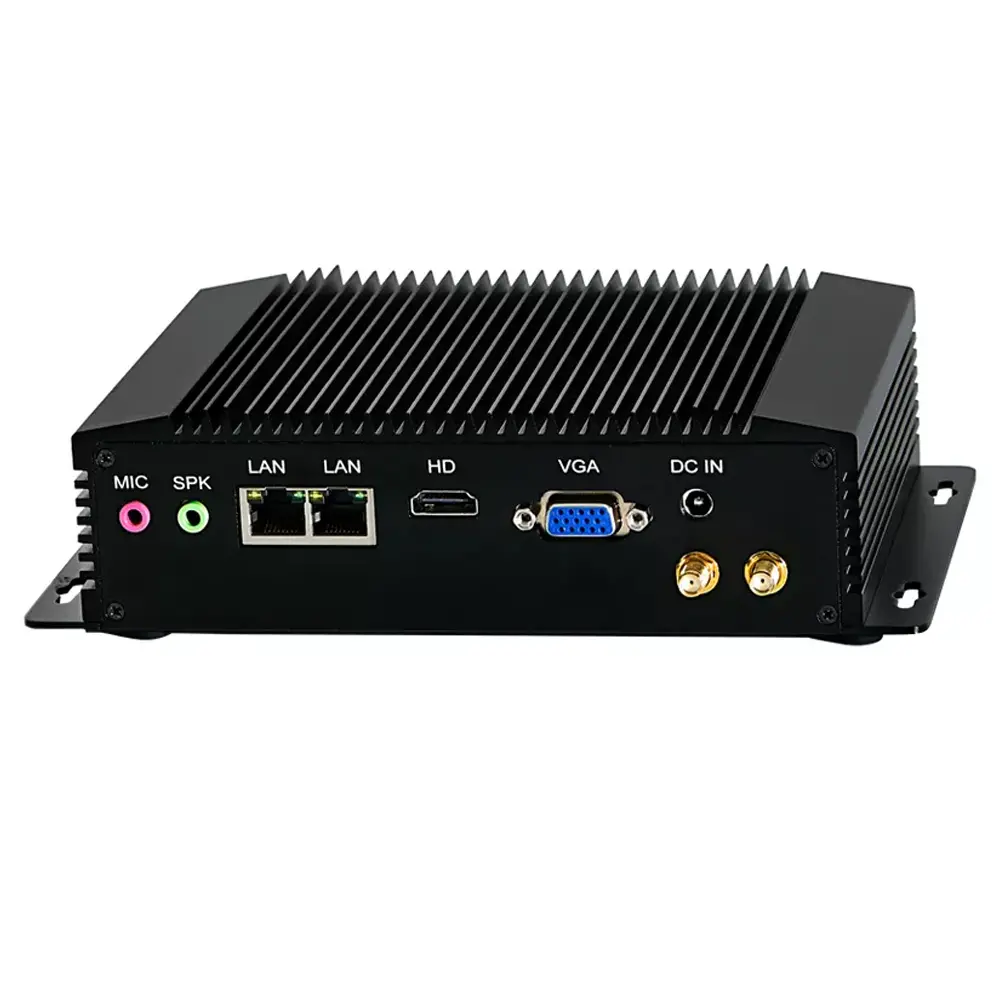

| Rear Panel | 1 x DC_in |
| 1 x VGA | |
| 1 x HDMI | |
| 2 x Lan | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A |
| Packing List | Partaker I25 industrial pc, power supply, power cord, wifi antennas, warranty card |
| Operating Temperature | 0C~70C Centigrade (32F~140F) |
| Storage Temperature | -20C~80C Centigrade (-68F~176F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
