I22 Industrial Mini PC with I3/I5 2955U Support Linux

  • Expandable Storage With 2.5 Inch Hard Disk Bay and MSATA slot
  • Dual Gigabit Lan Ports for Fast and Reliable Network Connectivity
  • WiFi and Bluetooth with Dual Antennas for Wireless Communication
  • VGA and HDMI Ports for Display Output
  • 4 COM Ports for Serial Communication with Various Devices
  • With Mounting Ears for Wall-Mounted, Embedded, or Desktop Use
  • AMI Bios for Easy Configuration

Share to:

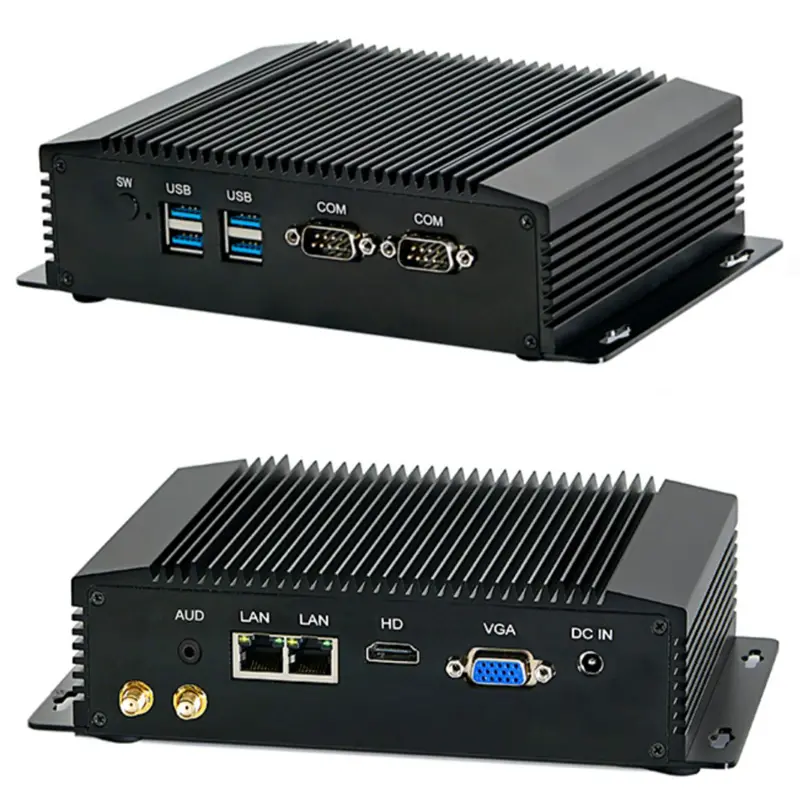

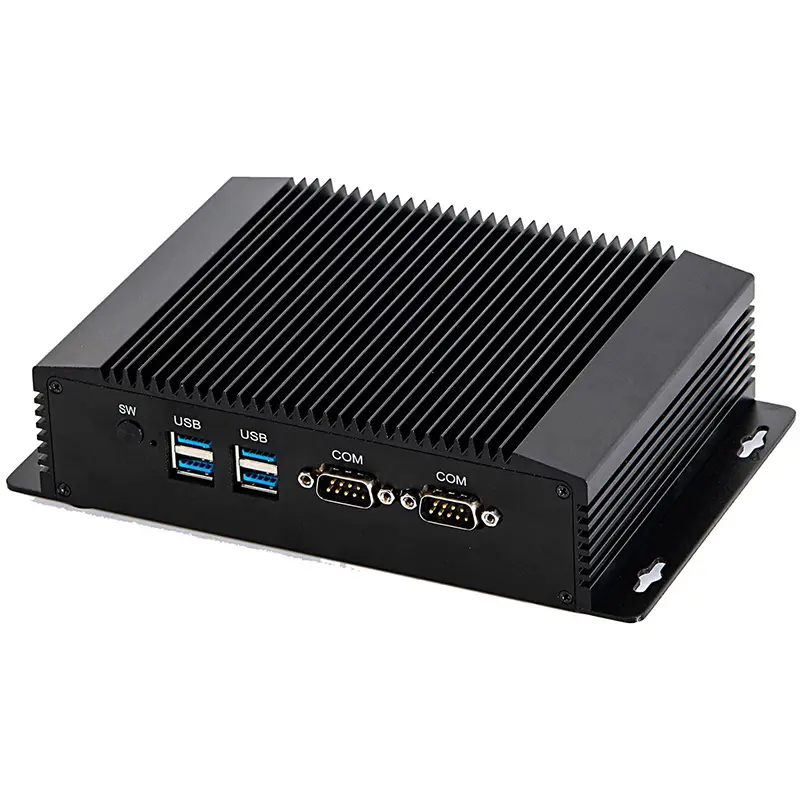

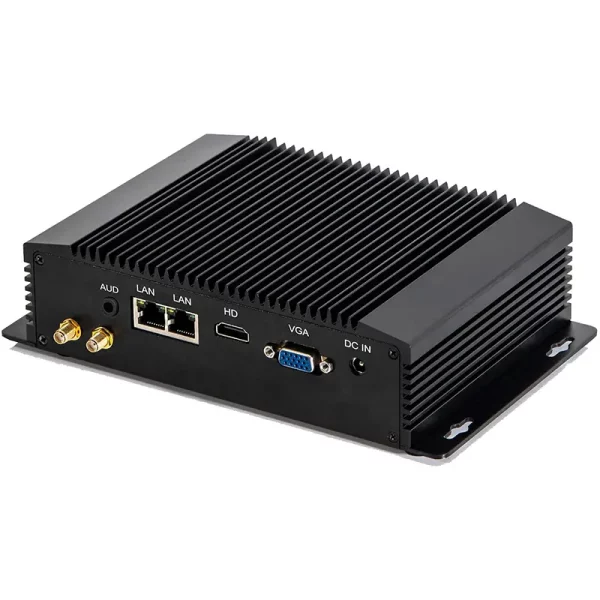

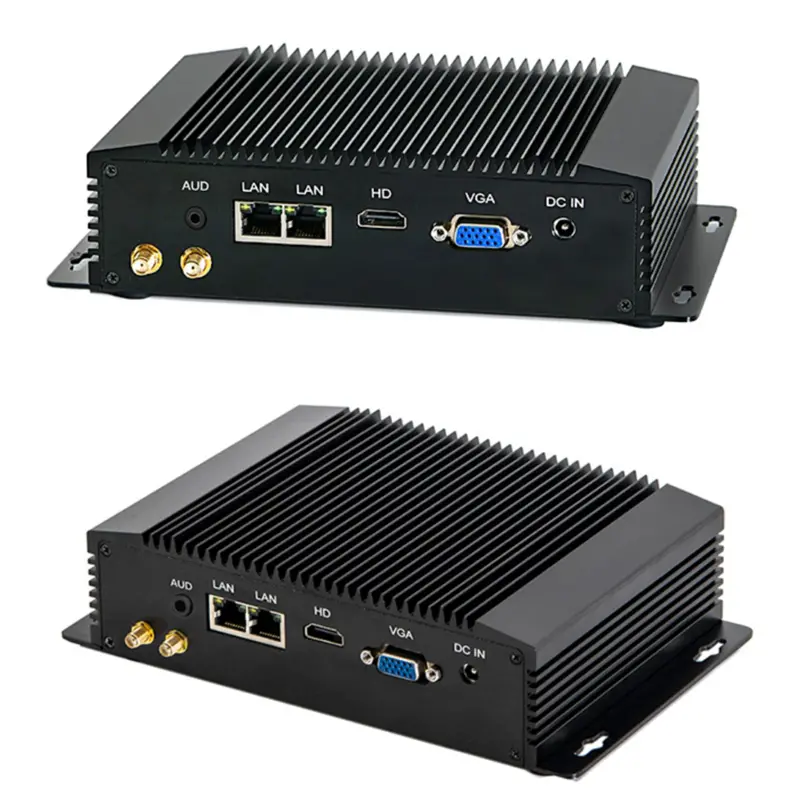

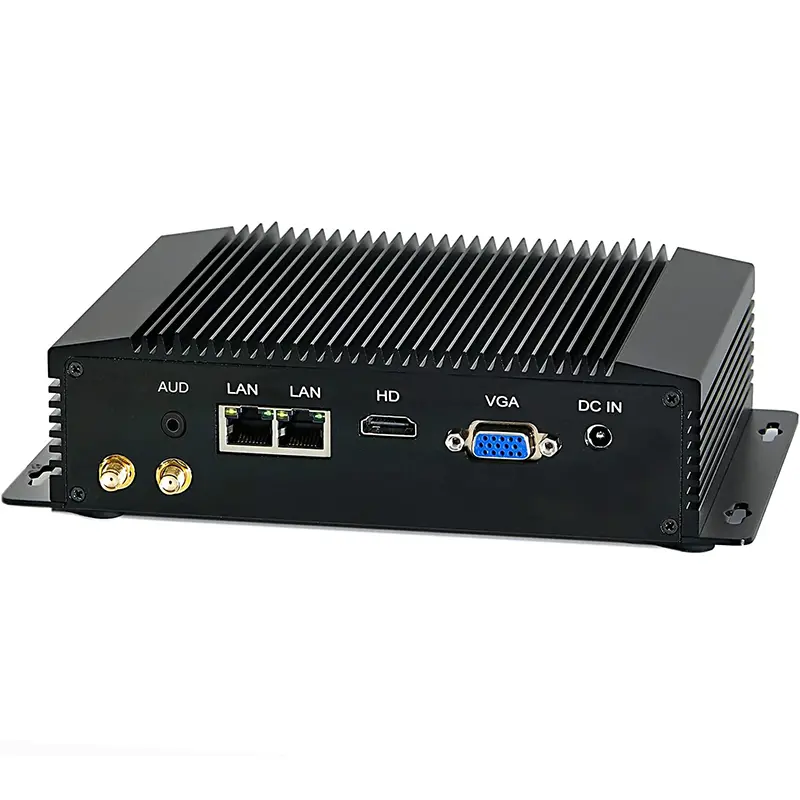

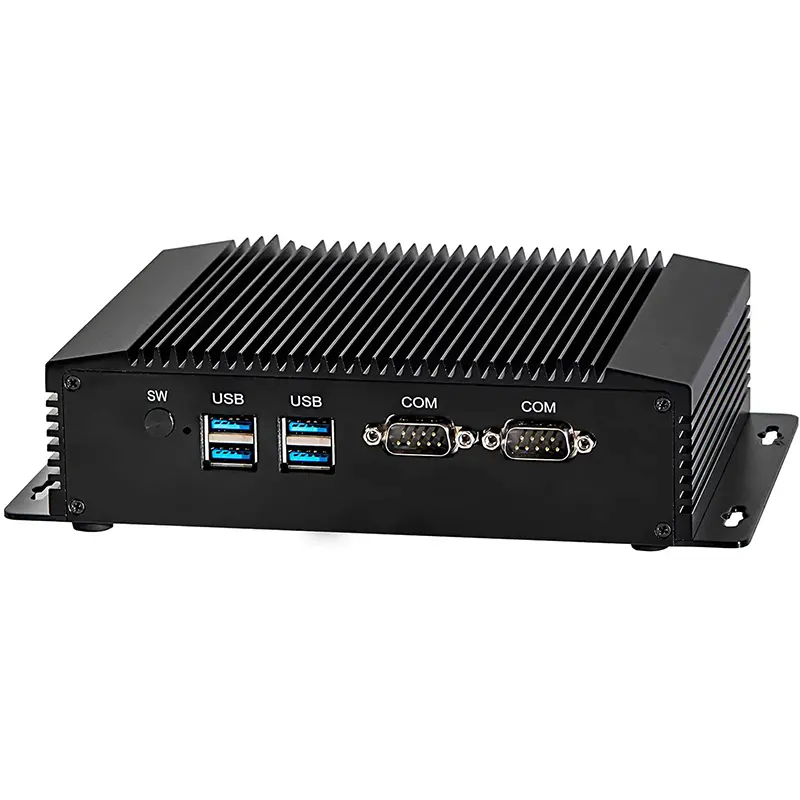

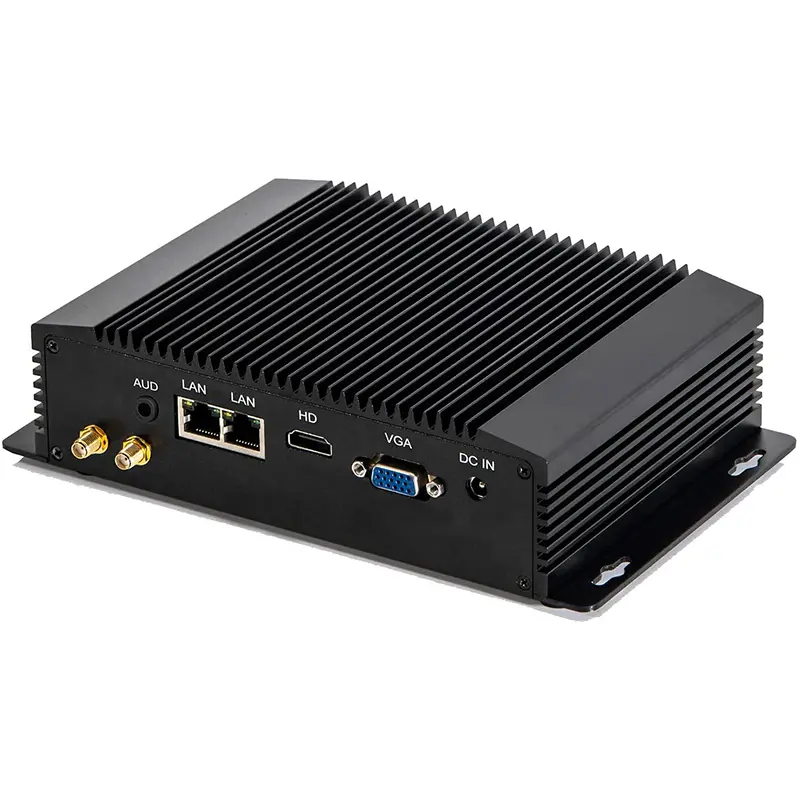

The Partaker I22 is a versatile industrial PC designed for robust performance. Crafted from durable aluminum alloy, it offers a compact form factor, making it ideal for wall-mounted, embedded, or desktop installations. Powered by Intel® processors, including the energy-efficient Celeron® 2955U and Core™ i3 options, it ensures efficient multitasking,This fanless system is engineered for reliability, featuring two Intel gigabit LAN ports and support for WiFi and Bluetooth connectivity. With ample memory and storage options, it provides the flexibility to meet various industrial needs. The comprehensive I/O interface includes USB3.0, COM ports, VGA, HDMI, and more.




Material Aluminum alloy
Colour Black
Size 170 x 125 x 50mm
Weight 1.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop
CPU Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-4010Y/4020Y Processor (3M Cache, 1.30 GHz)
Intel® Core™ i5-4200Y Processor (3M Cache, 1.90 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR4, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot
Front Panel 1 x Power button
4 x USB3.0
2 x COM
Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x Lan
1 x Audio
2 x WiFi antennas
Bios AMI bios
System Support Windows 10, linux ubuntu etc
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List Partaker I22 industrial pc, power supply, power cord, wifi antennas, warranty card
Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
I22 2955U Intel® HD Graphics 1.4 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
I22 I3 4010Y Intel® HD Graphics 4200 1.3 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
I22 I3 4005U Intel® HD Graphics 4400 1.7 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
I22 I5 4200Y Intel® HD Graphics 4200 1.4 GHz~1.9 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
