Overview
Crafted with high-quality pure aluminum, this Mini ITX case measures 214x200x54mm, weighing 2.5Kgs. Powered by Intel Core I5 42100/4300u Dual Core 1.9Ghz CPU, it supports VGA, HDMI display ports on a 17x17CM mini ITX motherboard.
Equipped with 2 x Intel i211-AT 10/100/1000M LAN cards and 1 x DDR3L slot (up to 8G), it offers storage options for MSATA, 2.5” SSD/HDD, and optional 2*2.5” HDD. Expansion slots include Mini-PCIE for optional wifi/3G/4G and embedded SIM Slot.
The front panel hosts 4 x USB2.0, 1 x COM, and a Power Switch, while the rear panel includes 2 x USB3.0, DC 12V, RJ45, VGA, HDMI, and 6 x COM ports. Operating fanlessly, supporting Windows 7/8/10, and Linux, it’s suited for various applications like Automat, ATM, Digital signage, Gaming, and more.”
Specifications
| Material | High-quality pure aluminum mini itx case |
| Colour | Black (color can be customized) |
| Size | 214 x 200 x 54mm |
| Weight | 2.5Kgs |
| Insallation Method | With mounting ears, Wall-mounted, embedded, desktop |
| CPU | Adopt Intel Core I5 42100/4300u Dual Core 1.9Ghz |
| Display Ports | 1 x VGA, 1 x HDMI |
| Mainboard | 17*17CM mini itx motherboard |
| Network Card | 2 x Intel i211-AT 10/100/1000M Lan |
| Memory | 1 x DDR3L 1333/1600MHz, support Max 8G |
| Storage | Support 1 x MSATA, 1 x 2.5”SSD/HDD (2*2.5” HDD optional) |
| Expansion | 1 x Mini-PCIE (support wifi/3G/4G optional), embedded SIM Slot |
| 1 x Mini-PCIE(support MSATA) | |
| Optional Port: GPIO, LPT port (Standard version without this port) | |

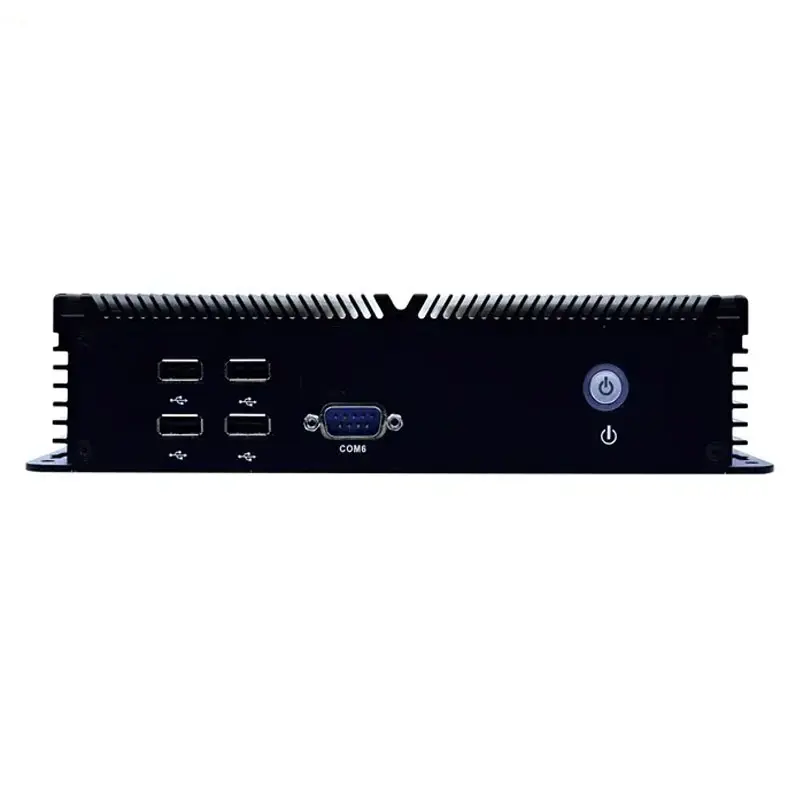

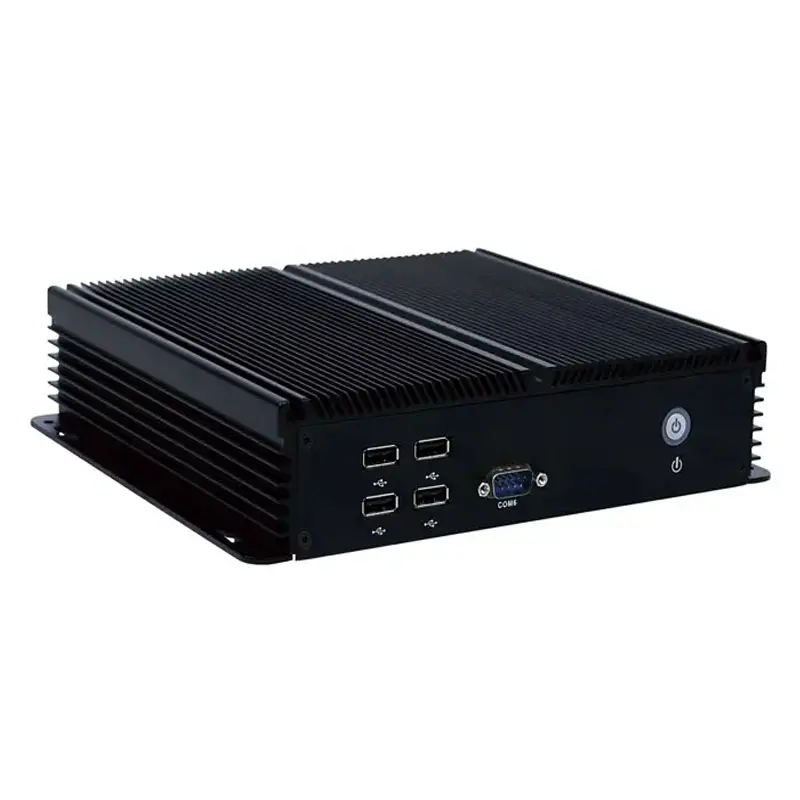

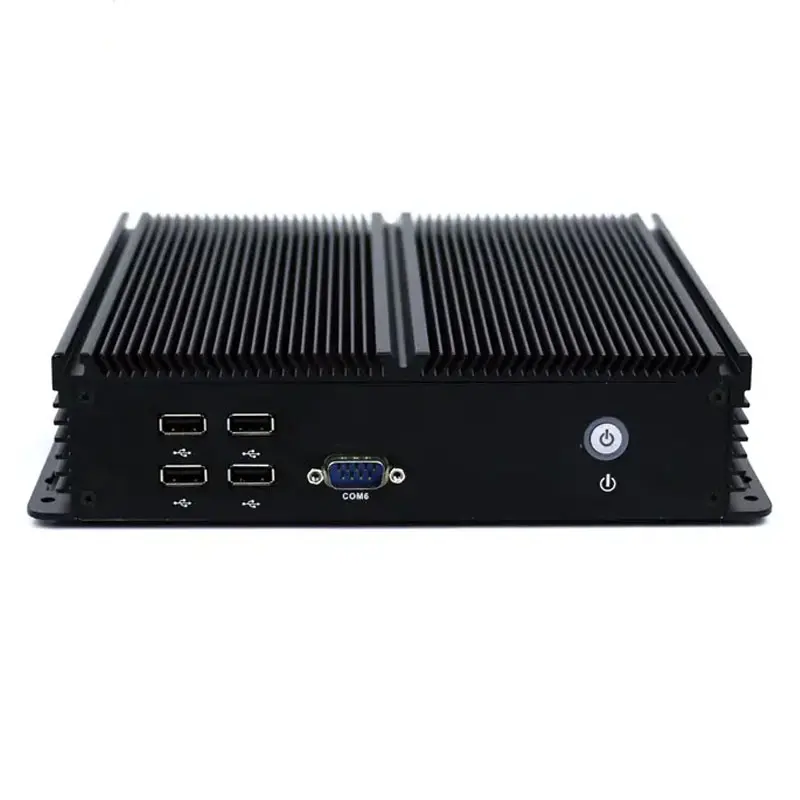

| Front Panel | 4 x USB2.0 |
| 1 x COM | |
| 1 x Power Switch | |

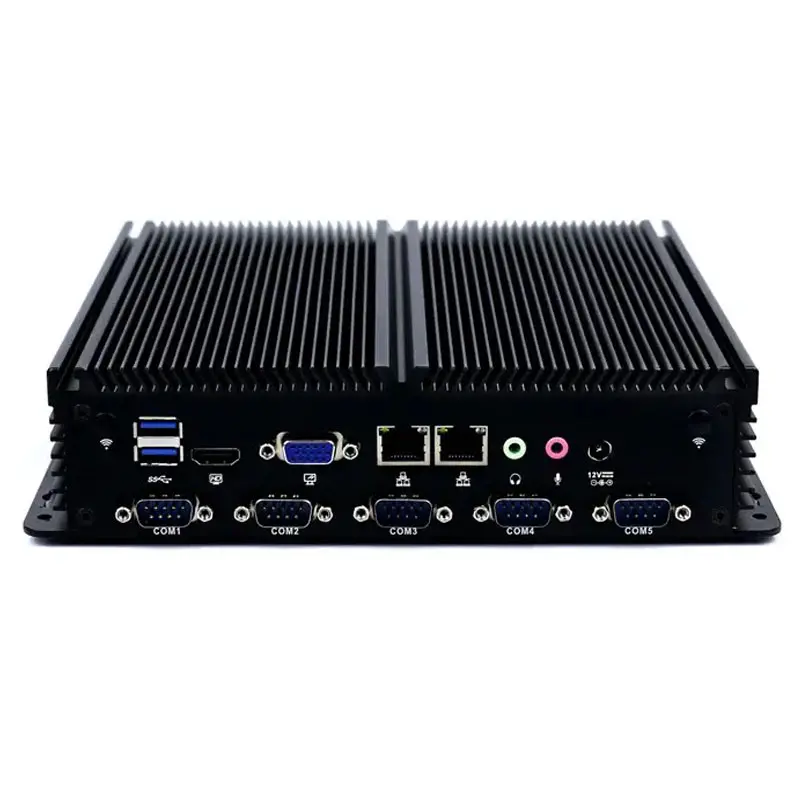

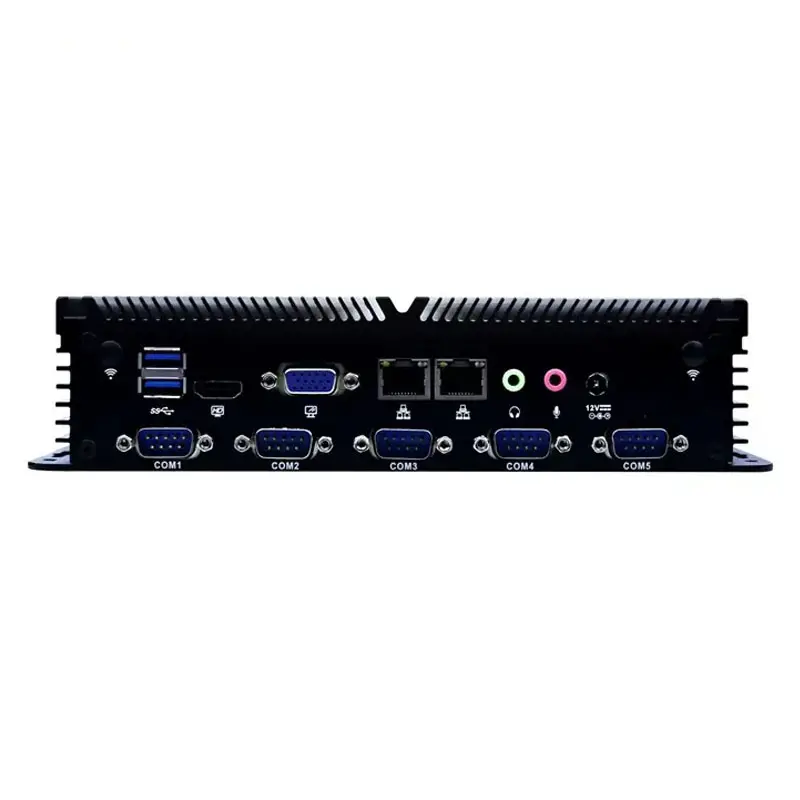

| Rear Panel | 2 x USB3.0 |
| 1 x DC 12V | |
| 2 x RJ45 | |
| 1 x VGA | |
| 1 x HDMI | |
| 6 x COM(COM3 support RS232/422/485 optional) | |
| 1 x Mic | |
| 1 x Line out | |
| Bios | AMI 64Mbit SMT Flash ROM |
| System Support | Windows 7/8/10, Linux |
| Cooling Mode | Fanless |
| Power Supply | DC-IN 12V |

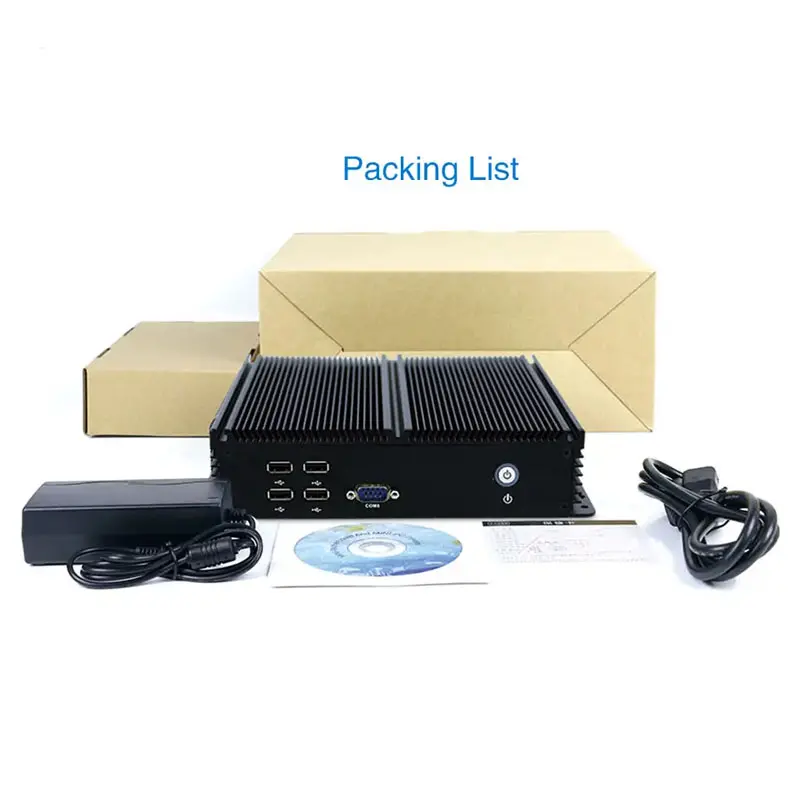

| Packing List | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable |
| Work Temperature | -10 ~ 60 °C |
| Relative Humidity | 5 % ～ 95% non-condensing |
| Certification | CE FCC ROHS |
| Application | Automat, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking, Gaming, Transportation etc. |
