Overview
The Partaker I11 Industrial Mini PC is a robust and versatile computing solution. It boasts an aluminum alloy construction and can be installed as a wall-mounted, embedded, or desktop system.
Powered by various Intel Core processors, including i3, i5, and i7, it offers outstanding performance. Dual Intel gigabit Ethernet ports and 802.11ac support ensure reliable networking. This PC supports up to 32GB of DDR4 RAM and offers flexible storage options with multiple interfaces。
It features a wide range of I/O ports, including USB 3.0, USB 2.0, VGA, HDMI, and audio. The fanless design provides silent operation, making it suitable for noise-sensitive environments.
With support for Windows 10 and Linux Ubuntu, it’s versatile in terms of operating systems. The PC operates reliably in temperatures from 0°C to 70°C, making it suitable for challenging conditions.
Specifications
| Material | Aluminum alloy |
| Colour | Black |

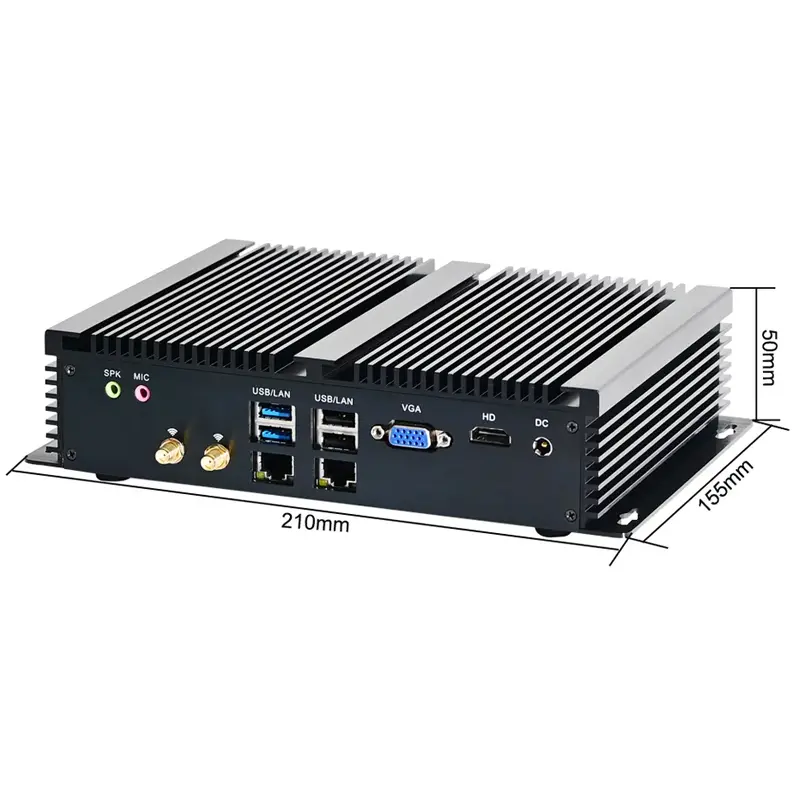

| Size | 210 x 155 x 50mm |
| Weight | 2.5Kgs |
| Insallation Method | With mounting ears |
| Wall-mounted, embedded, desktop | |
| CPU | Intel® Core™ i3-6006U/6157U Processor (3M Cache, 2.00 GHz) |
| Intel® Core™ i3-7167U Processor (3M Cache, 2.80 GHz) | |
| Intel® Core™ i5-7200U/7267U Processor (3M Cache, up to 3.10 GHz) | |
| Intel® Core™ i5-8250U/8260U Processor (6M Cache, up to 3.40 GHz) | |
| Intel® Core™ i7-8550U/8565U Processor (8M Cache, up to 4.00 GHz) | |
| Intel® Core™ i7-7510U Processor (4M Cache, up to 3.70 GHz) | |
| Intel® Core™ i7-7560U Processor (4M Cache, up to 3.80 GHz) | |
| Chipset | SOC |
| Network Card | 2 x Intel I211 10/100/1000 gigabit ethernet nics |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SO-DIMM DDR4, up to 32GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME) |
| Expand | 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard |

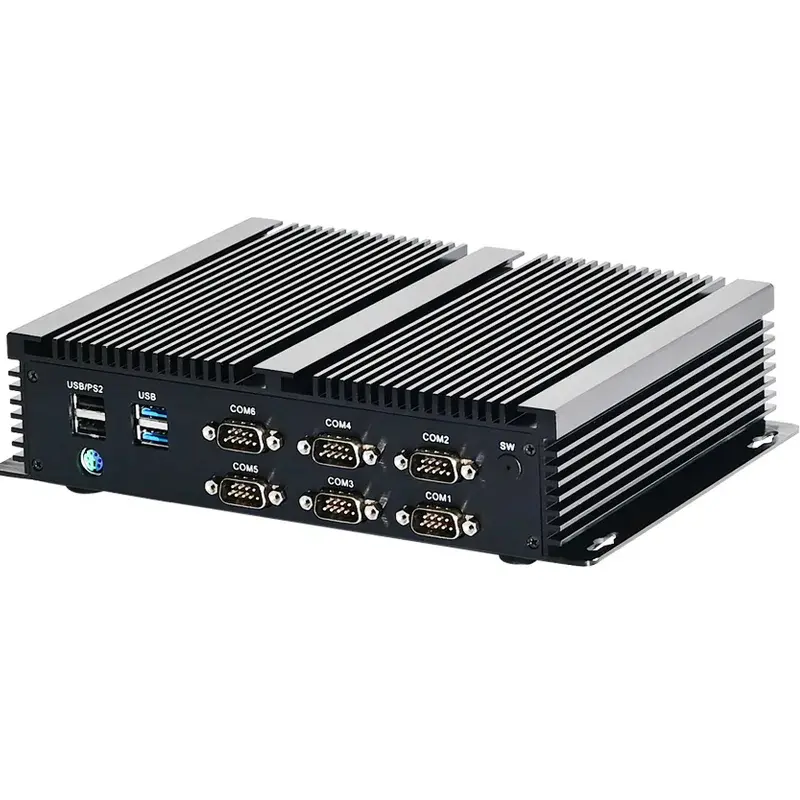

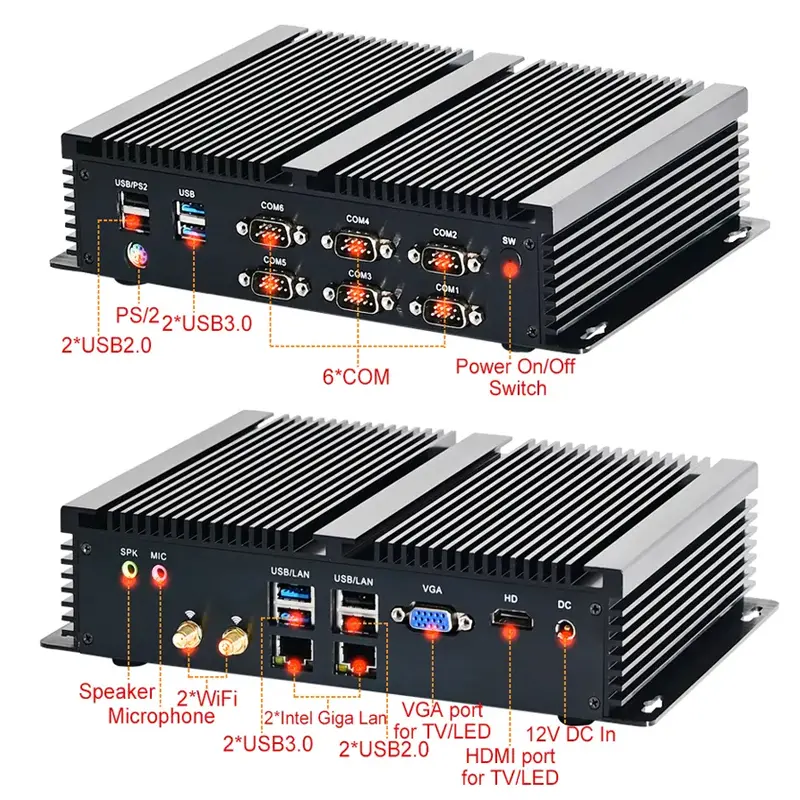

| Front Panel | 1 x Power button |
| 6 x COM (COM1 COM2 for RS232 RS422 RS485) | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 1 x PS/2 | |

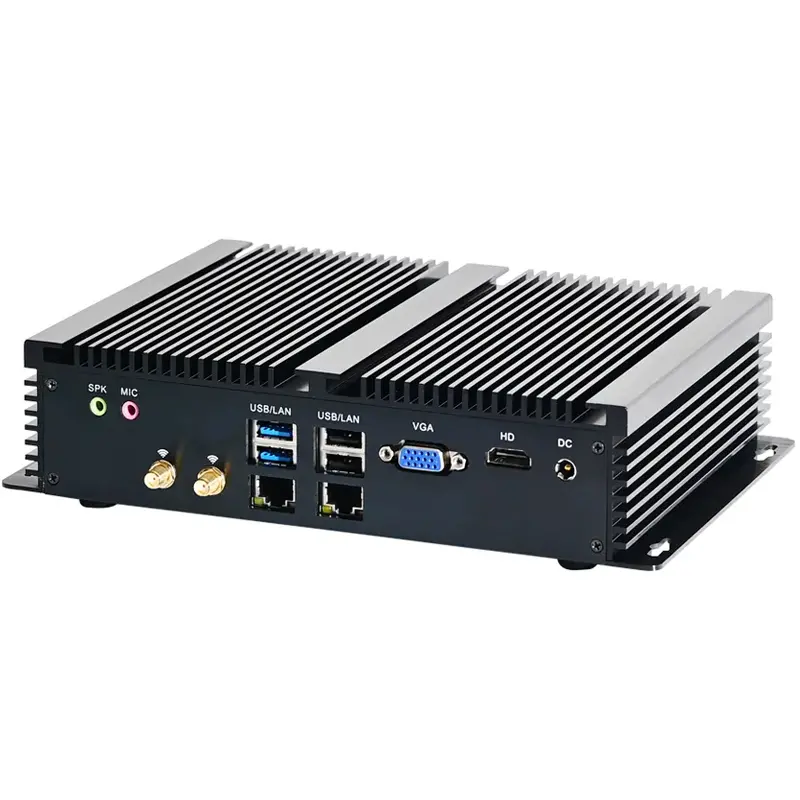

| Rear Panel | 1 x DC_in |
| 1 x VGA | |
| 1 x HDMI | |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 2 x Lan | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A |
| Packing List | Partaker I11 industrial pc, power supply, power cord, wifi antennas, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
