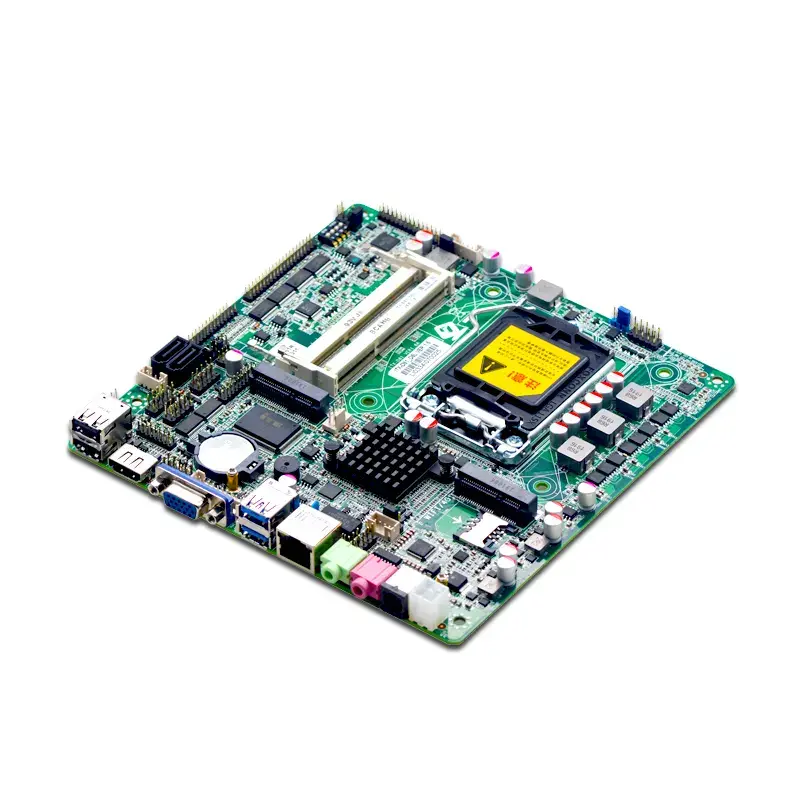

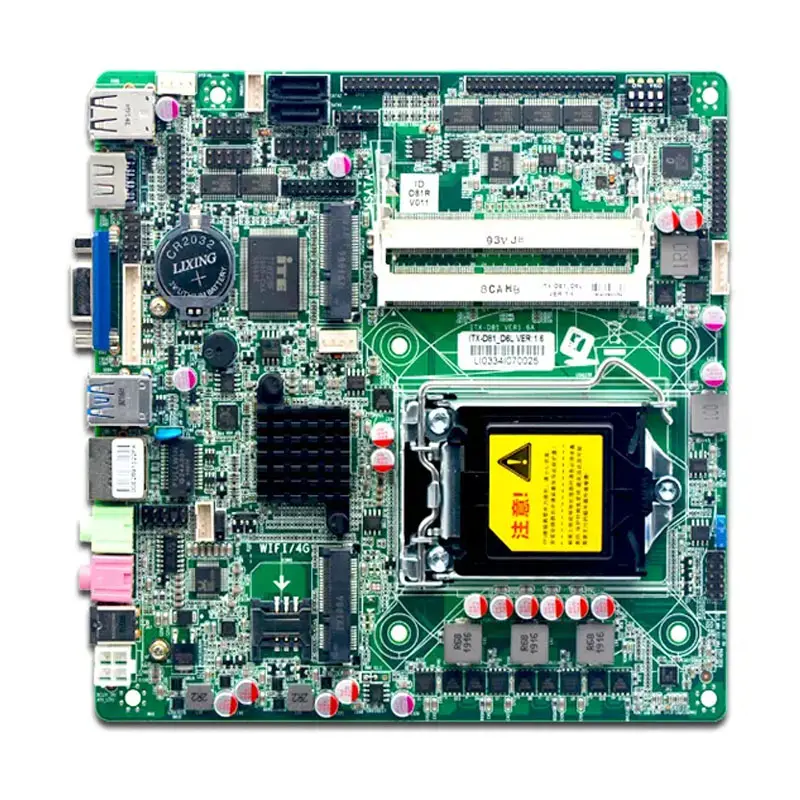

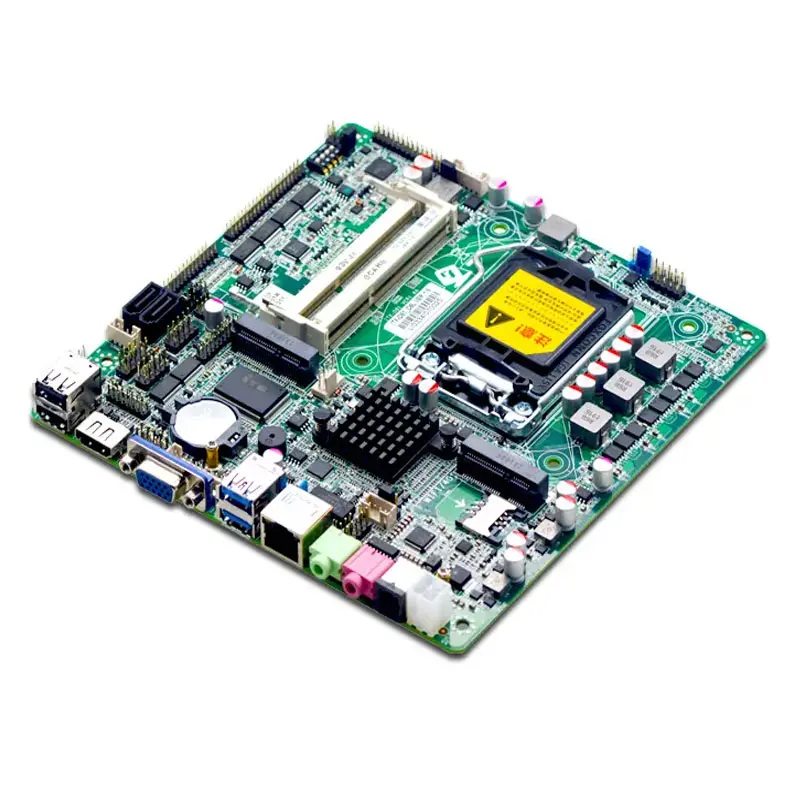

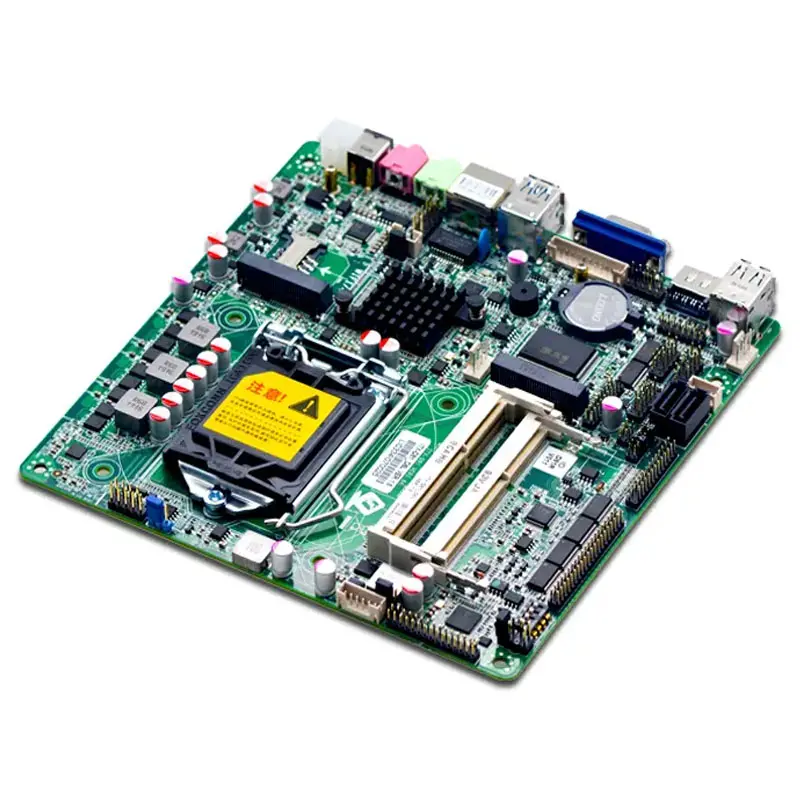

H81 Chipset Desktop LGA1150 Mainboard

  • LGA1150 CPU Compatibility
  • Dual-Channel DDR3 Support
  • Integrated Intel HD Graphics
  • Versatile Display Outputs (VGA/HDMI/LVDS)
  • Expansion for Mini-PCIE Wi-Fi
  • Gigabit Ethernet with Wake-on-LAN
  • SATA & MSATA SSD Support
  • Wide DC Power Input Range
  • Comprehensive BIOS and Watchdog Support

Share to:



ITX-D81_D6L VER:1.5: LGA1150 Intel Core i3/i5/i7 Processor, Intel H81 Chipset. Supports Dual-Channel DDR3, Intel HD Graphics, HDMI/VGA/LVDS display. Features SATA, MSATA SSD, Realtek HD Audio, Gigabit LAN, USB 3.0/2.0, GPIO, and hardware reset. Ideal for compact applications requiring reliable performance and versatility.”




Model NO. ITX-D81_D6L VER:1.5
CPU LGA1150 Intel® Core™ i3/i5/i7 32nm/22nm Processor
Chipset Intel® H81 Chipset
Memory 2* dual channel SO DDRIII 1333/1066MHz, Single memory slot supports Max. Up to 8GB
Graphics Intel® HD Graphics
support VGA/HDMI/LVDS display output,
LVDS supports dual 24bit , LVDS support the voltage of dc 12V screen, default is 3.3V .
support synchronous/asynchronous display
Expansion Slots 1* Mini-PCIE, support WIFI
LAN 1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
Storage 2* SATA(SATA1 is SATA ,transfer speed up to 6Gbps )
1* MSATA, support SSD 6Gbps , transfer speed up to 6Gbps
Audio Integrated Realtek HD ALC662 for 6-Channel output,
support Power amplifier , Recommend to use 3Ω2W speaker
Support MIC/Line-out

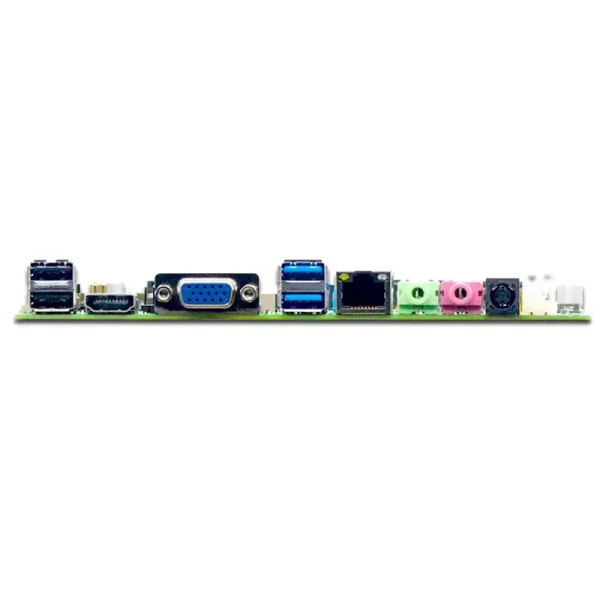

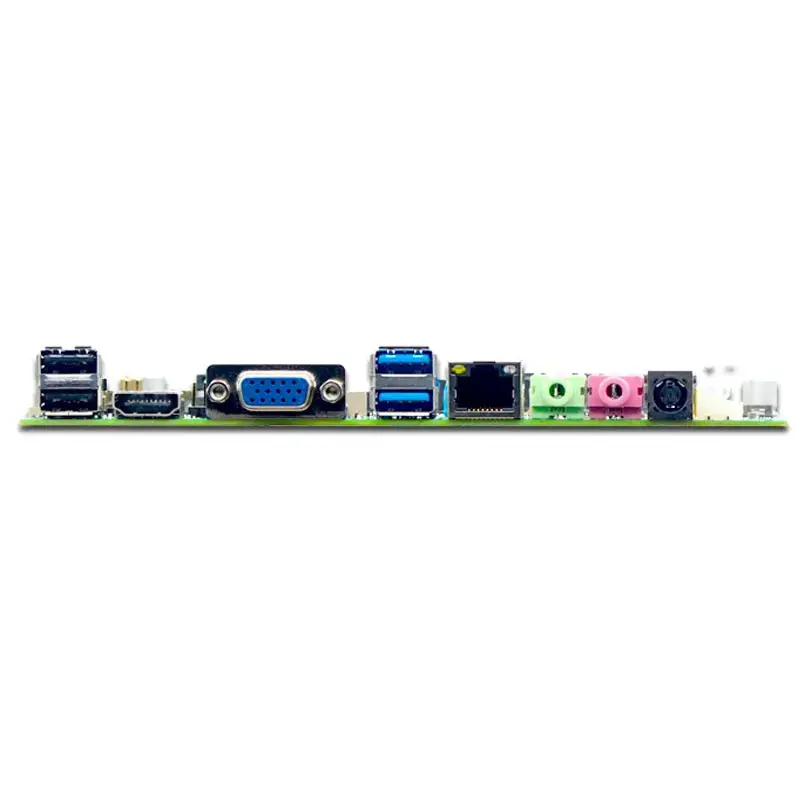

Rear I/O 2* USB 2.0
2* USB3.0
1* VGA
1* RJ-45 LAN
2* AUDIO I/O (MIC and Line-out)
1* DC12-19V 19V input interface
Internal I/O 1* LVDS 2*15pin , Support Dual Chanel 24bit LCD( dual 8)
1* JVGA 12pin , with the same signal to DB15 VGA
1* JHDMI ,2*8pin , support dual HDMI display output
6* COM,COM3 supports RS422/485
1* LPT ,2*13 pin
2* USB 2.0, 2*5 pin
2* USB 3.0 , 2*10 pin
1* KB/MS ,6*pin
1* AUDIO pin (Front Audio interface 2*5pin)
1* Amplifier interface, can be directly connected speaker output
1* FP1 (2*5pin ,Front panel buttons and LED indicator connector)
1* ATX 4 pin ,Can be used as input and output 19V power connector)
1* LVDS INVERTER(1*6pin)
2* PWROUT (HDD power connector)
Fan interface 1* CPUFAN 4pin 1* SYSFAN 3pin
GPIO 1* GPIO (Support 4-way GPIO function)
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC 12V -19V Single power supply
Operating Temp. -10°C~60°C
Storage Temp. -20°C~70°C
Humidity 5%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.

Model Processor Southbridge Memory VGA LVDS HDMI LAN EDP USB RS485 COM Power
ITX-D81_D6L VER:1.0 LGA1150 H81 2*SODDR3




1*RTL8111H / 6 COM3 6 DC12~19V
