H8 OPNsense Mini PC J4125 N4000 N5000 with 4 LAN”

  • Compact and Durable Aluminum Alloy Structure
  • Customizable Color and Installation Method
  • VGA and HDMI Display Ports for Dual Monitors
  • Up to 16GB DDR4 Memory and Dual Storage Slots
  • Mini PCIE Slot for Wireless Connectivity
  • Fanless Cooling Mode for Silent Operation
  • Low Power Consumption and Energy Saving

Share to:



Discover our advanced Firewall Appliance, meticulously crafted with an aluminum alloy structure and customizable in sleek black. Compact at 140 x 130 x 42 mm, yet robust at 1.3 kg, it offers desktop, wall mount, and VESA installation options. Featuring Intel Celeron J4125/N4000 and Pentium Silver N5000 CPUs, with VGA and HDMI display ports, this appliance integrates 4 x I226V (Default) network cards and expandable DDR4 SO-DIMM memory slots. With a fanless cooling system, AMI UEFI BIOS, and compatibility with Windows, Linux, and security software like pfSense, it ensures reliable, high-performance operations for firewall, VPN, network server, and routing applications. Certification includes CE, FCC, and ROHS, catering to varied environments from commercial HDD to industrial SSD with exceptional functionality. The package includes the appliance, power supply, cord, VESA mount, and warranty card, promising a comprehensive user experience in a wide temperature range.




Material Aluminum alloy structure
Colour Black (color can be customized)
Size 140 x 130 x 42 mm
Weight 1.3 kg
Insallation Method Desktop
Wall Mount
CPU Intel Celeron J4125 4 Cores 4 Threads
Intel Celeron N4000 2 Cores 2 Threads
Intel Pentium Silver N5000 4 Cores 4 Threads
Display Ports 1 x VGA; 1 x HDMI
Network Card 4 x I226V (Default), I225V (Optional), I211(Optional)
Memory 2 x DDR4 2133/2400MHz SO-DIMM (Single up to 8GB)
Storage 1 x Mini SATA SSD; 1 x 2.5-inch HDD/SSD
Chipset Depend on CPU
Other function Power on, scheduled boot, wake on LAN, PXE boot, watchdog
Expansion Slot 1 x Mini PCIE Channel for WIFI/Bluetooth/4G
Application Firewall, VPN, network server, network security, router and other fields.

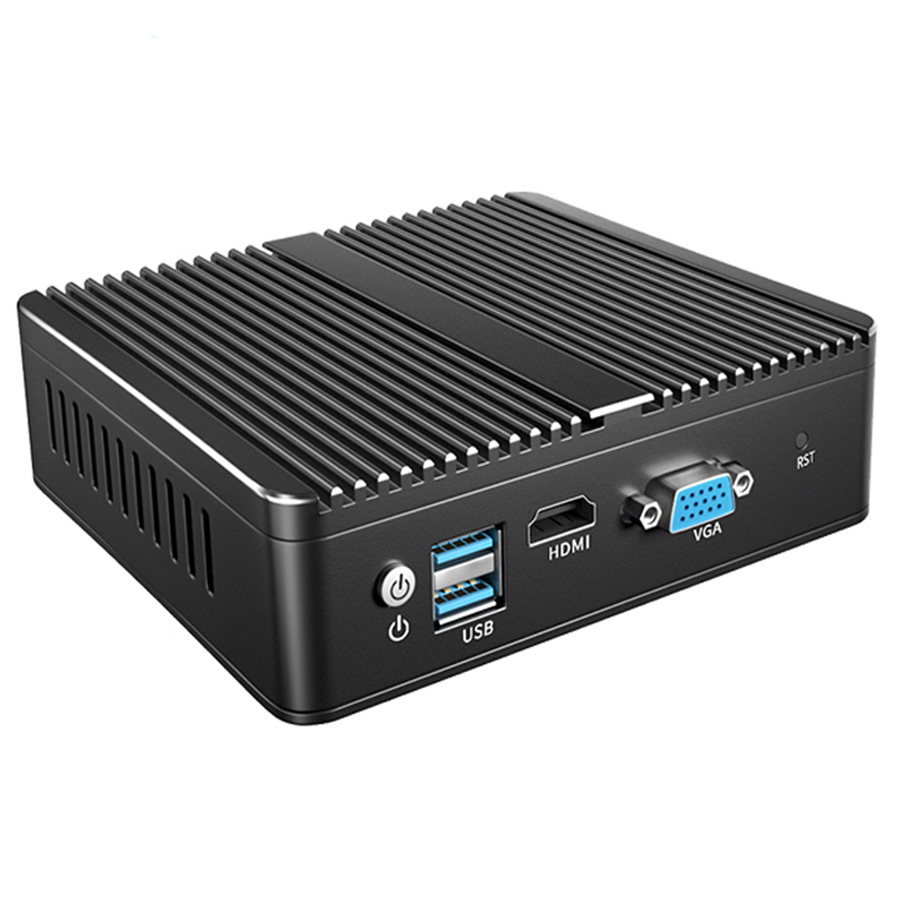

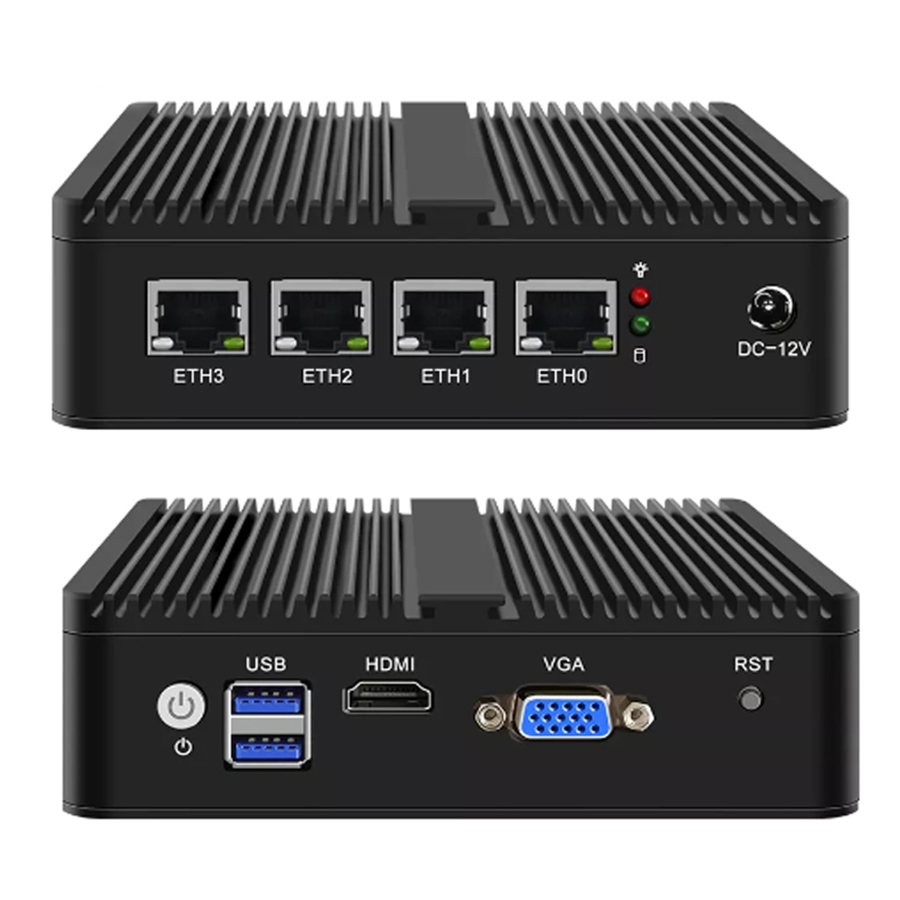

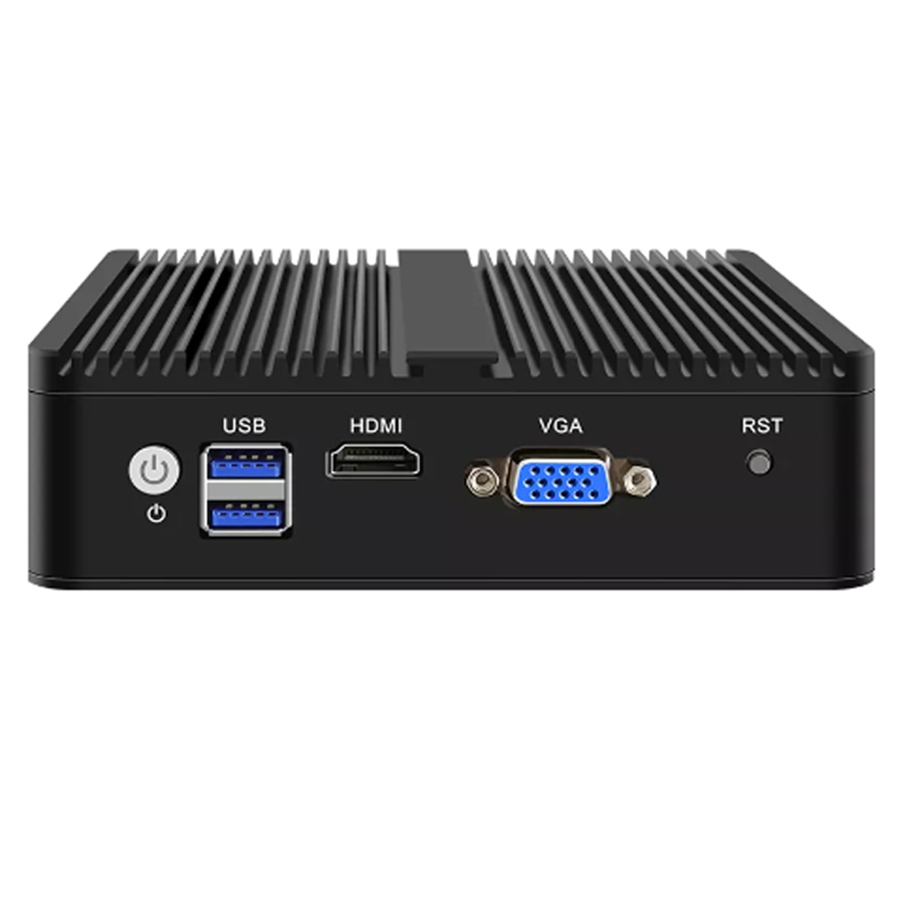

Front Panel 1 x Power Button
1 x DP
2 x USB3.0
1 x VGA
2 x WiFi Holes

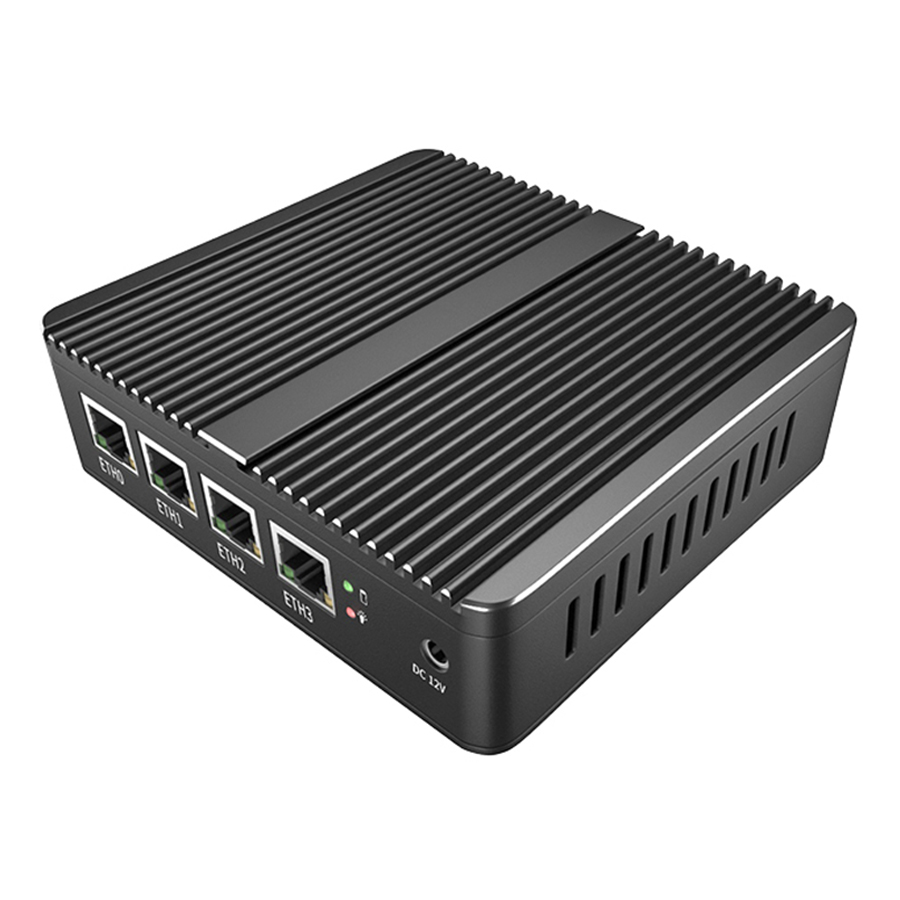

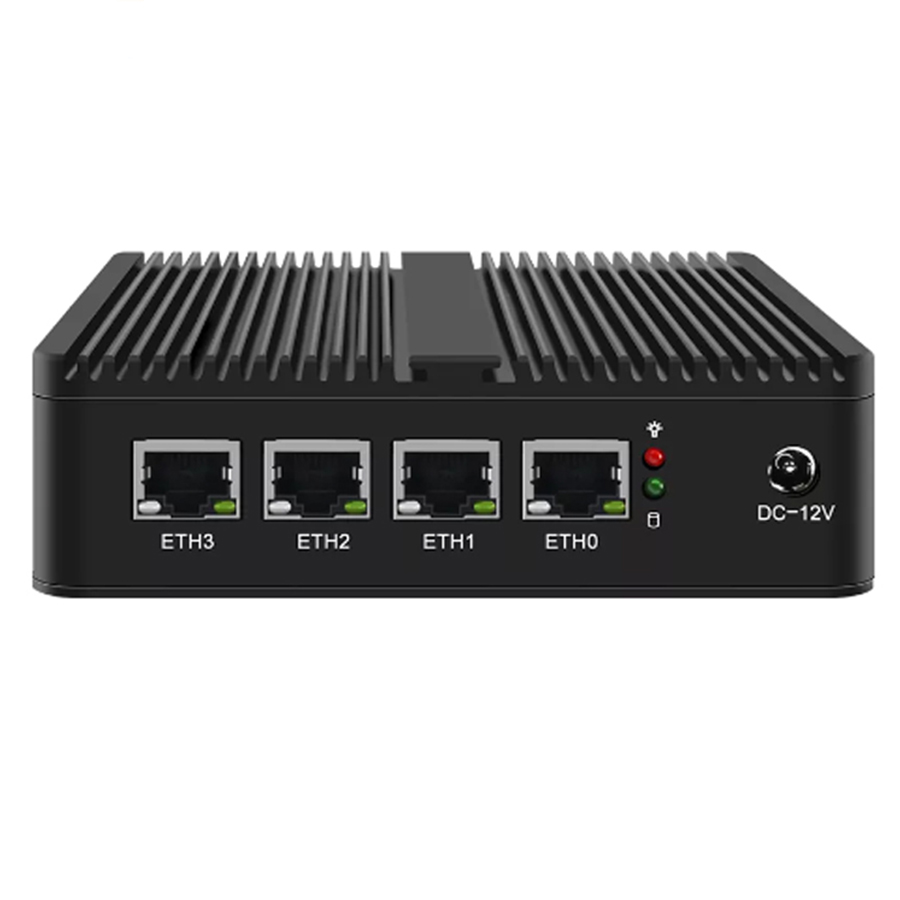

Rear Panel 4 x LAN
1 x DC In
1 x Power hard disk indicator light
System Support Windows/Linux/Centos/Ubuntu/pfSense/OPNsense
Cooling Mode Fanless
Power Supply DC 12V
Packing List Firewall appliance, power supply, power cord, vesa mount, warranty card
Work Temperature 0C ~ +40 C Commercial HDD, -20C ~ -60C Industrial SSD, surface air flow
Work Humidity 0%~95% non-condensing
Certification CE FCC ROHS

Get quote

If you have any question or inquiry, please don’t hesitate to contact us.


Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H8 J4125 Intel® UHD Graphics 600 2.0~2.70GHz HDMI/VGA  2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch HDD/SSD 4 2 DC 12V
H8 N5000 Intel® UHD Graphics 605 1.1~2.70GHz HDMI/VGA  2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch HDD/SSD 4 2 DC 12V
H8 N4000 Intel® UHD Graphics 600 1.1~2.60GHz HDMI/VGA  2 x SO-DIMM DDR4 1 x mSATA/1 x 2.5 Inch HDD/SSD 4 2 DC 12V
