Overview
The H7-B Mini PC leverages robust aluminum alloy in a sleek, fanless design, ensuring high efficiency with Intel® Celeron™ N5100/N5105 processors. Equipped with a range of network interfaces, featuring 2.5G LAN and flexible installation options, it supports versatile operating systems and ample memory options. Its comprehensive BIOS, power-packed connectivity, and certification render it an ideal solution for secure networks, optimized for various environments, maintaining optimal operating conditions..
Specifications
| Material | Aluminum alloy |
| Colour | Black |
| Size | 136 x 125 x 40mm |
| Weight | 1.5Kgs |
| Insallation Method | Desktop type |
| Vesa mounted installtion | |
| CPU | Intel® Celeron™ N5100, 4 Core 4 threads, 1.10GHz up to 2.8GHz, 4MB Cache |
| Intel® Celeron™ N5105, 4 Core 4 threads, 2.0GHz up to 2.9GHz, 4MB Cache | |
| Network Card | 4 x Intel i225-V B3(2.5G network card), 4 x Intel i226-V |
| Memory | 2 x SO-DIMM DDR4 Slot, 2400/2666/2933MHz |
| Storage | 1 x M.2 NVMe(PCIE3.0 x 2), 1 x SATA3.0 |
| Graphic | Intel UHD Graphics 450MHz-800MHz |

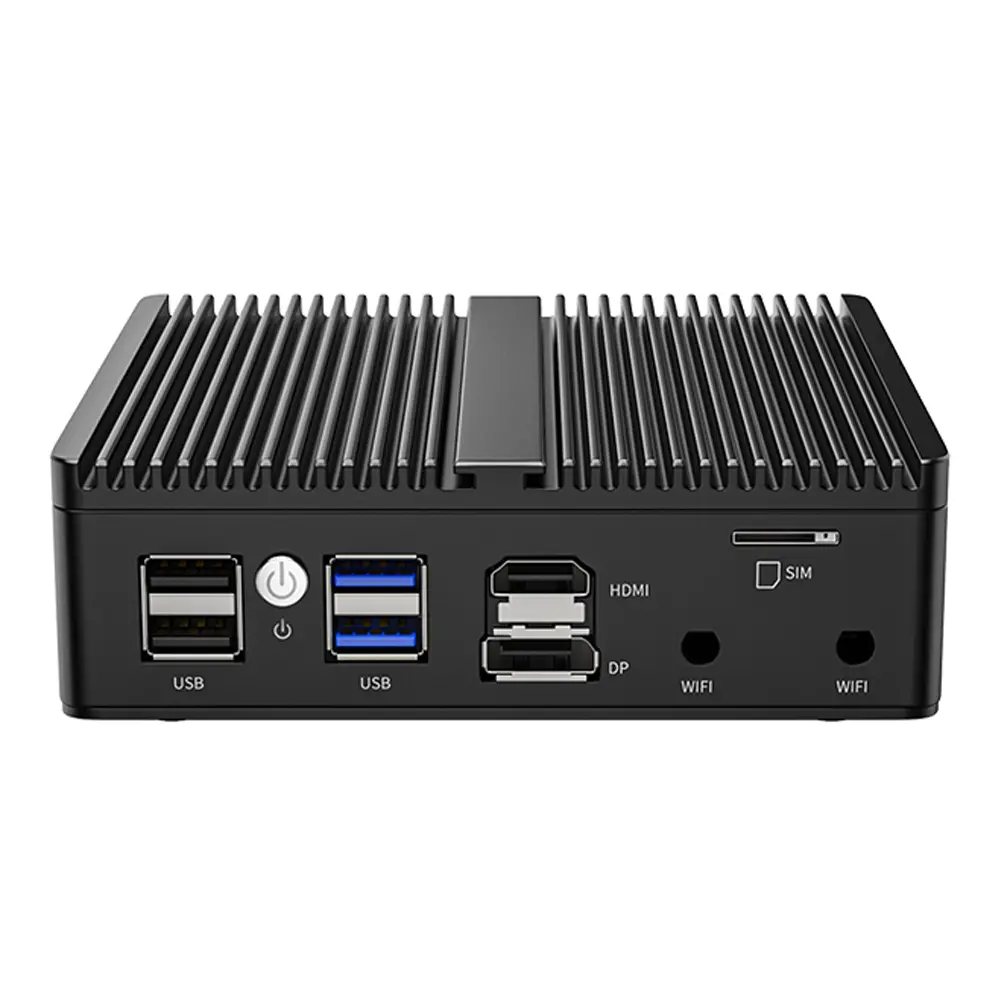

| Front Panel | 2 x USB2.0 |
| 2 x USB3.0 | |
| 1 x Power On/Off | |
| 1 x HDMI | |
| 1 x DP | |
| 1 x SIM Slot | |
| 2 x WIFI Holes | |

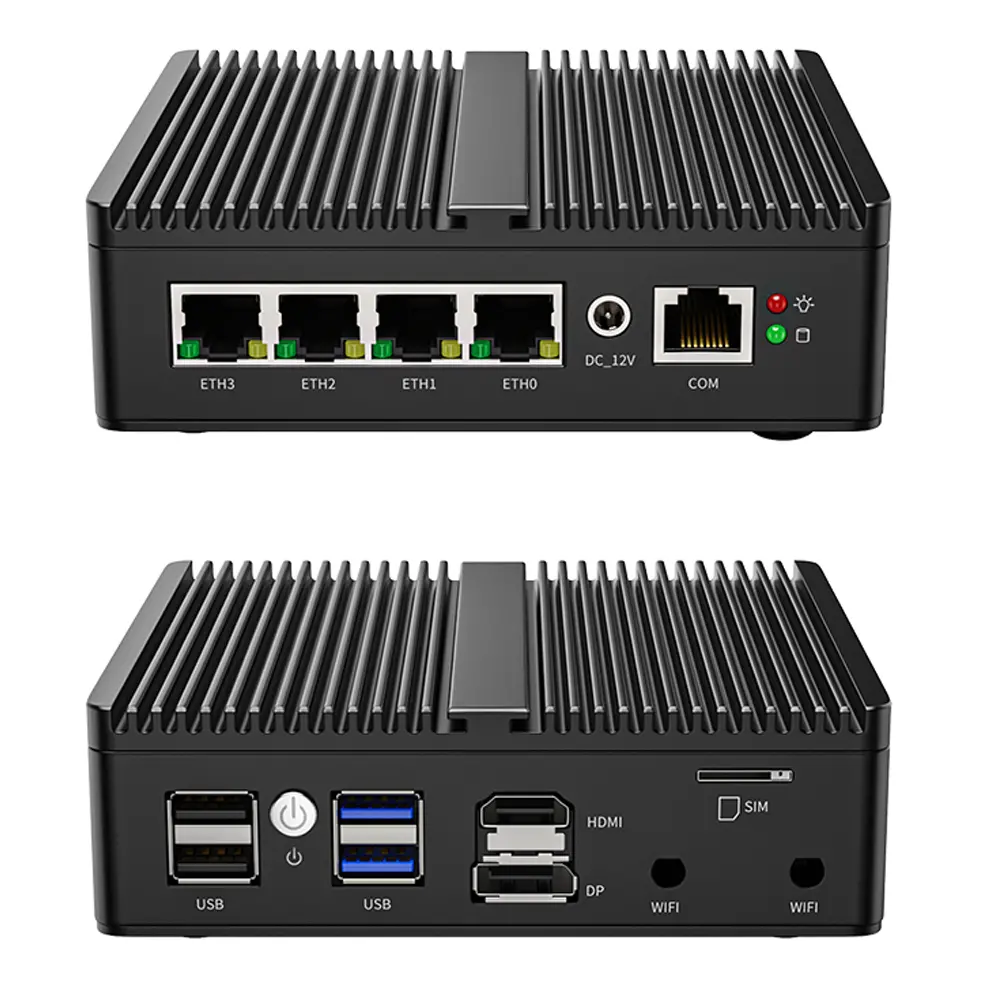

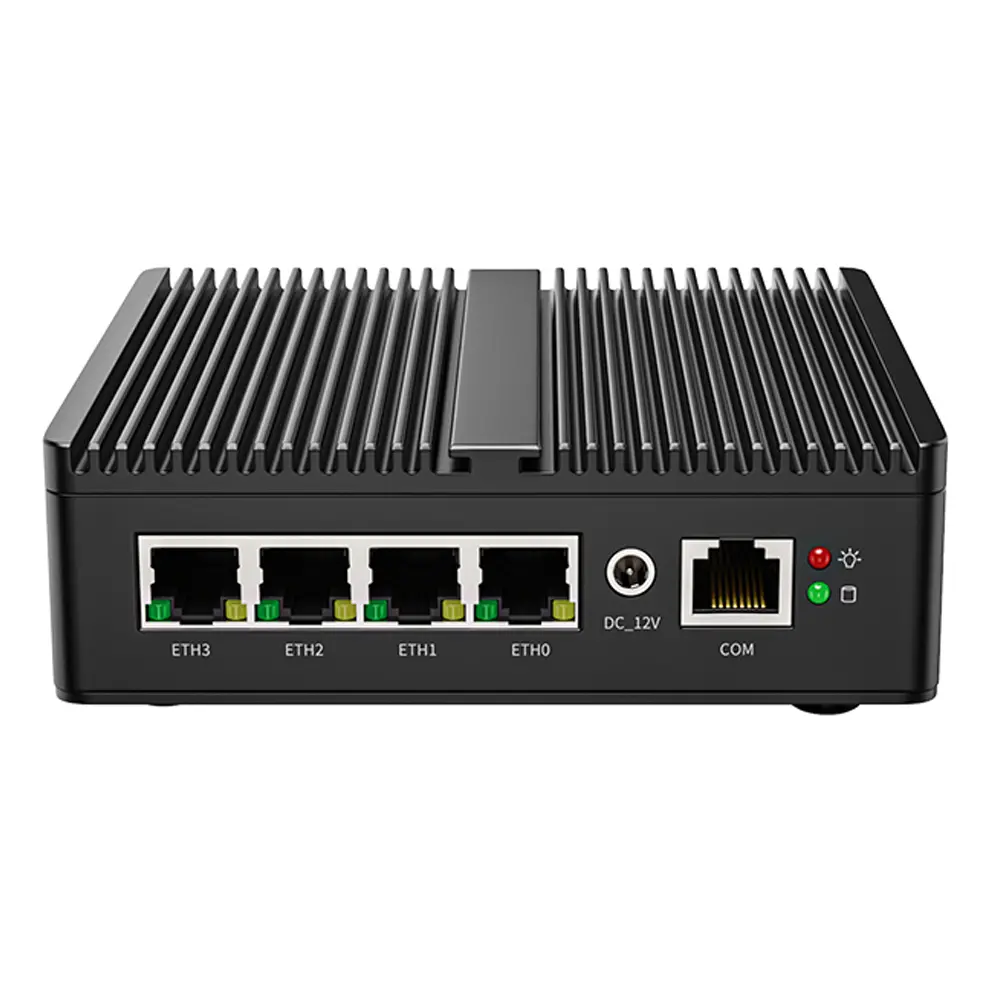

| Rear Panel | 4 x 2.5G LAN |
| 1 x DC-12V | |
| 1 x Console | |
| 1 x Power indicator | |
| 1 x Hard disk indicator | |
| Bios | AMI bios |
| System Support | Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc |
| Cooling Mode | Fanless |
| Power Supply | DC 12V/3A-5A, 100-240V 50/60Hz(5.5 x 2.5 connector) |
| Packing List | H7-B mini pc, power supply, power cord, vesa bracket, warranty card |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
